8-03 | LAMP; REAR AND REAR SIDE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

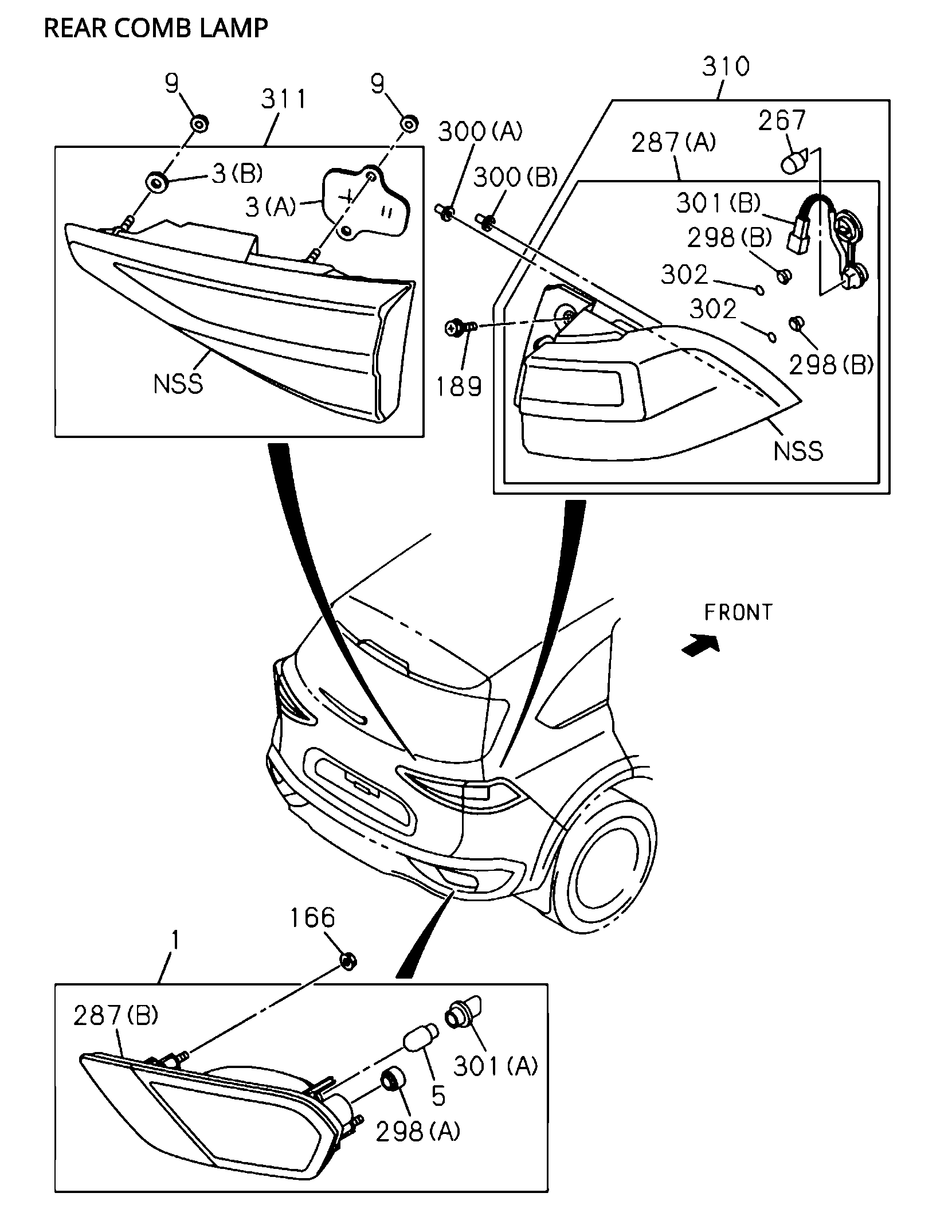

| 287 | I8-97684 403-0 | LAMP UNIT; RR COMB | 1 | 2103- | R | AB | (B) | |
| 302 | I8-98001 518-0 | FILTER; BREATHER,RR COMB LAMP | 4 | 2103- | AB | |||
| 57 | I8-94279 043-0 | WASHER; PL,LICENSE PLATE LAMP | 2 | 2103- | AB | D=7.8X7.8 L=18 NATURAL IMA | ||
| 267 | I8-97678 928-0 | BULB; TURN SIGNAL | 2 | 2103- | AB | 12V 21W | ||

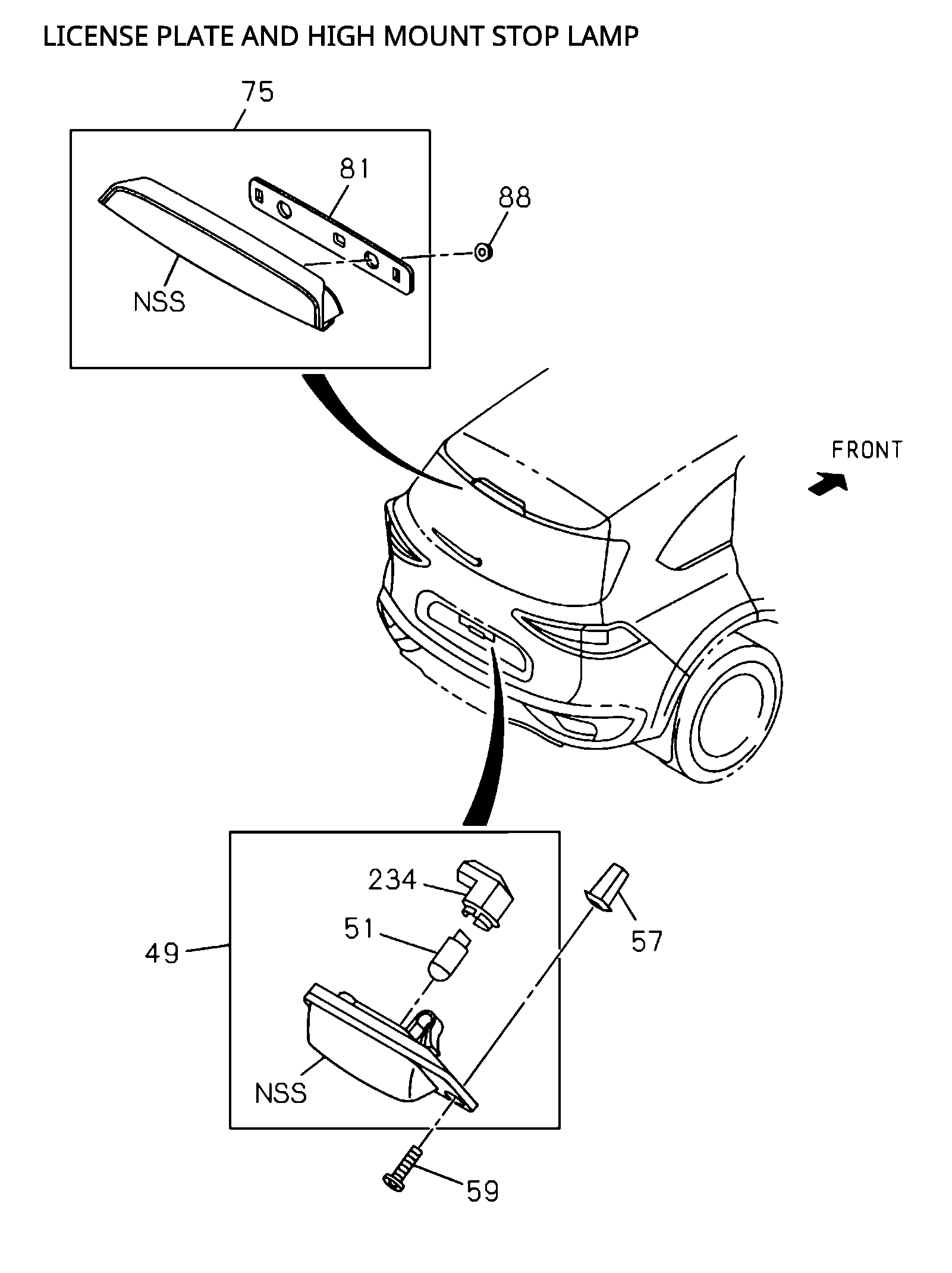

| 75 | I8-98328 815-3 | LAMP ASM; STOP.HIGHMOUNTED | 1 | 2103- | AB | |||

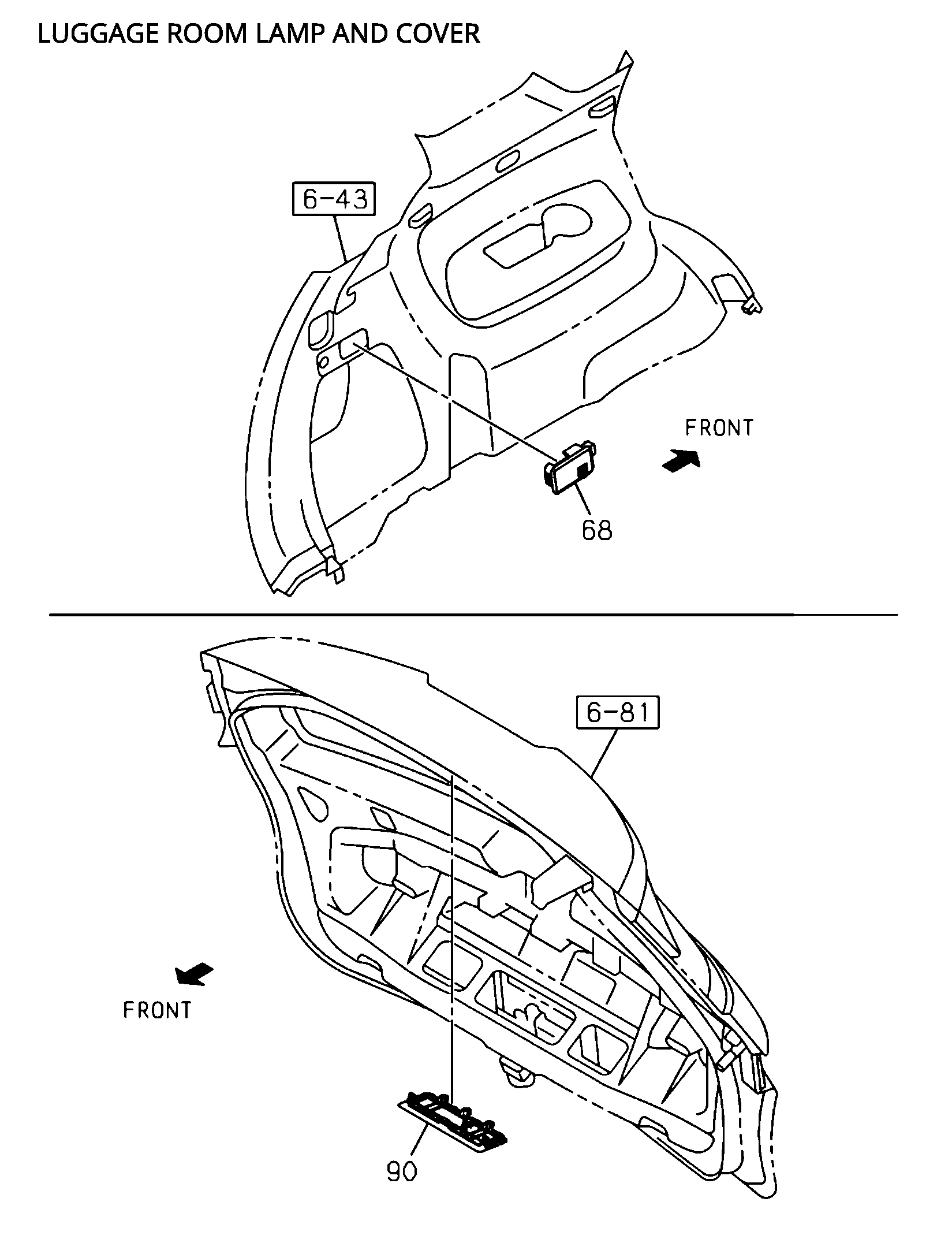

| 68 | I8-97494 804-0 | LAMP; LUGGAGE ROOM | 1 | 2103- | AB | |||
| 301 | I8-97684 351-0 | SOCKET ASM; RR COMB | 1 | 2103- | L | AB | (B) | |
| 51 | I8-94124 595-0 | BULB; LICENSE PLATE LAMP | 2 | 2103- | AB | 12V5W | ||
| 3 | I8-97678 933-0 | GASKET; RR COMB LAMP | 1 | 2103- | L | AB | (A) | |
| 287 | I8-97684 340-0 | LAMP UNIT; RR COMB | 1 | 2103- | R | AB | (A) | |
| 5 | I8-94372 897-0 | BULB; RR COMB LAMP | 1 | 2103- | AB | 12V16W | ||
| 189 | I8-97555 328-0 | BOLT; FIX | 4 | 2103- | AB | |||
| 3 | I8-97678 935-0 | GASKET; RR COMB LAMP | 2 | 2103- | AB | (B) | ||
| 3 | I8-97678 934-0 | GASKET; RR COMB LAMP | 1 | 2103- | R | AB | (A) | |
| 287 | I8-97684 339-0 | LAMP UNIT; RR COMB | 1 | 2103- | L | AB | (A) | |
| 287 | I8-97684 404-0 | LAMP UNIT; RR COMB | 1 | 2103- | L | AB | (B) | |
| 88 | I0-91180 106-0 | NUT; STOP LAMP | 2 | 2103- | AB | M6 FLANGE | ||
| 301 | I8-97184 970-0 | SOCKET ASM; RR COMB | 1 | 2103- | AB | (A) IMA | ||
| 59 | I8-98167 449-0 | SCREW; TAP,LICENSE LAMP BODY | 2 | 2103- | AB | M5X16 TAPPING | ||
| 234 | I8-98251 882-0 | SOCKET ASM; LICENSE PLATE LAMP | 2 | 2103- | AB | |||
| 310 | I8-98328 807-2 | LAMP ASM; RR COMB.BODY SIDE | 1 | 2103- | R | AB | ||
| 90 | I8-98381 335-0 | COVER; STOP LAMP | 1 | 2103- | AB | |||
| 9 | I8-98055 704-0 | NUT; LAMP.RR COMB | 6 | 2103- | AB | M6 FLANGE IMA | ||
| 81 | I8-97684 585-0 | GASKET; STOP LAMP | 1 | 2103- | AB | |||
| 5 | I8-94372 897-0 | BULB; RR COMB LAMP | 1 | 2103- | AB | 12V16W | ||
| 1 | I8-98374 509-1 | LAMP ASM; RR COMB | 1 | 2103- | R | AB | ||
| 301 | I8-97684 352-0 | SOCKET ASM; RR COMB | 1 | 2103- | R | AB | (B) | |
| 310 | I8-98328 808-2 | LAMP ASM; RR COMB.BODY SIDE | 1 | 2103- | L | AB | ||
| 298 | I8-97515 122-0 | CAP; BREATHER.RR COMB LAMP | 1 | 2103- | AB | (A) | ||
| 1 | I8-98374 510-1 | LAMP ASM; RR COMB | 1 | 2103- | L | AB | ||
| 311 | I8-98328 809-3 | LAMP ASM; RR COMB.GATE SIDE | 1 | 2103- | R | AB | ||
| 298 | I8-97684 353-0 | CAP; BREATHER.RR COMB LAMP | 4 | 2103- | AB | (B) | ||
| 298 | I8-97515 122-0 | CAP; BREATHER,RR COMB LAMP | 1 | 2103- | AB | (A) | ||
| 166 | I0-91180 106-0 | NUT; BACKUP LAMP | 4 | 2103- | AB | M6 FLANGE | ||
| 49 | I8-98386 269-1 | LAMP; LICENSE PLATE | 2 | 2103- | AB | |||
| 300 | I8-98014 041-0 | HOLDER; LAMP | 2 | 2103- | AB | (B) IMA | ||
| 301 | I8-97184 970-0 | SOCKET ASM; RR COMB | 1 | 2103- | AB | (A) IMA | ||
| 300 | I8-97175 217-0 | HOLDER; LAMP | 2 | 2103- | AB | (A) IMA | ||
| 311 | I8-98328 810-3 | LAMP ASM; RR COMB.GATE SIDE | 1 | 2103- | L | AB |
