8-15 | FIXING PARTS; WIRING HARNESS
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

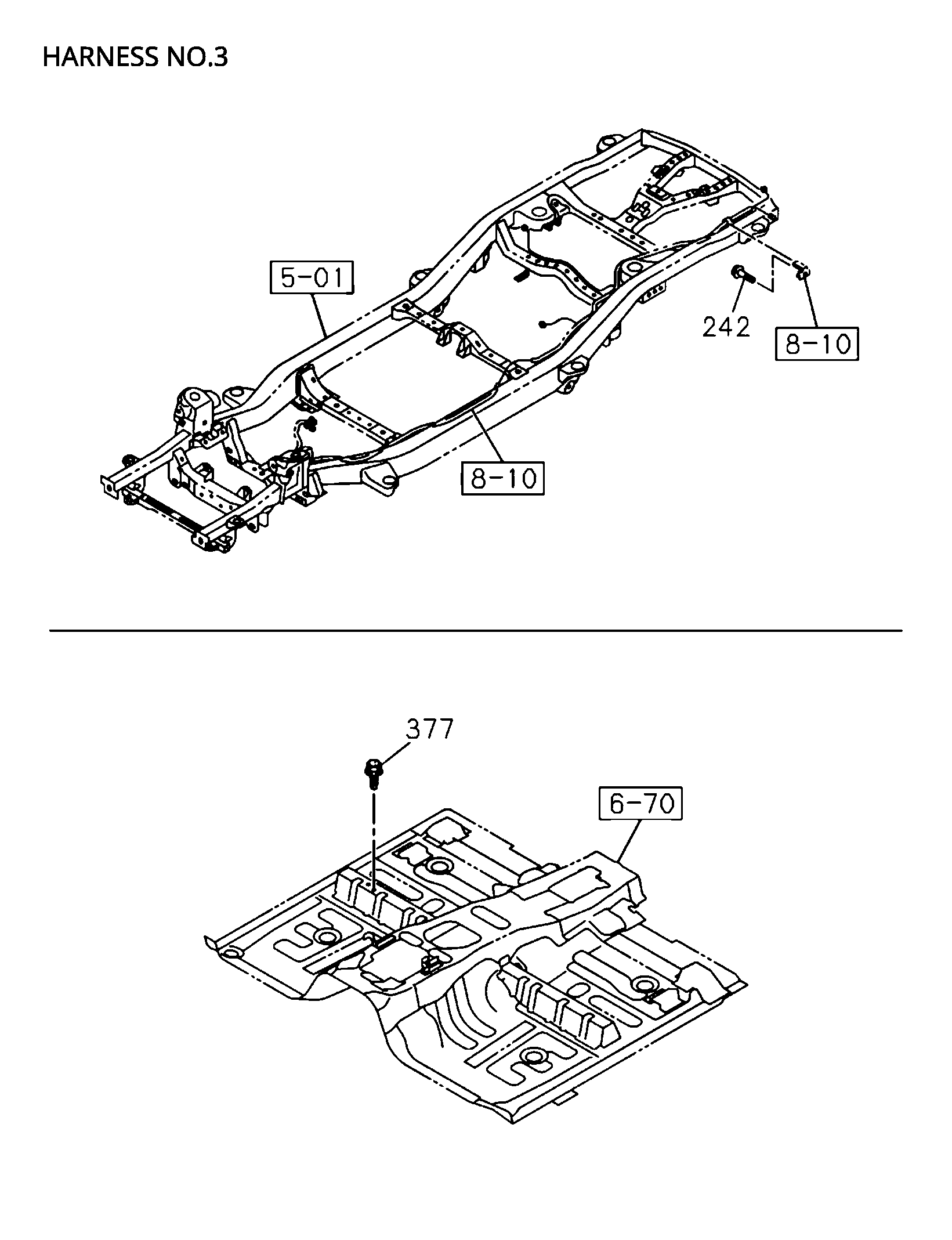

| 377 | I8-98164 836-0 | BOLT; CAB EARTH | 2 | 2103- | AB | M6X14W/PL WASHER IMA | ||
| 38 | I0-28050 612-0 | BOLT; CLIP, HARN ESS | 2 | 2103- | A | 4JJ3 ENG<LNG> (D) M6X12 FLANGE | ||
| 38 | I0-28050 612-0 | BOLT; CLIP, HARN ESS | 2 | 2103- | B | (D) M6X12 FLANGE | ||
| 38 | I0-28050 616-0 | BOLT; CLIP,HARNESS | 2 | 2103- | A | 4JJ3 ENG<LNG> (C) M6X16 FLANGE | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 4 | 2103- | AB | L=155 | ||

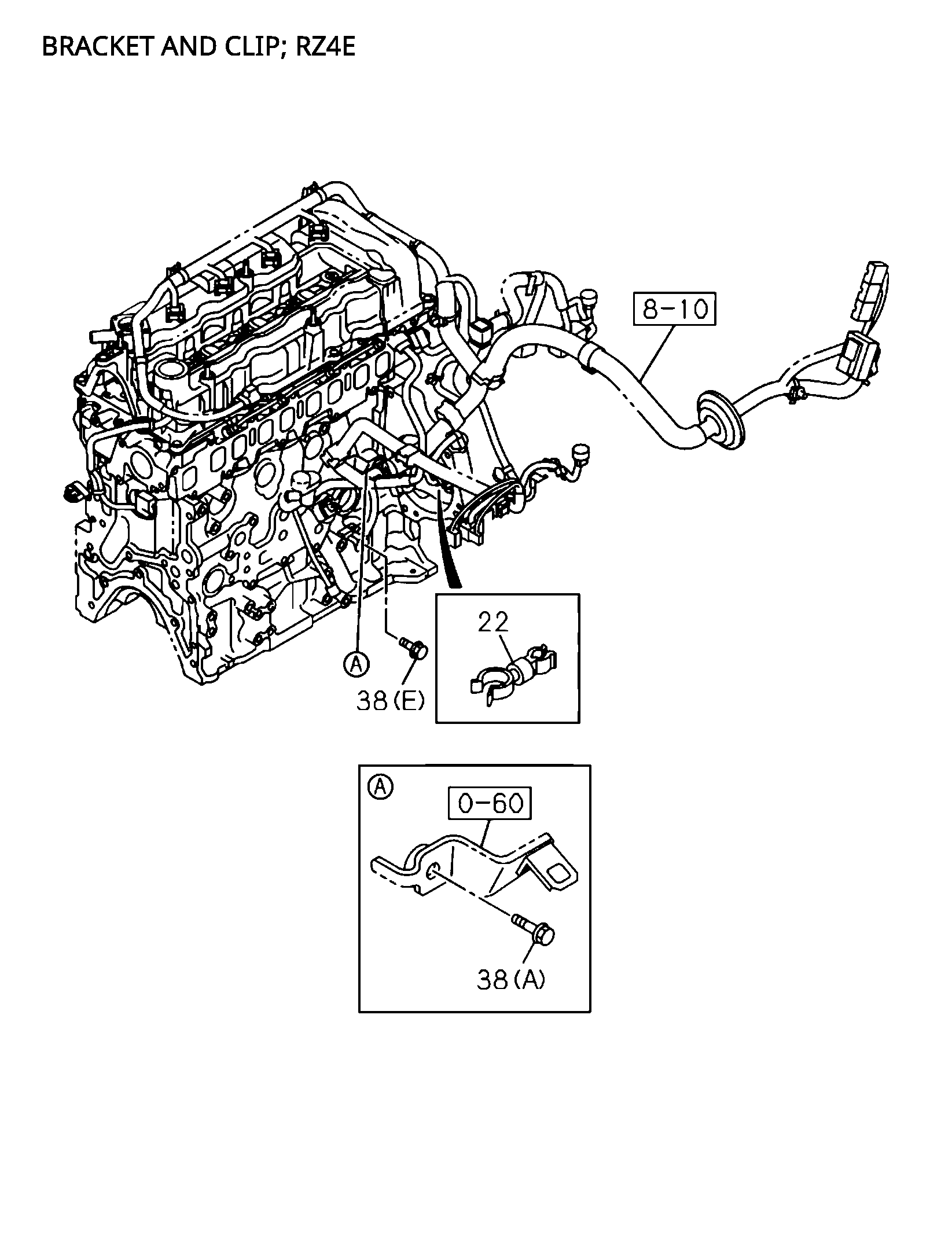

| 38 | I0-28050 820-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (A) M8X20 FLANGE | ||
| 524 | I8-98073 372-0 | NUT; HARNESS | 2 | 2103- | AB | (B) M6W/DISHED WASHER | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6Y<Y6P> M8X12 FLANGE | ||
| 242 | I0-28650 616-0 | BOLT; BRKT,HARNESS | 1 | 2103- | AB | M6X16 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 1 | 2103- | B | (B) M8X16 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | 4JJ3 ENG<LNG> (B) M8X16 FLANGE | ||

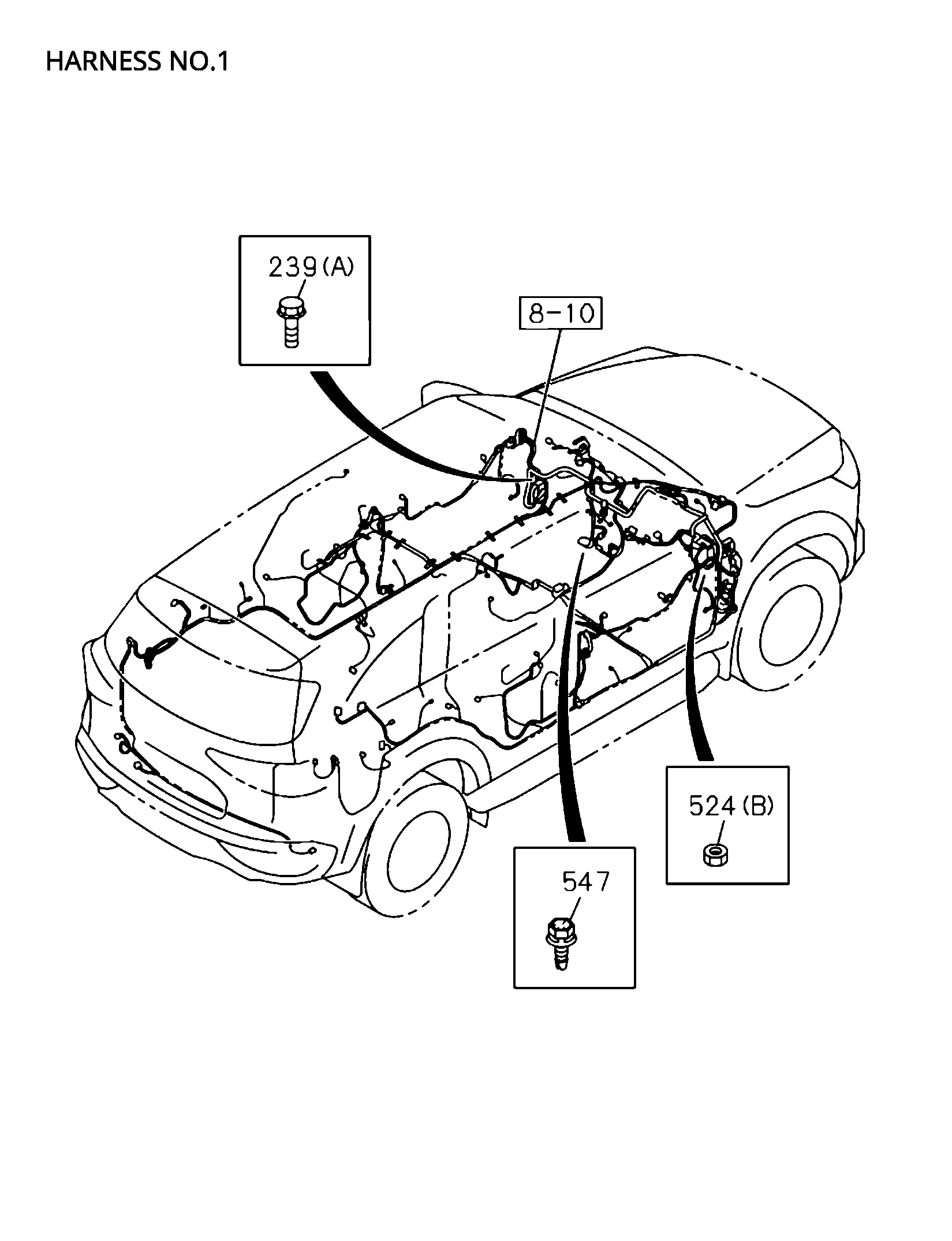

| 547 | I8-98164 836-0 | BOLT | 1 | 2103- | AB | M6X14W/PL WASHER IMA | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | B | (E) M8X12 FLANGE | ||
| 38 | I0-28050 616-0 | BOLT; CLIP,HARNESS | 2 | 2103- | B | (C) M6X16 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | B | (B) M8X16 FLANGE | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | B | (E) M8X12 FLANGE | ||

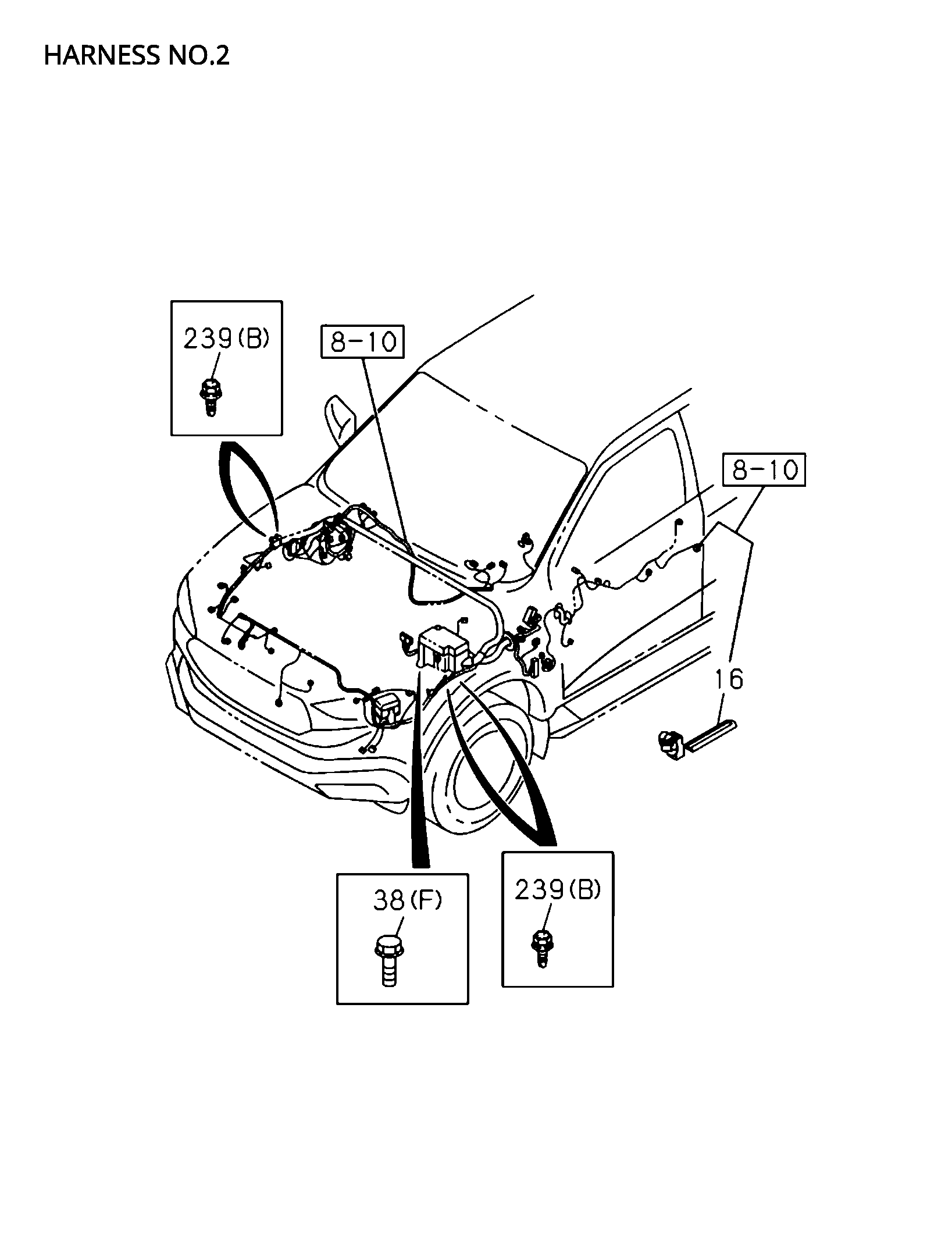

| 239 | I8-98164 836-0 | BOLT; GRAND | 4 | 2103- | AB | (B) M6X14W/PL WASHER IMA | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | 4JJ3 ENG<LNG> M8X12 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 2 | 2103- | A | RZ4E-TC ENG<RDZ> A/T 6 SPEED-AISIN<Y6A> (B) M8X16 FLANGE | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | 4JJ3 ENG<LNG> M8X12 FLANGE | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 6 | 2103- | AB | L=140 | ||

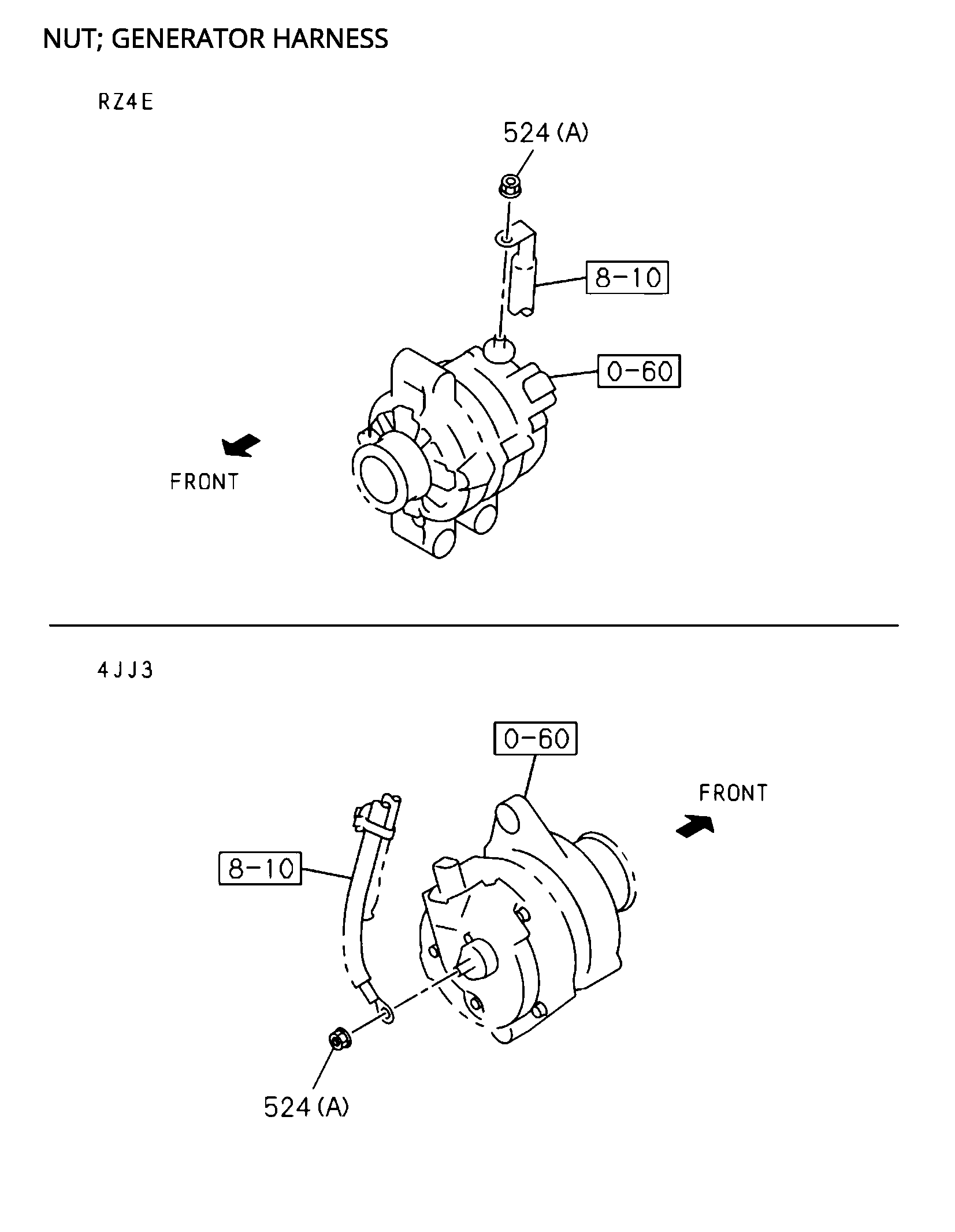

| 524 | I0-91180 108-0 | NUT; HARNESS | 1 | 2103- | AB | (A) MS FLANGE | ||
| 239 | I0-28650 616-0 | BOLT; GRAND | 1 | 2103- | AB | (A) M6X16 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP, HARN ESS | 2 | 2103- | A | RZ4E-TC ENG<RDZ> A/T 6 SPEED-AI5IN<Y6A> (B) M8X16 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 1 | 2103- | A | 4JJ3 ENG<LNG> (B) M8X16 FLANGE | ||
| 38 | I0-28650 616-0 | BOLT; CLIP,HARNESS | 2 | 2103- | AB | (F) M6X16 FLANGE | ||
| 22 | I8-94145 893-0 | CLIP; ENG HARNESS | 1 | 2103- | A | RZ4E-TC ENG<RDZ> ID=12 & 6 | ||
| 38 | I0-28050 812-0 | BOLT; CLIP, HARN ESS | 1 | 2103- | A | RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6Y<Y6P> M8X12 FLANGE |
