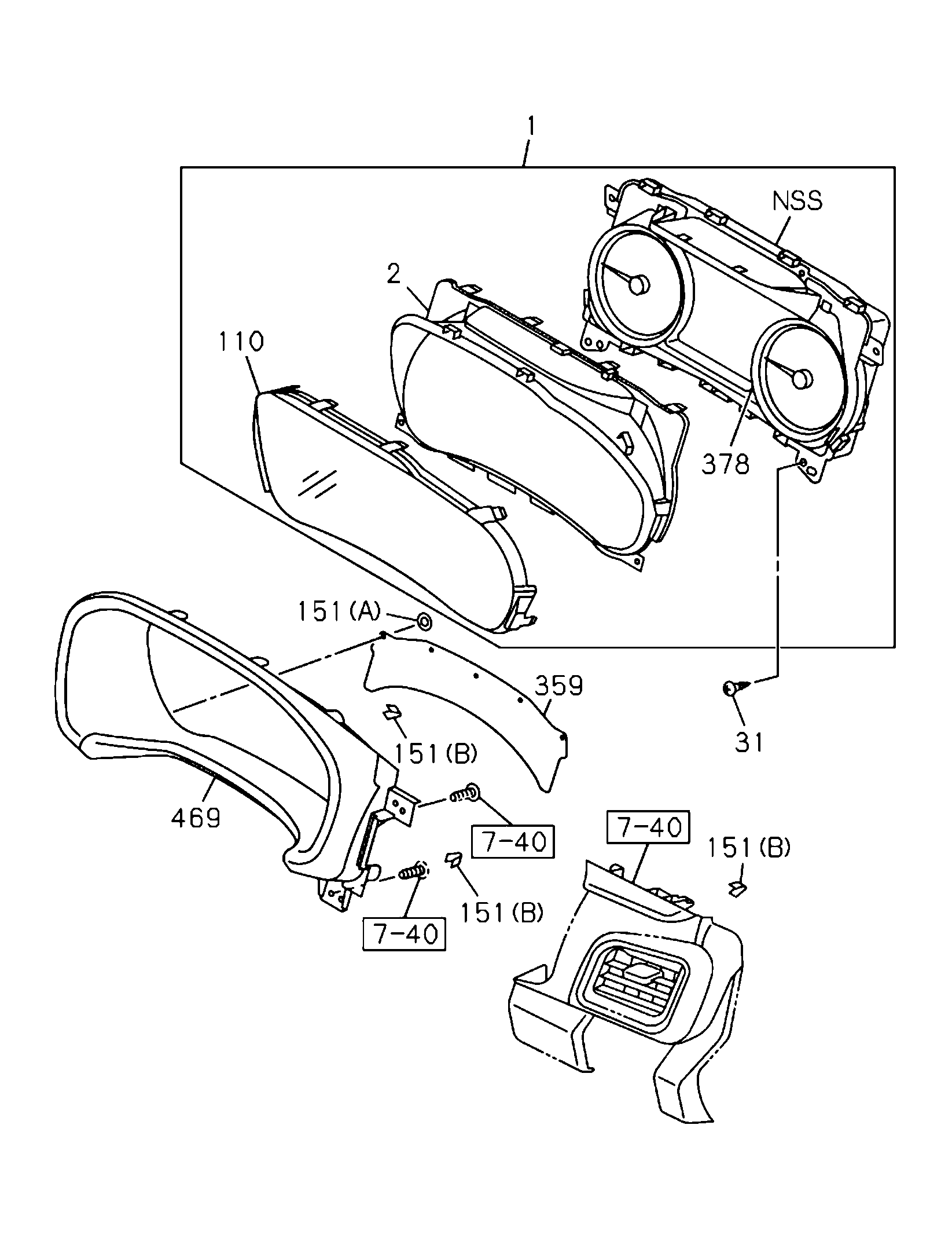

8-21 | METER ASM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 469 | I8-97907 372-0 | PLATE; INSTRUMENT PANEL | 1 | 2103- | AB | BLACK | ||
| 1 | I8-97508 065-4 | METER COMPL; CLUSTER | 1 | 2103- | B | |||
| 151 | I8-98164 677-0 | CLIP; METER CLUSTER | 8 | 2103- | AB | (B) | ||
| 1 | I8-97508 065-4 | METER COMPL; CLUSTER | 1 | 2103- | A | GRADE CUSTOM<RBD> | ||
| 378 | I8-97678 890-0 | COVER; METER PANEL | 1 | 2103- | A | GRADE CUSTOM<RBD> | ||
| 110 | I8-97522 390-0 | GLASS; CLUSTER METER | 1 | 2103- | B | |||
| 359 | I8-97553 860-0 | SHEET | 1 | 2103- | AB | |||
| 110 | I8-97522 390-0 | GLASS; CLUSTER METER | 1 | 2103- | A | GRADE CUSTOM<RBD> | ||
| 2 | I8-97522 392-0 | PANEL; CLUSTER | 1 | 2103- | B | |||
| 378 | I8-97678 890-0 | COVER; METER PANEL | 1 | 2103- | B | |||
| 31 | I8-98167 449-0 | SCREW; METER,INST PANEL | 4 | 2103- | AB | M5X16 TAPPING | ||
| 2 | I8-97522 393-0 | PANEL; CLUSTER | 1 | 2103- | A | GRADE LUXURY<RBC> | ||
| 1 | I8-97508 064-4 | METER COMPL; CLUSTER | 1 | 2103- | A | GRADE LUXURY<RBC> | ||
| 2 | I8-97522 392-0 | PANEL; CLUSTER | 1 | 2103- | A | GRADE CUSTOM<RBD> | ||
| 151 | I8-97553 875-0 | CLIP; METER CLUSTER | 5 | 2103- | AB | (A) | ||
| 110 | I8-97522 391-0 | GLASS; CLUSTER METER | 1 | 2103- | A | GRADE LUXURY<RBC> |
