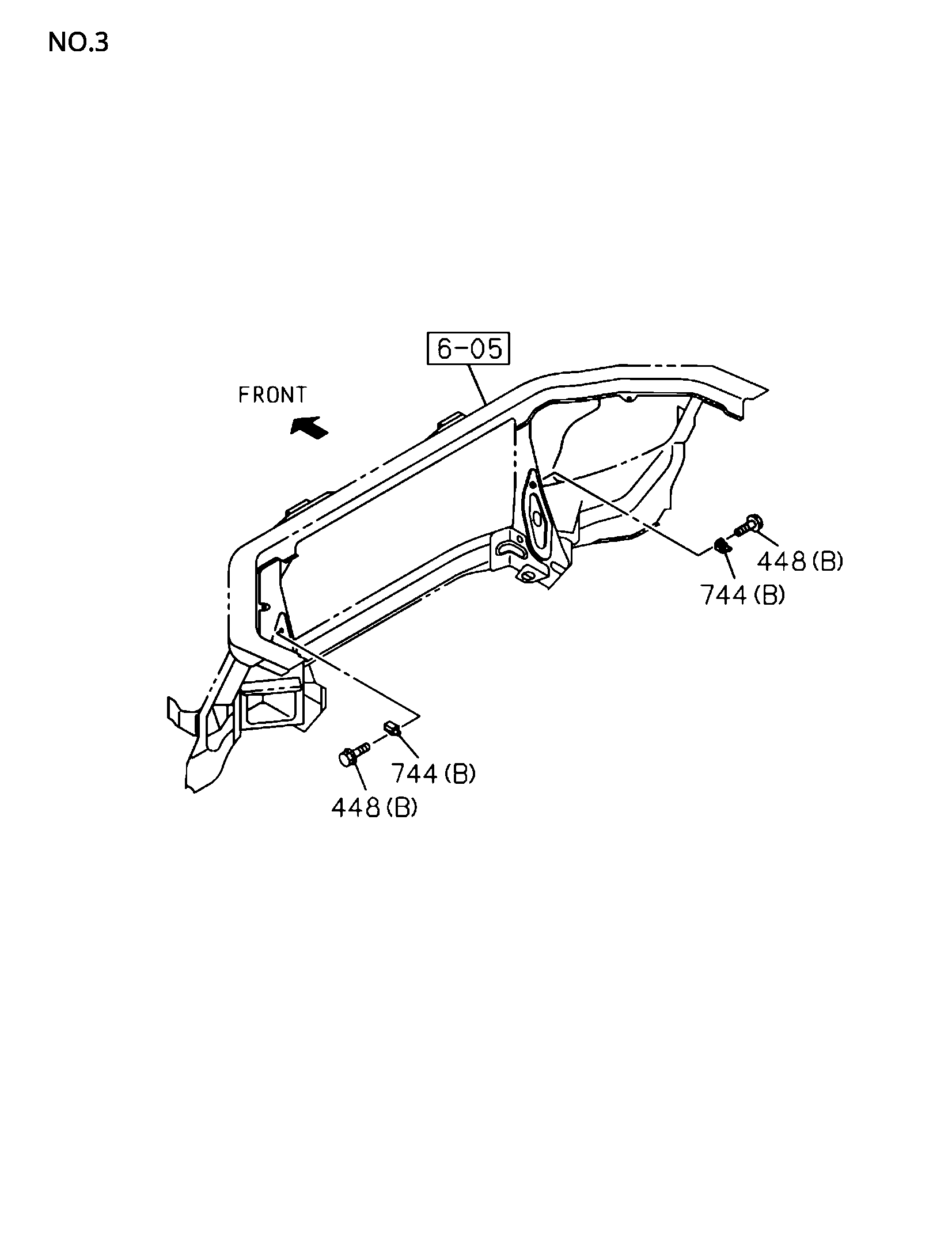

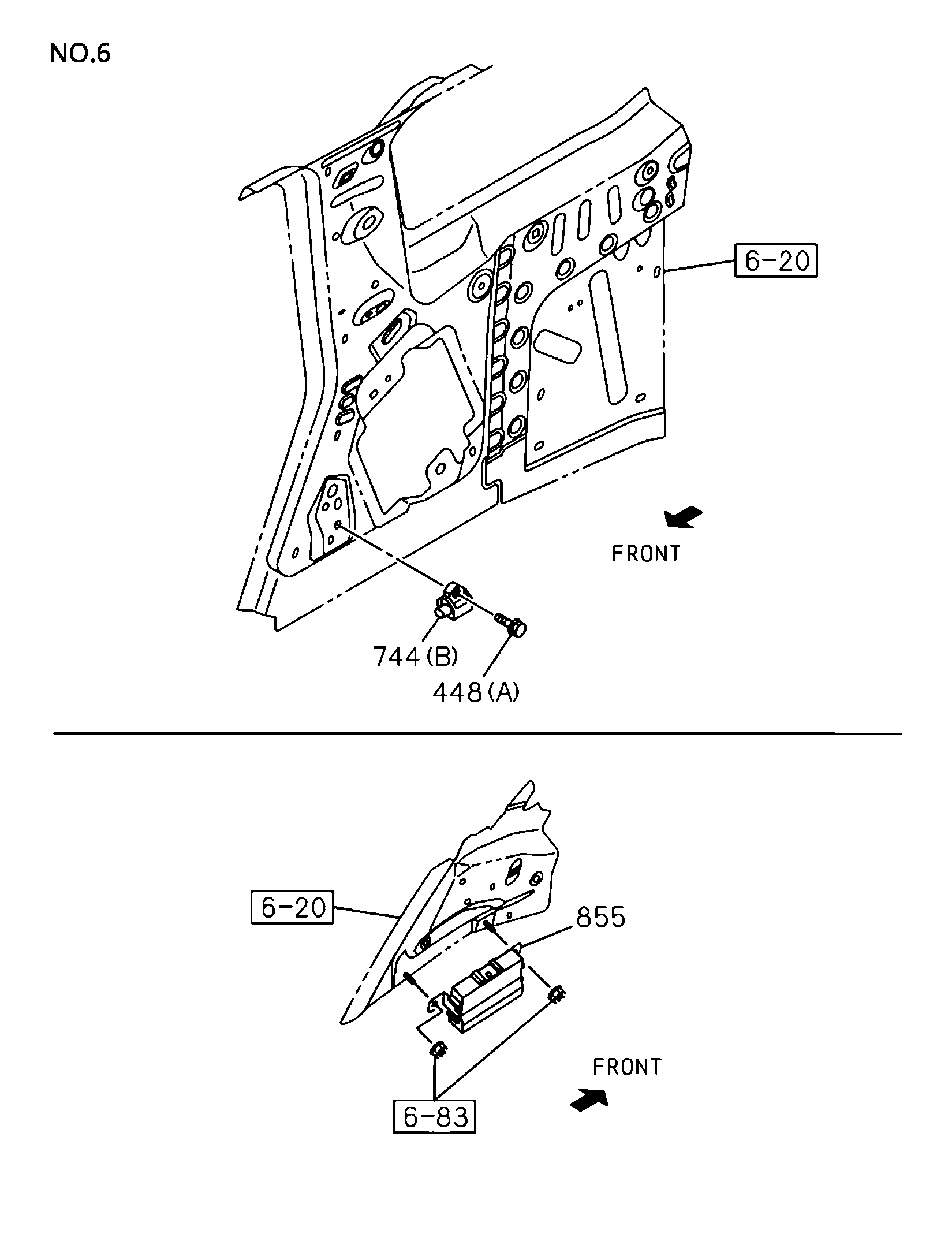

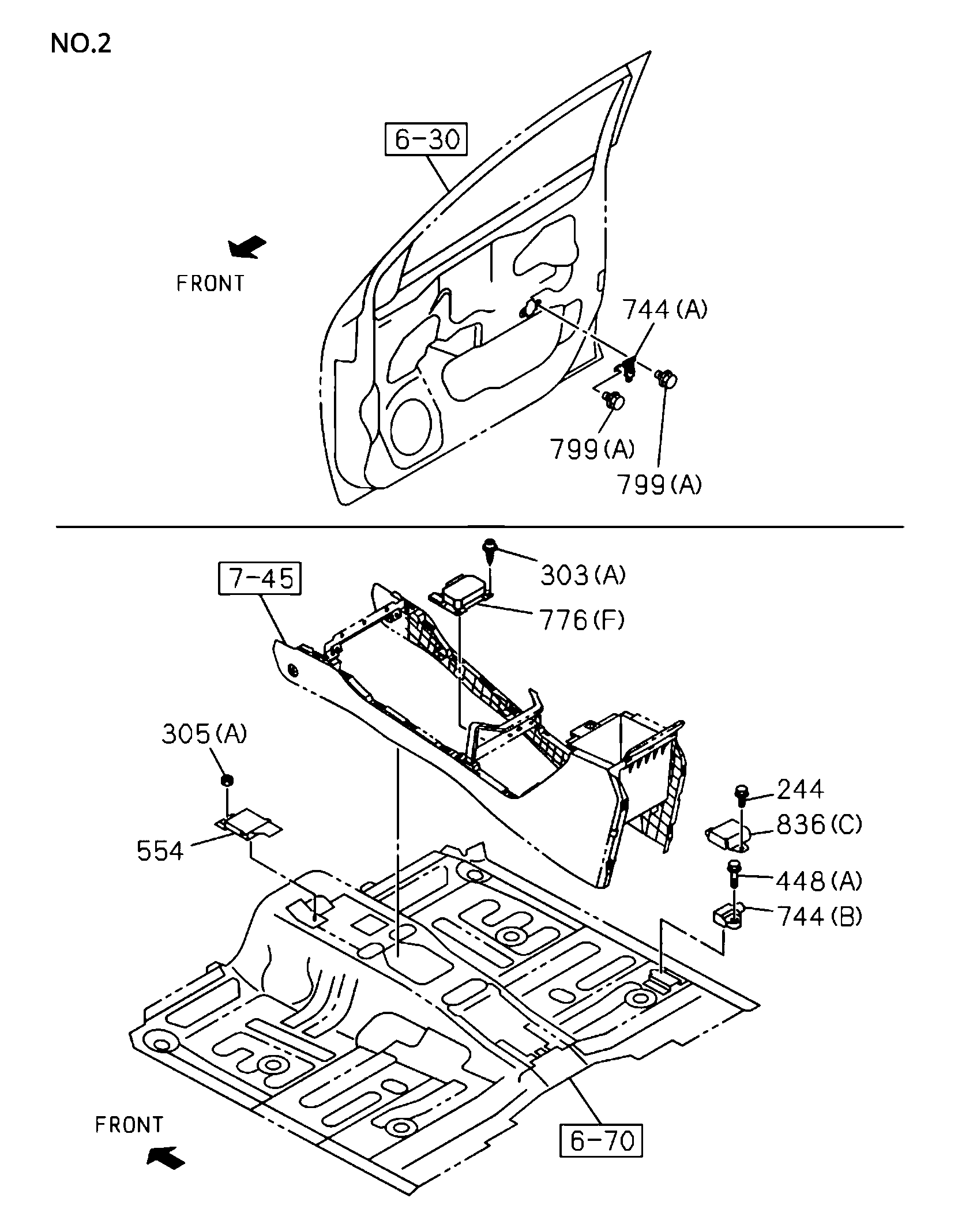

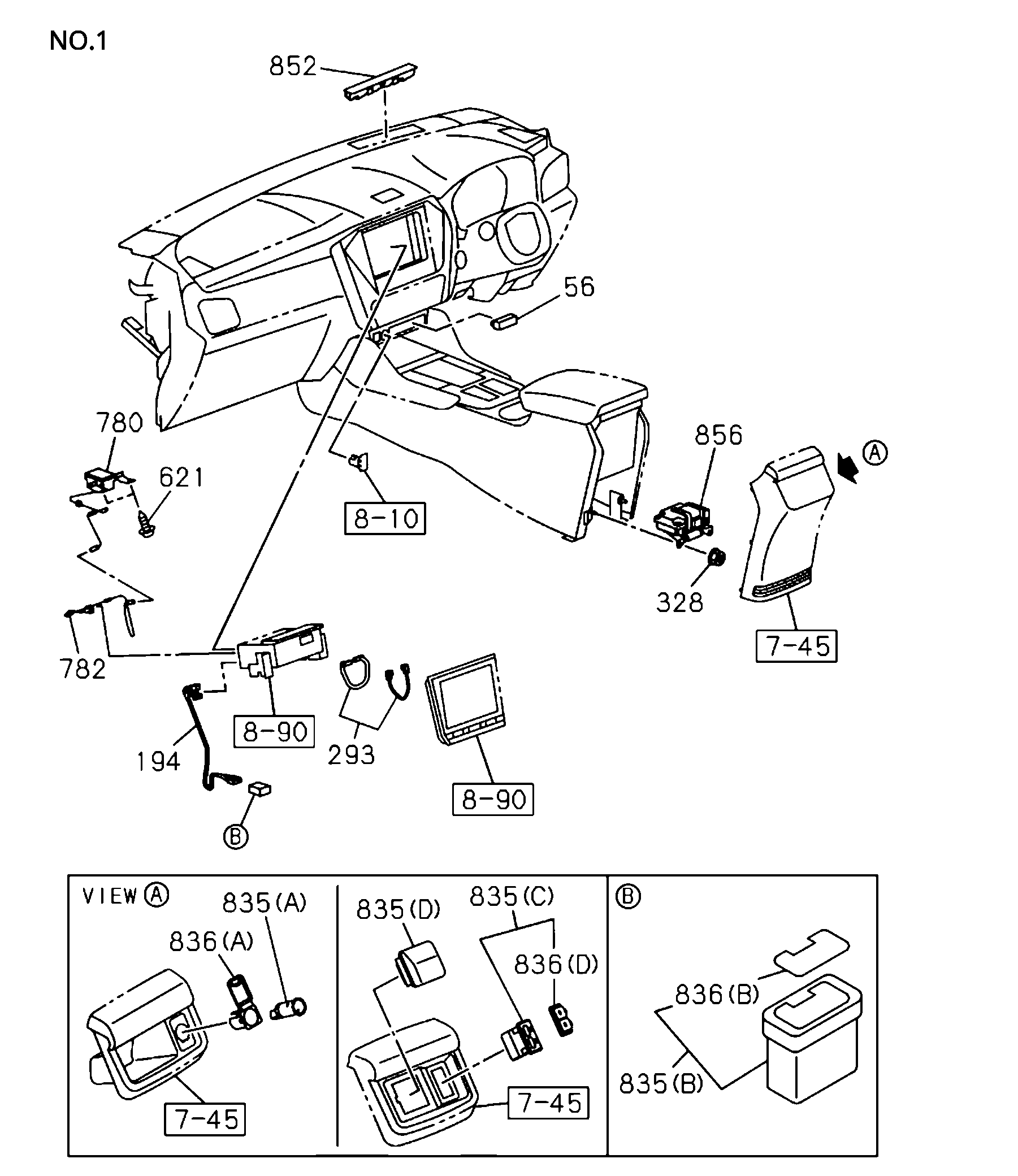

8-26 | ELECTRICAL CONTROL AND OTHER PARTS
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 744 | I8-98347 516-0 | SENSOR; AIR BAG | 2 | 2103- | AB | (B) | ||
| 328 | I0-91180 106-0 | NUT | 2 | 2103- | A | EXC. ACCESSORY SOCKET FRT&RR<8SZ> M6 FLANGE | ||
| 776 | I8-97651 341-0 | CONTROL UNfT | 1 | 2103- | B | (A) | ||
| 554 | I8-97655 775-0 | CONTROL UNIT; HEAD LAMP | 1 | 2103- | B | IMA | ||
| 244 | I8-98167 615-0 | BOLT; COVER | 4 | 2103- | AB | M6X15 W/LK&PL WASHER | ||
| 37 | I0-28650 616-0 | BOLT; BRKT FIX | 2 | 2103- | A | WARNING - DISTANCE, PARKING ASSIST,FRT & RR<8SU> (A) M6X16 FLANGE | ||
| 305 | I0-91180 206-0 | NUT; CONT UNIT | 1 | 2103- | A | HEAD LAMP AUTO LEVELING<TR7> (A) M6 FLANGE | ||
| 263 | I0-28650 616-0 | BOLT; CONT UNIT | 1 | 2103- | B | M6X16 FLANGE | ||
| 836 | I8-97555 982-0 | COVER; SOCKET | 1 | 2103- | A | GRADE CUSTOM<RBD> ACCESSORY SOCKET FRT&RR<8SZ>,F&R ACCESSORY SOCKET&USB.RR AC PWR TYPE A&C<8UX> (D) | ||
| 328 | I0-91180 106-0 | NUT | 2 | 2103- | B | M6 FLANGE | ||
| 621 | I8-94358 694-0 | SCREW | 2 | 2103- | B | M5X16 | ||
| 852 | I8-97493 648-1 | MODULE; FCW | 1 | 2103- | B | |||
| 803 | I8-97478 753-3 | COVER; CAMERA | 1 | 2103- | A | SAFETY PACKAGE FT & RR<8SY> BLACK | ||
| 691 | I8-97551 587-0 | CONTROLLER; TRANSFER | 1 | 2103- | B | |||
| 448 | I0-28650 625-0 | BOLT; SENSOR | 4 | 2103- | A | AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF<AYO> (A) M6X25 FLANGE | ||
| 621 | I8-94358 694-0 | SCREW | 2 | 2103- | A | EXC. ROOF RADIO ANTENNA<U71> M5X16 | ||
| 856 | I8-98396 163-0 | INVERTER; ACCESSORY | 1 | 2103- | A | EXC. ACCESSORY SOCKET FRT8.RR<8SZ> | ||
| 836 | I8-98396 149-1 | COVER; SOCKET | 1 | 2103- | A | GRADE LUXURY<RBC> (A) | ||
| 803 | I8-97478 753-3 | COVER; CAMERA | 1 | 2103- | B | (A) BLACK | ||
| 776 | I8-97651 341-0 | CONTROL UNrr | 1 | 2103- | A | WARNING - DISTANCE, PARKING ASSIST,FRT 81 RR<8SU> (A) | ||
| 836 | I8-98394 968-0 | COVER; SOCKET | 2 | 2103- | AB | (C) | ||
| 305 | I0-91180 206-0 | NUT; CONT UNIT | 1 | 2103- | B | (A) M6 FLANGE | ||
| 44 | I0-28650 620-0 | BOLT; SENSOR | 2 | 2103- | AB | (B) M6X20 FLANGE | ||
| 744 | I8-98347 516-0 | SENSOR; AIR BAG | 4 | 2103- | B | (B) | ||
| 799 | I8-98167 615-0 | SCREW; SENSOR | 4 | 2103- | A | AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF<AYO> (A) BOLT M6X15 W/LK&PL WASHER | ||
| 554 | I8-97655 775-0 | CONTROL UNIT; HEAD LAMP | 1 | 2103- | A | HEAD LAMP AUTO LEVELING<TR7> IMA | ||
| 813 | I8-97658 696-0 | CAMERA ASM | 1 | 2103- | A | SAFETY PACKAGE FT & RR<8SY> IMA | ||
| 836 | I8-97555 982-0 | COVER; SOCKET | 1 | 2103- | B | (D) | ||
| 852 | I8-97493 648-1 | MODULE; FCW | 1 | 2103- | A | SAFETY PACKAGE FT 8c RR<8SY> | ||
| 835 | I8-98396 158-0 | SOCKET; ACCESSORY | 1 | 2103- | B | (D) | ||
| 835 | I8-98396 145-0 | SOCKET; ACCESSORY | 1 | 2103- | A | GRADE LUXURY<RBC> (A) | ||
| 835 | I8-98396 158-0 | SOCKET; ACCESSORY | 1 | 2103- | A | EXC. ACCESSORY SOCKET FRT&RR<8SZ> (D) | ||
| 799 | I8-98167 615-0 | SCREW; SENSOR | 4 | 2103- | B | (A) BOLT M6X15 W/LK8cPL WASHER | ||
| 37 | I0-28650 616-0 | BOLT; BRKT FIX | 2 | 2103- | B | (A) M6X16 FLANGE | ||
| 835 | I8-97498 301-0 | SOCKET; ACCESSORY | 1 | 2103- | B | (C) | ||
| 813 | I8-97658 696-0 | CAMERA ASM | 1 | 2103- | B | IMA | ||
| 803 | I8-97478 754-1 | COVER; CAMERA | 1 | 2103- | B | (B) BLACK | ||
| 744 | I8-98347 516-0 | SENSOR; AIR BAG | 4 | 2103- | A | AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF<AYO> (B) | ||
| 803 | I8-97478 754-1 | COVER; CAMERA | 1 | 2103- | A | SAFETY PACKAGE FT & RR<8SY> BLACK | ||
| 835 | I8-97498 301-0 | SOCKET; ACCESSORY | 1 | 2103- | A | GRADE CUSTOM<RBD> ACCESSORY SOCKET FRT&RR<8SZ>,F&R ACCESSORY SOCKET&USB.RR AC PWR TYPE A&C<8UX> (C) | ||
| 743 | I8-97662 475-2 | CONTROL UNIT; BCM | 1 | 2103- | AB | |||
| 631 | I0-28650 625-0 | BOLT; CONT UNIT | 2 | 2103- | AB | M6X25 FLANGE | ||
| 448 | I0-28650 625-0 | BOLT; SENSOR | 4 | 2103- | B | (A) M6X25 FLANGE | ||
| 856 | I8-98396 163-0 | INVERTER; ACCESSORY | 1 | 2103- | B |
