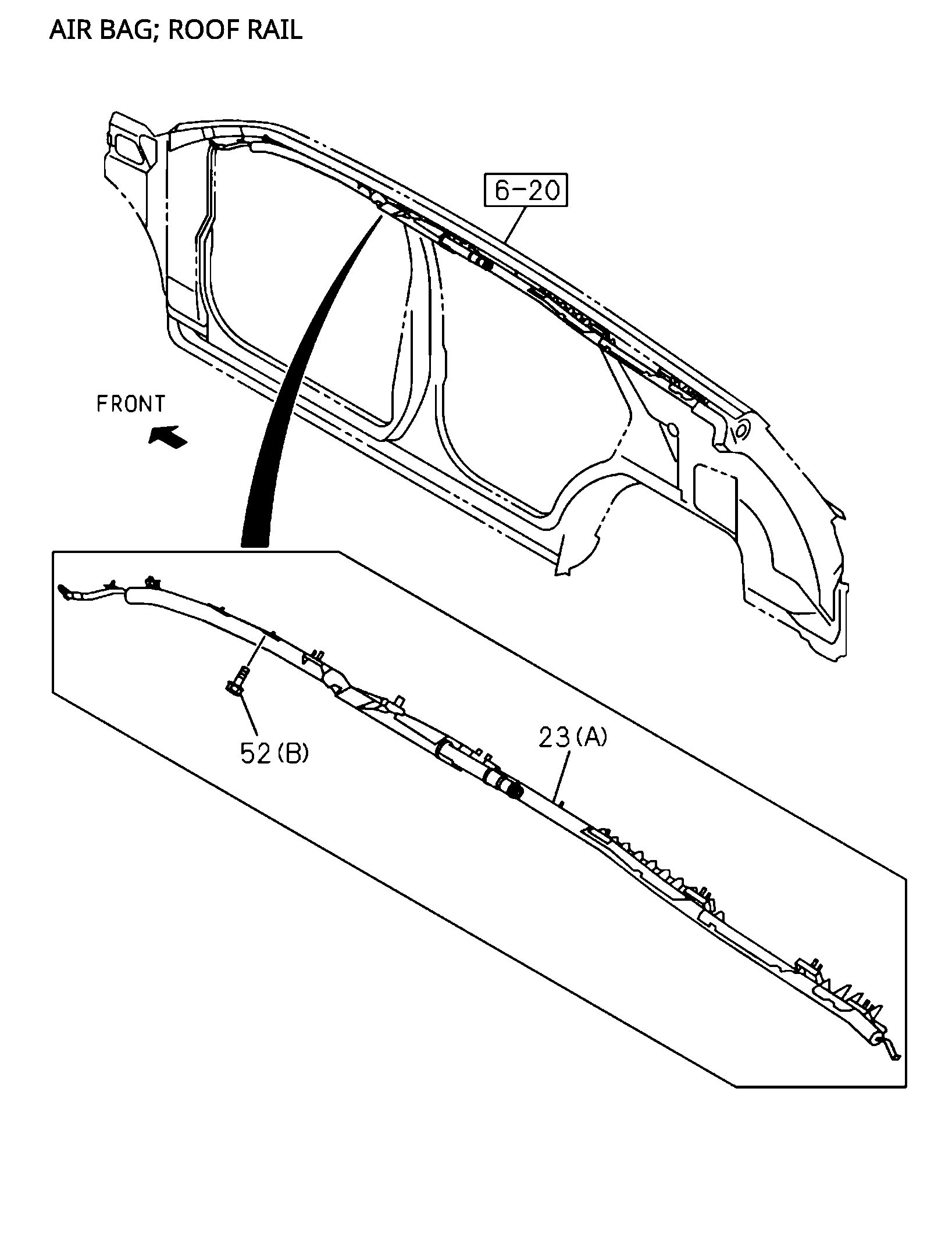

8-27 | SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 52 | I0-28650 620-0 | BOLT; AIR BAG | 16 | 2103- | B | M6X20 FLANGE | ||
| 23 | I8-97471 587-2 | AIR BAG UNIT | 1 | 2103- | AB | (B) BLACK | ||
| 23 | I8-97496 562-2 | AIR BAG UNIT | 1 | 2103- | B | (A) | ||
| 31 | I0-91180 206-0 | NUT | 3 | 2103- | AB | M6 FLANGE | ||
| 23 | I8-97496 563-2 | AIR BAG UNIT | 1 | 2103- | B | (A) | ||
| 23 | I8-98331 964-3 | AIR BAG UNIT | 1 | 2103- | AB | (C) | ||
| 23 | I8-97496 562-2 | AIR BAG UNIT | 1 | 2103- | A | AIR BAG DRIVER 8c PASSENGER 8c SIDE & ROOF<AYO> (A) | ||
| 52 | I0-28650 620-0 | BOLT; AIR BAG | 16 | 2103- | A | AIR BAG DRIVER 8c PASSENGER 8c SIDE 8c ROOF<AYO> M6X20 FLANGE | ||
| 23 | I8-97496 563-2 | AIR BAG UNIT | 1 | 2103- | A | AIR BAG DRIVER 8c PASSENGER & SIDE 8c ROOF<AYO> (A) |
