8-28 | CHASSIS ELECTRICAL
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

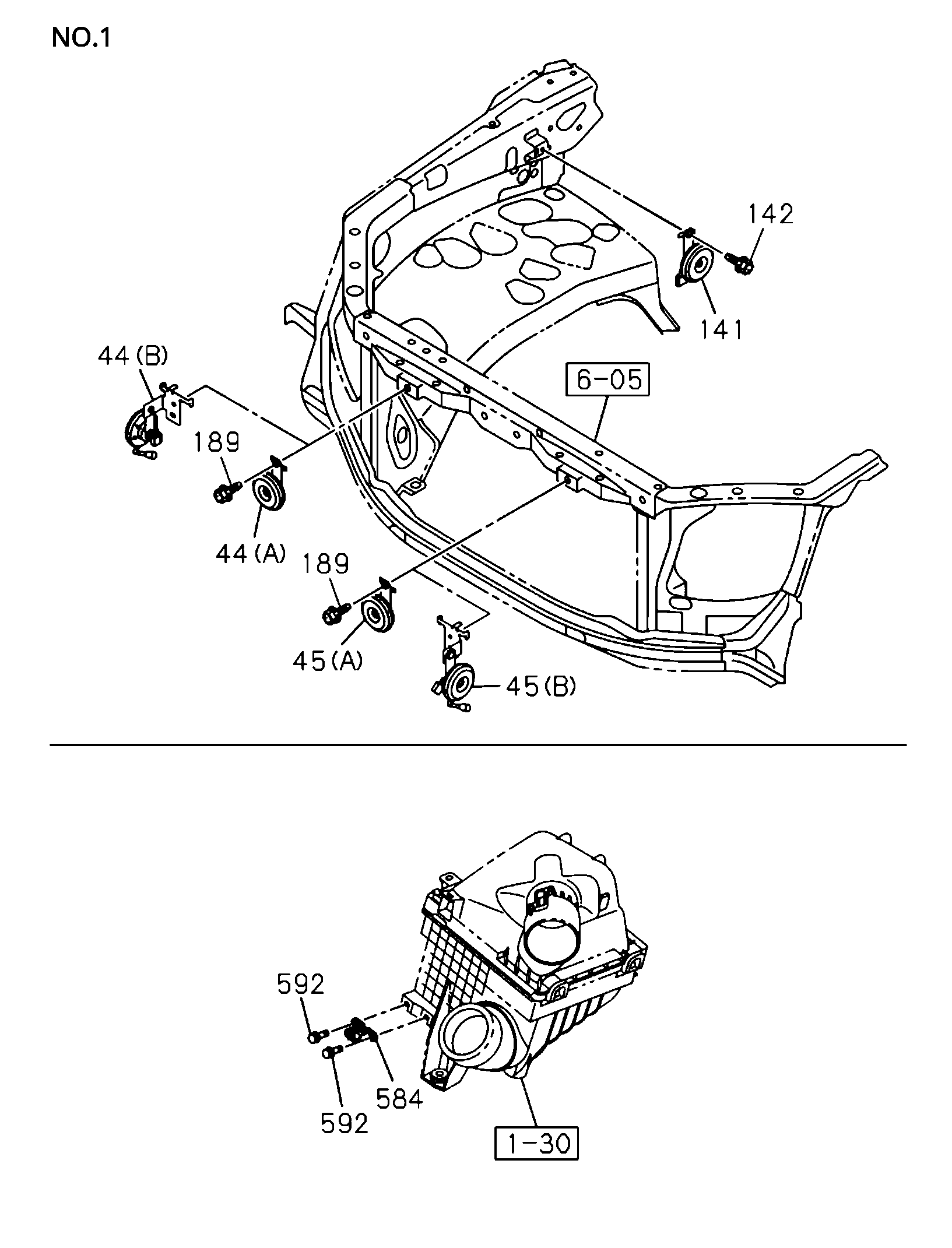

| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2103- | A | RZ4E-TC ENG<RDZ> IMA | ||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> IMA | ||

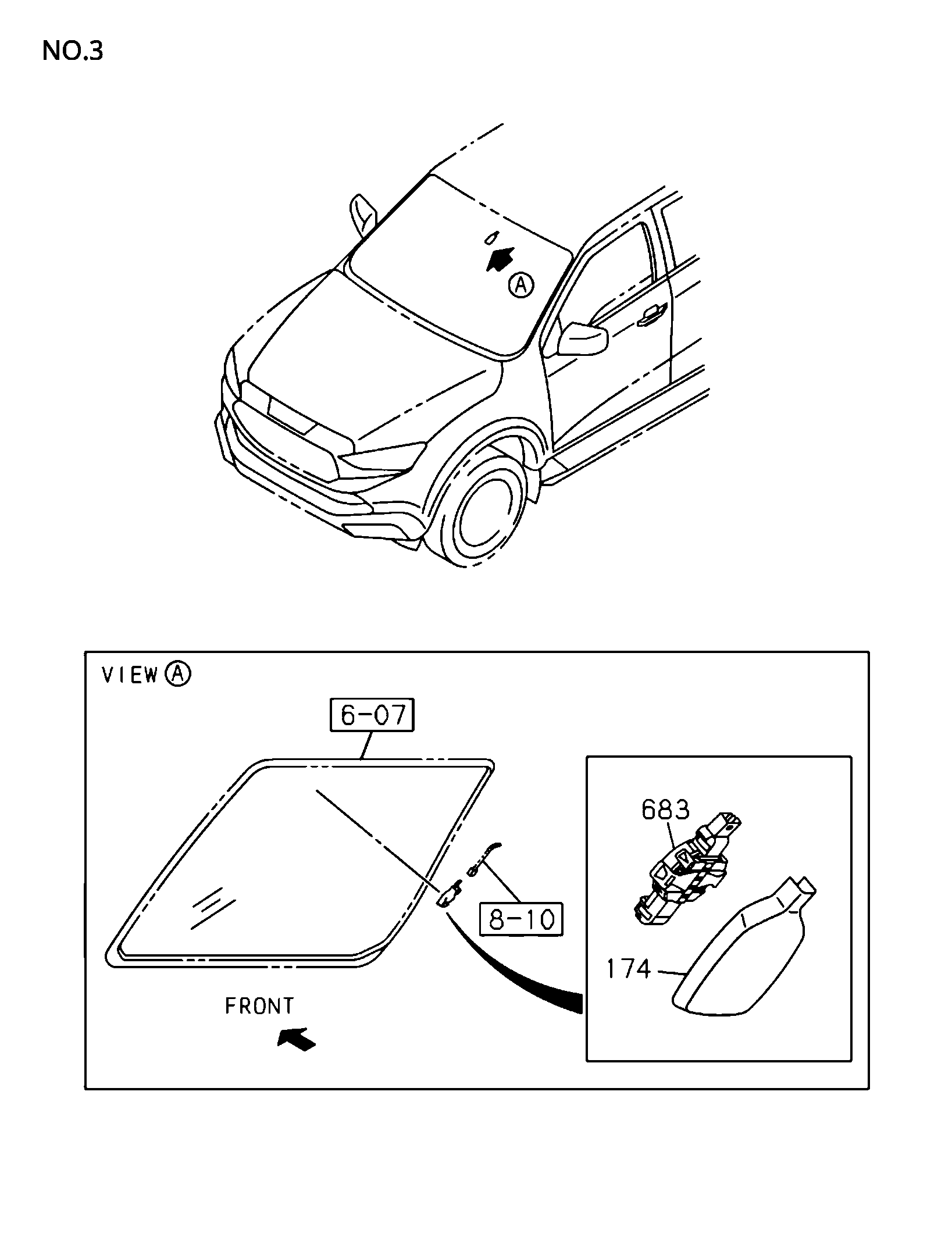

| 683 | I8-98395 347-2 | SENSOR; SUN | 1 | 2103- | B | |||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 2103- | A | POWER TAIL GATE<E61 > IMA | ||
| 174 | I8-97472 024-0 | COVER | 1 | 2103- | A | AUTO LIGHT 8. AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> AUTO WIPER<8SN> EXC. SAFETY PACKAGE FT 8< RR<8SY> BLACK | ||

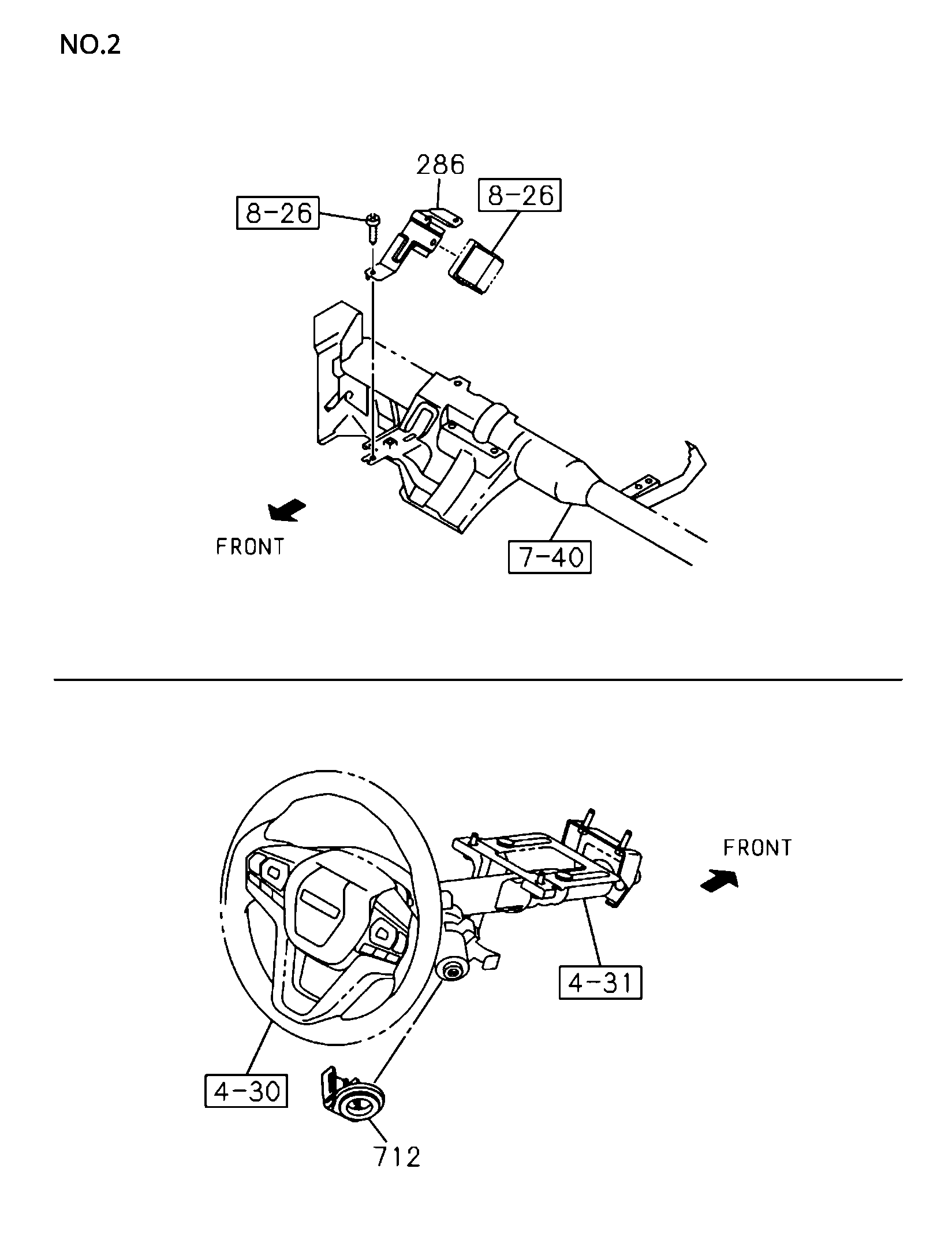

| 712 | I8-98394 787-0 | CONTROL UNIT; ANTI THEFT | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTI THEFT | 1 | 2103- | B | M6X14 W/PL WASHER IMA | ||
| 141 | I8-98164 588-0 | HORN; ANTI THEFT | 1 | 2103- | B | |||
| 189 | I8-98164 836-0 | BOLT; HORN | 2 | 2103- | AB | M6X14 W/PL WASHER IMA | ||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 2103- | B | IMA | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTI THEFT | 1 | 2103- | A | REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER IMA | ||
| 286 | I8-97516 345-0 | BRACKET | 1 | 2103- | AB | |||

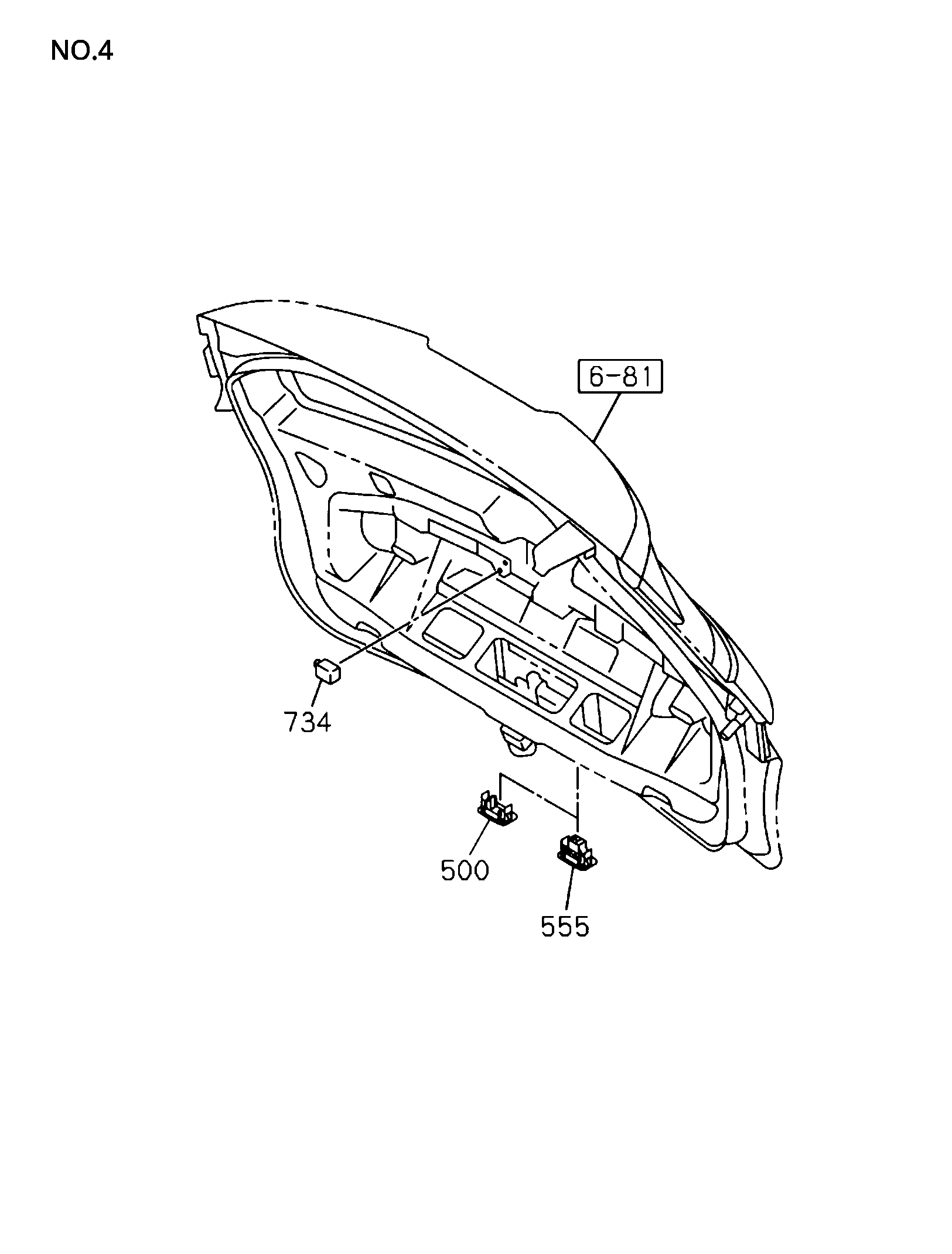

| 500 | I8-97539 329-0 | COVER; HOLE,SWITCH | 1 | 2103- | A | EXC. POWER TAIL GATE<E61 > | ||
| 592 | I0-28650 616-0 | BOLT; SENSOR | 2 | 2103- | A | RZ4E-TC ENG<RDZ> M6X16 FLANGE | ||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 2103- | B | IMA | ||
| 555 | I8-97524 409-0 | SWITCH; TAIL GATE | 1 | 2103- | B | |||
| 555 | I8-97524 409-0 | SWITCH; TAIL GATE | 1 | 2103- | A | POWER TAIL GATE<E61 > | ||
| 683 | I8-98395 347-2 | SENSOR; SUN | 1 | 2103- | A | AUTO LIGHT 8i AUTOMATIC HIGH BEAM<T80>,AUTO LIGHT<T82> AUTO WIPER<8SN> | ||
| 141 | I8-98164 588-0 | HORN; ANTI THEFT | 1 | 2103- | A | REMOTE CONT DOOR LOCK W/ANTI THEFI<7KY> |
