8-50 | AIR CONDITIONING SYSTEM; FRONT
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 47 | I0-28650 825-0 | BOLT; BRKT TO BODY | 4 | 2103- | A | 4JJ3 ENG<LNG> M8X25 FLANGE | ||
| 378 | I8-97491 678-1 | HOSE; DRAIN,EVAPORATOR | 1 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> (B) | ||
| 387 | I8-98481 251-0 | BOLT; TENSIONER FIX | 1 | 2103- | A | RZ4E-TC ENG<RDZ> M12X84 FLANGE | ||
| 378 | I8-97491 678-1 | HOSE; D RAIN,EVAPORATOR | 1 | 2103- | B | (B) | ||

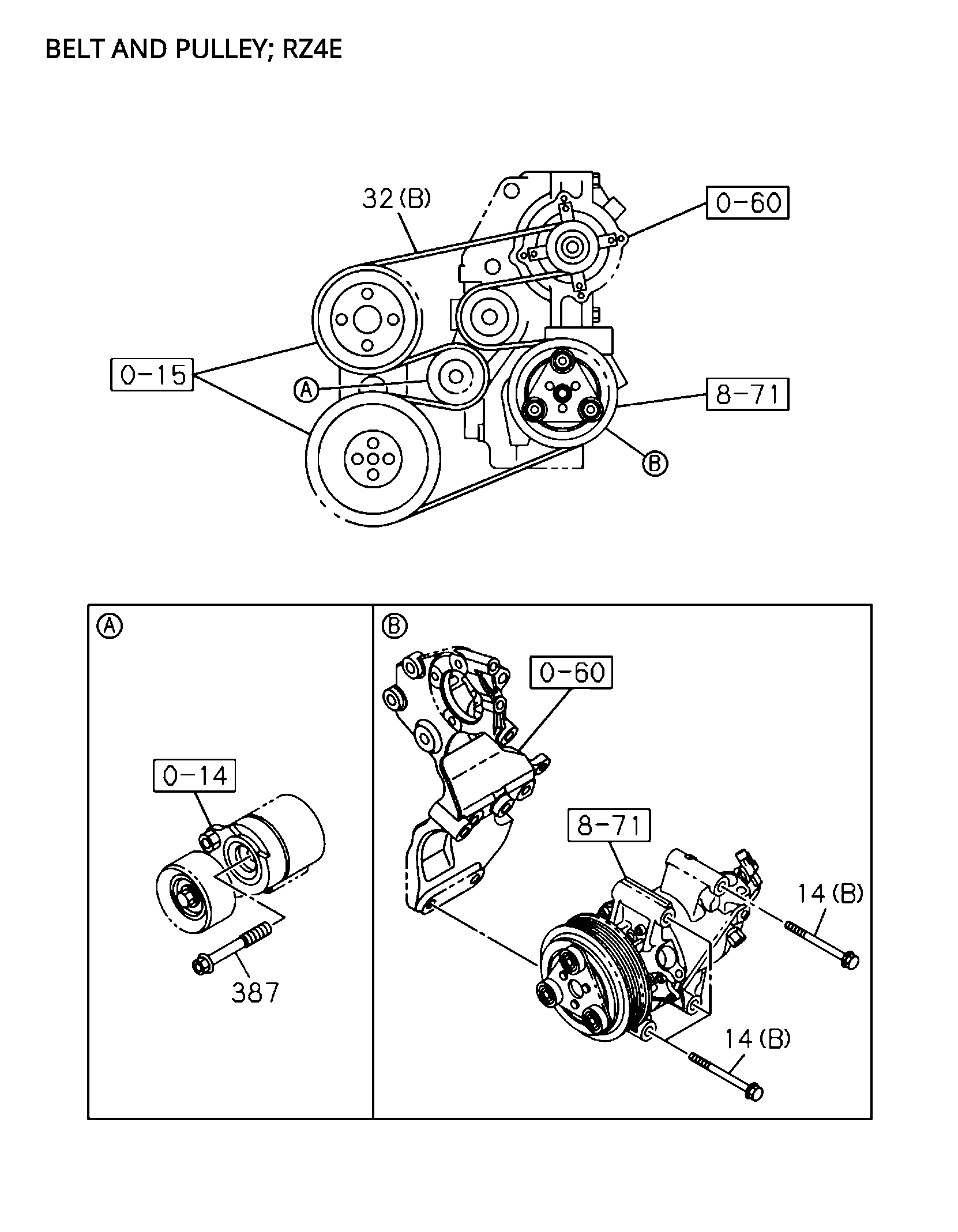

| 32 | I8-98383 501-0 | BELT; A/C CMPR | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (B) L=1990 MITSUBOSHI | ||

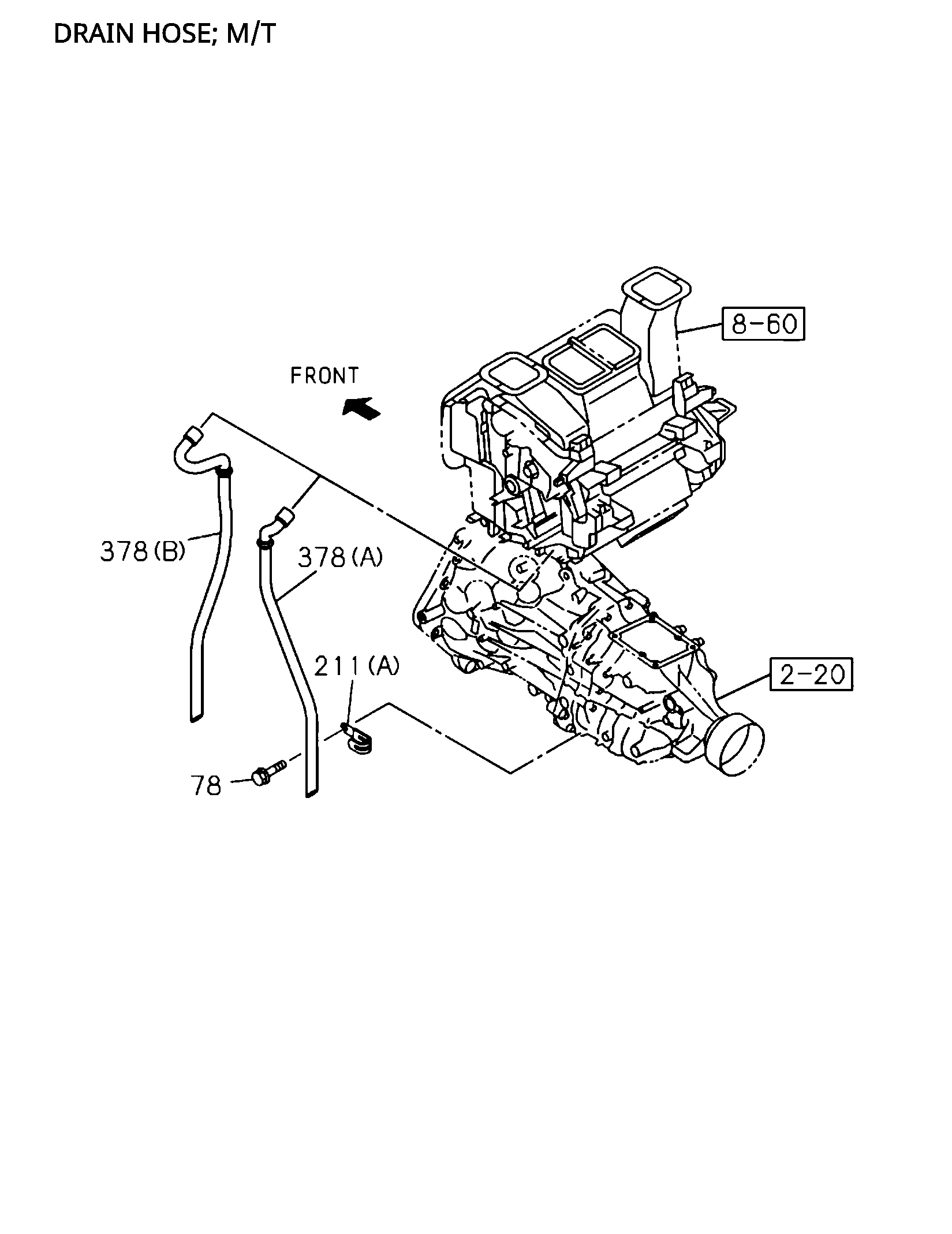

| 78 | I0-28050 612-0 | BOLT; EVAP.A/C | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M6X12 FLANGE | ||
| 47 | I0-28650 825-0 | BOLT; BRKT TO BODY | 4 | 2103- | B | M8X25 FLANGE | ||
| 378 | I8-97491 678-1 | HOSE; DRAIN,EVAPORATOR | 1 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> (B) | ||
| 37 | I0-28050 816-0 | BOLT; PULLEY BRKT | 2 | 2103- | A | 4JJ3 ENG<LNG> M8X16 FLANGE | ||

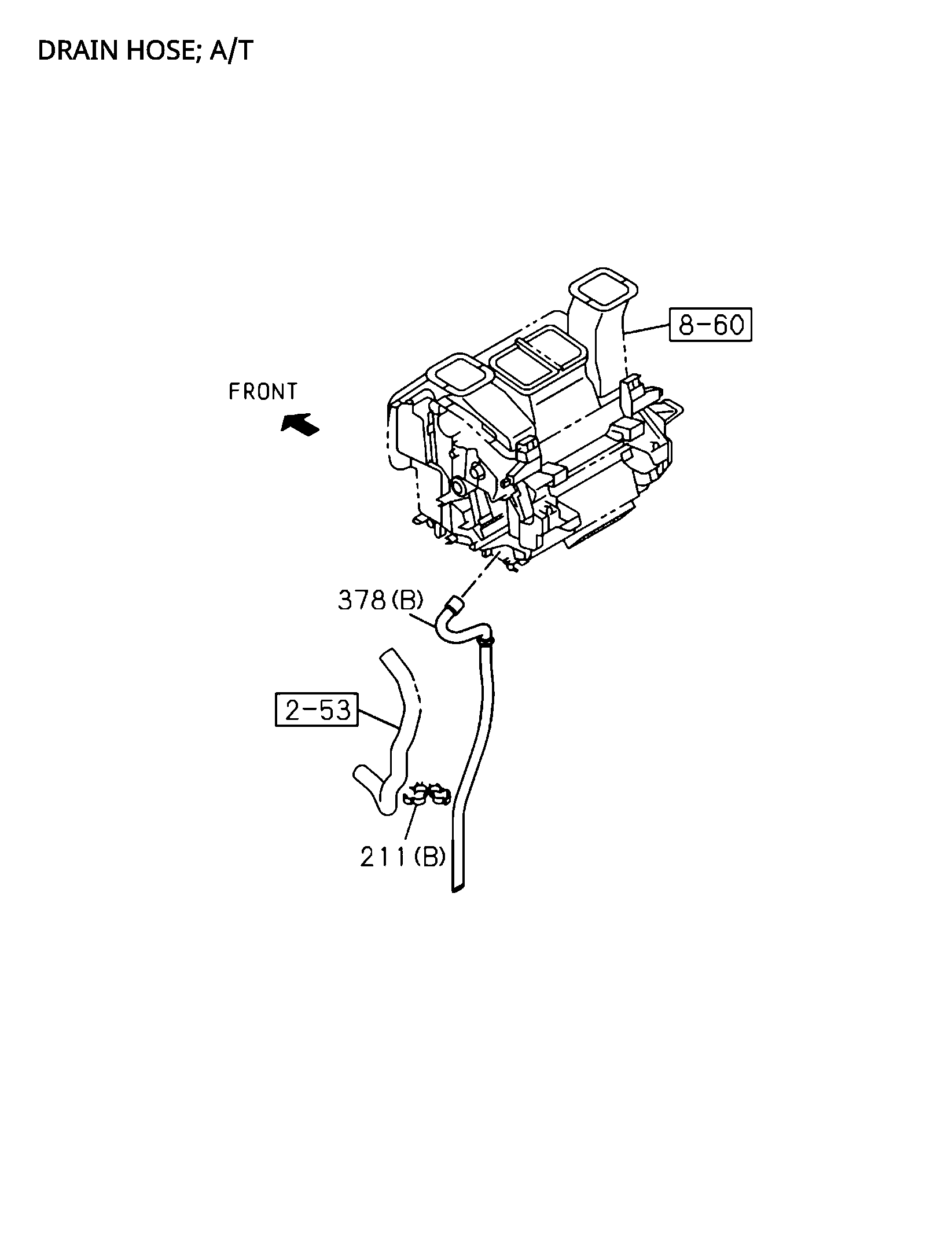

| 211 | I8-97518 862-0 | CLIP; HOSE | 1 | 2103- | AB | A/T 6 SPEED-AISIN<Y6A> (B) | ||
| 378 | I8-97491 678-1 | HOSE; D RAIN,EVAPORATOR | 1 | 2103- | B | (B) | ||

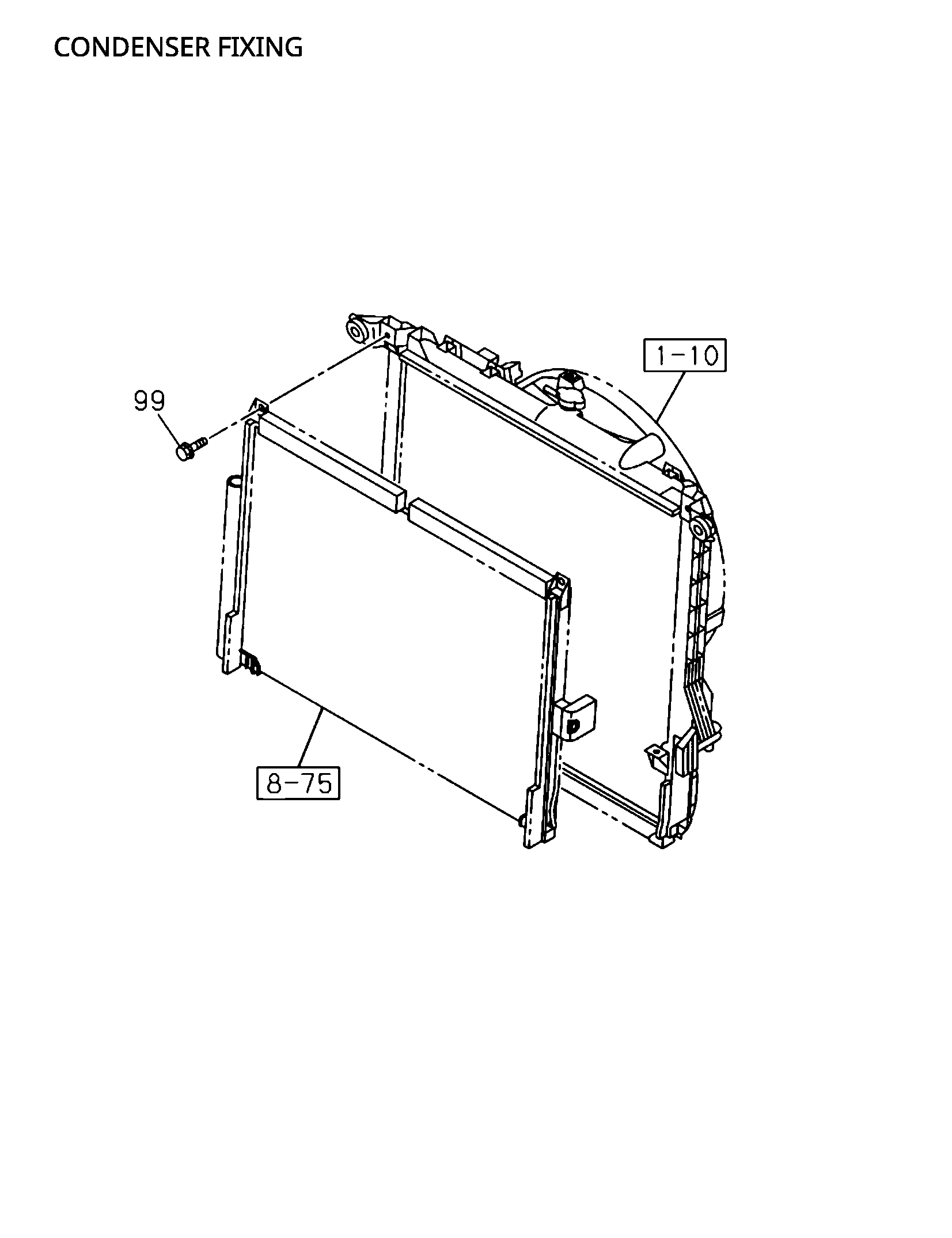

| 99 | I8-98056 282-0 | BOLT; BRKT | 2 | 2103- | AB | M6X20 W/WASHER | ||
| 32 | I8-98383 501-A | BELT; A/C CMPR | 1 | 2103- | A | ( IADG ) RZ4E-TC ENG<RDZ> (B) L=1990 MITSUBOSHI | ||
| 14 | I0-28151 000-0 | BOLT; CM PR | 4 | 2103- | A | RZ4E-TC ENG<RDZ> (B) M10X100 FLANGE | ||
| 37 | I0-28050 816-0 | BOLT; PULLEY BRKT | 2 | 2103- | B | M8X16 FLANGE | ||
| 378 | I8-97491 677-0 | HOSE; DRAIN,EVAPORATOR | 1 | 2103- | A | COOLER W/FRESH AIR<C65> (A) | ||
| 378 | I8-97491 677-0 | HOSE; DRAIN,EVAPORATOR | 1 | 2103- | A | COOLER W/FRESH AIR<C65> (A) | ||
| 78 | I0-28050 612-0 | BOLT; EVAP.A/C | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M6X12 FLANGE | ||
| 378 | I8-97491 678-1 | HOSE; DRAIN,EVAPORATOR | 1 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> (B) | ||
| 378 | I8-97491 678-1 | HOSE; D RAIN,EVAPORATOR | 1 | 2103- | B | (B) |
