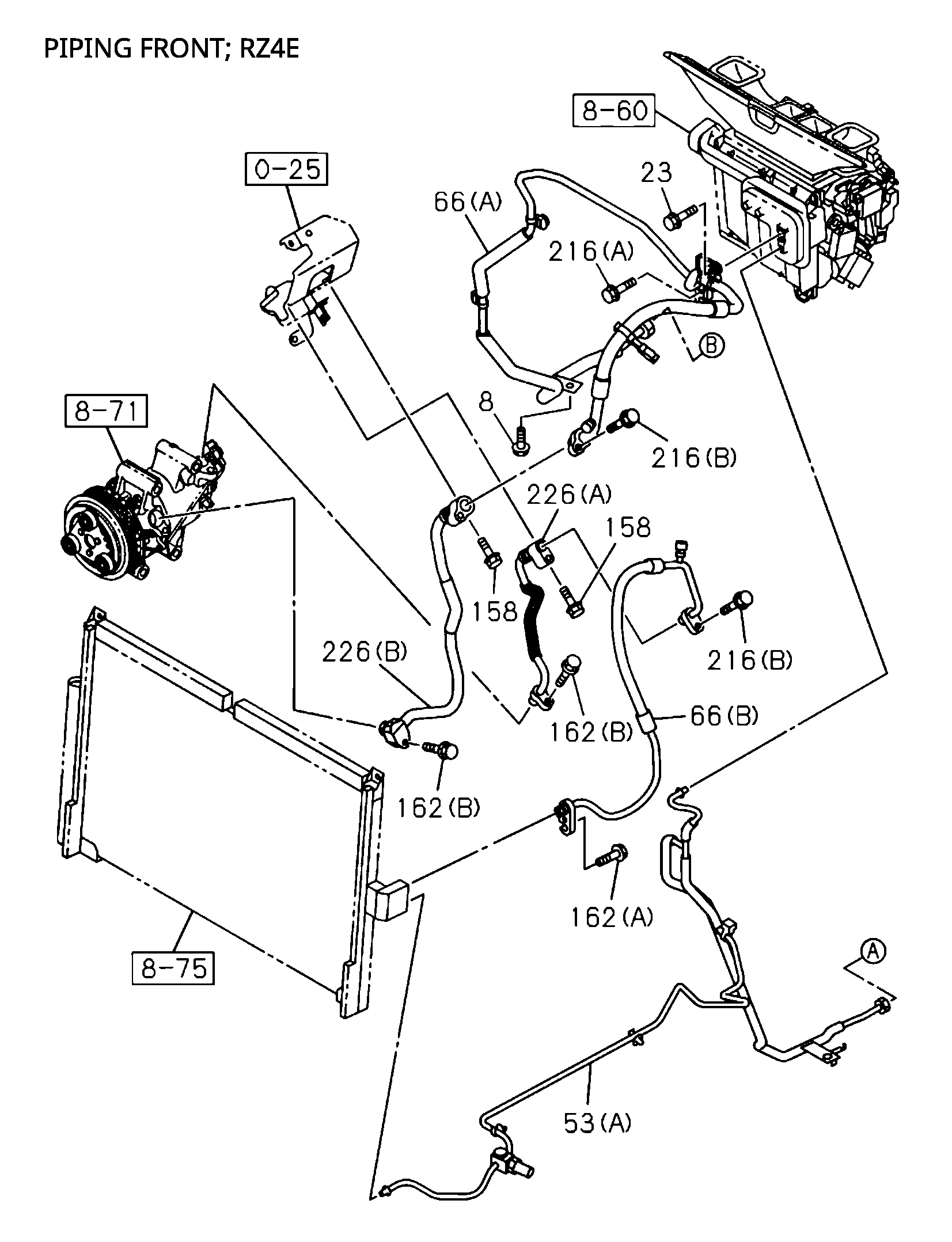

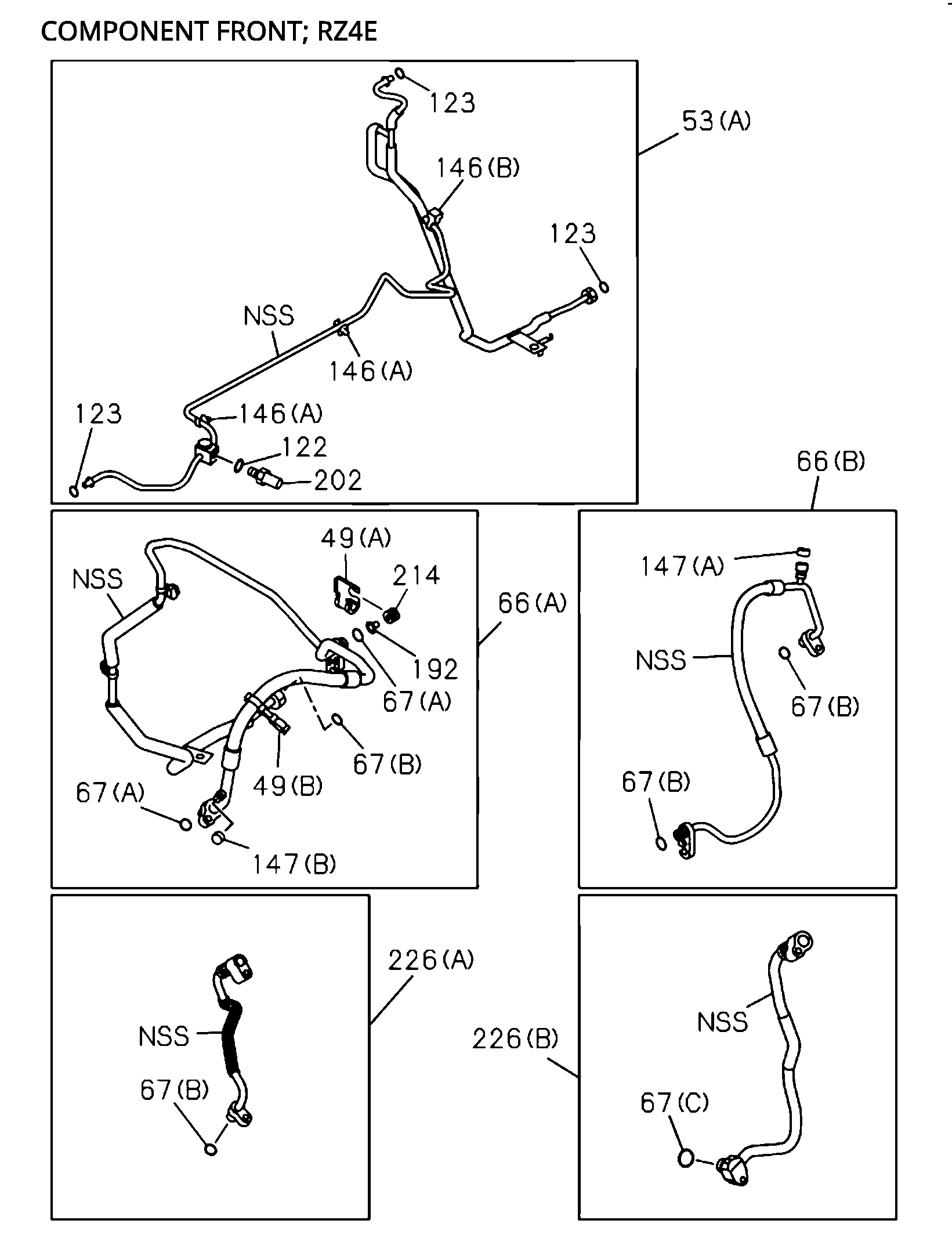

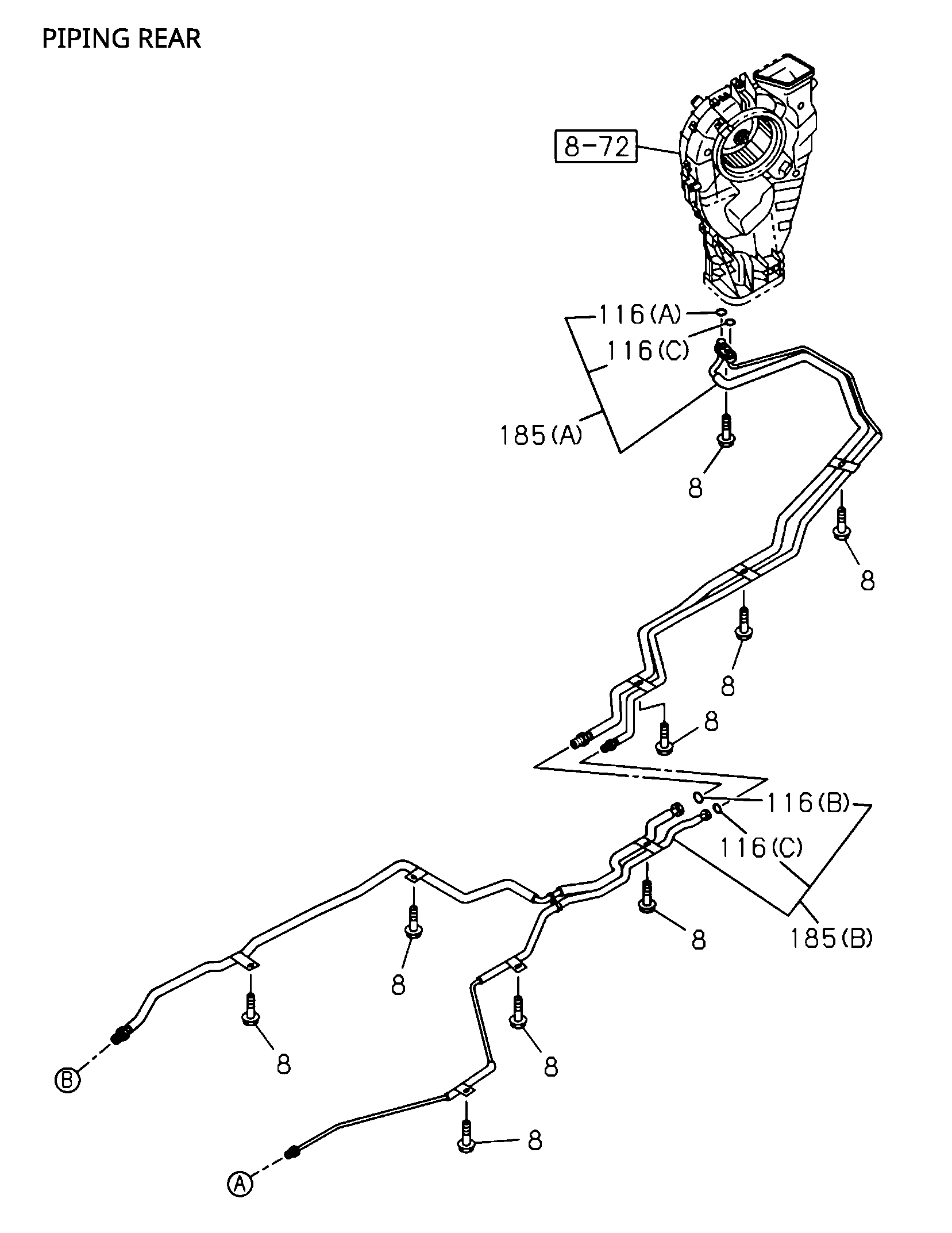

8-52 | PIPING; AIR CONDITIONING
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 3 | 2103- | B | (B) | ||
| 8 | I0-28650 620-0 | BOLT; CLIP | 10 | 2103- | AB | M6X20 FLANGE | ||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 2 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 49 | I8-97683 078-0 | CLAMP; FLEX HOSE | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 1 | 2103- | B | (A) | ||
| 66 | I8-97491 399-1 | HOSE; FLEX.A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 146 | I8-97512 046-0 | CLIP; RECEIVER PIPE | 2 | 2103- | AB | (A) | ||
| 216 | I0-28650 620-0 | BOLT; HOSE FIX | 1 | 2103- | AB | (A) M6X20 FLANGE | ||
| 146 | I8-97512 047-0 | CLIP; RECEIVER PIPE | 1 | 2103- | AB | (B) | ||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 2 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 116 | I8-97512 041-0 | GASKET; PIPE | 1 | 2103- | AB | (B) | ||
| 162 | I0-28650 825-0 | BOLT; FLEX HOSE | 1 | 2103- | A B | (A) M8X25 FLANGE | ||
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 4 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 192 | I8-97686 930-0 | PLATE; COOLER HOSE | 1 | 2103- | AB | |||
| 66 | I8-97507 094-1 | HOSE; FLEX.A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 66 | I8-97491 399-1 | HOSE; FLEX,A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 116 | I8-97512 039-0 | GASKET; PIPE | 1 | 2103- | AB | (A) | ||
| 226 | I8-97491 408-0 | TUBE; A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 158 | I0-52000 616-0 | BOLT; PIPE FIX | 2 | 2103- | A | RZ4E-TC ENG<RDZ> M6X16 | ||
| 23 | I8-97383 407-0 | BOLT; BRKT | 1 | 2103- | AB | M6X30W/PL WASHER | ||
| 147 | I8-97512 045-0 | CAP; FLEX HOSE | 1 | 2103- | AB | (A) | ||
| 122 | I8-97512 043-0 | GASKET | 1 | 2103- | AB | |||
| 226 | I8-97491 404-0 | TUBE; A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 214 | I8-97686 931-0 | RUBBER; CUSHION | 1 | 2103- | AB | |||
| 122 | I8-97512 043-0 | GASKET | 1 | 2103- | AB | |||
| 147 | I8-97512 044-0 | CAP; FLEX HOSE | 1 | 2103- | AB | (B) | ||
| 67 | I8-97512 040-0 | GASKET; FLEX HOSE | 1 | 2103- | AB | (C) | ||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 1 | 2103- | B | (A) | ||
| 123 | I8-97512 042-0 | GASKET; RECEIVER PIPE | 3 | 2103- | AB | |||
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 3 | 2103- | A | 4JJ3 ENG<LNG> (B) | ||
| 162 | I0-28650 835-0 | BOLT; FLEX HOSE | 2 | 2103- | A | RZ4E-TC ENG<RDZ> M8X35 FLANGE | ||
| 26 | I8-97491 404-0 | TUBE; A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 67 | I8-97512 040-0 | GASKET; FLEX HOSE | 1 | 2103- | AB | (C) | ||
| 192 | I8-97686 930-0 | PLATE; COOLER HOSE | 1 | 2103- | AB | |||
| 8 | I0-28650 620-0 | BOLT; CLIP | 10 | 2103- | AB | M6X20 FLANGE | ||
| 49 | I8-97686 928-0 | CLAMP; FLEX HOSE | 1 | 2103- | AB | (A) | ||
| 146 | I8-97512 046-0 | CLIP; RECEIVER PIPE | 2 | 2103- | AB | (A) | ||
| 53 | I8-97507 115-0 | PIPE; RECEIVER TANK TO EVAP | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 202 | I8-97512 048-0 | SWITCH; PRESSURE | 1 | 2103- | AB | |||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 1 | 2103- | A | 4JJ3 ENG<LNG> (A) | ||
| 216 | I0-28650 825-0 | BOLT; HOSE FIX | 2 | 2103- | A | RZ4E-TC ENG<RDZ> (B) M8X25 FLANGE | ||
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 3 | 2103- | A | 4JJ3 ENG<LNG> (B) | ||
| 162 | I0-28650 825-0 | BOLT; FLEX HOSE | 2 | 2103- | A | 4JJ3 ENG<LNG> (A) M8X25 FLANGE | ||
| 185 | I8-97507 117-0 | PIPE; EVAP TO FLEX HOSE.PRESS LO | 1 | 2103- | AB | (B) | ||
| 67 | I8-97512 039-0 | GASKET; FLEX HOSE | 1 | 2103- | A | 4JJ3 ENG<LNG> (A) | ||
| 147 | I8-97512 045-0 | CAP; FLEX HOSE | 1 | 2103- | AB | (A) | ||
| 226 | I8-97491 408-0 | TUBE; A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 4 | 2103- | A | RZ4E-TC ENG<RDZ> (B) | ||
| 162 | I0-28650 825-0 | BOLT; FLEX HOSE | 2 | 2103- | B | (A) M8X25 FLANGE | ||
| 214 | I8-97686 931-0 | RUBBER; CUSHION | 1 | 2103- | AB | |||
| 116 | I8-97512 042-0 | GASKET; PIPE | 2 | 2103- | AB | (C) | ||
| 49 | I8-97686 928-0 | CLAMP; FLEX HOSE | 1 | 2103- | AB | (A) | ||
| 185 | I8-97507 116-0 | PIPE; EVAP TO FLEX HOSE,PRESS LO | 1 | 2103- | AB | (A) | ||
| 53 | I8-97507 115-0 | PIPE; RECEIVER TANK TO EVAP | 1 | 2103- | A | RZ4E-TC ENG<RDZ> (A) | ||
| 146 | I8-97512 047-0 | CLIP; RECEIVER PIPE | 1 | 2103- | AB | (B) | ||
| 67 | I8-97512 041-0 | GASKET; FLEX HOSE | 3 | 2103- | B | (B) | ||
| 147 | I8-97512 044-0 | CAP; FLEX HOSE | 1 | 2103- | AB | (B) | ||
| 202 | I8-97512 048-0 | SWITCH; PRESSURE | 1 | 2103- | AB | |||
| 66 | I8-97507 094-1 | HOSE; FLEX.A/C | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 123 | I8-97512 042-0 | GASKET; RECEIVER PIPE | 3 | 2103- | AB |
