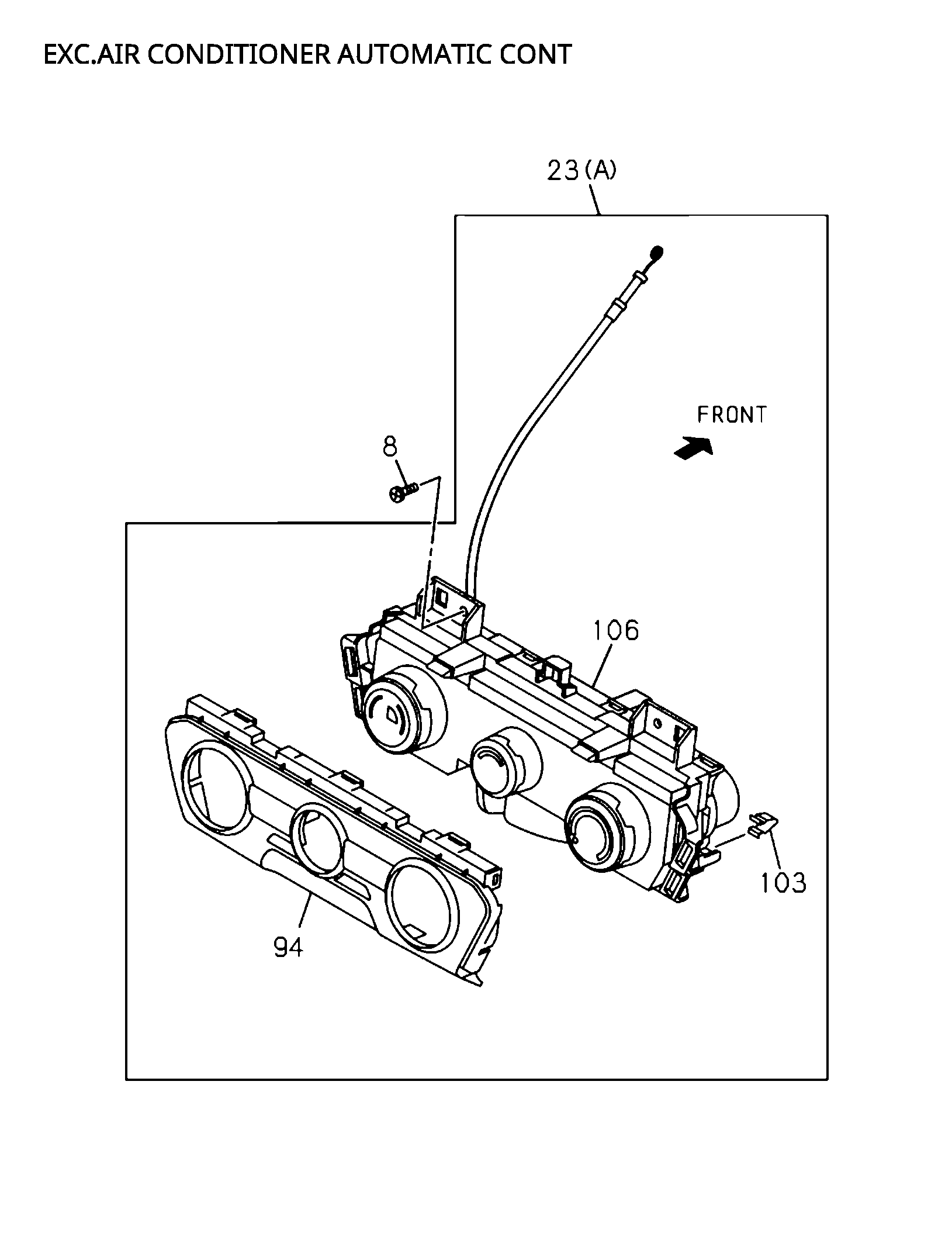

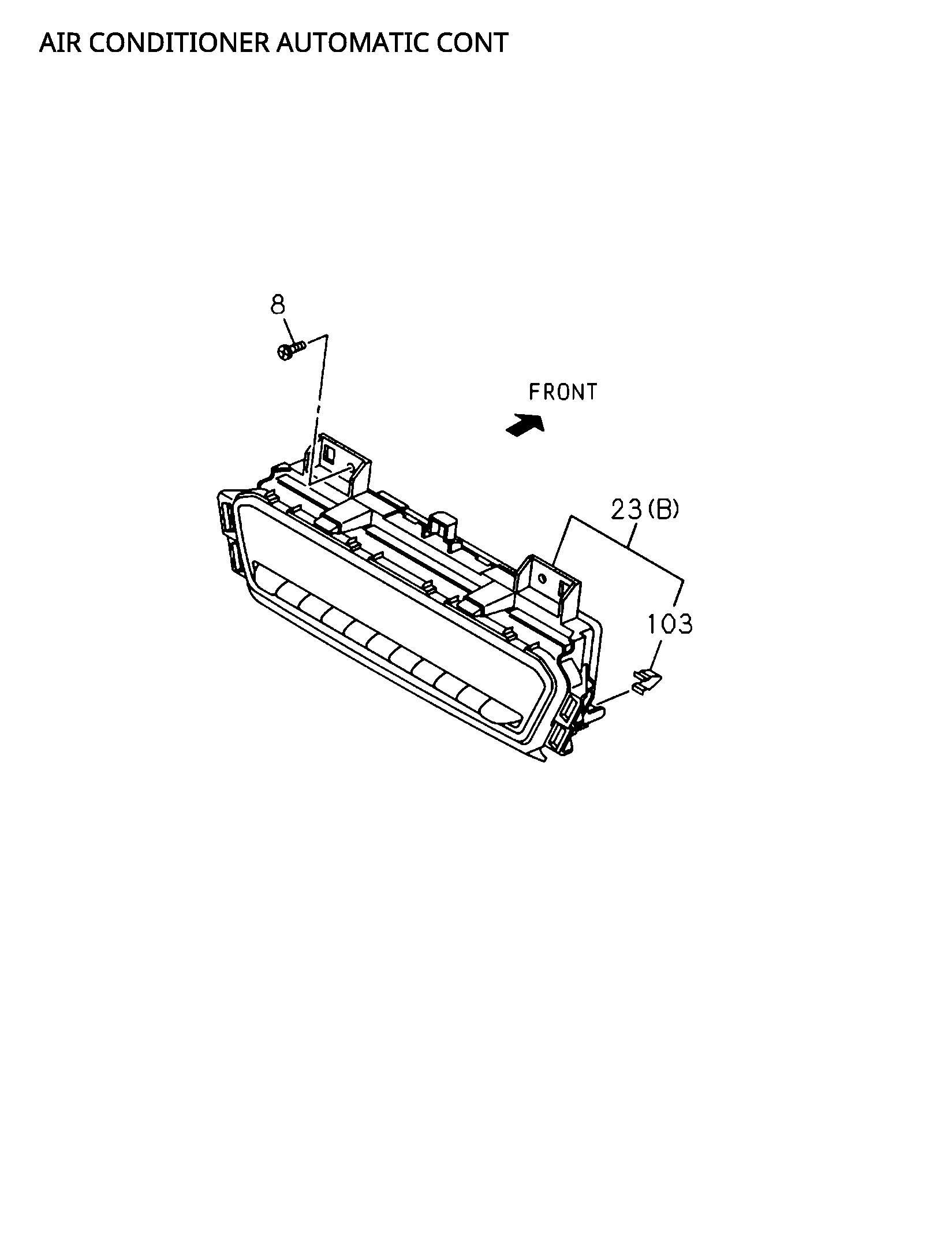

8-65 | CONTROL LEVER; HEATER AND AIR CON
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-97507 040-1 | BEZEL; CONT LEVER | 1 | 2103- | B | (A) | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2103- | A | COOLER W/FRESH AIR<C65> | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2103- | B | |||
| 103 | I8-97508 564-0 | CLIP | 2 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> | ||
| 23 | I8-97507 021-0 | BEZEL; CONT LEVER | 1 | 2103- | A | COOLER W/FRESH AIR<C65> GRADE LUXURY<RBC> EXC. IDLE STOP SYSTEM<8BM> (B) | ||
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2103- | AB | M5X16 TAPPING | ||
| 23 | I8-97507 040-1 | BEZEL; CONT LEVER | 1 | 2103- | A | AIR CONDmONER AUTOMATIC CONT<C61> (A) | ||
| 106 | I8-97685 757-0 | CONTROL SUB ASM; HTR & A/C | 1 | 2103- | A | COOLER W/FRESH AIR<C65> GRADE LUXURY<RBC> EXC. IDLE STOP SYSTEM<8BM> | ||
| 94 | I8-97554 437-0 | PANEL; BEZEL | 1 | 2103- | A | COOLER W/FRESH AIR<C65> | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2103- | B | |||
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2103- | AB | M5X16 TAPPING | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2103- | A | COOLER W/FRESH AIR<C65> |
