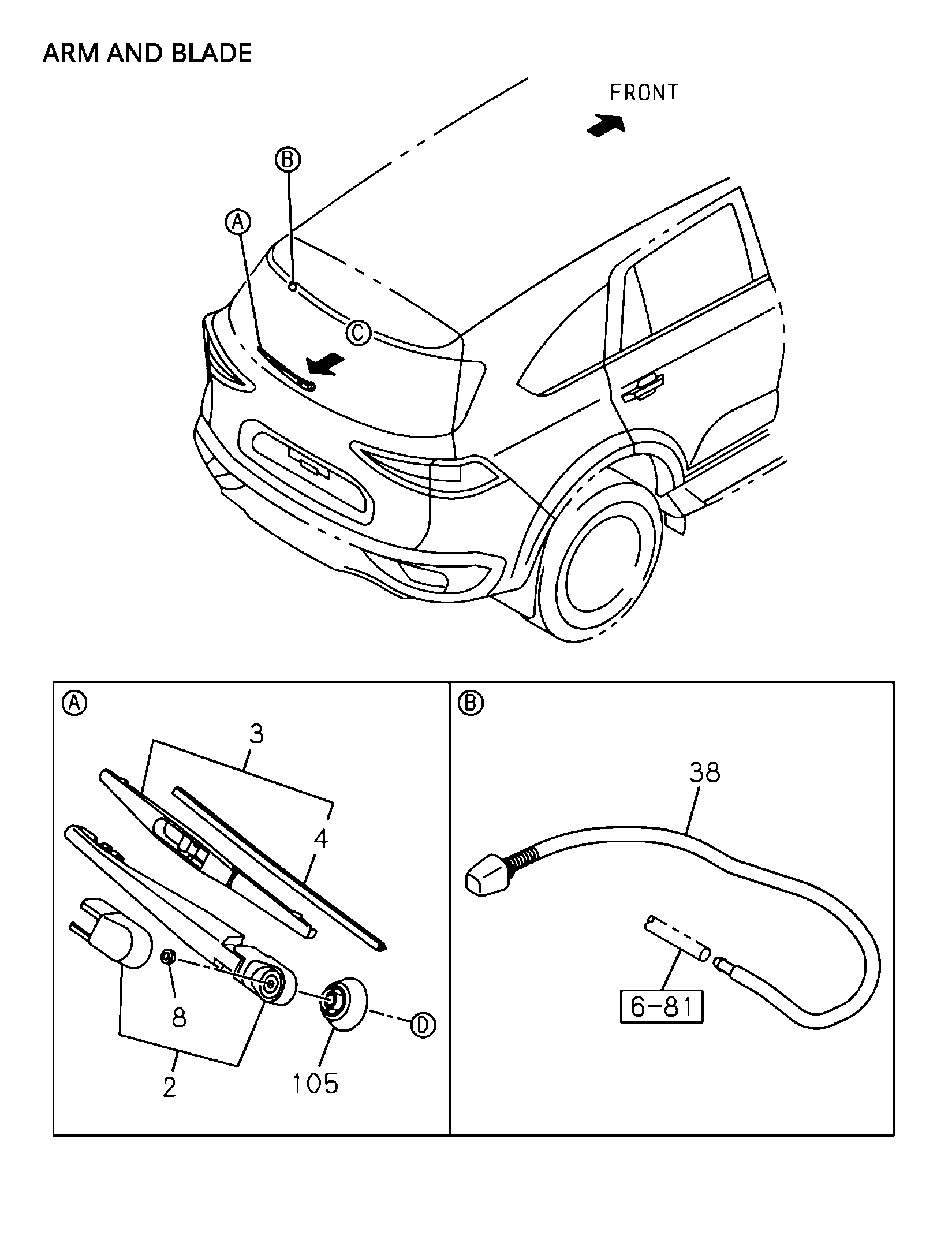

8-85 | REAR WIPER AND WASHER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I8-98335 258-0 | NOZZLE ASM; RR WASHER | 1 | 2103- | AB | |||
| 3 | I8-97678 911-0 | BLADE ASM; REAR WIPER | 1 | 2103- | AB | |||
| 2 | I8-97678 910-0 | ARM ASM; REAR WIPER | 1 | 2103- | AB | |||
| 4 | I8-97682 346-0 | RUBBER; BLADE.RR WIPER | 1 | 2103- | AB | |||
| 8 | I0-91111 506-0 | NUT; RR WIPER ARM TO WIPER MOTOR | 1 | 2103- | AB | M6 IMA | ||

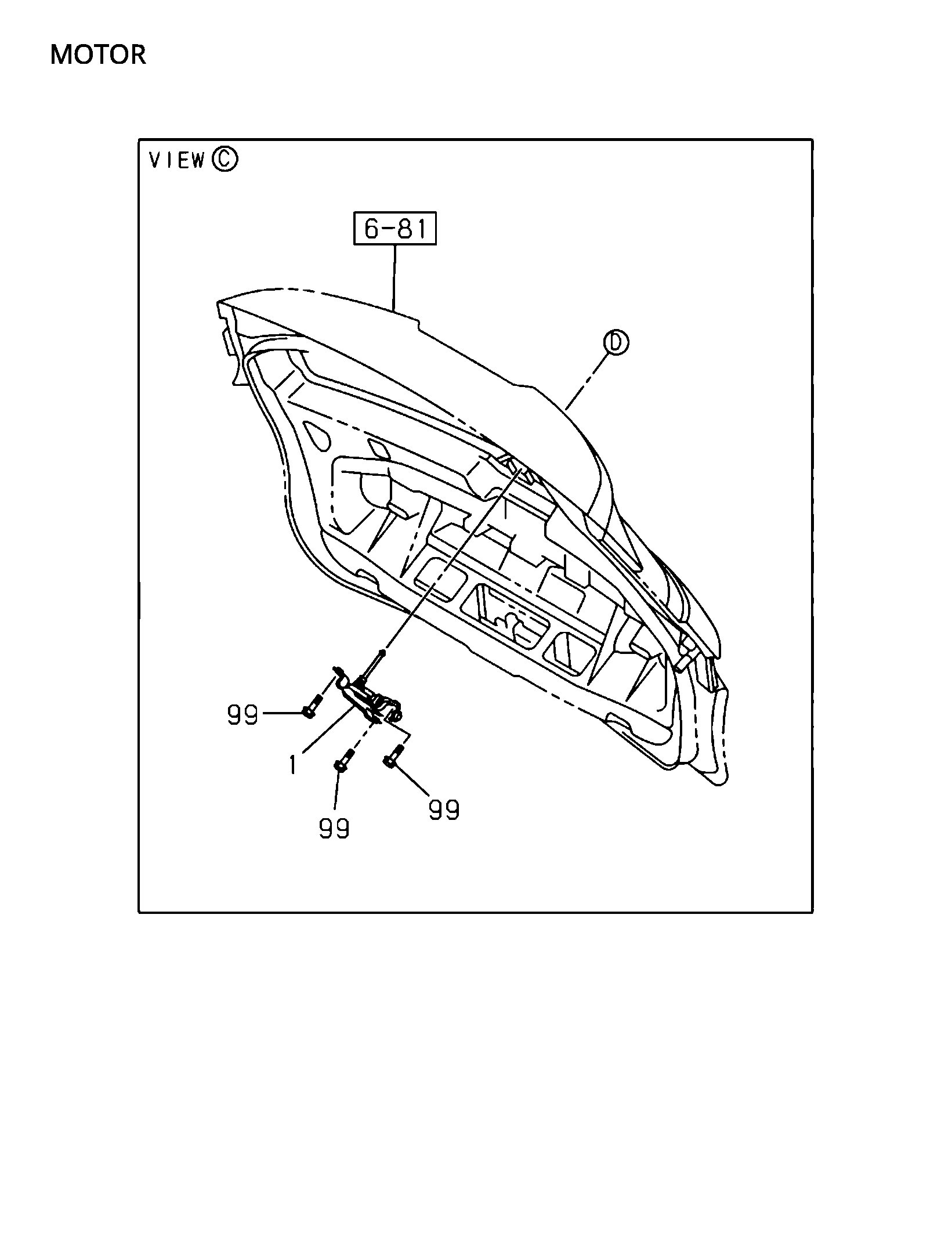

| 1 | I8-98335 256-0 | MOTOR ASM; RR WIPER | 1 | 2103- | AB | |||
| 99 | I8-98164 723-0 | BOLT; WIPER MOTOR | 3 | 2103- | AB | M 6X23.5 W/LK&PL WASHER IMA | ||
| 105 | I8-98210 508-0 | GROMMET; RR WIPER MOTOR | 1 | 2103- | AB |
