0-22 | 0-22 - ENGINE MOUNTING
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

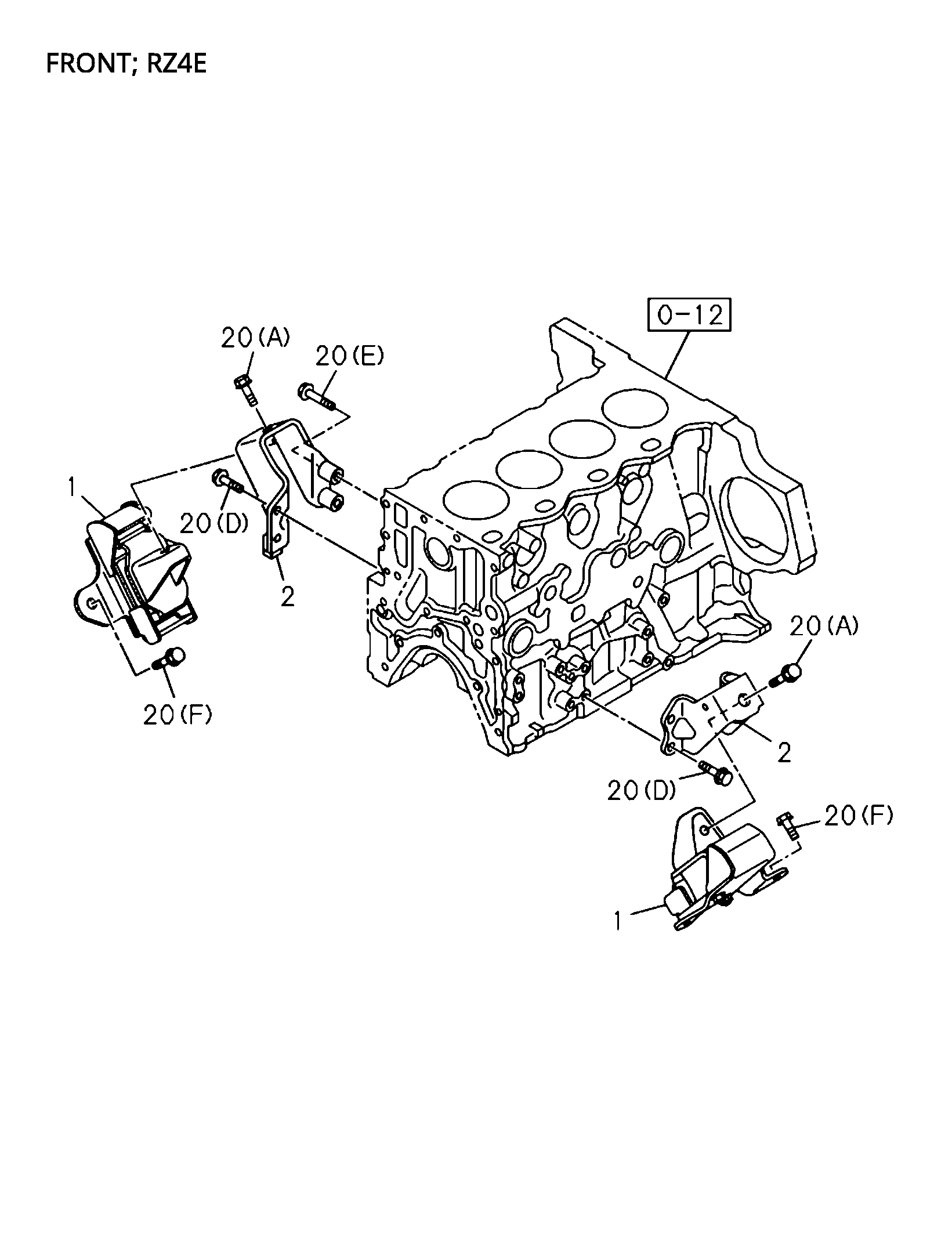

| 2 | I8-98248 256-2 | FOOT; ENG | 1 | 2110- | R | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | |
| 2 | I8-98248 257-1 | FOOT; ENG | 1 | 2110- | L | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | |
| 1 | I8-98369 977-1 | RUBBER; ENG FOOT.FRT | 1 | 2110- | L | A | A/T 6 SPEED-AISIN(Y6A) | |

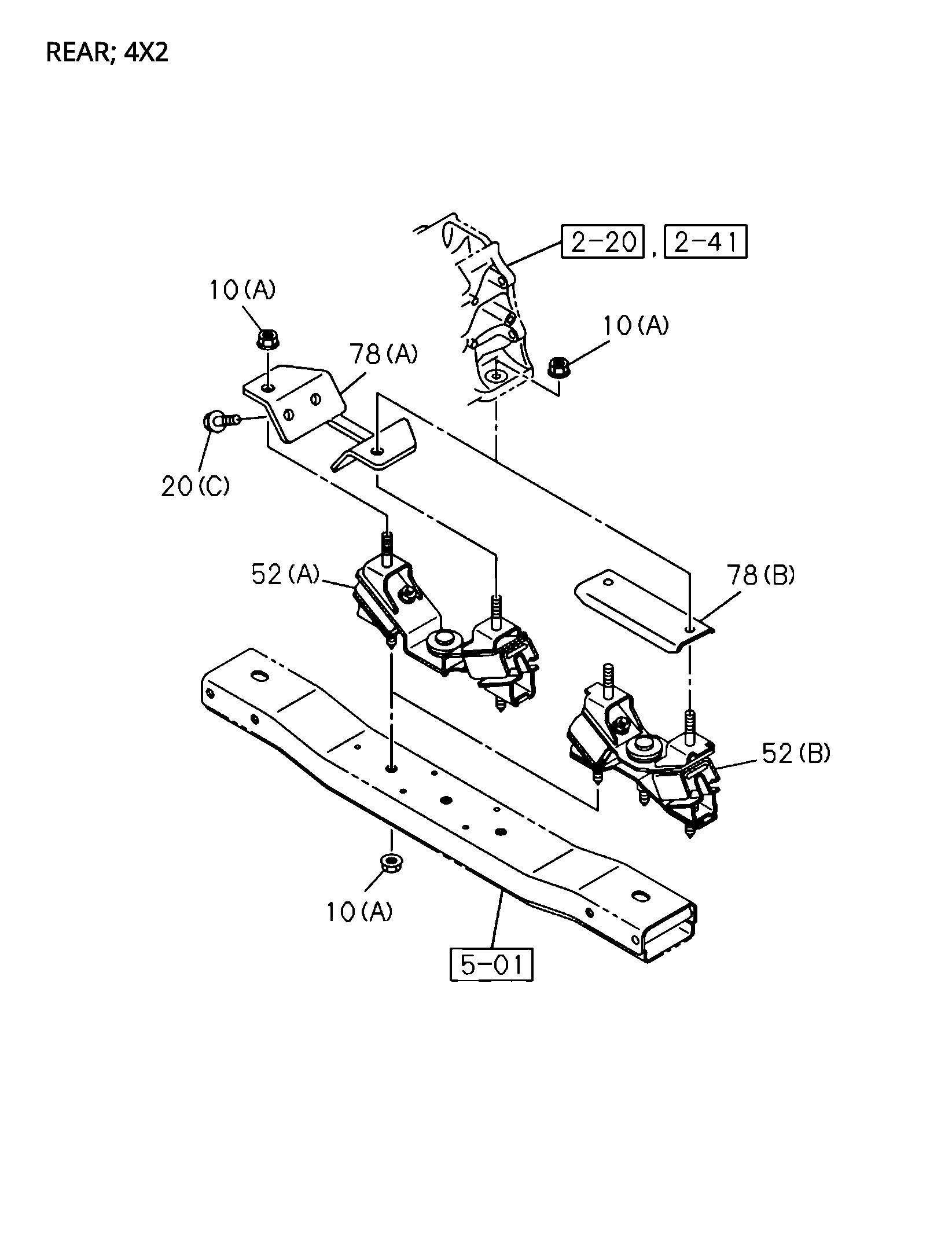

| 52 | I8-98369 985-1 | RUBBER; CUSHION,ENG MTG.RR | 1 | 2110- | AB | 4X2(UCB***) A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 1 | I8-98369 976-0 | RUBBER; ENG FOOT.FRT | 1 | 2110- | R | A | A/T 6 SPEED-AISIN(Y6A) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | |
| 10 | I0-91180 212-0 | NUT; MTG RUBBER | 3 | 2110- | AB | 4X4(UCS***) (A) M12 FLANGE | ||
| 10 | I0-91180 212-0 | NUT; MTG RUBBER | 5 | 2110- | A B | 4X2(UCB***) (A) M12 FLANGE | ||
| 20 | I0-28661 230-0 | BOLT; ENG FOOT | 4 | 2110- | AB | (F) M12X30 FLANGE | ||
| 10 | I0-28051 020-0 | NUT; MTG RUBBER | 8 | 2110- | B | (B) M10X20 FLANGE | ||

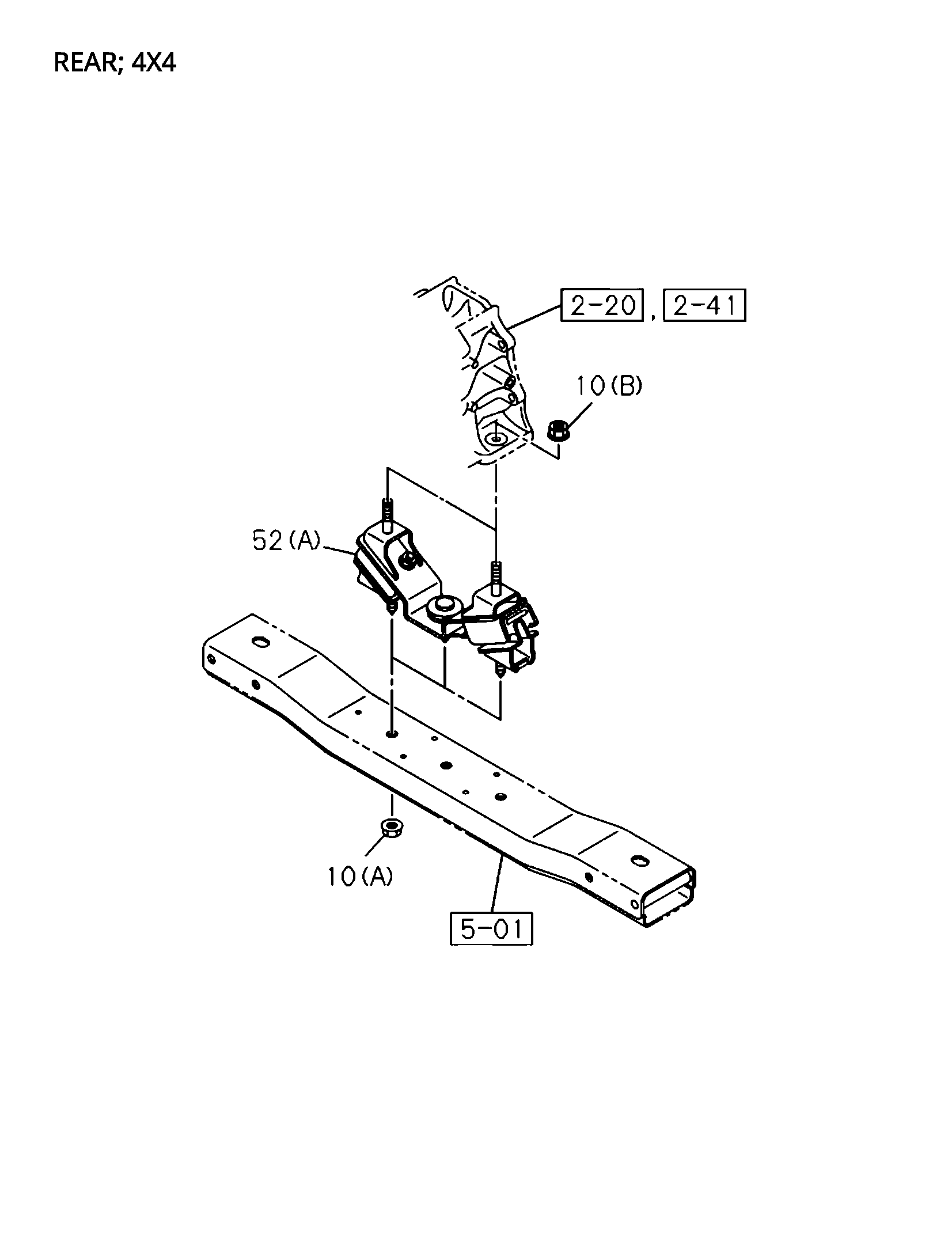

| 52 | I8-98369 983-2 | RUBBER; CUSHION,ENG MTG.RR | 1 | 2110- | A | 4X4(UCS***) A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 20 | I0-28151 020-0 | BOLT; ENG FOOT | 6 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (D) M10X20 FLANGE | ||
| 10 | I0-28651 025-0 | NUT; MTG RUBBER | 4 | 2110- | AB | 4X2(UCB***) A/T 6 SPEED-AISIN(Y6A) (C) M10X25 FLANGE | ||
| 78 | I8-98395 396-0 | BRACKET; ENG MTG,RR | 1 | 2110- | A | 4X2(UCB***) A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 2 | 2110- | A | (A) M12X27.8 FLANGE | ||
| 20 | I0-28051 020-0 | BOLT; ENG FOOT | 8 | 2110- | B | (B) M10X20 FLANGE | ||
| 20 | I0-28051 045-0 | BOLT; ENG FOOT | 2 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (E) M10X45 FLANGE | ||
| 20 | I8-98278 658-0 | BOLT; ENG FOOT | 4 | 2110- | B | A/T 6 SPEED-AISIN(Y6A) (A) M12X27.8 FLANGE | ||
| 10 | I8-97544 488-0 | NUT; MTG RUBBER | 2 | 2110- | A B | 4X4(UCS***) (B) M12 FLANGE | ||
| 10 | I8-98278 658-0 | NUT; MTG RUBBER | 4 | 2110- | B | A/T 6 SPEED-AISIN(Y6A) (A) M12X27.8 FLANGE | ||
| 20 | I0-28651 025-0 | BOLT; ENG FOOT | 4 | 2110- | AB | 4X2(UCB***) A/T 6 SPEED-AISIN(Y6A) (C) M10X25 FLANGE |
