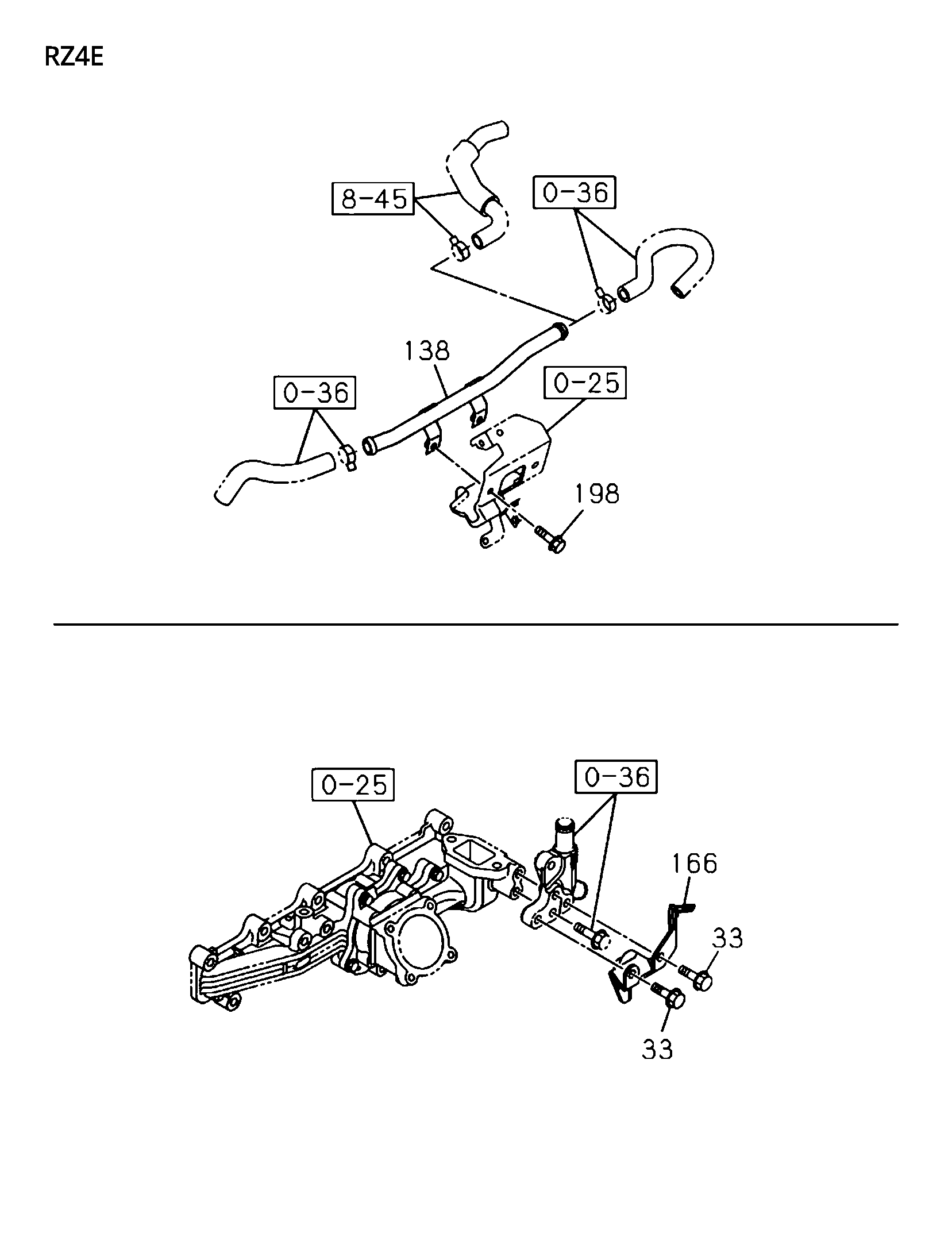

0-32 | 0-32 - WATER PIPING; ENGINE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 69 | I0-91180 206-0 | NUT; WATER PIPE | 1 | 2110- | B | M6FLANGE | ||
| 166 | I8-97498 120-0 | BRACKET; CLIP | 1 | 2110- | A | A/T 6 SPEED-AISIN(Y6A) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 33 | I0-28050 825-0 | BOLT; BRKT | 2 | 2110- | A | A/T 6 SPEED-AISIN(Y6A) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X25 FLANGE | ||
| 97 | I0-28050 616-0 | BOLT; WATER PIPE | 1 | 2110- | B | M6X16 FLANGE |
