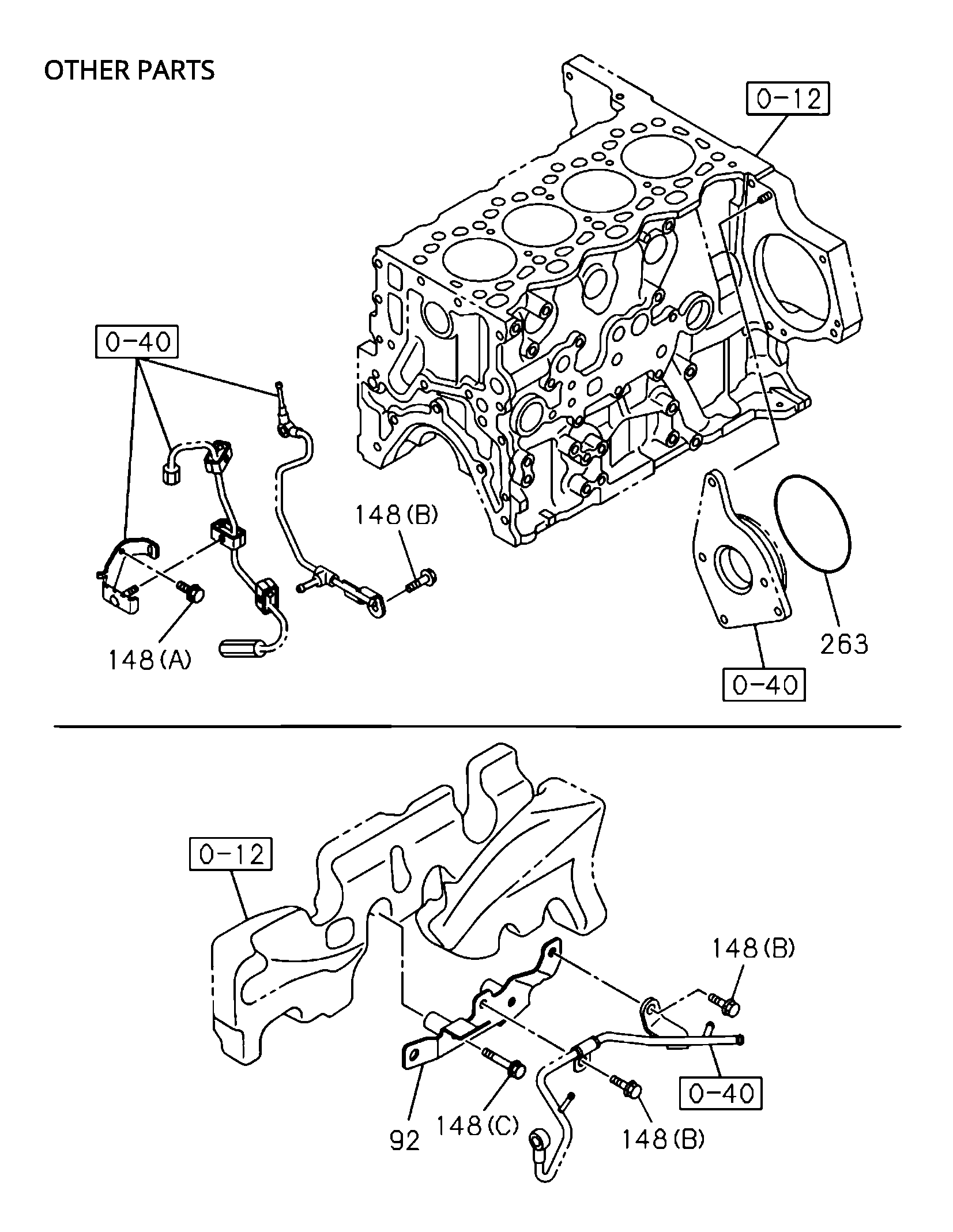

0-42 | 0-42 - FUEL PUMP AND PIPE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 148 | I0-28050 845-0 | BOLT; BRKT | 2 | 2110- | B | (C) M8X45 FLANGE | ||
| 263 | I8-98312 896-0 | GASKET; BRKT | 1 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 148 | I0-28050 816-0 | BOLT; BRKT | 2 | 2110- | B | (B) M8X16 FLANGE | ||

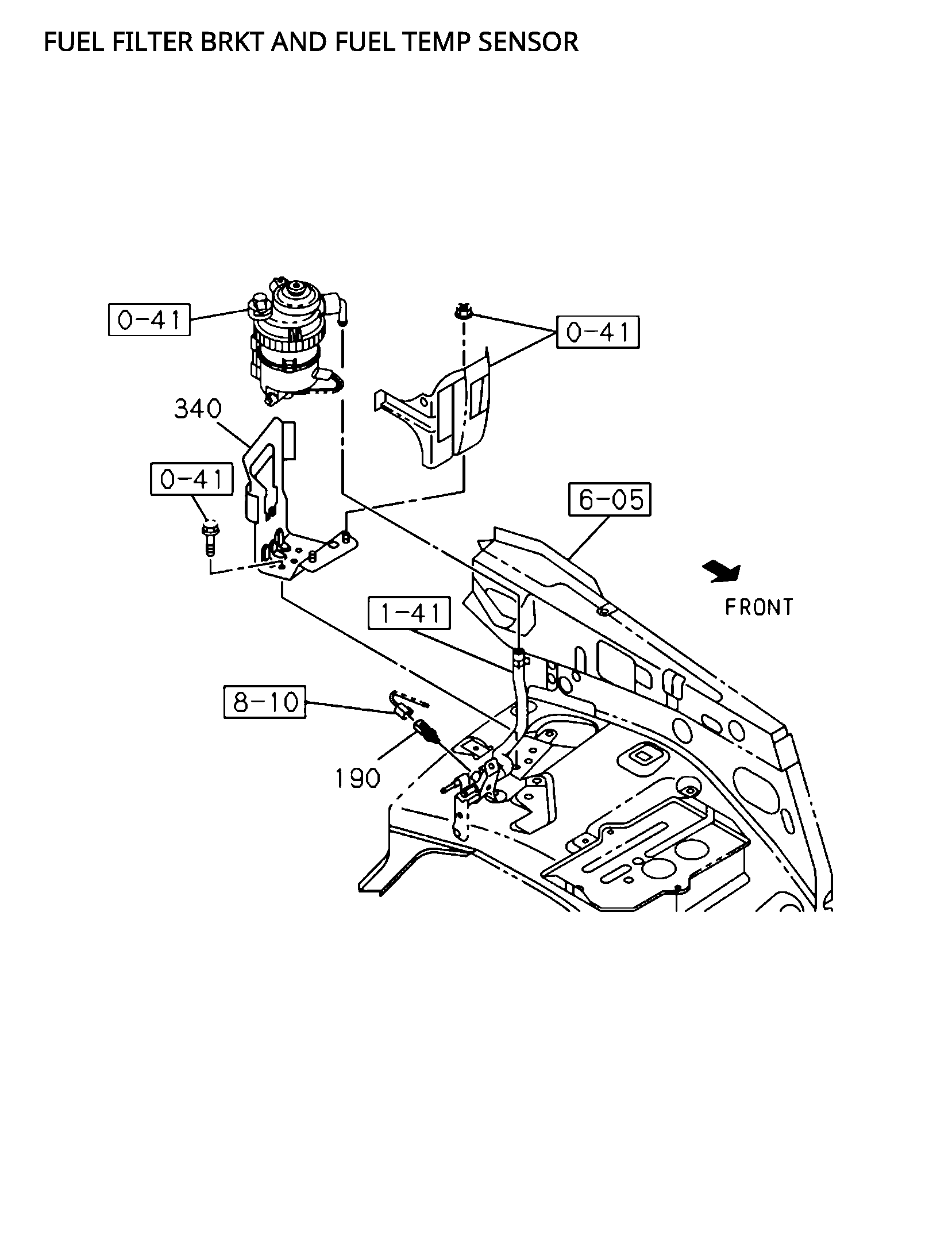

| 340 | I8-98388 204-3 | BRACKET; FUEL FILTER | 1 | 2110- | AB | |||
| 148 | I0-28050 612-0 | BOLT; BRKT | 1 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) M6X12 FLANGE | ||
| 148 | I0-28050 816-0 | BOLT; BRKT | 1 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (B) M8X16 FLANGE |
