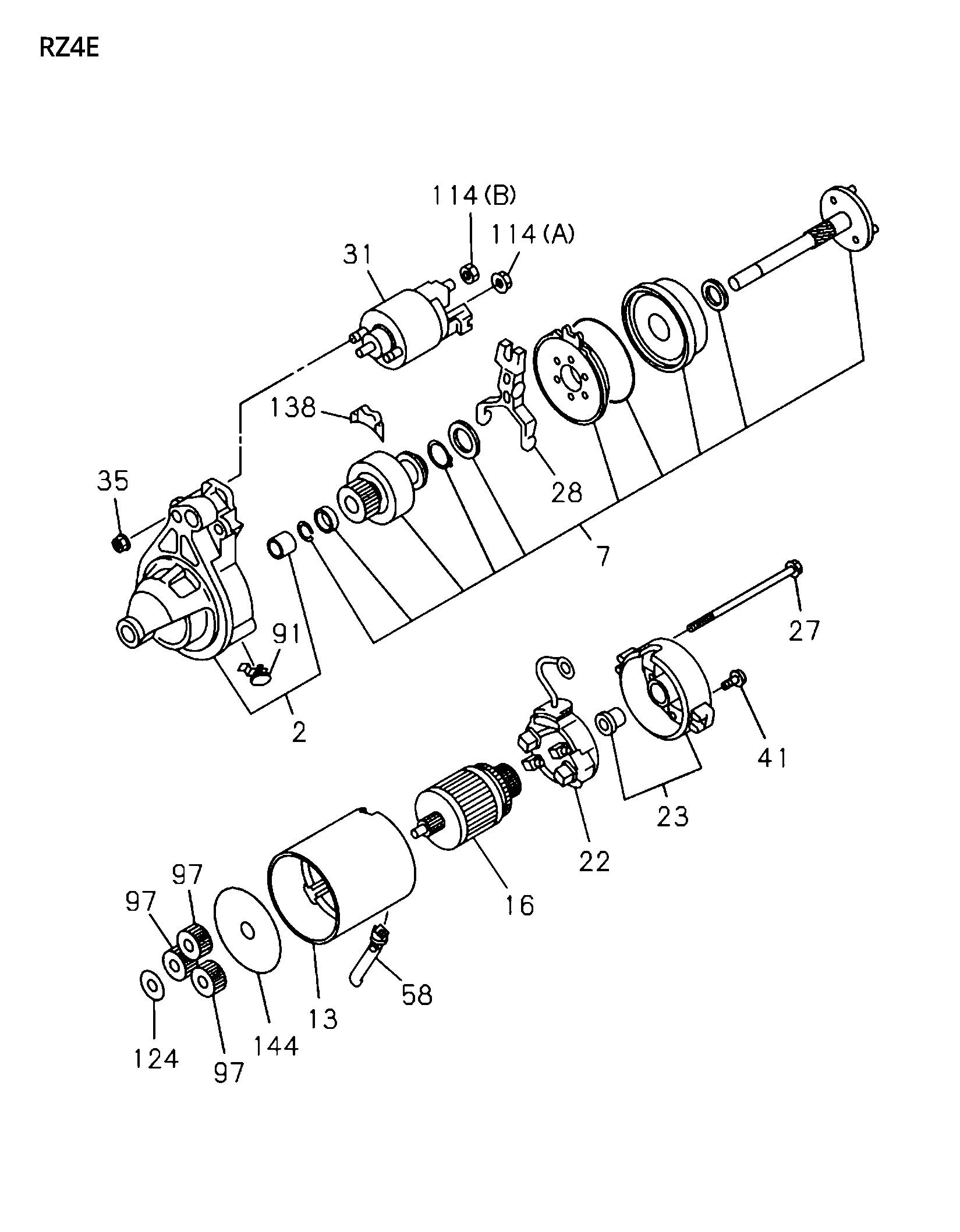

0-65 | 0-65 - STARTER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | I8-98283 916-0 | LEVER; SHIFT,STARTER | 1 | B | ||||
| 23 | I8-98283 907-0 | COVER; RR COVER STARTER | 1 | B | ||||
| 114 | I8-94154 639-0 | NUT; TERMINAL | 1 | A B | (A) | |||
| 114 | I8-94377 238-0 | NUT; TERMINAL | 1 | A B | (B) | |||
| 16 | I8-98283 905-0 | ARMATURE; STARTER | 1 | B | ||||
| 28 | I8-98283 909-0 | LEVER; SHIFT,STARTER | 1 | A B | ||||
| 7 | I8-98283 908-0 | CLUTCH ASM; PINION.STARTER | 1 | B | ||||
| 22 | I8-98283 904-0 | HOLDER; BRUSH STARTER | 1 | B | ||||
| 138 | I8-98283 913-0 | SEAL; STARTER | 1 | AB | ||||
| 27 | I8-98283 912-0 | BOLT; THROUGH.STARTER | 2 | AB | ||||
| 144 | I8-98283 911-0 | PLATE; STARTER | 1 | I B | ||||
| 97 | I8-98283 910-0 | GEAR; STARTER | 3 | B | ||||
| 2 | I8-98283 906-0 | CASE; PINION.STARTER | 1 | B | ||||
| 124 | I8-94367 789-0 | WASHER; STARTER | 1 | B | ||||
| 13 | I8-98283 903-0 | YOKE; STARTER | 1 | B |
