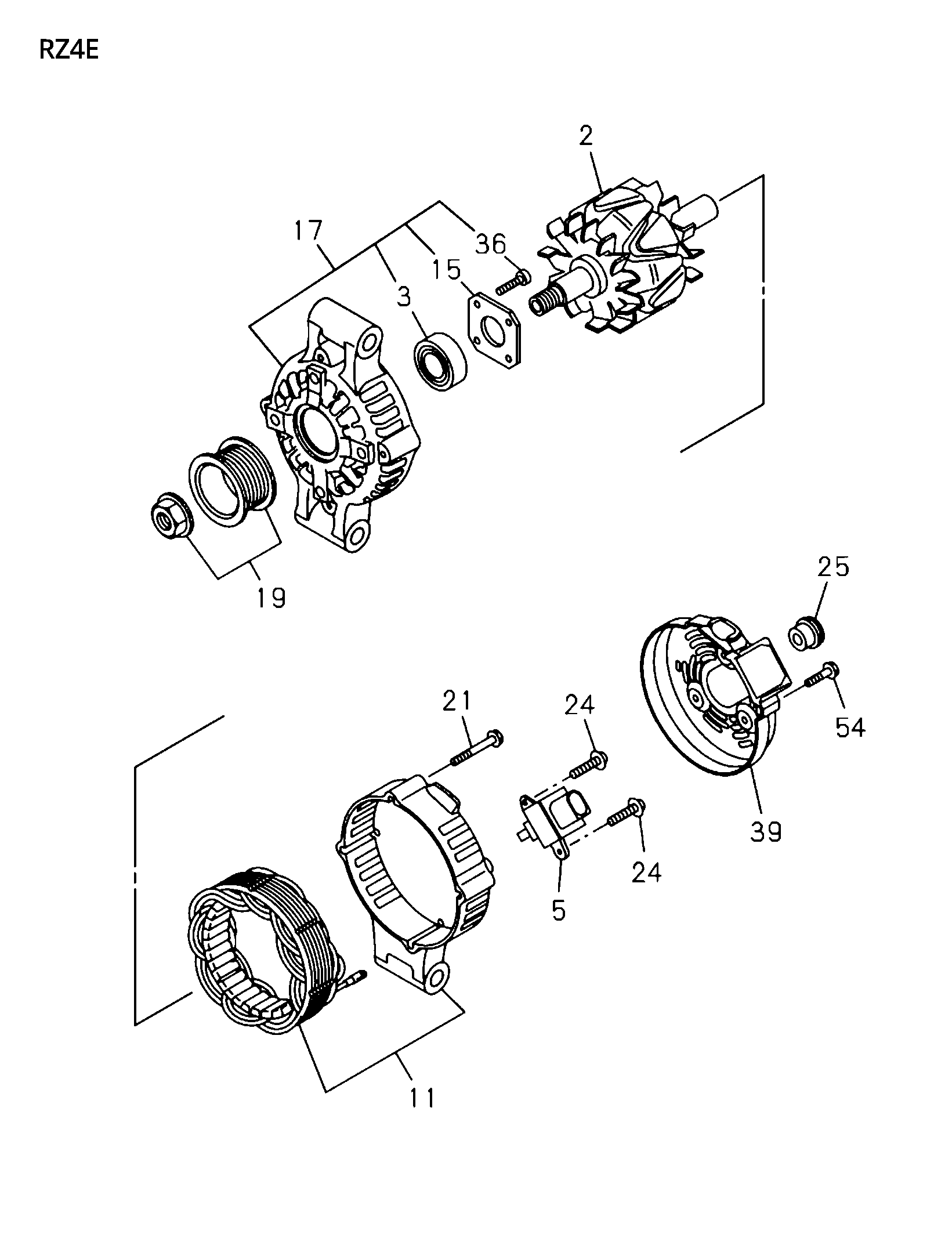

0-66 | 0-66 - GENERATOR
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-98393 107-0 | PULLEY; GEN | 1 | A B C | ||||
| 3 | I8-98231 355-0 | BEARING; ROTOR.GEN | 1 | A B C | ||||
| 5 | I8-98249 245-0 | HOLDER; BRUSH,GEN | 1 | A | ||||
| 2 | I8-98231 360-0 | ROTOR; GEN | 1 | A B C | ||||
| 15 | I8-94406 982-0 | RETAINER; ROTOR.GEN | 1 | ABC | ||||
| 21 | I8-98231 358-0 | BOLT; THROUGH.GEN | 4 | ABC | ||||
| 17 | I8-98393 108-0 | COVER ASM; FRT.GEN | 1 | A | ||||
| 11 | I8-98393 109-0 | COVER; RR.GEN | 1 | A |
