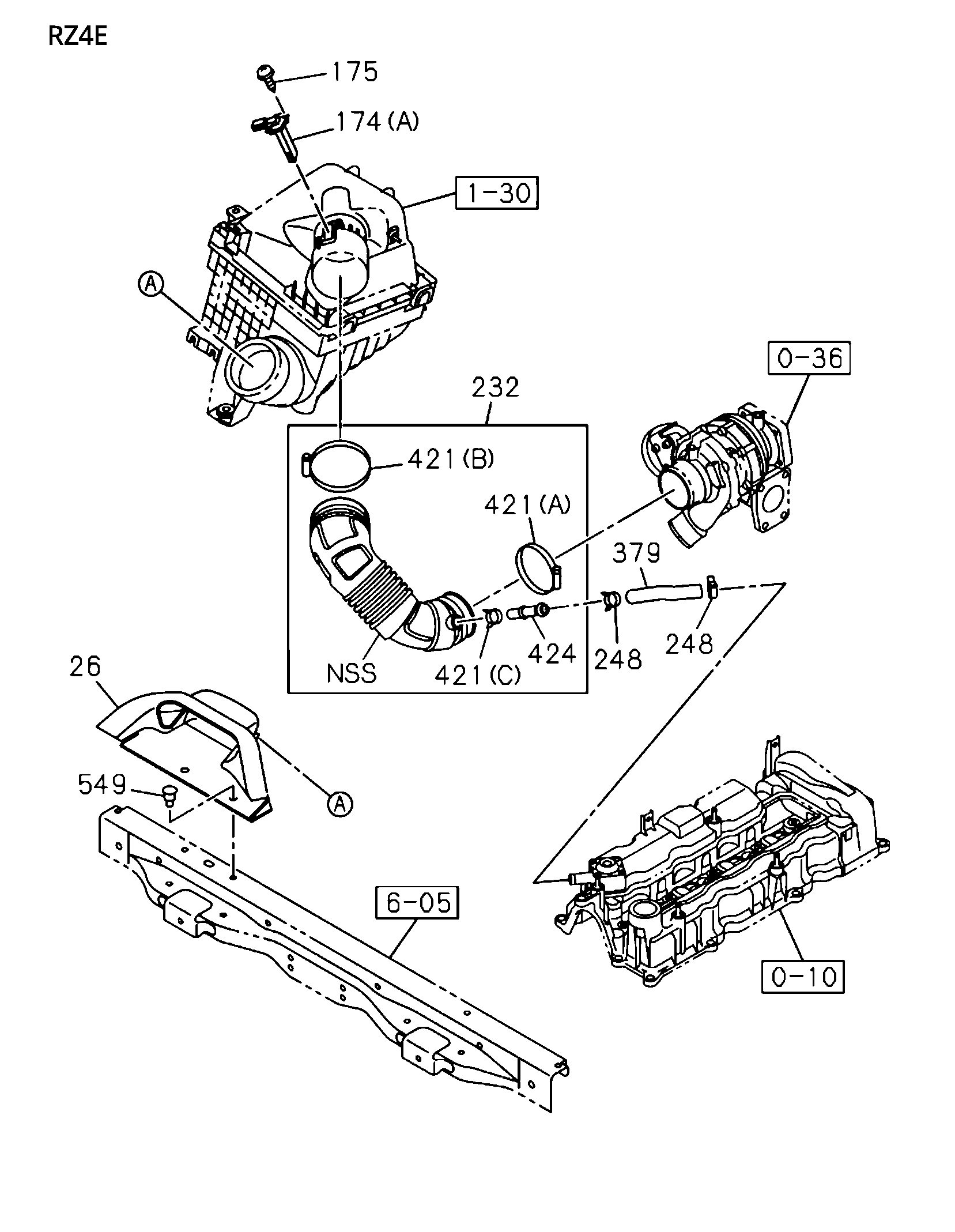

1-31 | 1-31 - AIR DUCT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 421 | I8-97555 741-0 | CLAMP; AIR DUCT | 1 | 2110- | A | (A) | ||
| 174 | I8-97601 967-0 | SENSOR; AIR FLOW CONT | 1 | 2110- | AB | (A) | ||
| 26 | I8-98394 377-3 | DUCT; AIR INT | 1 | 2110- | A | EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 421 | I8-97555 743-0 | CLAMP; AIR DUCT | 1 | 2110- | AB | (B) | ||

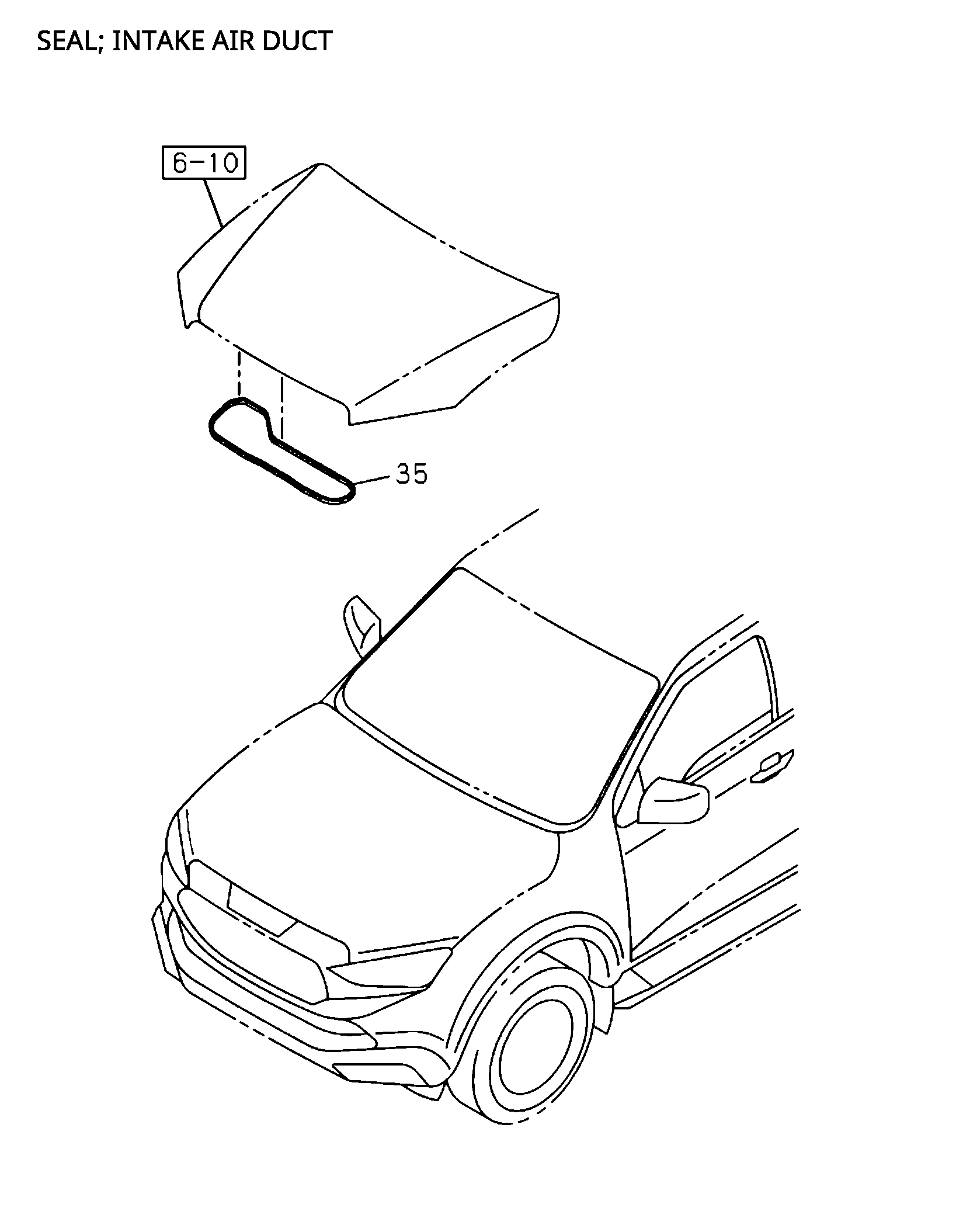

| 35 | I8-98394 378-1 | SEAL; DUCT,INT | 1 | 2110- | AB | |||
| 26 | I8-98394 377-3 | DUCT; AIR INT | 1 | 2110- | B | |||
| 232 | I8-98394 381-1 | HOSE; CONN | 1 | 2110- | A | |||
| 379 | I8-98394 388-0 | HOSE; RUBBER | 1 | 2110- | A | |||
| 421 | I8-98291 633-0 | CLAMP; AIR DUCT | 1 | 2110- | A B | (C) | ||
| 175 | I0-36230 410-0 | BOLT; AIR FLOW CONT SENSOR | 2 | 2110- | A B | SCREW M4X10 W/LK&PL WASHER |
