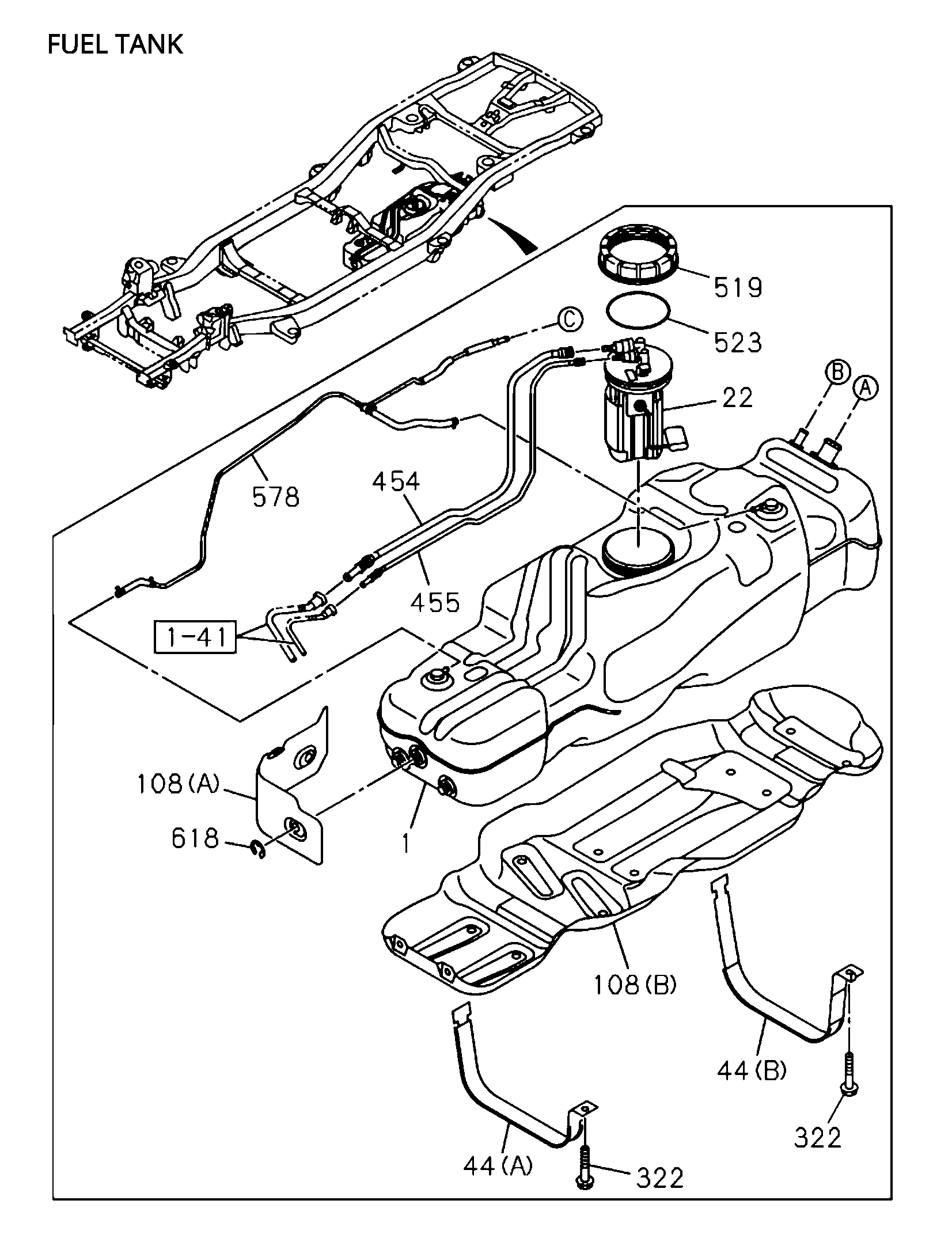

1-40 | 1-40 - FUEL TANK
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-97521 704-0 | CLIP; FILLER HOSE | 3 | 2110- | A B | ID=12-18 | ||
| 22 | I8-97558 591-0 | UNIT; FUEL TANK | 1 | 2110- | A B | |||
| 81 | I8-97511 961-0 | HOSE; FUEL FILLER | 1 | 2110- | A B | (A) | ||
| 25 | I8-97679 275-0 | CAP; FILLER,FUEL TANK | 1 | 2110- | A B | |||
| 44 | I8-97507 151-0 | BAND; FUEL TANK | 1 | 2110- | A B | (A) | ||
| 278 | I8-97506 614-0 | GROMMET; FUEL PIPE | 1 | 2110- | AB | |||
| 93 | I8-97511 967-0 | HOSE; BREATHER.FUEL TANK | 1 | 2110- | A B | (b) | ||
| 78 | I8-97944 127-0 | CLIP; BREATHER HOSE | 4 | 2110- | AB | id=20.8 | ||
| 44 | I8-97507 152-0 | BAND; FUEL TANK | 1 | 2110- | AB | (b) | ||
| 93 | I8-97511 962-0 | HOSE; BREATHER.FUEL TANK | 1 | 2110- | AB | (A) | ||

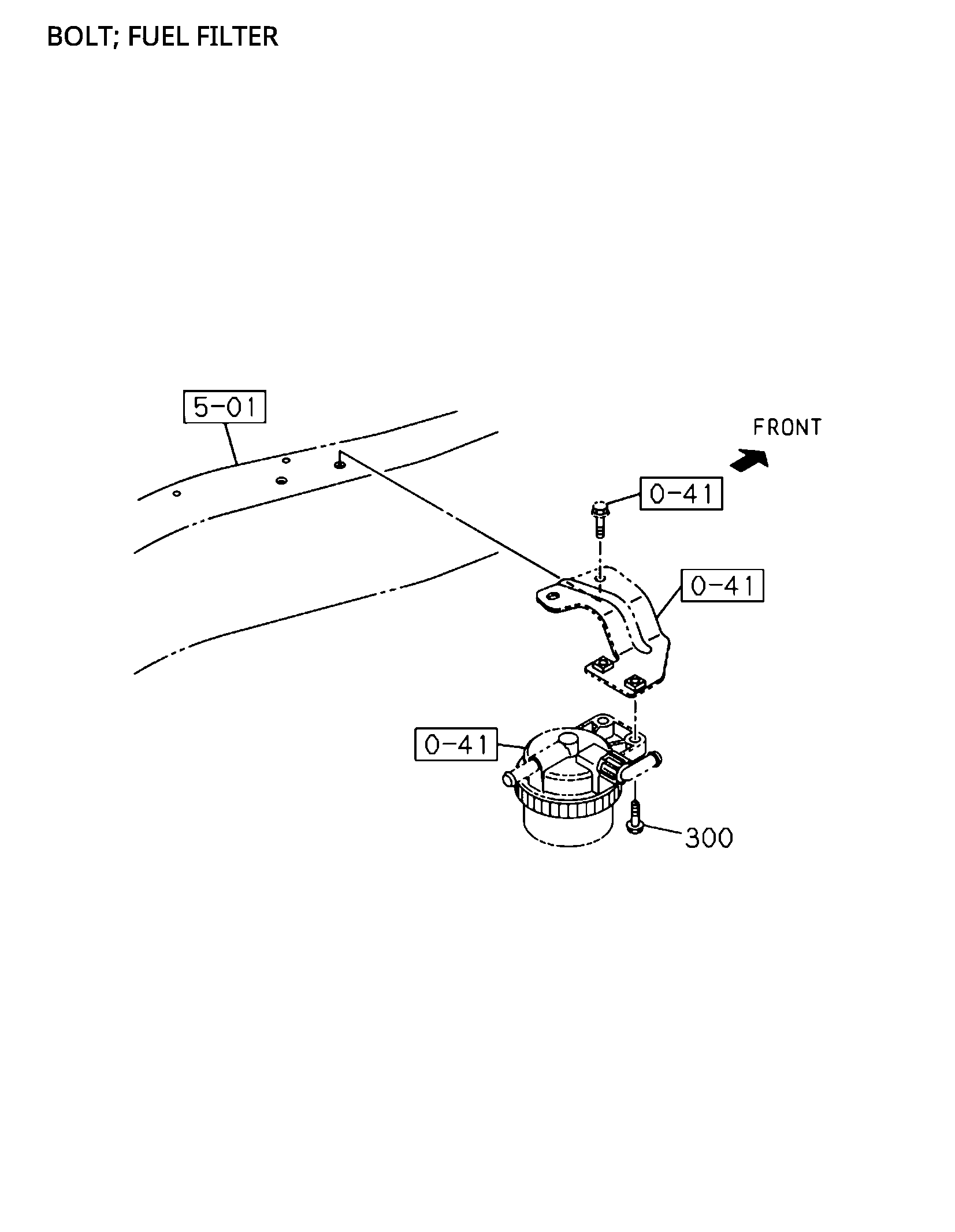

| 300 | I0-28650 830-0 | BOLT; BRKT TO BODY | 2 | 2110- | AB | PRE FUEL FILTER<KF0> M8X30 FLANGE | ||
| 83 | I8-97511 958-1 | NECK; FUEL FILLER | 1 | 2110- | AB | (A) | ||
| 592 | I0-91180 106-0 | NUT; PIPE | 2 | 2110- | A B | M6 FLANGE | ||
| 578 | I8-97558 595-0 | TUBE; FUEL.EVAPO | 1 | 2110- | AB | |||
| 383 | I8-98230 130-0 | VALVE; 2 WAY | 1 | 2110- | A B | |||
| 322 | I8-97301 165-0 | BOLT; BRKT FIX | 2 | 2110- | AB | M10X50 FLANGE | ||
| 81 | I8-97511 966-0 | HOSE; FUEL FILLER | 1 | 2110- | AB | (b) | ||
| 86 | I8-97511 963-0 | HOSE; EVAP | 1 | 2110- | A B | (A) | ||
| 454 | I8-97558 592-0 | PIPE; FUEL.DELIVERY | 1 | 2110- | A B | |||
| 618 | I8-98212 998-0 | RETAINER; FUEL TANK | 5 | 2110- | A B | |||
| 523 | I8-98212 994-0 | SEAL; FUEL SENSOR | 1 | 2110- | AB | |||
| 308 | I8-98234 324-0 | CLIP; HOSE | 2 | 2110- | AB | |||
| 519 | I8-98212 995-0 | RETAINER; FUEL PUMP | 1 | 2110- | AB | |||
| 455 | I8-97558 593-0 | PIPE; FUEL,RETURN | 1 | 2110- | A B | |||
| 1 | I8-97510 898-1 | TANK; FUEL | 1 | 2110- | AB | |||
| 83 | I8-97511 964-1 | NECK; FUEL FILLER | 1 | 2110- | A B | (b) | ||
| 86 | I8-97511 970-0 | HOSE; EVAP | 1 | 2110- | AB | (b) |
