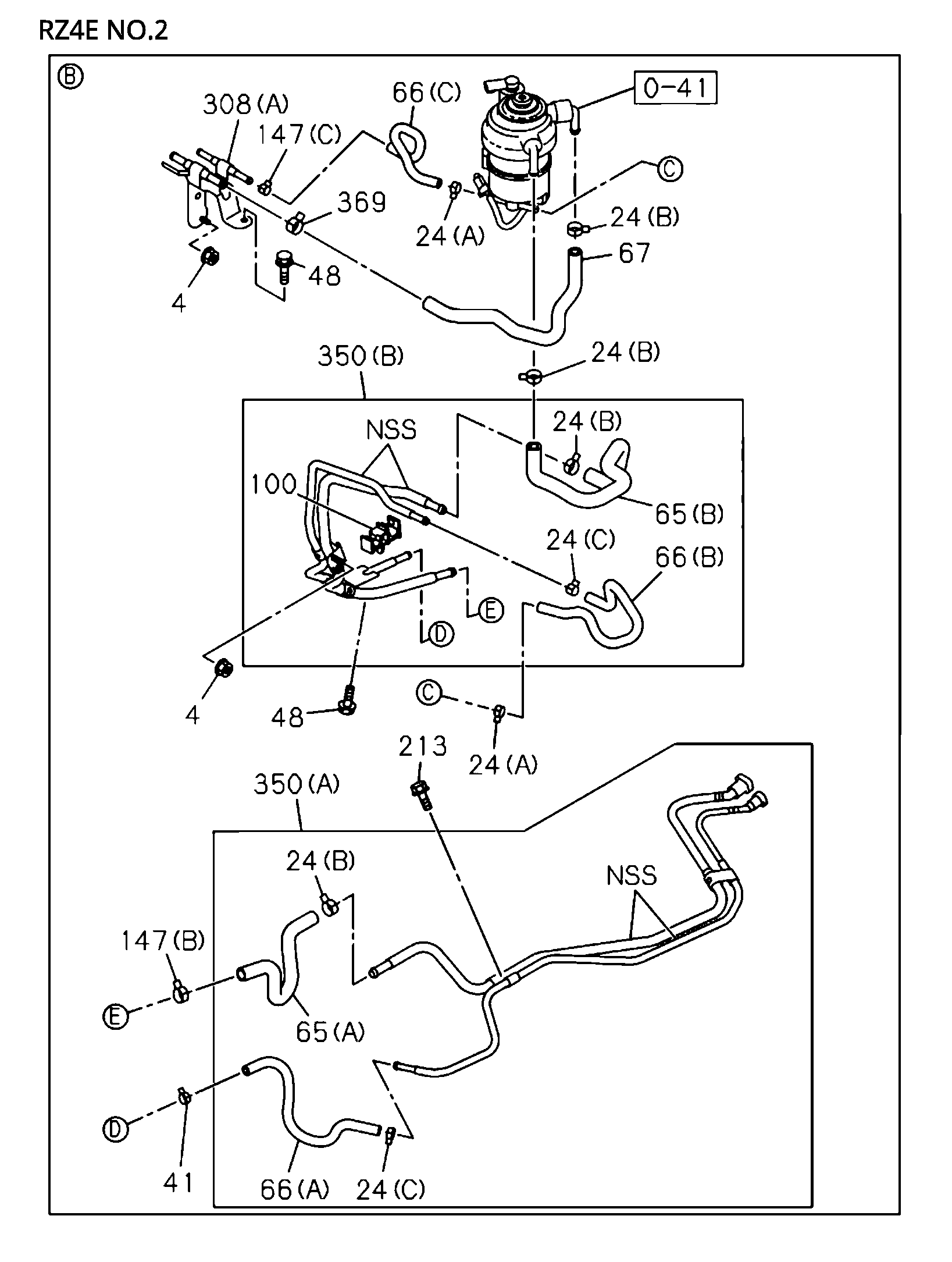

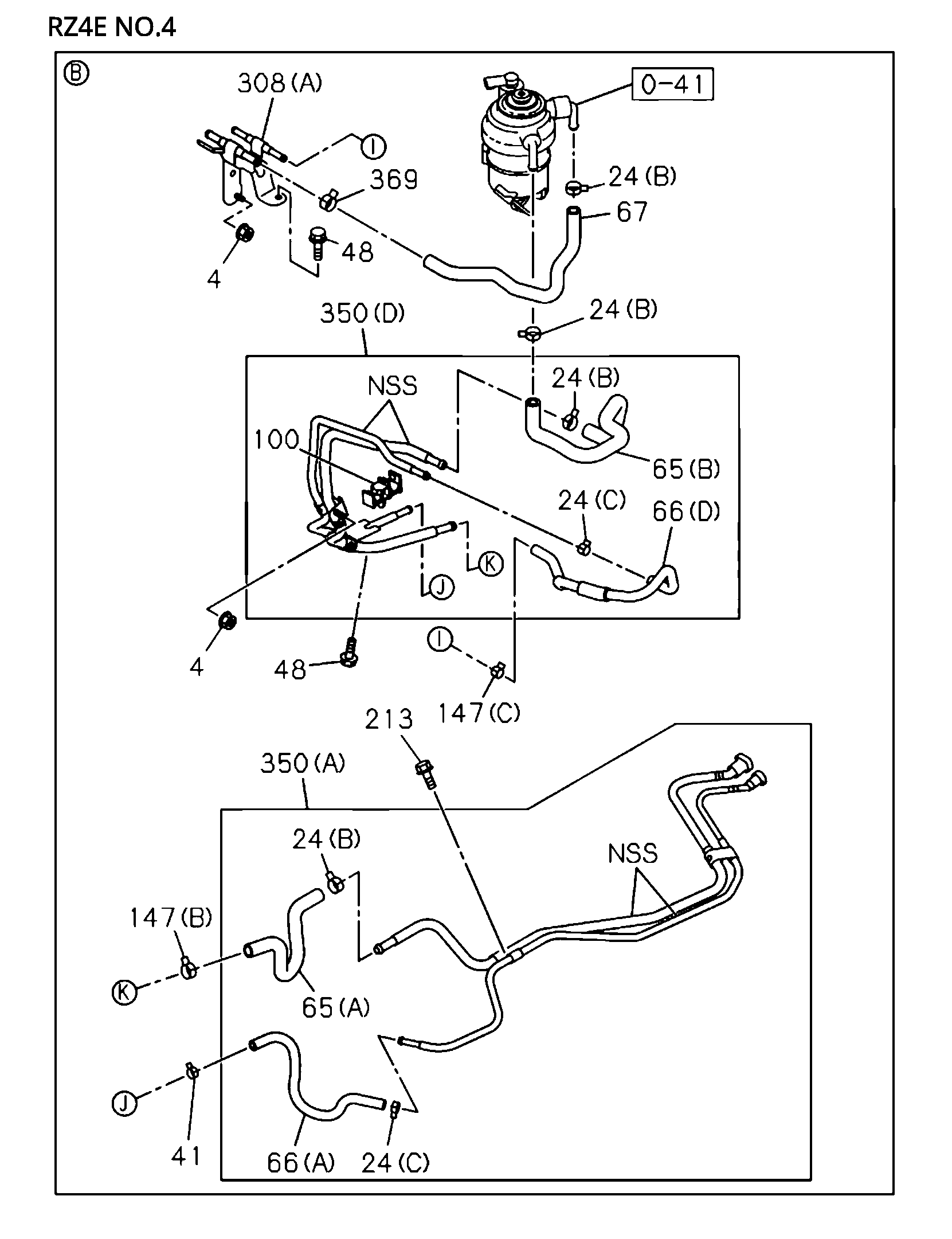

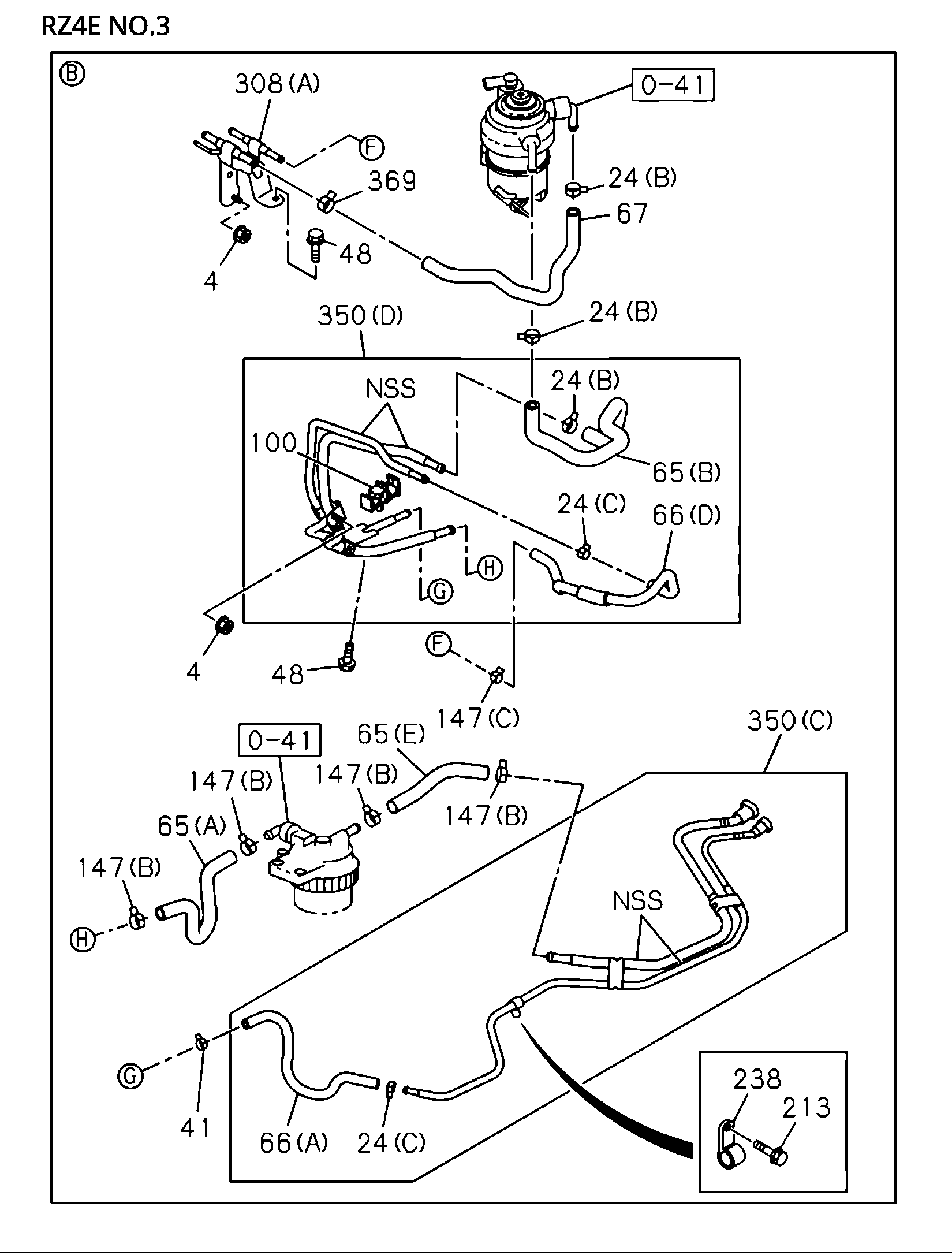

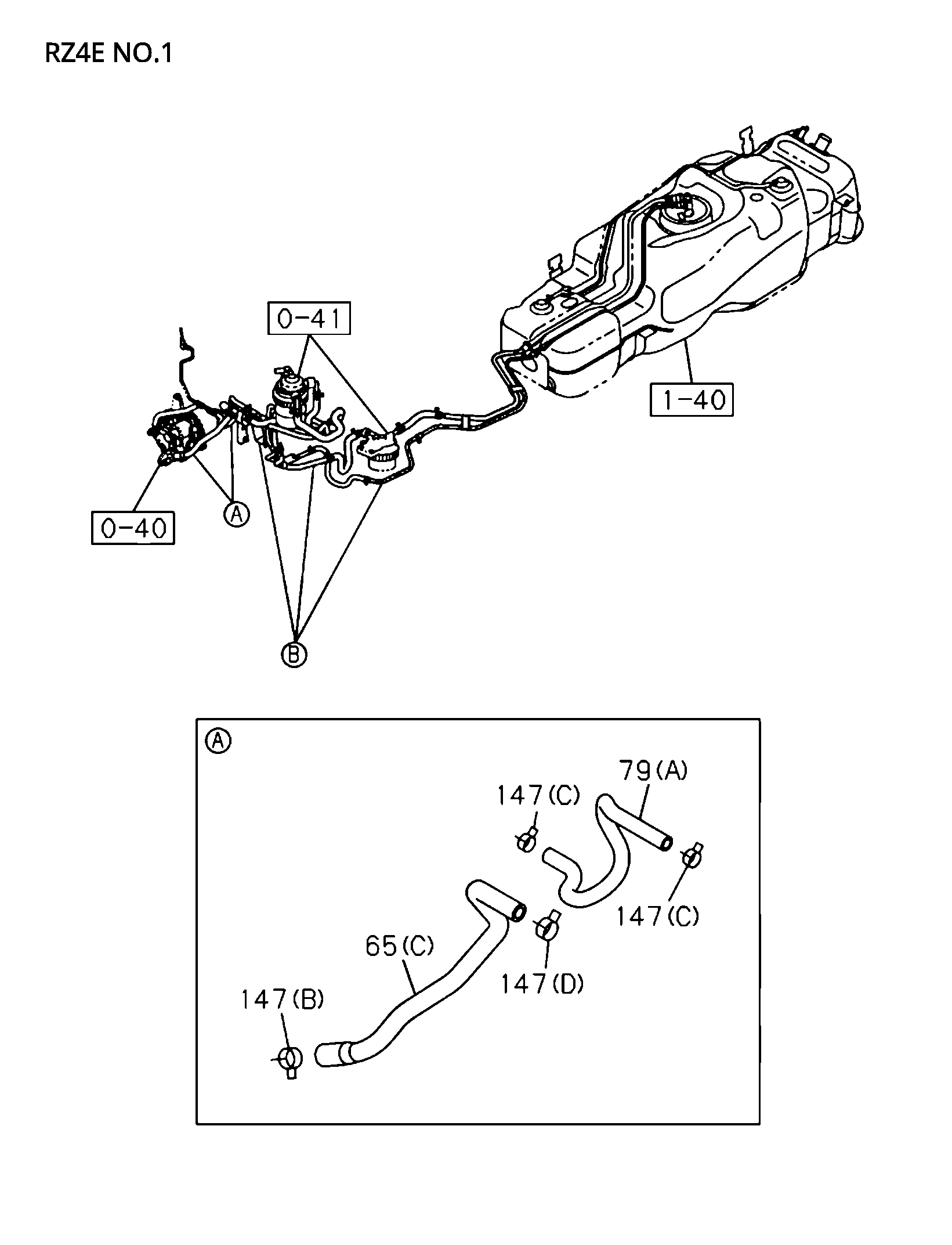

1-41 | 1-41 - FUEL PIPING; CHASSIS
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 350 | I8-97820 087-1 | PIPE; FUEL,D | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO),AUSTRALIA EQUIPMENT(B13) (D) | ||
| 65 | I8-98395 616-1 | HOSE; FUEL.C | 1 | 2110- | A | INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (C) | ||
| 147 | I0-95235 032-0 | CLIP; FUEL PIPE TO HOSE | 1 | 2110- | AB | PRE FUEL FILTER<KF0> ID=11 L=20 | ||
| 67 | I8-97649 463-0 | HOSE; FUEL.DELIVERY | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO),AUSTRALIA EQUIPMENT(B13) | ||
| 350 | I8-97820 087-1 | PIPE; FUEL,D | 1 | 2110- | A B | RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. INDONESIA EQUIPMENT(BOO),AUSTRALIA EQUIPMENT(B13) (D) | ||
| 48 | I0-28650 616-0 | BOLT; BRKT | 2 | 2110- | AB | M6X16 FLANGE | ||
| 350 | I8-97820 087-1 | PIPE; FUEL,D | 1 | 2110- | AB | EXC. INDONESIA EQUIPMENT(BOO),AUSTRALIA EQUIPMENT(B13),PRE FUEL FILTER<KFO>,RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D) | ||
| 24 | I8-98052 395-0 | CLIP; FUEL H | 2 | 2110- | A B | (B) ID=17.2 | ||
| 100 | I8-98113 581-0 | CLIP; FUEL PIPE | 1 | 2110- | AB | |||
| 24 | I8-98052 395-0 | CLIP; FUEL H | 1 | 2110- | A B | (B) ID=17.2 | ||
| 79 | I8-98395 622-1 | HOSE; FUEL, PUMP TO PIPE.RETURN | 1 | 2110- | A | INDONESIA EQUIPMENT(BOO)AUSTRALIA EQUIPMENT(B13) (A) | ||
| 147 | I8-97553 074-0 | CLIP; FUEL PIPE TO HOSE | 1 | 2110- | AB | (D) | ||
| 308 | I8-97689 520-0 | BRACKET; FU | 1 | 2110- | A | EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 65 | I8-97649 468-0 | HOSE; FUEL.C | 1 | 2110- | A B | INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B) | ||
| 350 | I8-97689 512-0 | PIPE; FUEL,D | 1 | 2110- | A B | INDONESIA EQUIPMENT(BOO),AUSTRALIA EQUIPMENT(B13) EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) | ||
| 147 | I8-98052 395-0 | CLIP; FUEL PIPE TO HOSE | 1 | 2110- | A | (B) ID=17.2 | ||
| 4 | I0-91180 106-0 | NUT; BRKT | 2 | 2110- | AB | M6FLANGE |
