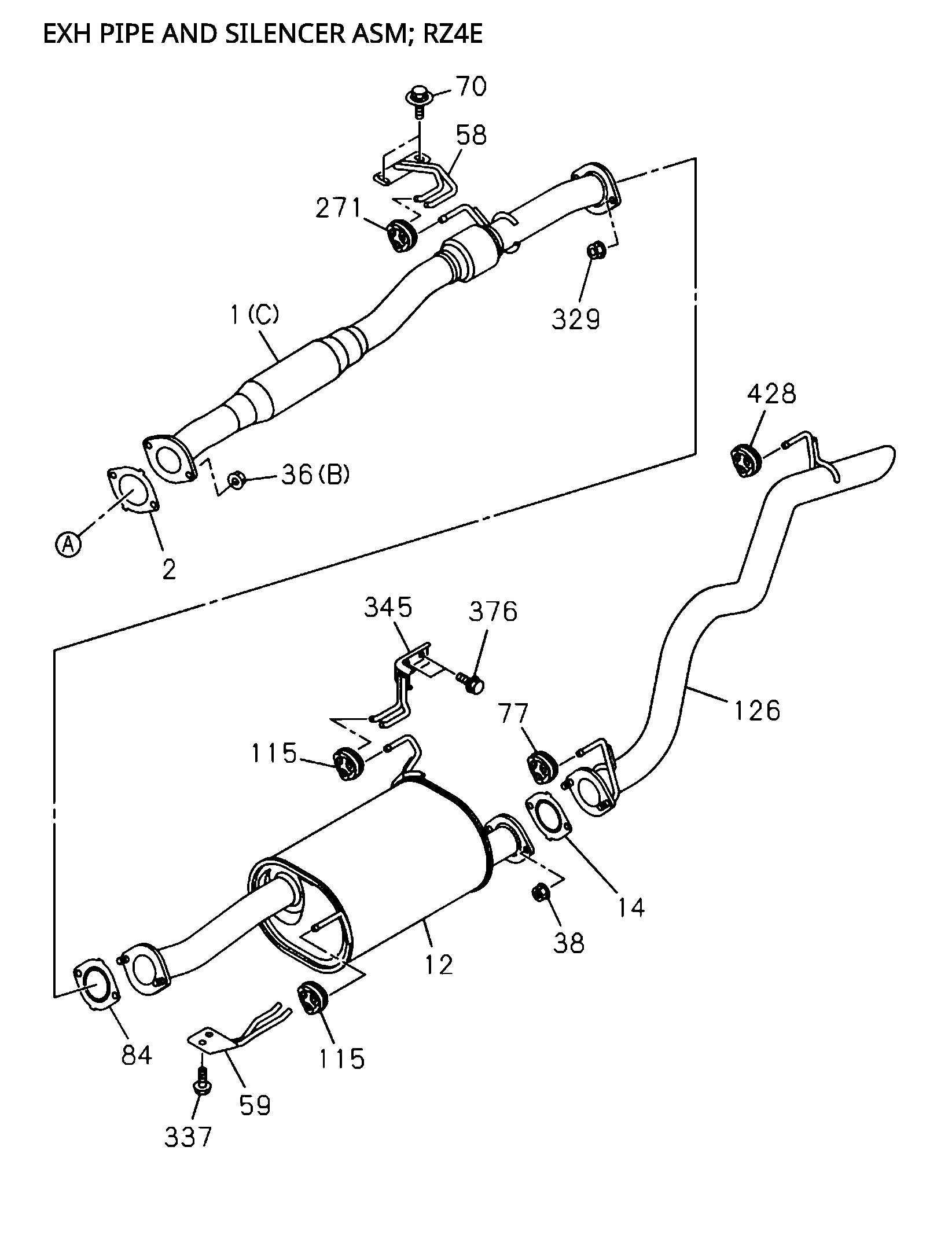

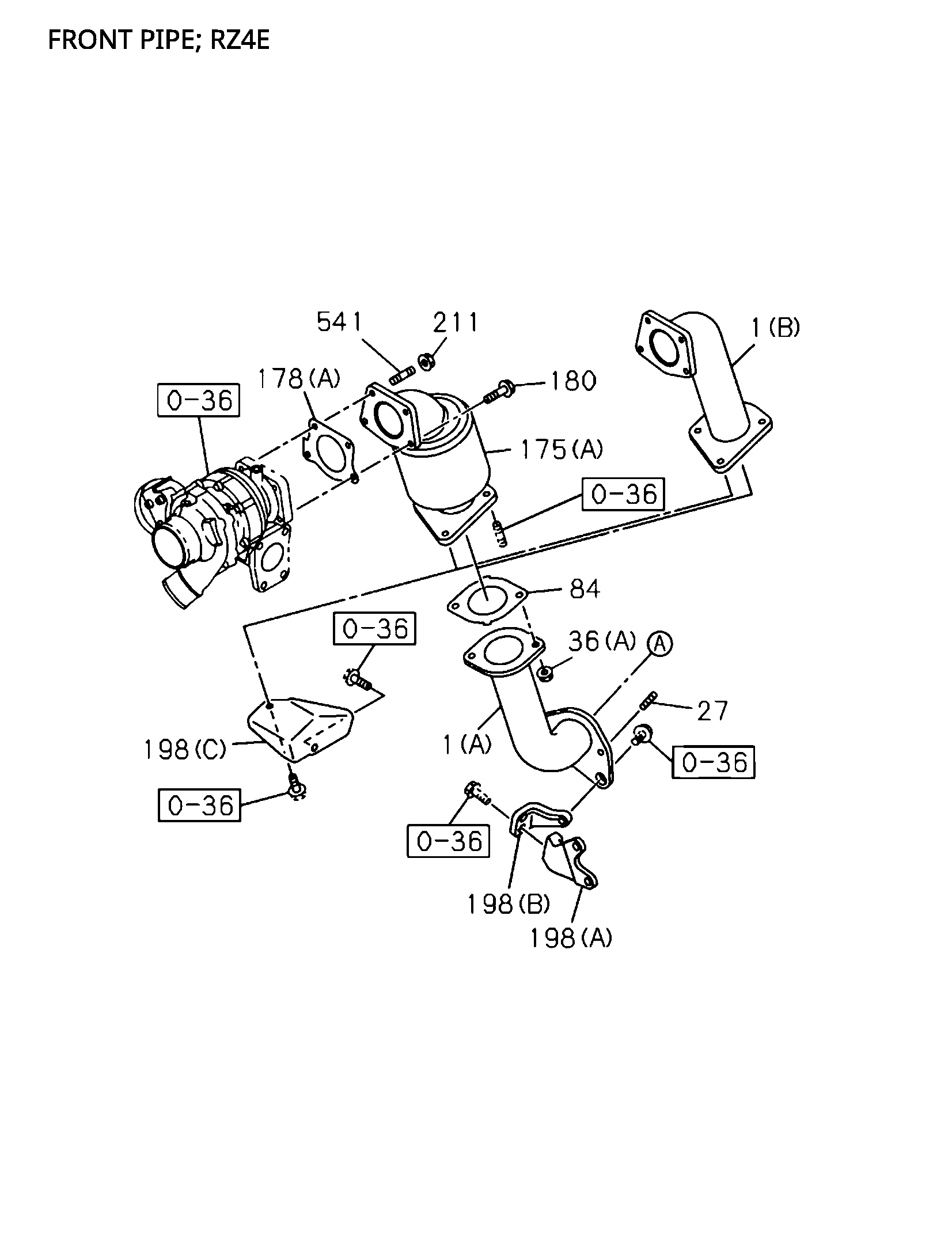

1-50 | 1-50 - EXHAUST PIPE AND SILENCER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 175 | I8-97516 830-0 | CONVERTER; | 1 | 2110- | A | EUR04 SPECIFICATION(NT4) (A) | ||
| 345 | I8-97505 317-0 | BRACKET; EX | 1 | 2110- | AB | |||
| 337 | I8-97945 706-0 | BOLT; RUBBE | 2 | 2110- | AB | M10X28 W/LK&PL WASHER | ||
| 178 | I8-98248 957-0 | GASKET; CONVTO MANIF | 1 | 2110- | A | (A) | ||
| 14 | I8-97263 052-0 | GASKET; SILE | 1 | 2110- | A B | ID=65 | ||
| 271 | I8-97682 112-0 | RUBBER; HAF | 1 | 2110- | A | |||
| 566 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2110- | B | EUROS SPECIFICATION(NT5) M6X16 FLANGE | ||
| 126 | I8-97490 875-0 | PIPE; EXH,RR | 1 | 2110- | A | |||
| 329 | I0-91180 110-0 | NUT; EXH PIP | 2 | 2110- | A B | M10 FLANGE | ||
| 211 | I8-97309 942-0 | NUT; CONV | 2 | 2110- | A | M10 FLANGE | ||
| 271 | I8-97682 112-0 | RUBBER; HAF | 1 | 2110- | B | 4X2(UCB***) | ||
| 1 | I8-98376 721-0 | PIPE; EXH | 1 | 2110- | A | (A) | ||
| 376 | I8-97945 706-0 | BOLT; BRKT | 2 | 2110- | A B | M10X28 W/LK&PL WASHER | ||
| 77 | I8-97682 112-0 | RUBBER; CUSHION.BRKT | 1 | 2110- | A | |||
| 36 | I8-97096 192-1 | NUT; EXH PIP | 2 | 2110- | A | (A) M10 FLANGE | ||
| 12 | I8-97490 872-0 | SILENCER ASI | 1 | 2110- | A | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NTS) | ||
| 2 | I8-97263 052-0 | GASKET; PIPE | 1 | 2110- | AB | ID=65 | ||
| 36 | I8-97096 192-1 | NUT; EXH PIP | 2 | 2110- | B | EUR04 SPECIFICATI0N(NT4),EUR05 SPECIFICATION(NT5) t A^ | ||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2110- | A | ID=65 | ||
| 70 | I8-97945 706-0 | BOLT; BRKT | 2 | 2110- | AB | M10X28 W/LK&PL WASHER | ||
| 1 | I8-97656 017-0 | PIPE; EXH | 1 | 2110- | A | EUR04 SPECIFICATION(NT4) (C) | ||
| 27 | I0-44011 025-0 | STUD; EXH PI | 2 | 2110- | A | M10X25 L=40 | ||
| 115 | I8-97682 112-0 | RUBBER; MTG,SILENCER | 2 | 2110- | B | 4X2(UCB***) | ||
| 428 | I8-97682 112-0 | RUBBER; MTC | 1 | 2110- | A B | |||
| 677 | I8-97329 627-0 | CLAMP; HOSE | 4 | 2110- | B | EUROS SPECIFICATION(NTS) ID=13 | ||
| 59 | I8-98196 903-0 | BRACKET; EXH SILENCER,FRT | 1 | 2110- | AB | |||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2110- | AB | ID=65 | ||
| 115 | I8-97682 112-0 | RUBBER; MTG,SILENCER | 2 | 2110- | A |
