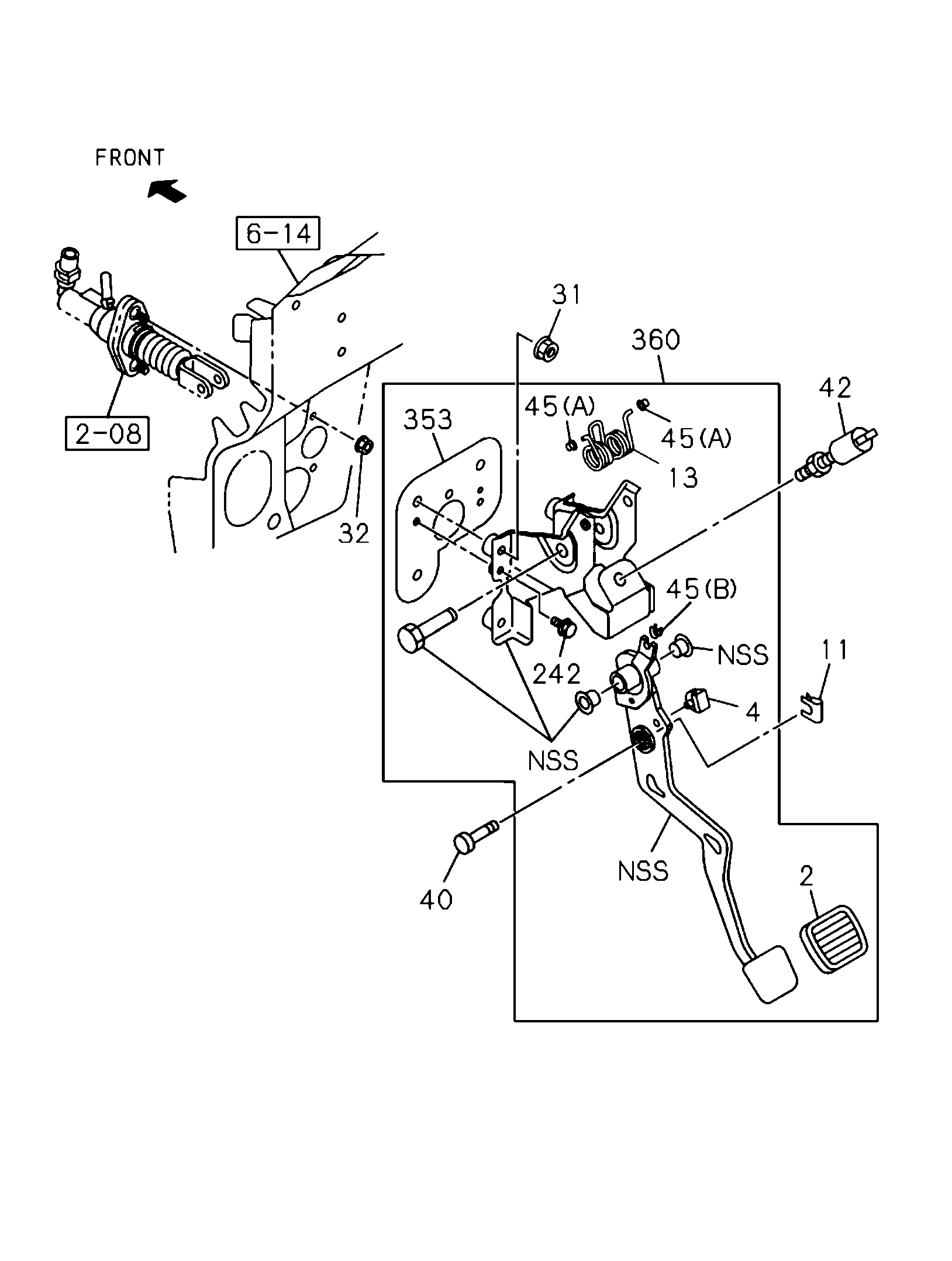

2-03 | 2-03 - CLUTCH PEDAL AND CONTROL
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I8-97942 313-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 2 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) (A) | ||
| 242 | I0-28050 612-0 | BOLT; BRKT.CLUTCH | 2 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) M6X12 FLANGE | ||
| 11 | I8-98007 161-0 | PIN; SNAP.PUSH ROD TO PEDAL | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 45 | I8-97942 314-0 | BUSHING; ASSIST SPRING,CLU PEDAL | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) (B) | ||
| 31 | I0-91180 108-0 | NUT; MTG BRKT TO BODY | 3 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) M8 FLANGE | ||
| 32 | I0-91180 108-0 | NUT; BRKT TO CLU M/CYL | 2 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) M8 FLANGE | ||
| 4 | I8-97947 783-0 | STOPPER; CLU PEDAL | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 2 | I8-97318 799-0 | COVER; CLU PEDAL | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 13 | I8-97942 312-0 | SPRING; ASSIST,CLU PEDAL | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 42 | I8-98154 210-0 | SWITCH; CLU | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) | ||
| 40 | I8-97312 338-0 | PIN; JOINT,CLU DAMPER | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) OD=7.9 L=27.5 |
