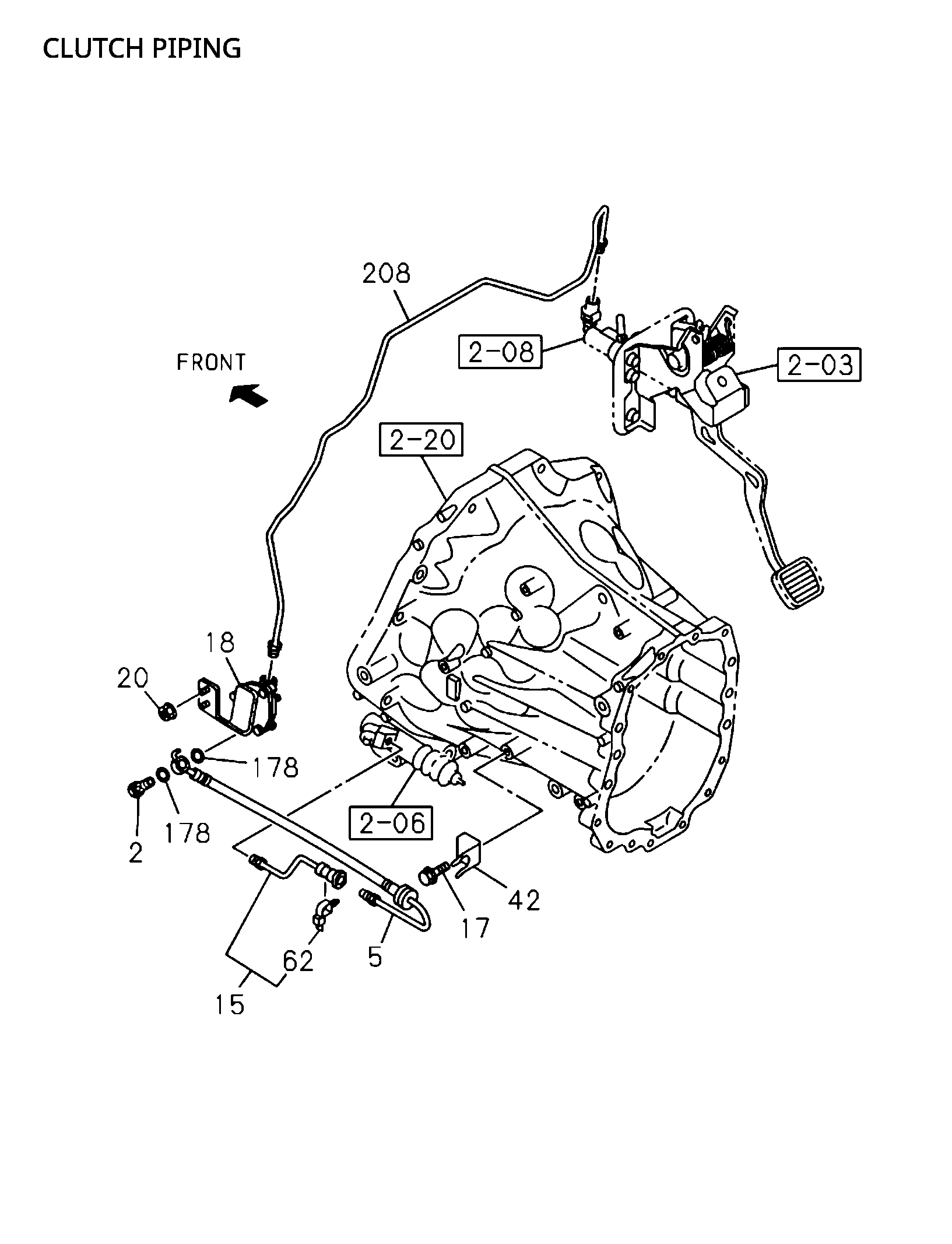

2-05 | 2-05 - CLUTCH PIPING
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 2 | 2110- | A | ID=10.2 0D=16.0 | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 1 | 2110- | A | M10X22 EYE-BOLT | ||
| 5 | I8-97541 765-0 | HOSE; FLEX.CLU PIPE | 1 | 2110- | A | |||

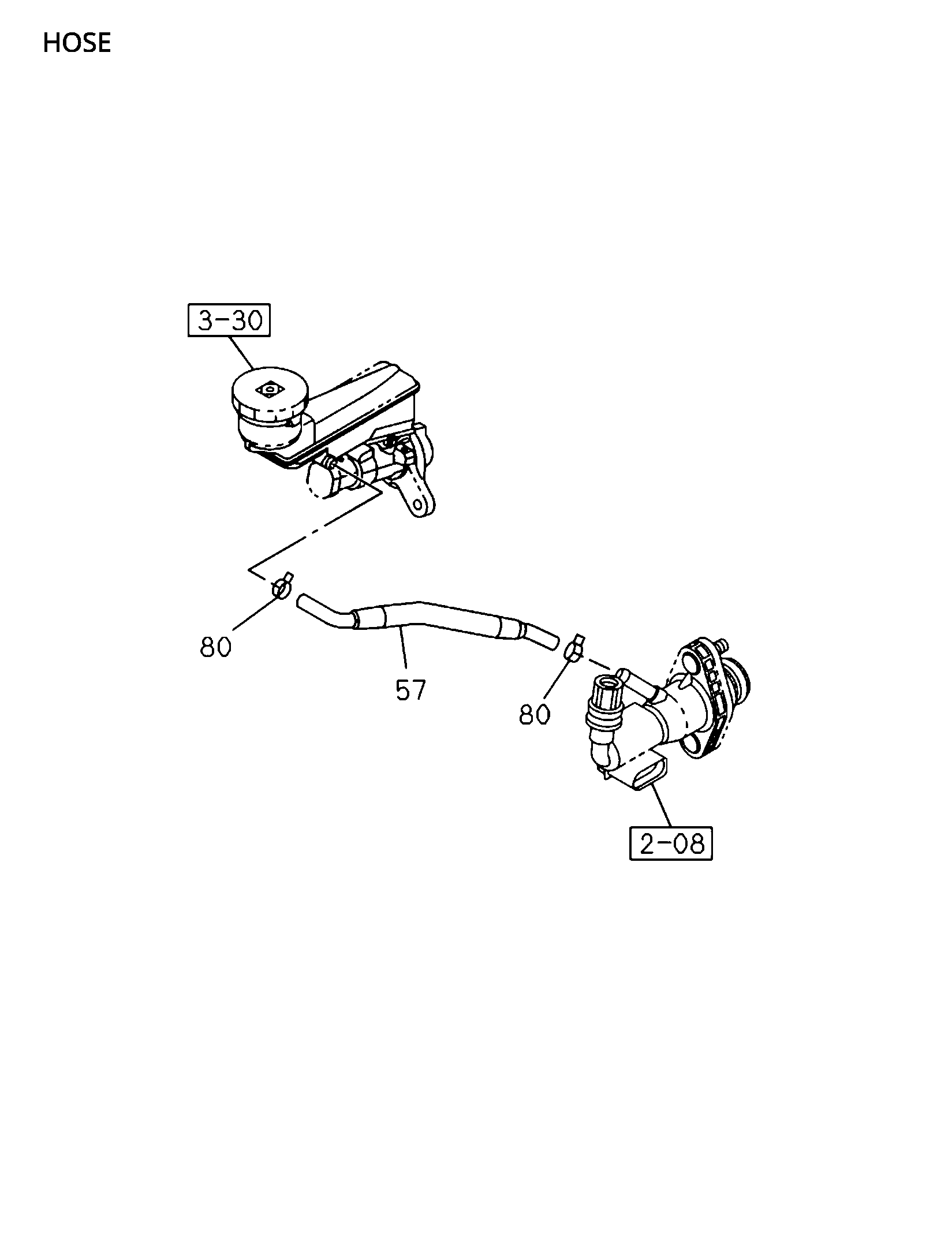

| 57 | I8-98398 912-0 | HOSE; CLU M/CYL TO OIL TANK | 1 | 2110- | A | |||
| 17 | I0-28050 816-0 | BOLT; BRKT | 1 | 2110- | A | M8X16 FLANGE | ||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 2110- | A | ID=12 WO/PVC COATING | ||
| 42 | I8-98398 927-0 | BRACKET; FLEX HOSE.CLU CONT | 1 | 2110- | A | |||
| 15 | I8-97541 767-0 | PIPE; CLU.FLEX HOSE | 1 | 2110- | A | |||
| 18 | I8-98398 919-0 | DAMPER ASM; CLU OIL | 1 | 2110- | A | |||
| 62 | I8-97553 111-0 | CLIP; CLU PIPE | 1 | 2110- | A | |||
| 208 | I8-98395 385-1 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 2110- | A | |||
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 2110- | A | M6 FLANGE |
