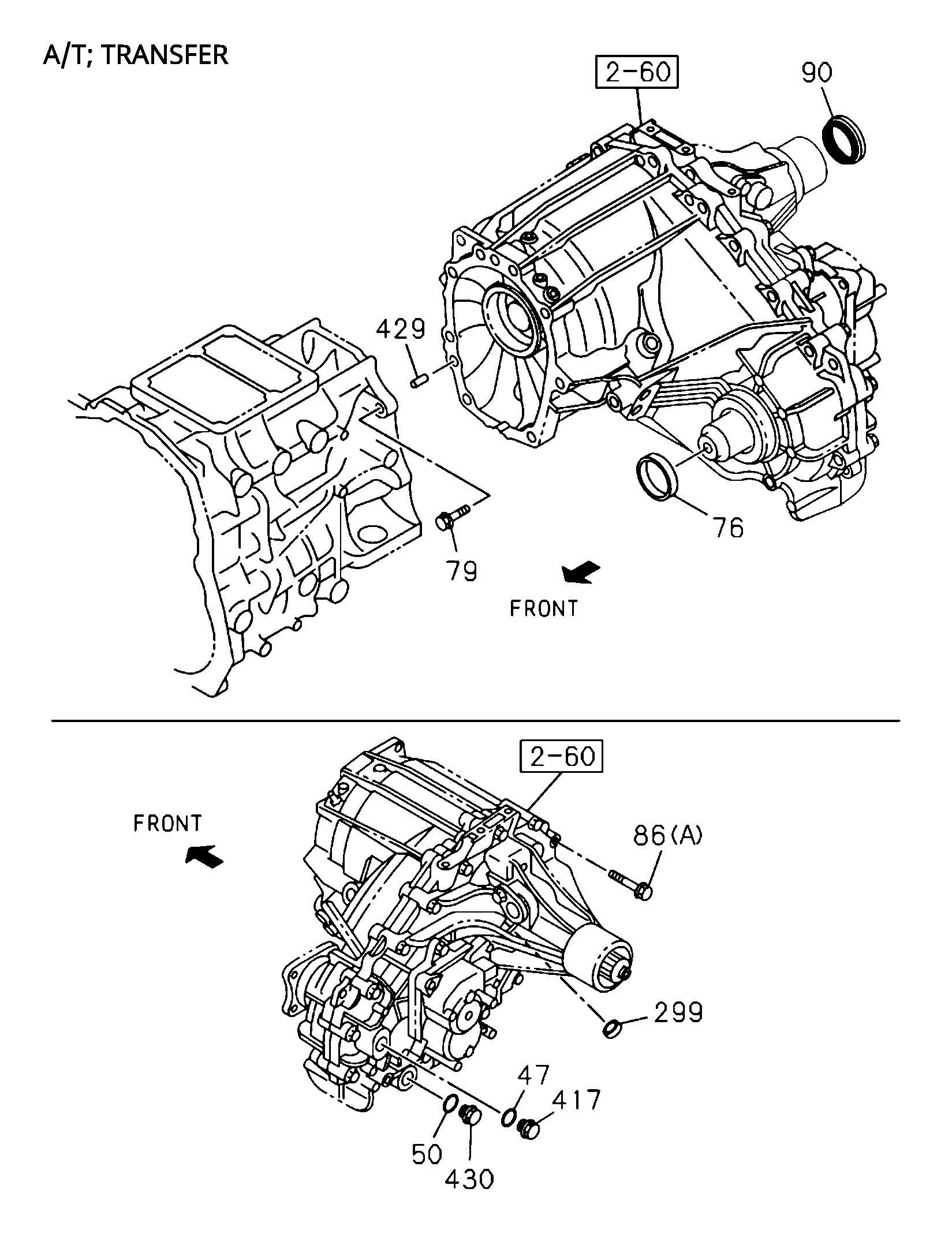

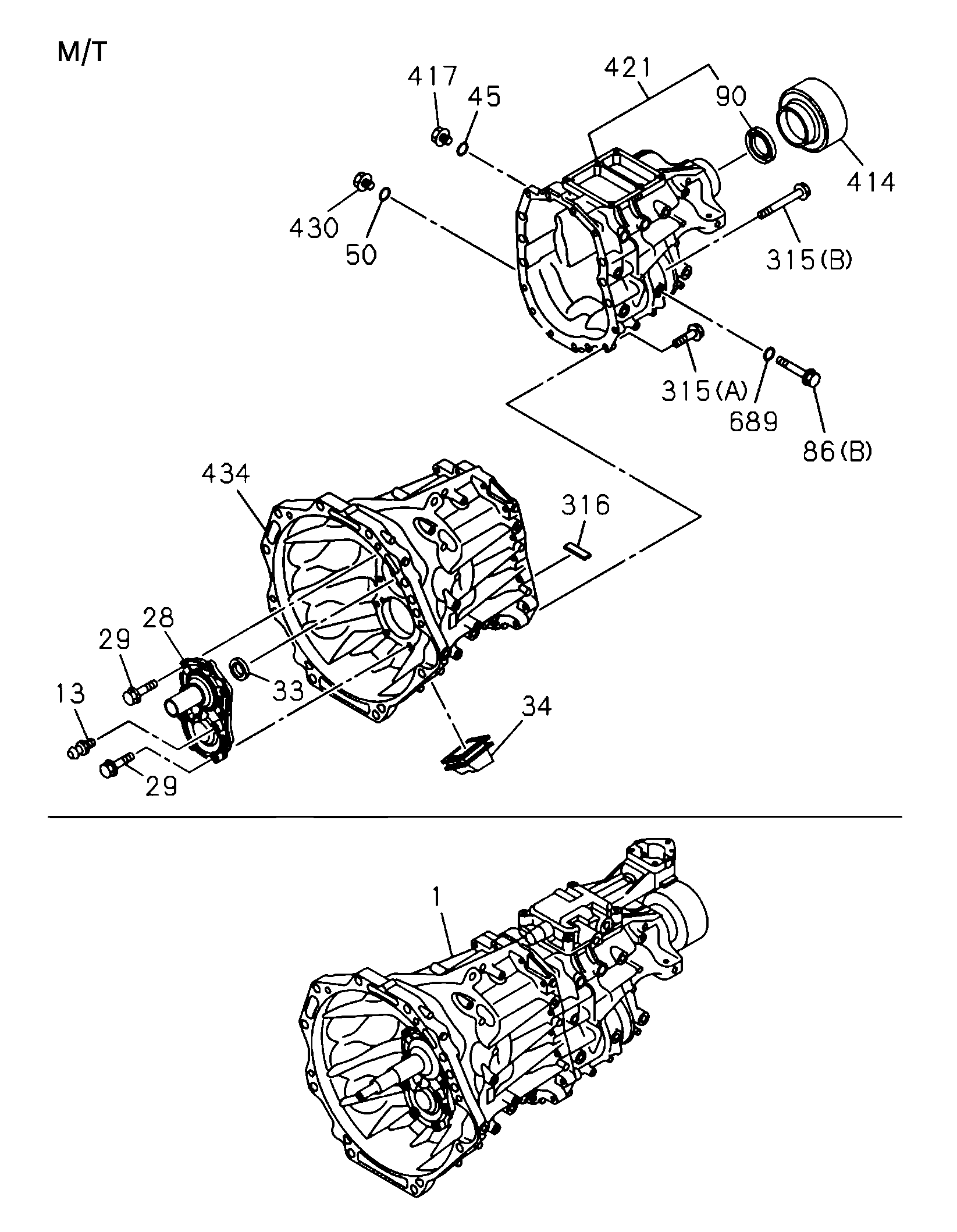

2-20 | 2-20 - MANUAL TRANSMISSION ASM AND CASE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2110- | A | ID=17 | ||
| 76 | I8-94173 641-0 | SEAL; OIL/TRANSFER CASE | 2 | 2110- | B | 4X4(UCS***) OD=15.6 | ||
| 47 | I8-97115 712-0 | GASKET; FILLER PLUG/TRANSFER CASE | 1 | 2110- | B | 4X4(UCS***) ID=17 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2110- | B | 4X4(UCS***) M20X12 W/MAGNET | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2110- | A | M20X12 W/MAGNET | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLERJRANS | 1 | 2110- | B | 4X4(UCS***) | ||
| 689 | I9-09571 412-0 | GASKET | 1 | 2110- | A | ID=12.2 OD=18 | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2110- | B | 4X4(UCS***) ID=17 | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLERJRANS | 1 | 2110- | A | |||
| 76 | I8-97238 999-0 | SEAL; OIL/TRANSFER CASE | 1 | 2110- | B | 4X4(UCS***) NOK | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2110- | B | 4X4(UCS***) OD=10 L=20 | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 11 | 2110- | A | (A) M8X40 FLANGE | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2110- | A | ID=17 |
