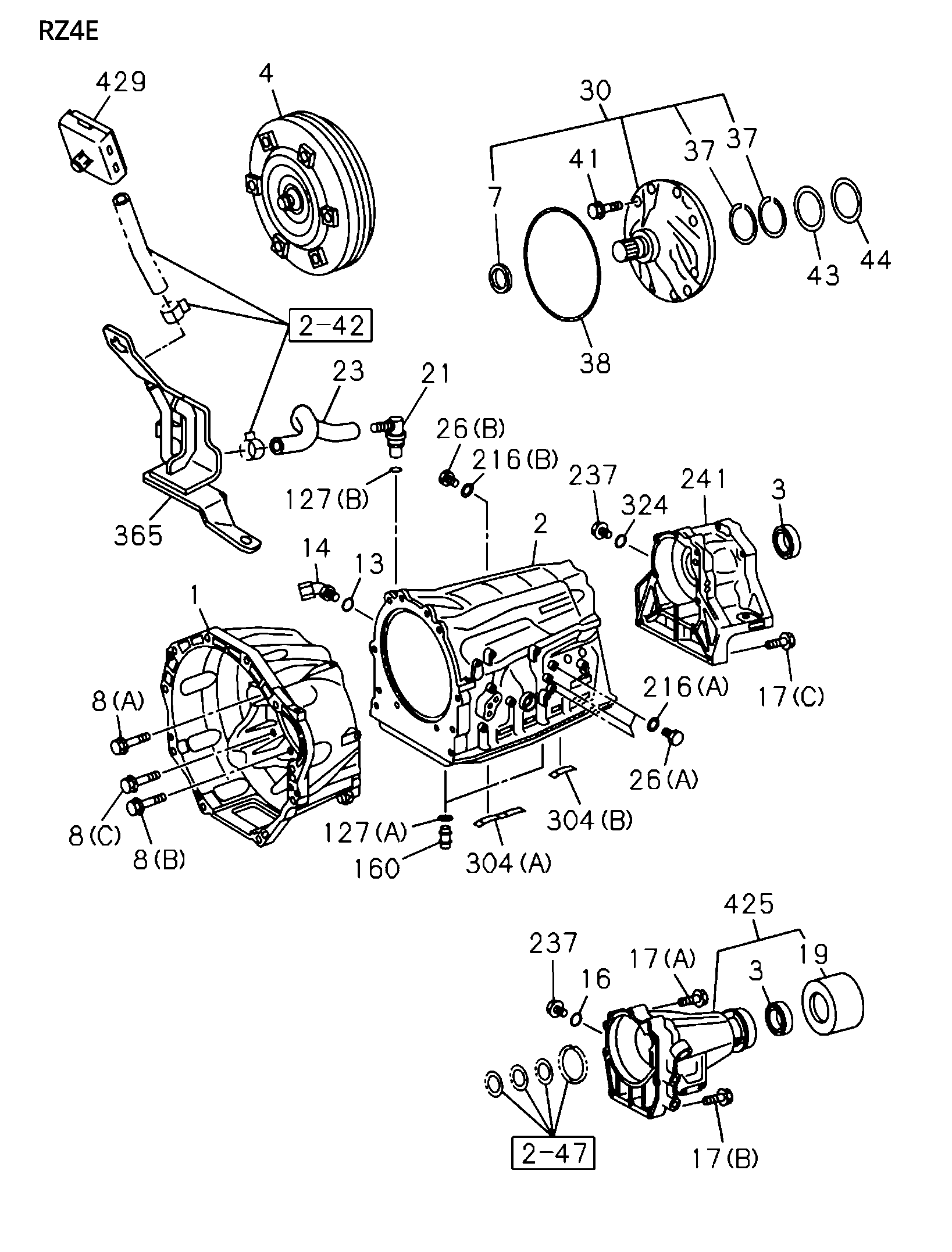

2-41 | 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 2110- | B | |||
| 216 | I8-94479 724-0 | GASKET; SOLENOID OUTER | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (b) ID=11.7 | ||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 2110- | B | |||
| 4 | I8-97550 318-0 | CONVERTER ASM; TORQUE,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) | ||
| 3 | I8-98336 875-0 | SEAL; OIL,RR COVER,A/T | 1 | 2110- 1 | B | |||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) EXC. MADE IN JAPAN TRANSMISSION<8QP> SERVICED BY L=3000 | ||
| 21 | I8-98341 990-0 | PLUG; BREATHER,A/T | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 2110- | B | (B) M10X35 | ||
| 19 | I8-98189 756-0 | COVER; DUST,REAR COVER | 1 | 2110- | B | 4X2(UCB***) | ||
| 30 | I8-97550 325-0 | PUMP ASM; OIL,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 1 | I8-97550 319-0 | HOUSING; CONV,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 2110- | B | (C) M12X38 | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 2110- | B | RZ4E-TC ENG(RDZ) MADE IN JAPAN TRANSMISSION<8QP> L=220 SERVICED BY L=3000 | ||
| 160 | I8-98341 911-0 | GASKET; BRKDRUM,A/T | 2 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 6 | 2110- | B | (a) | ||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 2110- | B | (b) M14X12 | ||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 6 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (a) ID=6 | ||
| 241 | I8-98342 209-0 | ADAPTER; A/T | 1 | 2110- | B | 4X4(UCS***) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 7 | I8-98341 992-0 | SEAL; OIL,LIP,A/T | 1 | 2110- 1 | B | |||
| 13 | I8-94479 935-0 | GASKET; OIL COOLER PIPE I I I | 10 | 2110- | B | 4x4(ucs***) (c) M10X50 | ||
| 44 | I8-98341 744-0 | BEARING; THRUST,OIL PUMP,A/T | 1 | 2110- | B | |||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 2 | 2110- | B | (a) ID=10 | ||
| 241 | I8-98341 901-0 | ADAPTER; A/T | 1 | 2110- | B | 4X2(UCB***) MADE IN JAPAN TRANSMISSION<8QP> | ||
| 127 | I8-98341 730-0 | GASKET; CASE TO COVER | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> (b) | ||
| 2 | I8-98341 907-0 | CASE ASM; A/T | 1 | 2110- | B | MADE IN JAPAN TRANSMISSION<8QP> | ||
| 13 | I8-94479 936-0 | GASKET; OIL COOLER PIPE I I I | 3 | 2110- | B | 4X2(UCB***) (b) M10X40 |
