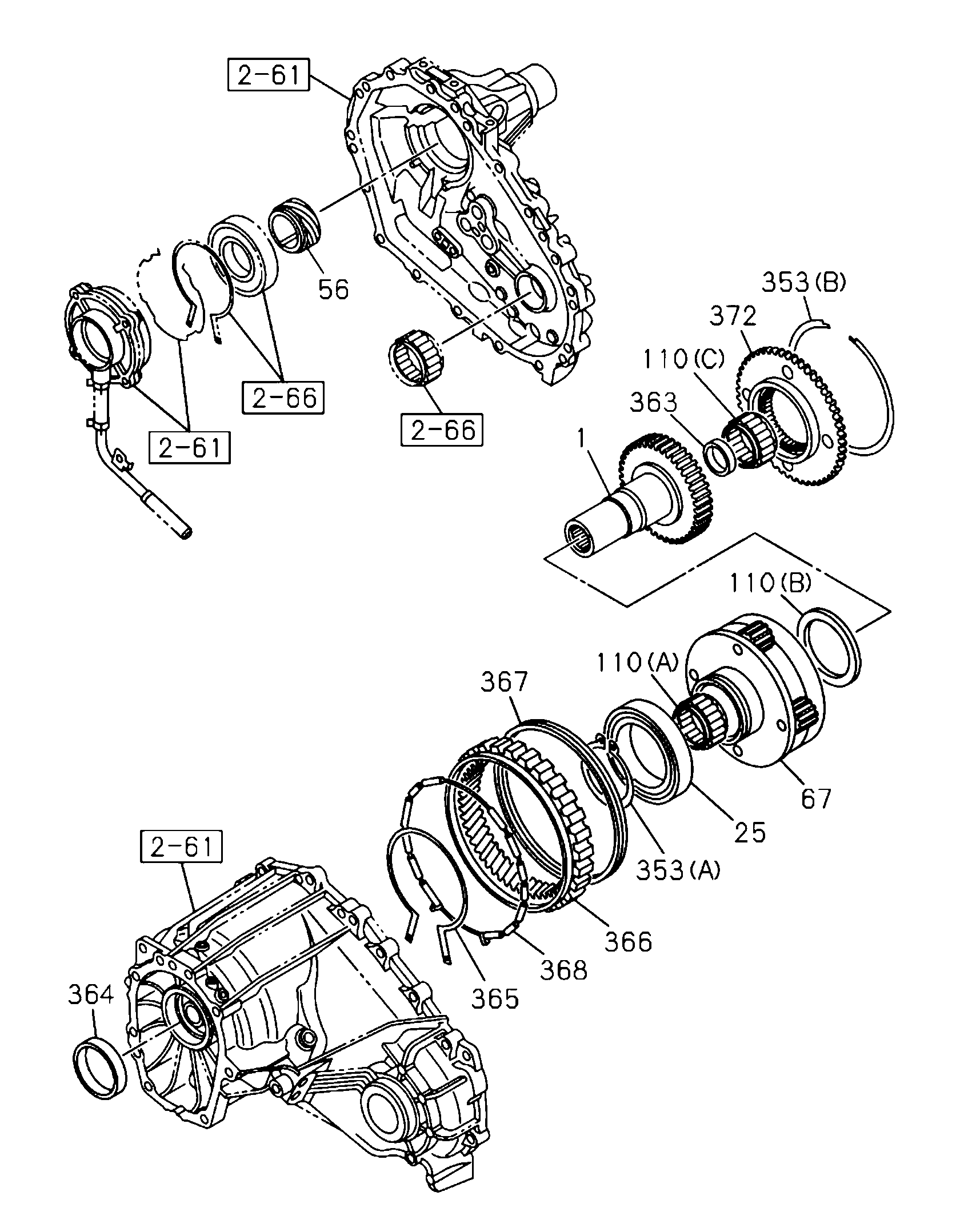

2-65 | 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 353 | I8-97305 406-0 | RING; SNAPFCARRIER | 1 | 2110- | B | (B) ID=137 | ||
| 110 | I8-97234 739-0 | BEARING; NEEDLE | 1 | 2110- | B | (A) ID=50 | ||
| 110 | I8-97234 741-0 | BEARING; NEEDLE | 1 | 2110- | B | (B) ID=56 | ||
| 110 | I6-97234 739-0 | BEARING; NEEDLE | 1 | 2110- | B | (IADG) (A) ID=50 | ||
| 25 | I8-97234 735-0 | BEARING; BALL.INPUT SHAFT | 1 | 2110- | B | NSK | ||
| 1 | I8-98118 924-1 | SHAFT; GEAR.INPUT | 1 | 2110- | B | |||
| 364 | I8-97238 999-0 | SEAL; OIL,COVER,INPUT | 1 | 2110- | B | NOK | ||
| 67 | I8-98158 116-0 | CARRIER; TRANSFER | 1 | 2110- | B | |||
| 365 | I8-97305 010-1 | RING; RETAINING.OUTER INPUT | 1 | 2110- | B | ID=97 | ||
| 110 | I8-97234 743-0 | BEARING; NEEDLE | 1 | 2110- | B | (C) ID=32 | ||
| 363 | I8-97238 725-0 | CAP; SEAL,INPUT SHAFT | 1 | 2110- | B | NOK | ||
| 353 | I8-97305 403-0 | RING; SNAPFCARRIER | 1 | 2110- | B | (A) ID=65.5 | ||
| 366 | I8-97231 831-2 | GEAR; INTERNAL.HIGH-LOW | 1 | 2110- | B | Z=27 | ||
| 56 | I8-97499 658-0 | GEAR; SPD DRIVE/TRANSFER | 1 | 2110- | B | Z=6 |
