3-06 | 3-06 - REAR DISC BRAKE CALIPER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I8-97655 202-0 | SCREW; BLEEDER,CALIPER,RR | 2 | 2110- | AB | |||

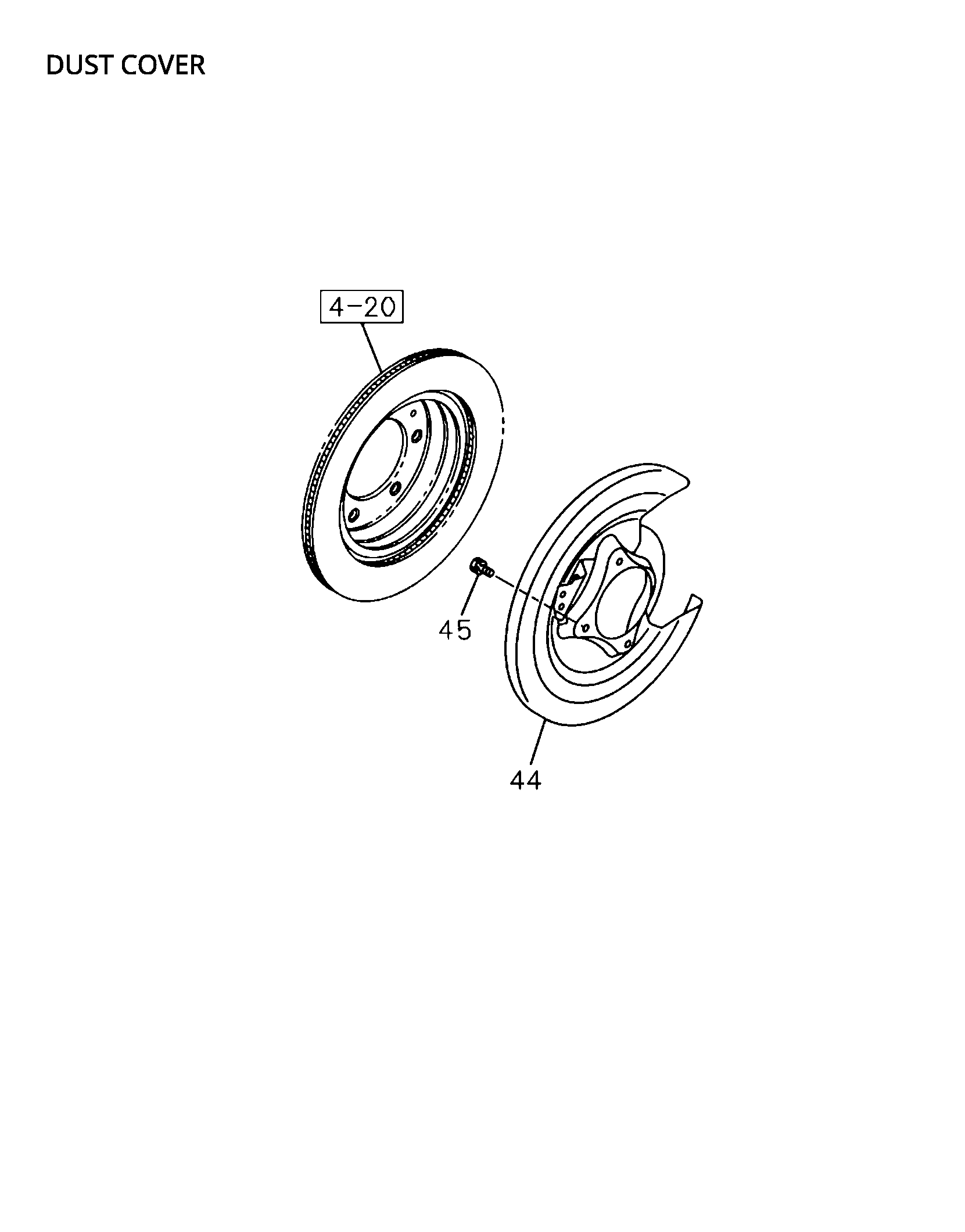

| 44 | I8-97503 585-0 | COVER; DUST | 1 | 2110- | l | AB | ||
| 45 | I8-97542 225-2 | BOLT; DUST COVER SET | 6 | 2110- | AB | M8X10 W/PL WASHER | ||

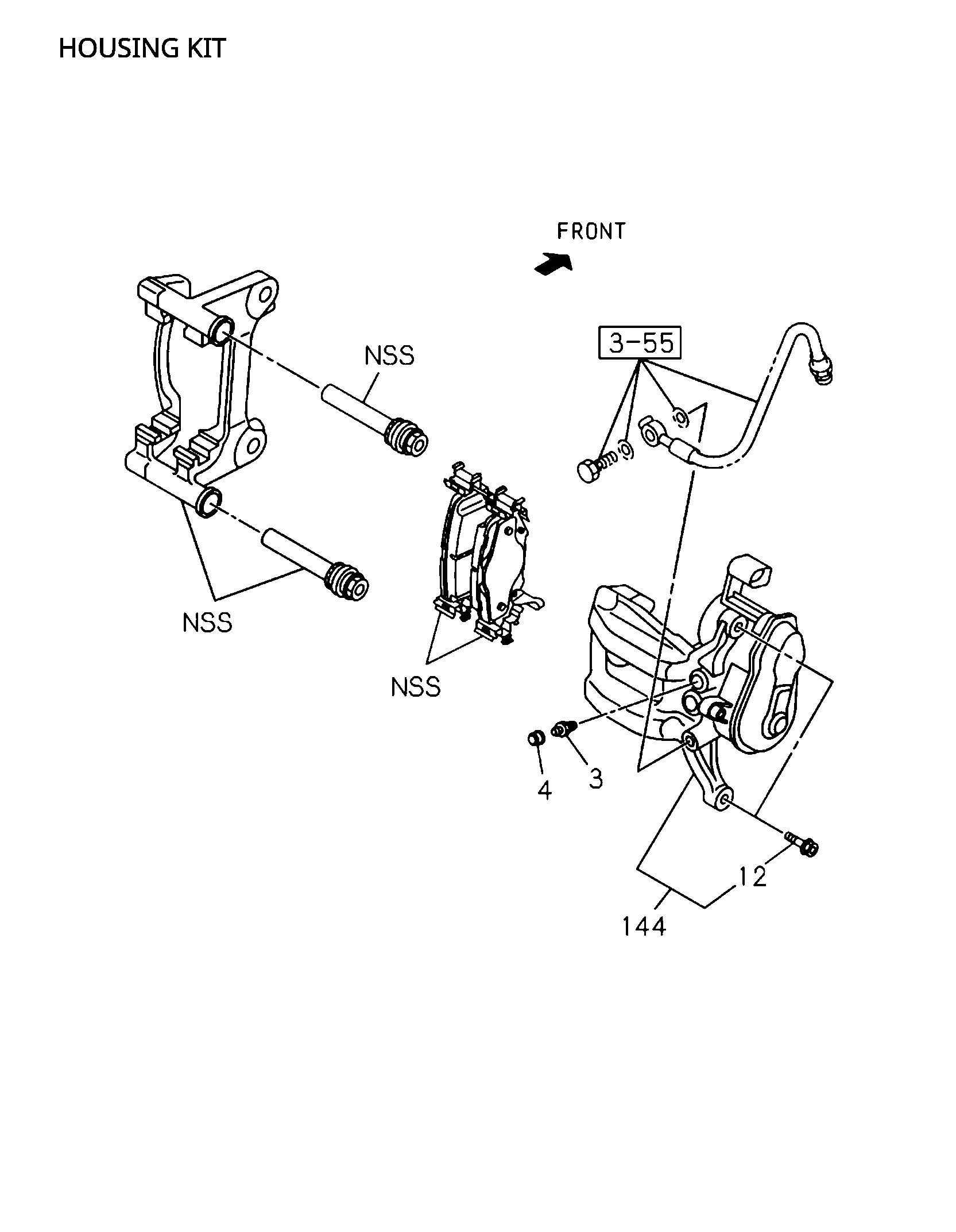

| 144 | I8-97655 205-0 | HOUSING KIT | 1 | 2110- | r | A B | ||

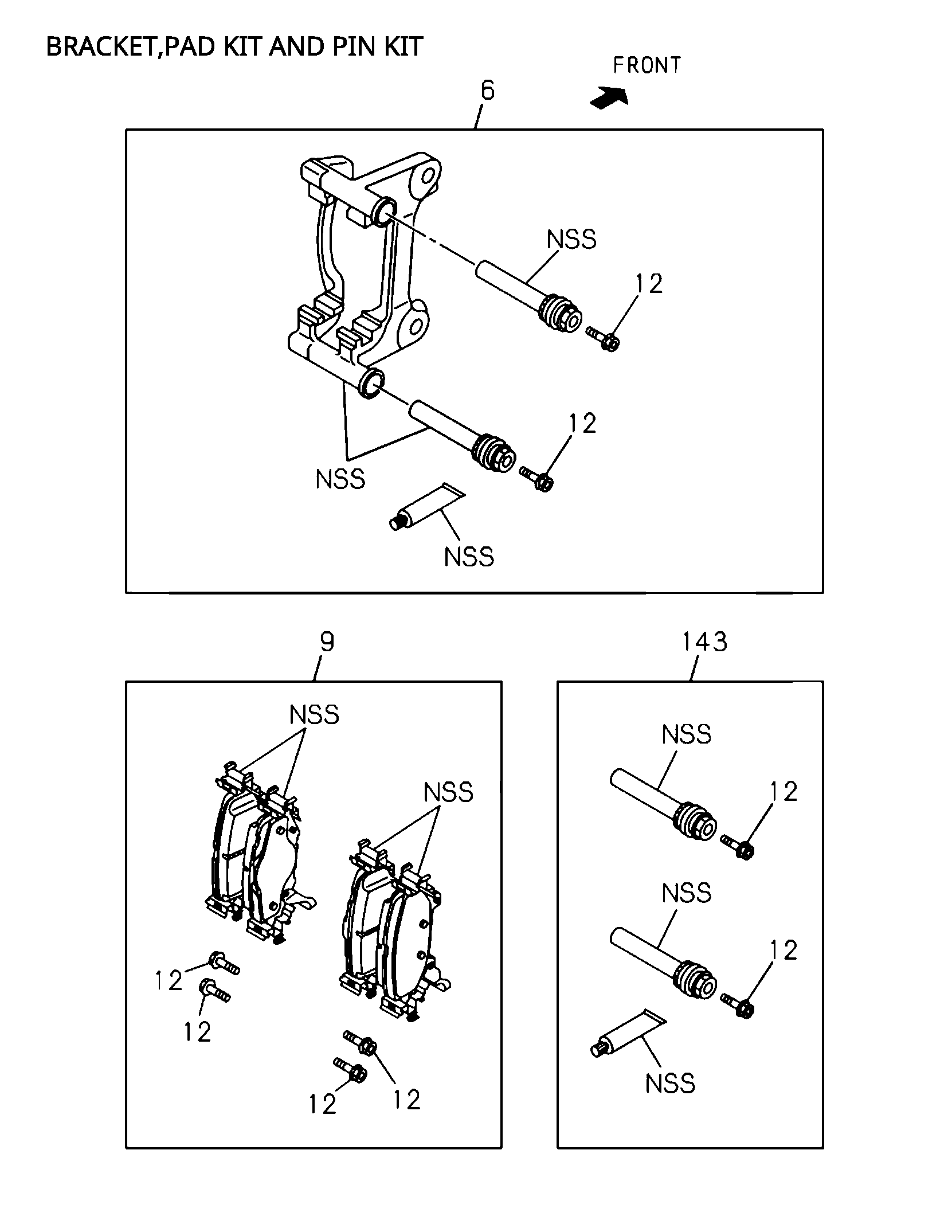

| 148 | I8-97828 573-0 | PAD KIT; CALI PER, RR, W/ 0 CLIP | 1 | 2110- | A B | |||
| 149 | I8-97828 574-0 | CLIP KIT; DISC BRAKE,RR | 1 | 2110- | AB | |||
| 12 | I8-97655 199-0 | PIN; RET,CALIPER,RR DISC BRK | 4 | 2110- | AB | |||
| 44 | I8-97503 584-0 | COVER; DUST | 1 | 2110- | r | A B | ||
| 144 | I8-97655 209-0 | HOUSING KIT | 1 | 2110- | l | AB | ||
| 143 | I8-97655 200-0 | PIN KIT | 2 | 2110- | AB | W/GREASE | ||
| 4 | I8-97655 201-0 | CAP; BLEEDER SCREW, CALI PER, RR | 2 | 2110- | A B |
