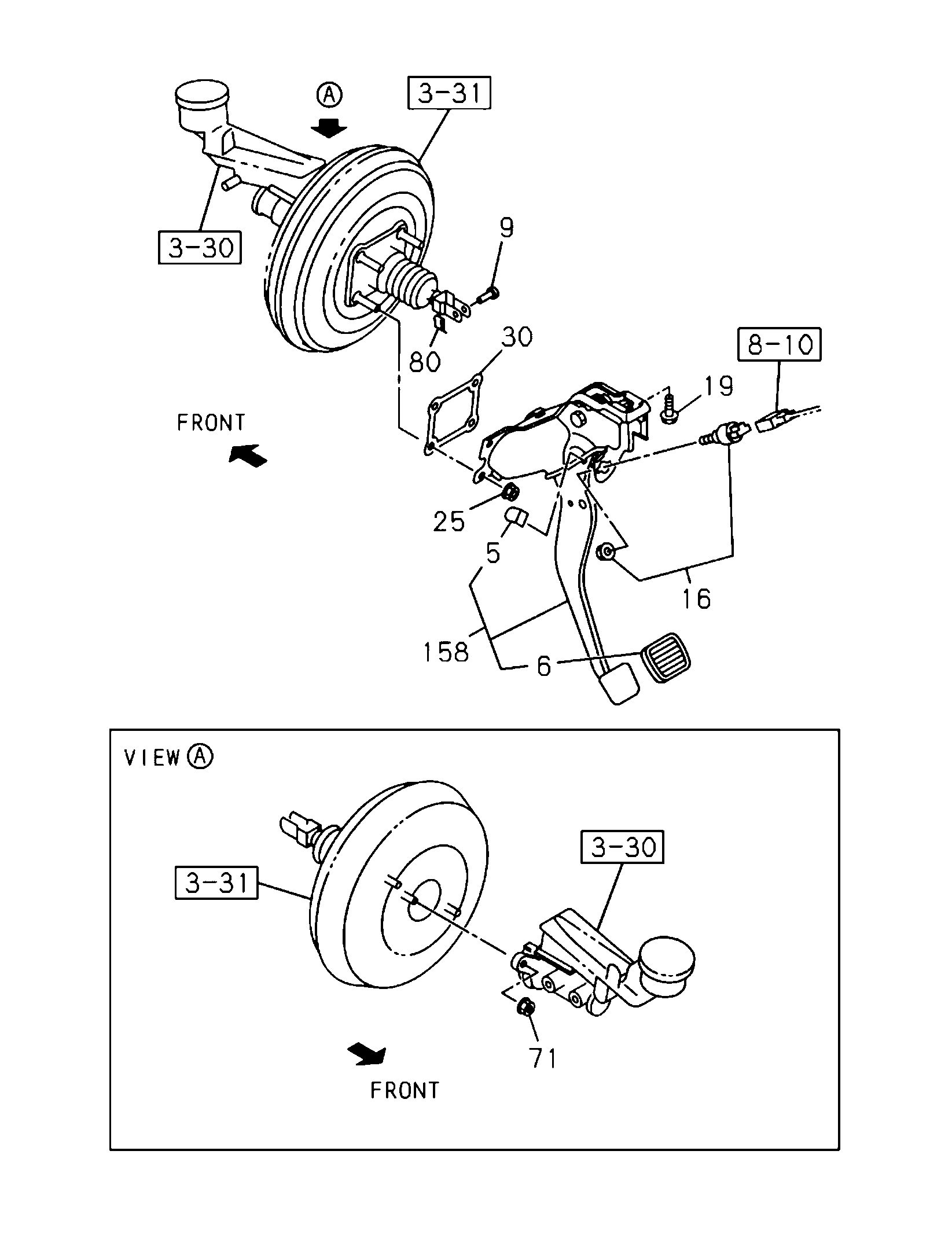

3-10 | 3-10 - BRAKE PEDAL AND CONTROL
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-97947 104-1 | BOLT; BRKT | 1 | 2110- | AB | M8X22.5W/PL WASHER | ||
| 25 | I8-97581 233-0 | NUT; FLANGE.MTG BRKT TO BODY | 4 | 2110- | A B | M8 FLANGE | ||
| 80 | I8-98007 161-0 | PIN; SNAP.BRK PEDAL | 1 | 2110- | AB | |||
| 6 | I8-97263 035-0 | COVER; BRK PEDAL | 1 | 2110- | AB | A/T 6 SPEED-AISIN(Y6A) | ||
| 71 | I8-98031 675-0 | NUT; BRK M/CYL | 2 | 2110- | A B | |||
| 158 | I8-98376 770-0 | PEDAL ASM; BRK | 1 | 2110- | A B | A/T 6 SPEED-AISIN(Y6A) | ||
| 16 | I8-98395 342-0 | SWITCH; STOP LAMP | 1 | 2110- | AB | |||
| 9 | I8-97311 602-0 | PIN; JAW JOINT | 1 | 2110- | AB | |||
| 5 | I1-73996 231-1 | STOPPER; BRK PEDAL | 1 | 2110- | AB |
