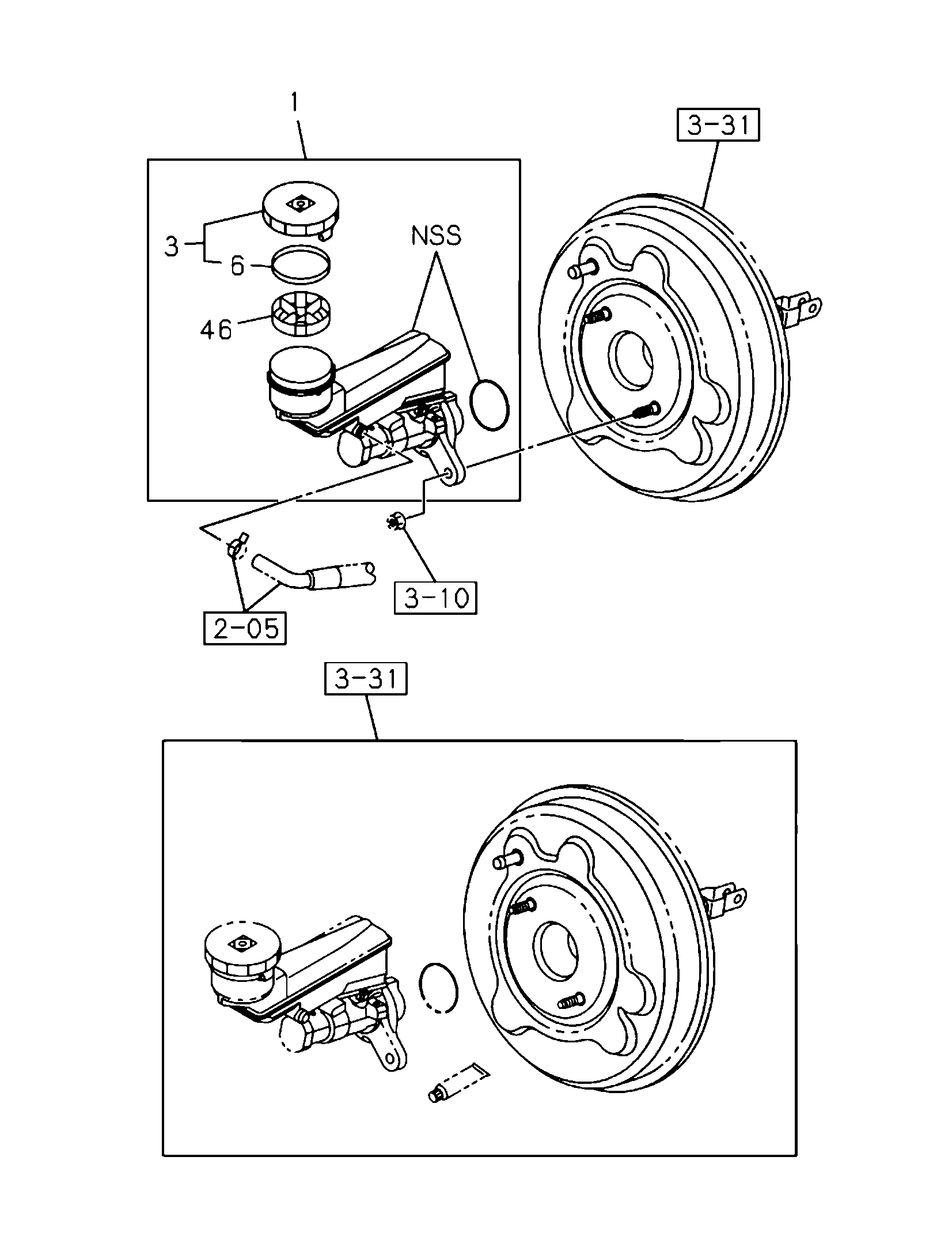

3-30 | 3-30 - BRAKE MASTER CYLINDER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I8-98047 702-0 | FILTER; OIL TANK,M/CYL | 1 | 2110- | AB | |||
| 6 | I8-98047 706-0 | DIAPHRAGM; BRK M/CYL | 1 | 2110- | AB | |||
| 3 | I8-98047 704-0 | CAP; OIL TANK | 1 | 2110- | AB | |||
| 1 | I8-97504 347-0 | CYLINDER ASM; BRK MASTER | 1 | 2110- | A B | A/T 6 SPEED-AISIN(Y6A) |
