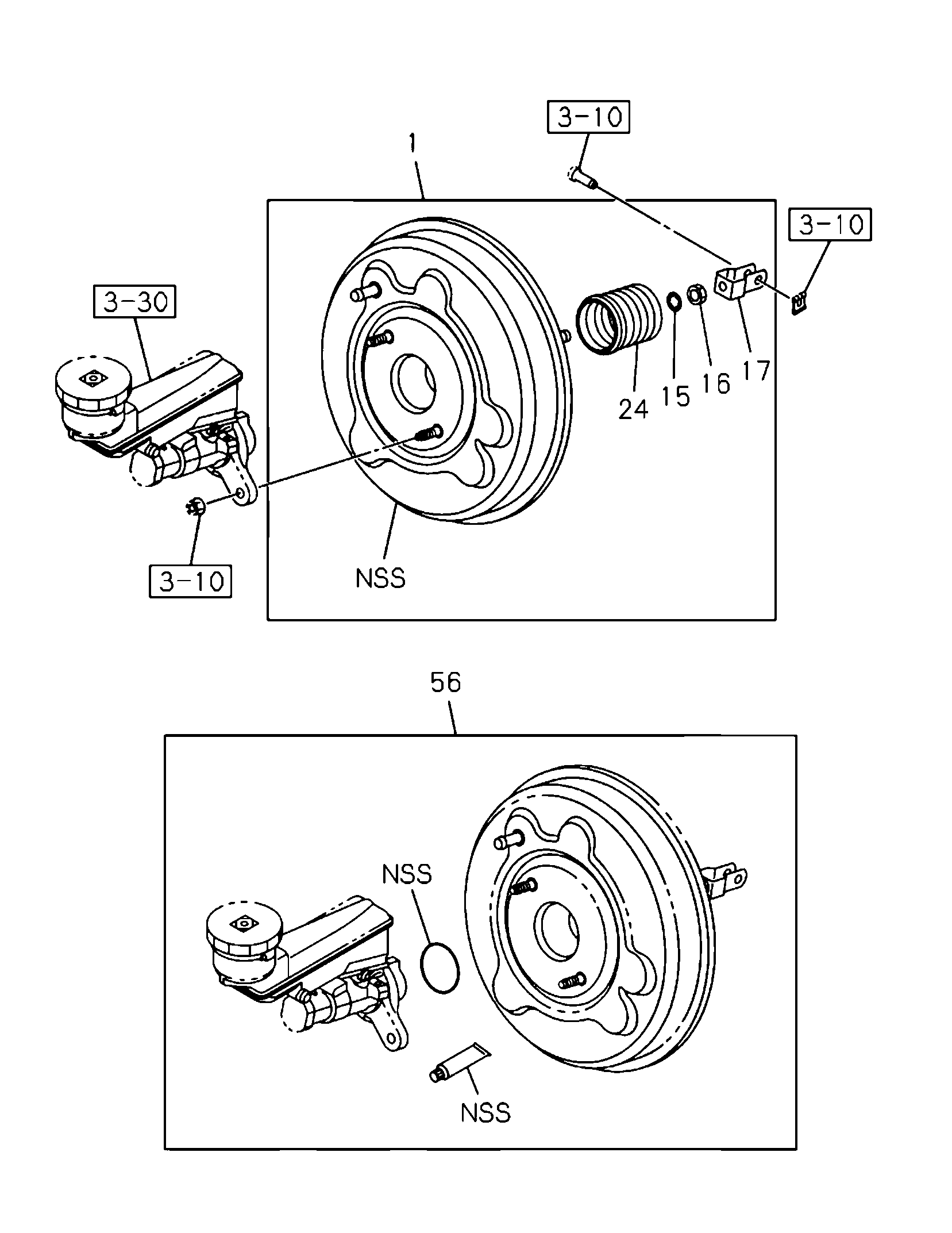

3-31 | 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-98048 039-0 | CLEVIS; YOKE.M/VAC | 1 | 2110- | A B | |||
| 16 | I8-98048 038-0 | NUT; VLV RODFM/VAC | 1 | 2110- | A B | |||
| 56 | I8-98185 211-0 | GASKET KIT; M/CYL TO SERVO UNIT | 1 | 2110- | AB | W/GREASE | ||
| 1 | I8-97504 358-2 | MASTER VAC ASM; BRK | 1 | 2110- | AB | |||
| 24 | I8-98185 212-0 | GUARD; VLV BODY,M/VAC | 1 | 2110- | AB | |||
| 15 | I8-98048 040-0 | RETAINER; GUARD,M/VAC | 1 | 2110- | A B |
