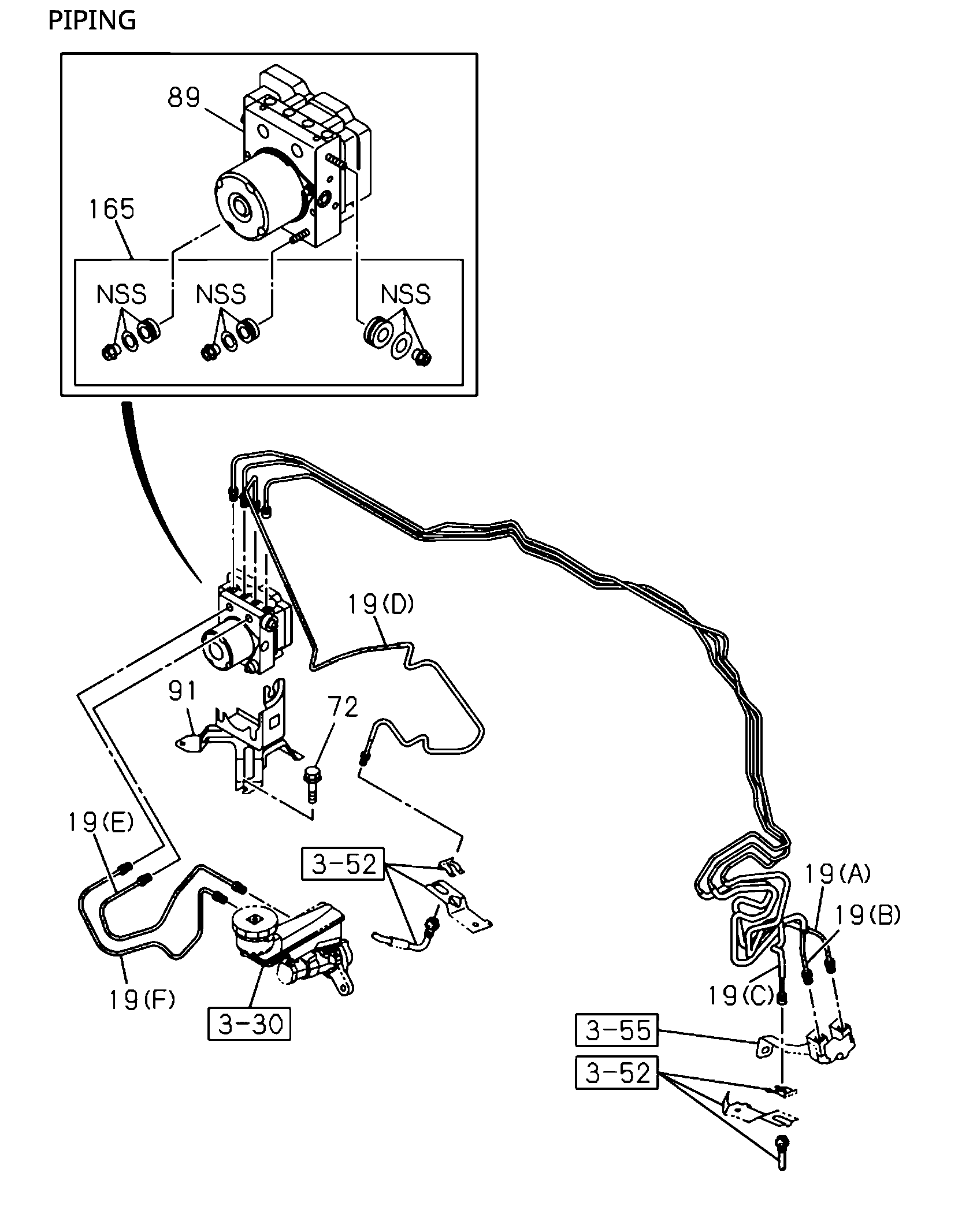

3-50 | 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 107 | I0-28050 612-0 | BOLT; WHEEL SPD SENSOR | 2 | 2110- | AB | M6X12 FLANGE | ||
| 116 | I0-28650 616-0 | NUT | 2 | 2110- | AB (A) M6 | |||
| 19 | I8-98484 279-1 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | A B | (A) | ||

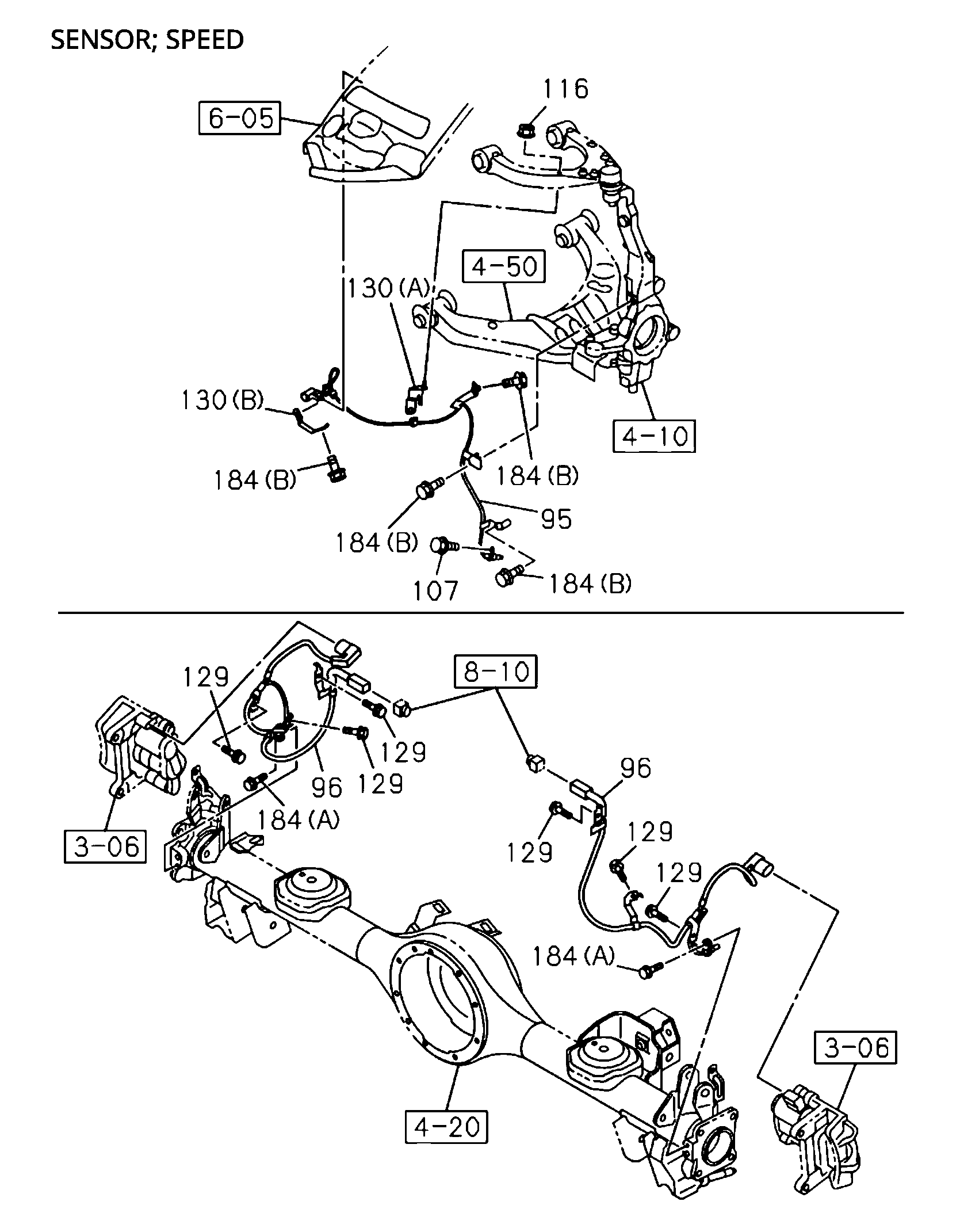

| 96 | I8-97503 591-0 | SENSOR; SPD.RR WHEEL | 1 | 2110- | A B | |||
| 19 | I8-98484 281-1 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | AB | (C) | ||
| 89 | I8-97548 936-1 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 2110- | A B | EXC. SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) | ||
| 19 | I8-98395 377-1 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | A B | (f) | ||
| 19 | I8-98395 375-1 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | AB | (E) | ||
| 89 | I8-97825 493-0 | HYDRAULIC UNIT; ANTI LOCK BRK | 1 | 2110- | A B | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) SAFETY PACKAGE FRT(8SW),SAFETY PACKAGE FRT & RR(8SY) | ||
| 96 | I8-97503 590-0 | SENSOR; SPD.RR WHEEL | 1 | 2110- | AB | |||
| 95 | I8-98371 293-1 | SENSOR; SPD,FRT WHEEL | 1 | 2110- | AB | |||
| 95 | I8-98371 294-1 | SENSOR; SPD,FRT WHEEL | 1 | 2110- | A B | |||
| 91 | I8-98395 130-0 | BRACKET; HYDRAULIC UNIT | 1 | 2110- | A B | |||
| 72 | I0-28650 616-0 | BOLT; BRKT TO BODY | 3 | 2110- | A B | M6X16 FLANGE | ||
| 19 | I8-98484 280-1 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | AB | (B) | ||
| 19 | I8-98484 278-0 | PIPE; BRK,M/CYL TO UNION | 1 | 2110- | AB | (D) |
