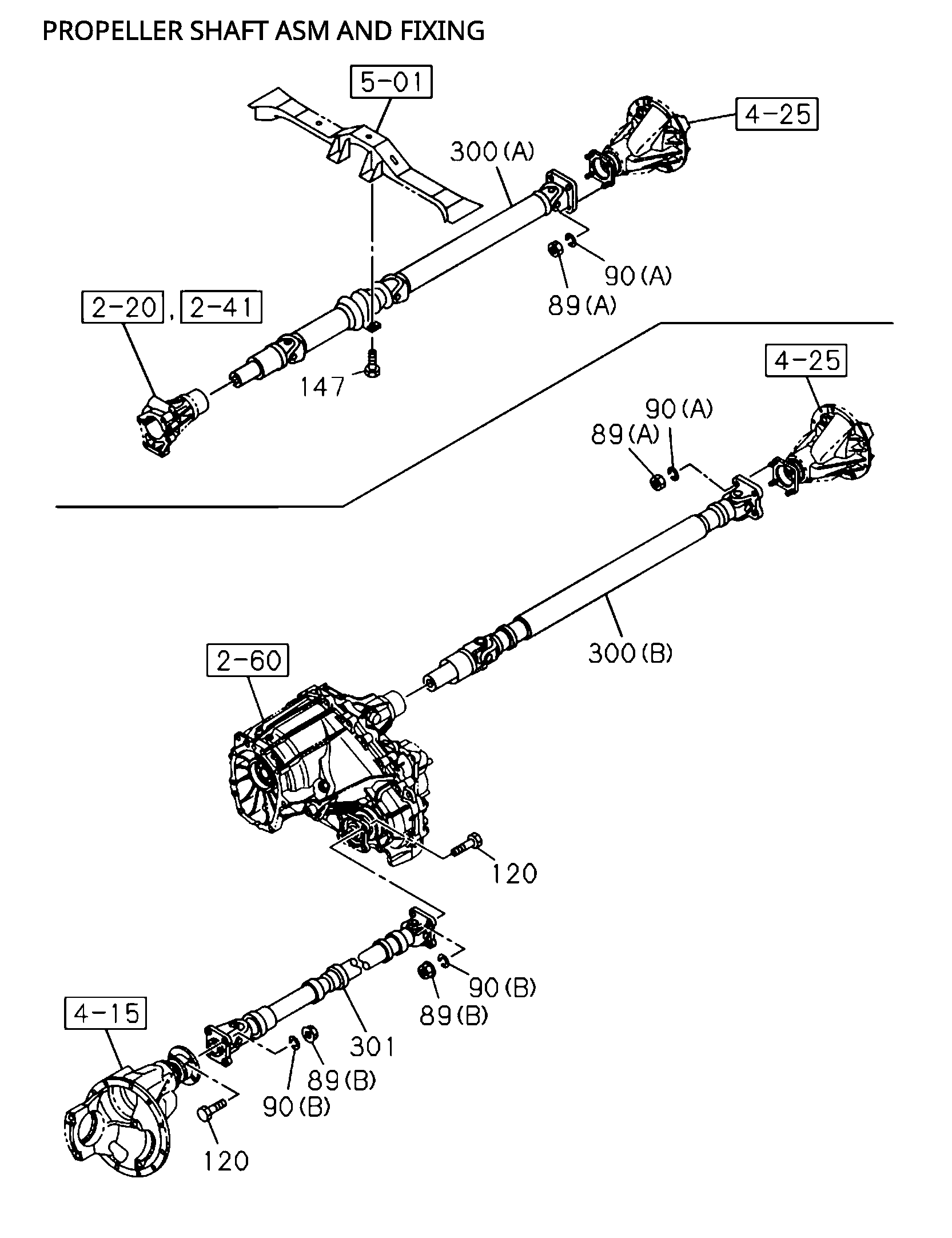

4-01 | 4-01 - PROPELLER SHAFT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 218 | I8-97192 641-0 | WASHER; PL.PROP SHAFT | 1 | 2110- | A | ID=30 H =40 L=35 | ||
| 59 | I8-97947 557-0 | NUT; RET TO SUPPORT | 1 | 2110- | A | |||
| 9 | I8-97493 742-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | B | (C) | ||
| 103 | I8-97947 639-0 | BOOT; PROP SHAFT | 1 | 2110- | A | A/T 6 SPEED-AISIN(Y6A) / A ;1075 | ||
| 8 | I8-97493 716-0 | YOKE; FLANGE.PROP SHAFT | 1 | 2110- | AB | (A) | ||

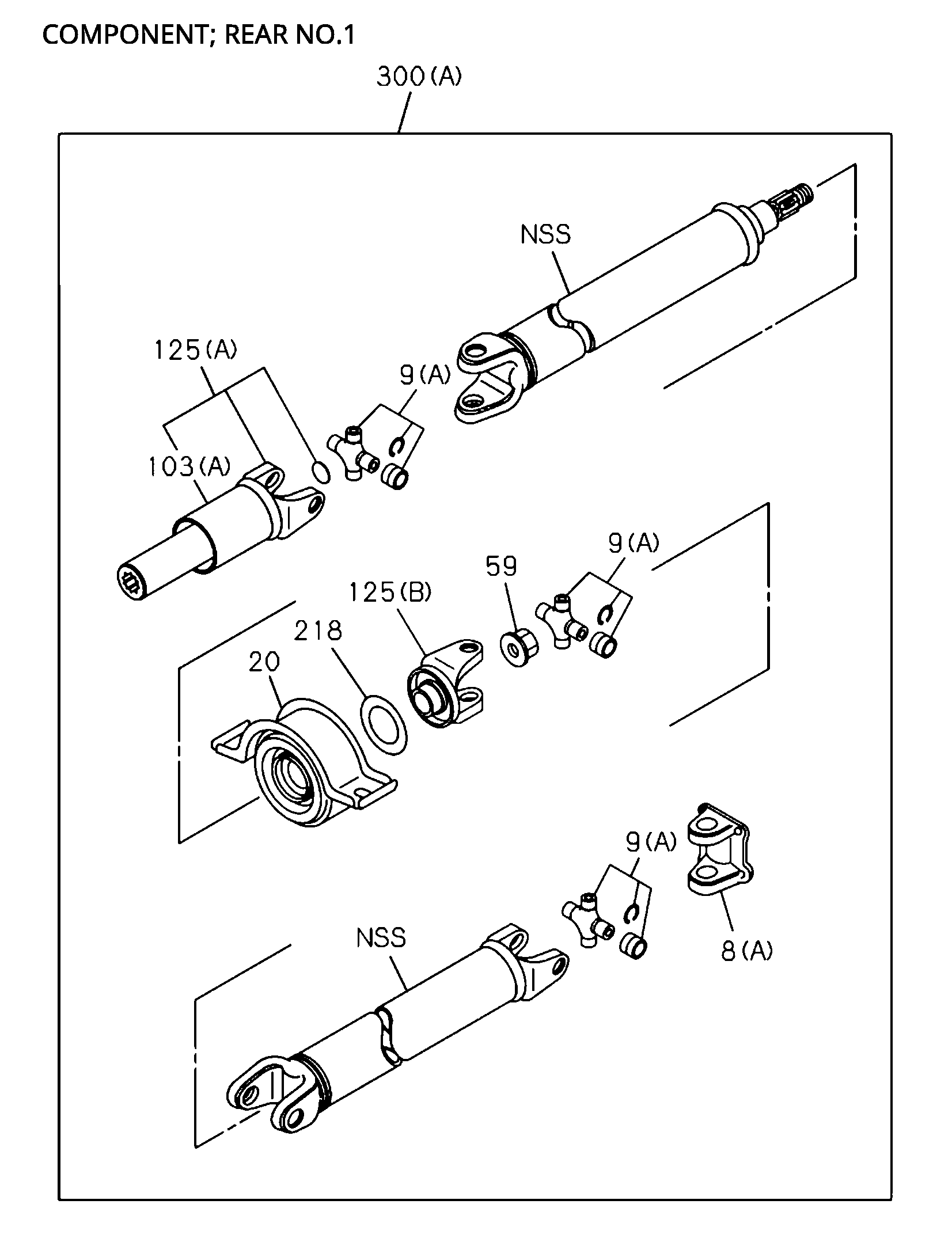

| 300 | I8-97507 087-0 | SHAFT ASM; PROP.RR | 1 | 2110- | A | RZ4E-TC ENG(RDZ) A/T 6 SPEED-AISIN(Y6A) (A) L=1628.5 | ||
| 9 | I6-97947 582-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | B | (IADG) (B) | ||

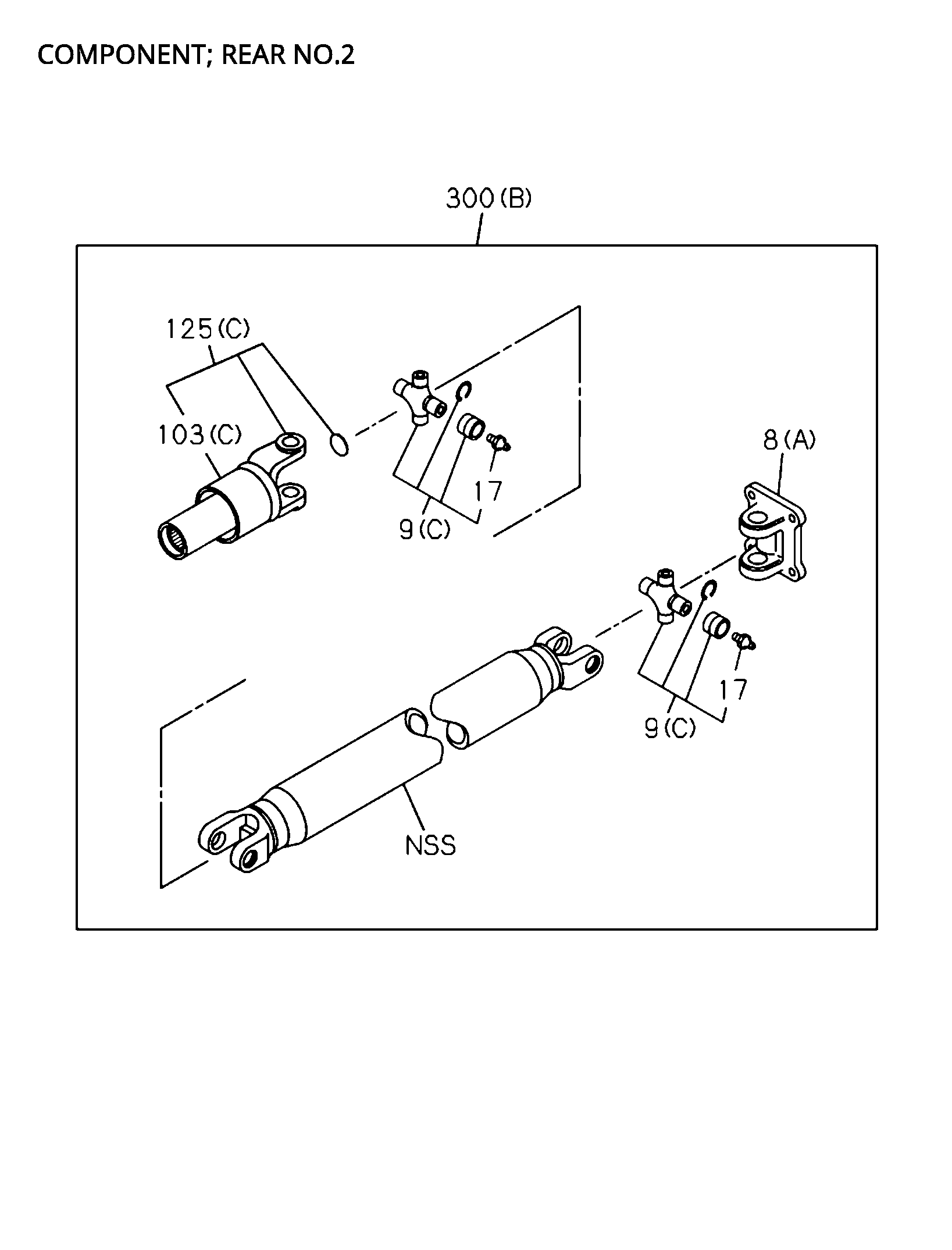

| 300 | I8-97794 582-0 | SHAFT ASM; PROP.RR | 1 | 2110- | B | RZ4E-TC ENG(RDZ) (B) L=1272 | ||
| 90 | I8-97246 901-0 | WASHER; LK,YOKE TO RR AXLE | 8 | 2110- | B | (B) ID=10.1 | ||
| 9 | I8-97947 643-0 | JOURNAL ASM; PROP SHAFT | 3 | 2110- | A | RZ4E-TC ENG(RDZ) (A) | ||
| 103 | I8-97493 754-0 | BOOT; PROP SHAFT | 1 | 2110- | B | (C) | ||
| 9 | I8-97947 582-0 | JOURNAL ASM; PROP SHAFT | 2 | 2110- | B | (B) | ||

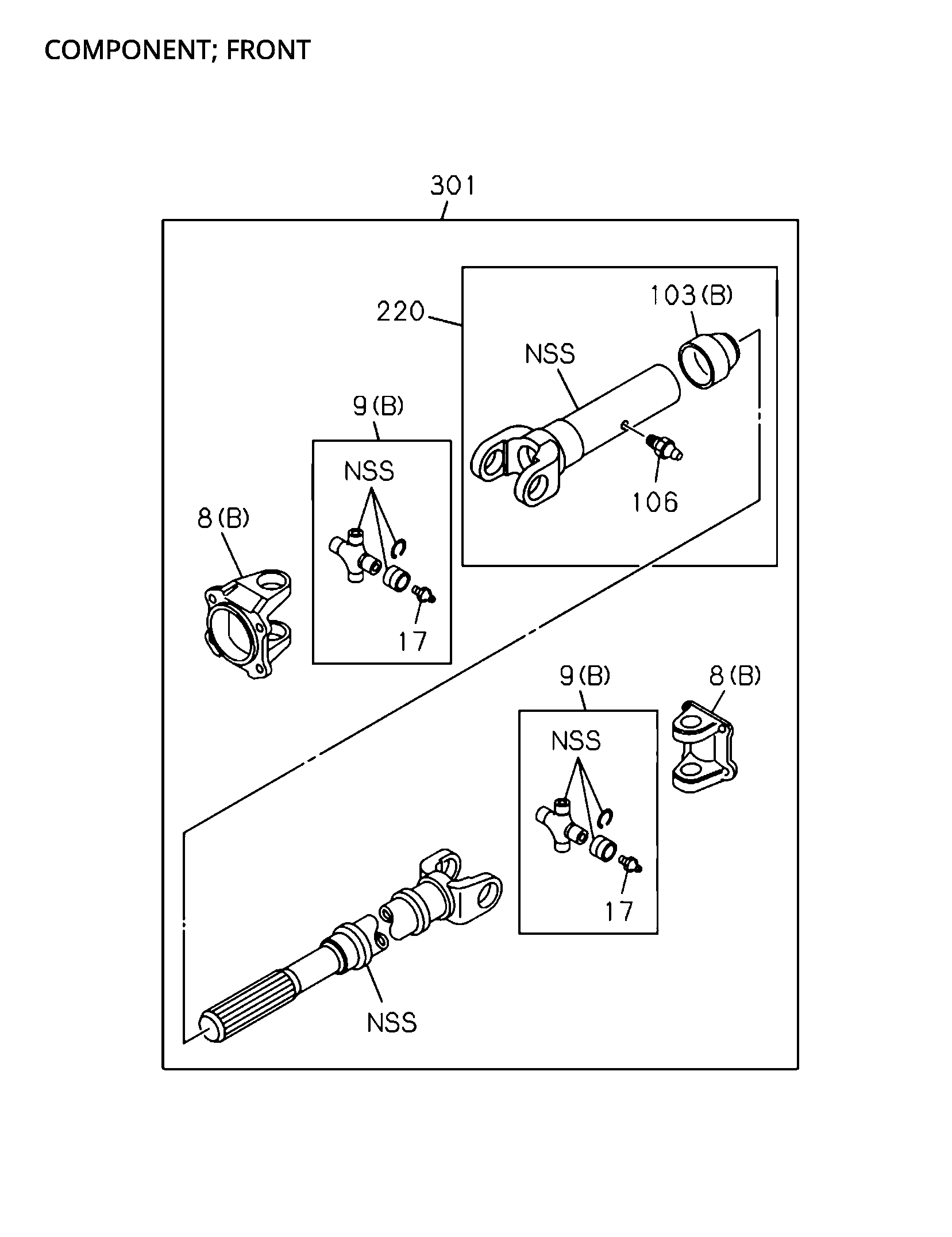

| 301 | I8-98395 176-0 | SHAFT ASM; PROP.FRT | 1 | 2110- | B | RZ4E-TC ENG(RDZ) L=718 | ||
| 89 | I8-97246 900-0 | NUT; YOKE TO RR AXLE | 8 | 2110- | B | (B) M10 FLANGE | ||
| 220 | I8-97945 105-0 | YOKE; SPLINED | 1 | 2110- | B | |||
| 20 | I8-97947 656-0 | BEARING ASM; CTR,PROP SHAFT | 1 | 2110- | A | NTN | ||
| 20 | I8-97947 655-0 | BEARING ASM; CTR,PROP SHAFT | 1 | 2110- | A | NSK | ||
| 89 | I8-97365 450-1 | NUT; YOKE TO RR AXLE | 4 | 2110- | A B | (A) M12 | ||
| 147 | I0-28661 225-0 | BOLT; CENTER BRG MTG | 2 | 2110- | A | M12X25 FLANGE | ||
| 90 | I0-91510 812-0 | WASHER; LK,YOKE TO RR AXLE | 4 | 2110- | A B | (A) ID=12.2 | ||
| 17 | I0-90301 406-0 | NIPPLE; GREASE,PROP SHAFT | 4 | 2110- | B | M6 STRAIGHT | ||
| 8 | I8-97948 772-0 | YOKE; FLANGE.PROP SHAFT | 2 | 2110- | B | (B) |
