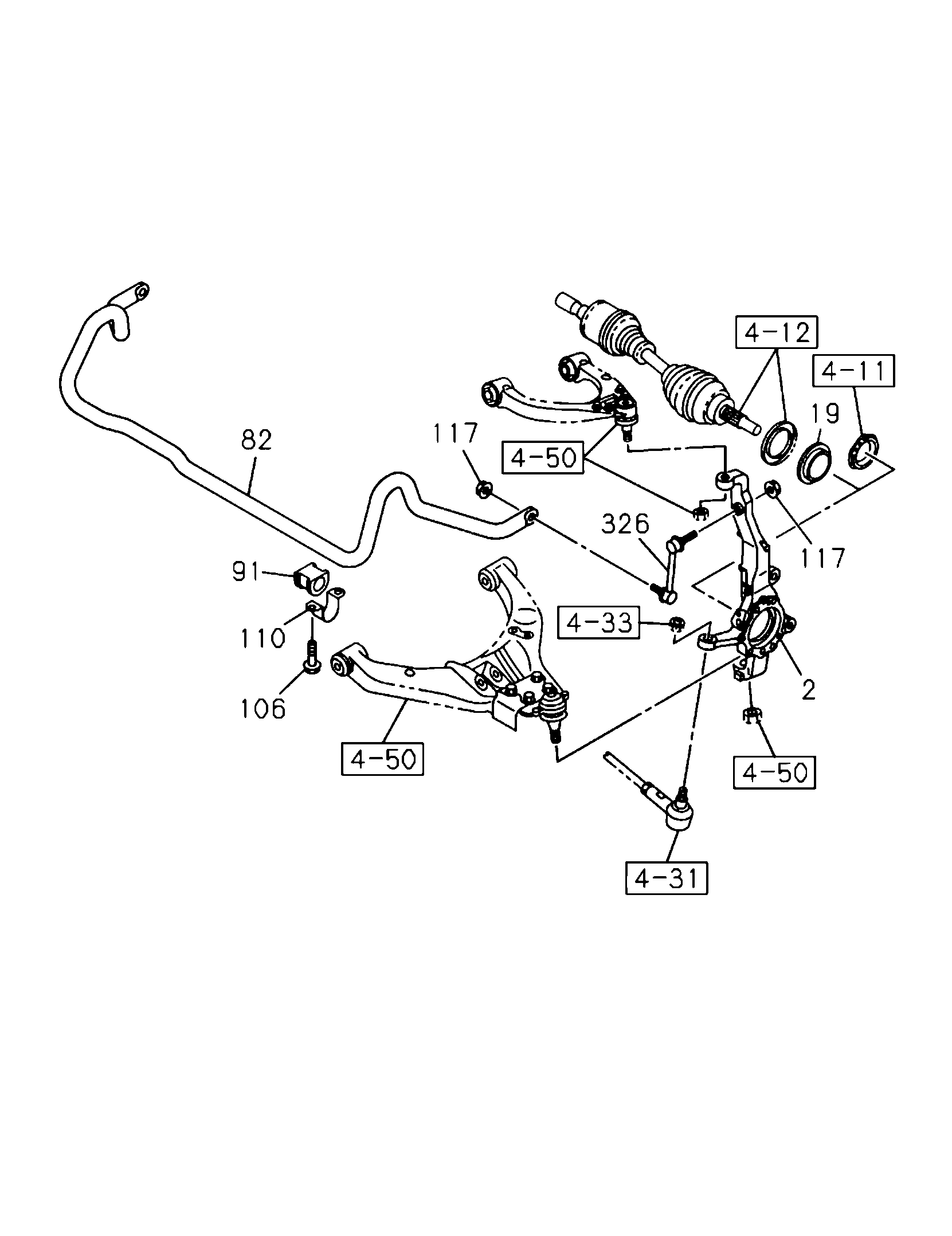

4-10 | 4-10 - FRONT AXLE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 82 | I8-97504 016-0 | BAR; STAB.FRT SUSP | 1 | 2110- | AB | |||
| 326 | I8-98390 135-0 | LINK ASM; STABILIZER | 1 | 2110- | A B | |||
| 117 | I8-98395 346-0 | NUT; STAB BAR BUSHING | 4 | 2110- | A B | M12 FLANGE | ||
| 19 | I8-98392 204-0 | SEAL; OIL,KNUCKLE | 2 | 2110- | B | |||
| 2 | I8-98392 626-1 | KNUCKLE; FRTAXLE | 1 | 2110- | A B | |||
| 91 | I8-97504 017-0 | BUSHING; RUBBER,STAB | 2 | 2110- | AB | |||
| 326 | I8-98390 134-0 | LINK ASM; STABILIZER | 1 | 2110- | AB | |||
| 110 | I8-98390 383-0 | CLAMP; STAB TO ROD | 2 | 2110- | A B | |||
| 106 | I0-28651 025-0 | BOLT; CAP FIX | 4 | 2110- | AB | M10X25 FLANGE | ||
| 2 | I8-98392 627-1 | KNUCKLE; FRTAXLE | 1 | 2110- | AB |
