4-12 | 4-12 - FRONT DRIVE SHAFT
MUX
MU-X 2022

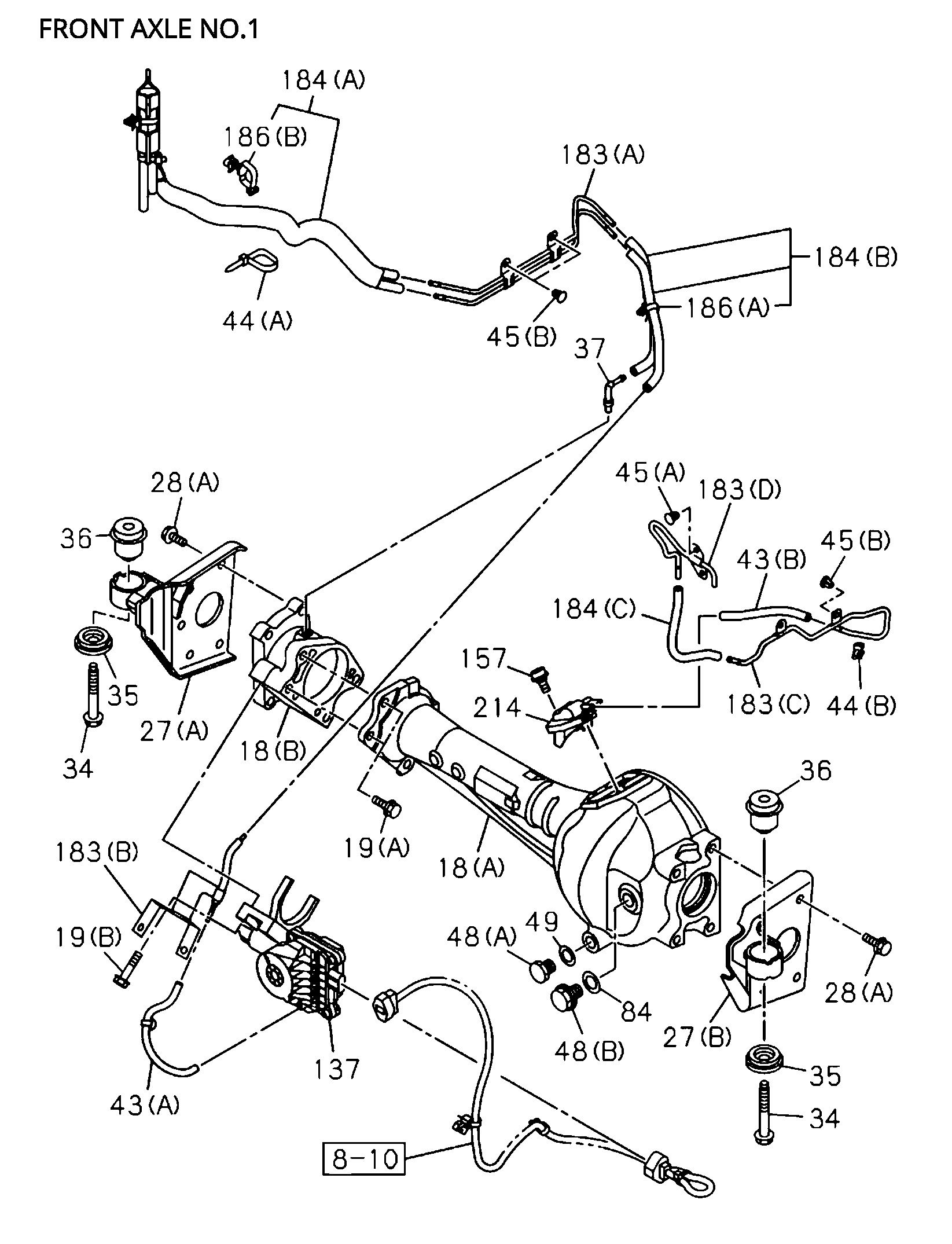

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-94368 493-0 | WASHER; FRTAXLE MTG I I | 1 | 2110- | B | (A) L=129.5 | ||
| 184 | I8-98393 001-0 | HOSE; BREATHER | 1 | 2110- | B | (C) | ||
| 1 | I8-98392 965-0 | SHAFT ASM; F | 2 | 2110- | B | |||
| 23 | I0-91110 508-0 | NUT; FRTAXLE | 2 | 2110- | B | M8 | ||
| 5 | I8-97131 402-0 | RING; RET,FR | 2 | 2110- | B | |||
| 49 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 2110- | B | ID=16.2 OD=24 | ||
| 48 | I8-98009 333-0 | PLUG; DRAIN,AXLE CASE | 1 | 2110- | B | (B) M20X10.5 | ||
| 62 | I9-09180 040-0 | RING; SNAP,AXLE SHAFT | 1 | 2110- | B | (A) ID=37.0 | ||
| 45 | I5-09709 108-0 | CLIP | 4 | 2110- | B | (B) OD=14 HOLE ID=6 | ||
| 184 | I8-98393 000-0 | HOSE; BREATHER | 1 | 2110- | B | (B) | ||
| 4 | I8-97508 099-0 | BAND; "C'JFF | 2 | 2110- | B | (A) | ||
| 48 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 2110- | B | (A) M 16X12.5 | ||
| 2 | I8-97508 100-0 | BAND; "A",FF | 2 | 2110- | B | |||
| 12 | I8-97528 980-0 | JOINT ASM | 2 | 2110- | B | |||
| 34 | I8-97259 306-0 | BOLT; FRTAXLE MTG | 2 | 2110- | B | M14X85 FLANGE | ||
| 50 | I8-97084 507-0 | SEAL; OIL,SHAFT,FRT AXLE | 1 | 2110- | B | |||
| 9 | I8-97101 878-0 | BEARING; AXI | 1 | 2110- | B | (A) | ||
| 214 | I8-97509 233-0 | COVER; BREATHER | 1 | 2110- | B | |||
| 221 | I8-98009 333-0 | PLUG; FILLER | 1 | 2110- | B | M20X10.5 | ||
| 13 | I8-97947 579-0 | BOOT KIT; OL | 3 | 2110- | B | (C) M8X28.5W/SP WASHER | ||
| 28 | I0-28061 230-0 | BOLT; BRKT TO AXLE CASE | 1 | 2110- | B | (B) M12X30 FLANGE | ||
| 3 | I8-97508 102-0 | BAND; "B'SFF | 2 | 2110- | B | |||
| 4 | I8-97508 101-0 | BAND; "C'JFF | 2 | 2110- | B | (B) | ||
| 69 | I8-98393 021-0 | SHAFT; AXLE,FRT INNER | 1 | 2110- | B | |||
| 186 | I8-98393 636-0 | CLIP; HOSE,BREATHER | 1 | 2110- | B | (B) L=181.2 | ||
| 222 | I8-94462 734-0 | GASKET; FILLER PLUG | 1 | 2110- | B | ID=20 OD=30 | ||
| 27 | I8-98486 703-1 | BRACKET; AXLE CASE | 1 | 2110- | B | (B) | ||
| 10 | I8-98392 977-0 | SEAL; OIL,AX | 2 | 2110- | B | |||
| 7 | I8-98392 966-0 | SEAL; DUST,[ | 2 | 2110- | B | |||
| 28 | I0-28061 240-0 | BOLT; BRKT TO AXLE CASE | 1 | 2110- | B | (C) M12X40 FLANGE | ||
| 27 | I8-98486 702-1 | BRACKET; AXLE CASE | 1 | 2110- | B | (A) | ||
| 95 | I8-97103 392-A | BEARING; AXLE SHAFT,FRT | 1 | 2110- | B | (IADG) | ||
| 13 | I8-97528 979-0 | BOOT KIT; OL | 2 | 2110- | B | |||
| 184 | I8-98392 990-0 | HOSE; BREATHER | 1 | 2110- | B | (A) | ||
| 11 | I8-97528 981-0 | JOINT ASM; C | 2 | 2110- | B | |||
| 30 | I0-91180 214-0 | NUT; FRTAXLE MTG | 1 | 2110- | B | M14 FLANGE | ||
| 13 | I8-97947 580-0 | BOOT KIT; OL | 5 | 2110- | B | (D) M8X40W/SP WASHER | ||
| 45 | I5-09709 108-0 | CLIP | 2 | 2110- | B | (A) OD=14 HOLE ID=6.5 | ||
| 62 | I9-09180 162-0 | RING; SNAP,AXLE SHAFT | 1 | 2110- | B | (B) ID=57.9 | ||
| 28 | I8-98270 578-0 | BOLT; BRKT TO AXLE CASE | 8 | 2110- | B | (A) M12X22 FLANGE | ||
| 84 | I8-94462 734-0 | GASKET; PLUG,OIL FILLER | 1 | 2110- | B | ID=20 0D=30 | ||
| 9 | I8-98392 974-0 | BEARING; AXI | 2 | 2110- | B | (B) | ||
| 186 | I8-98116 079-0 | CLIP; HOSE,BREATHER | 1 | 2110- | B | (A) L=145 | ||
| 26 | I0-91510 808-0 | WASHER; LK,CASE,FRTAXLE | 2 | 2110- | B | ID=8.2 | ||
| 24 | I0-40210 825-0 | STUD; CASE,FRTAXLE | 2 | 2110- | B | M8X25L=41 | ||
| 27 | I8-98392 981-3 | BRACKET; AXLE CASE | 1 | 2110- | B | (C) | ||
| 95 | I8-97103 392-A | BEARING; AXLE SHAFT,FRT | 1 | 2110- | B | ( IADG ) | ||
| 13 | I8-97947 581-0 | BOOT KIT; OL | 2 | 2110- | B | (E) M8X95W/SP WASHER |
