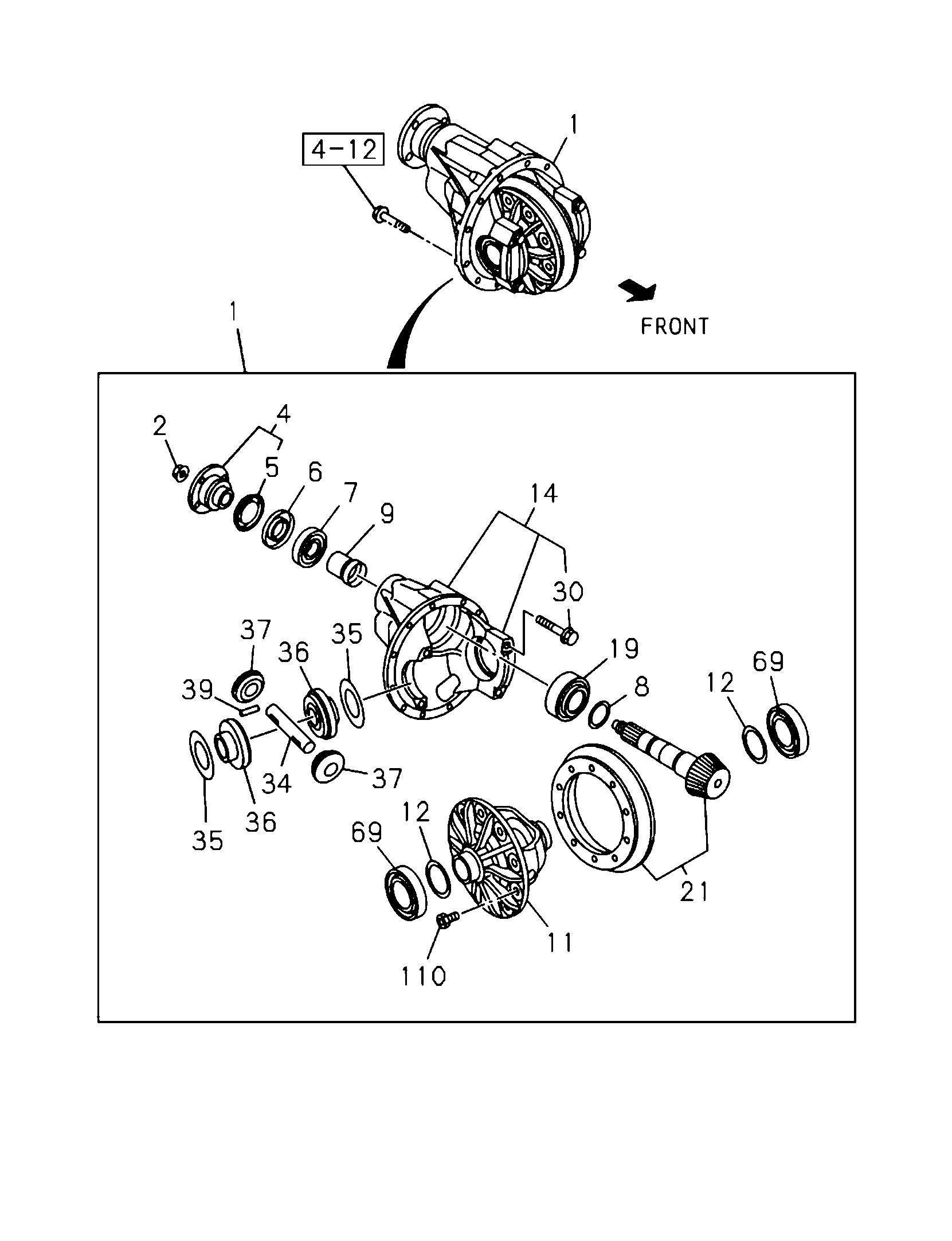

4-15 | 4-15 - FRONT FINAL DRIVE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-97481 633-0 | GEAR; SIDE,DIFF | 2 | 2110- | B | Z=17 | ||
| 39 | I9-09878 096-0 | PIN; LK.CROSS PIN | 1 | 2110- | B | OD=5 L=35 | ||
| 8 | I9-41519 160-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.32 | ||
| 8 | I9-41519 164-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.40 | ||
| 19 | I9-00093 621-A | BEARING; PINION.INNER | 1 | 2110- | B | ( IADG ) NSK | ||
| 8 | I9-41519 158-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.28 | ||
| 19 | I9-00093 621-1 | BEARING; PINION.INNER | 1 | 2110- | B | NSK | ||
| 34 | I9-41521 044-1 | PIN; CROSS,DIFF PINION | 1 | 2110- | B | |||
| 7 | I8-94472 099-A | BEARING; PINION,OUTER | 1 | 2110- | B | (IADG) NSK | ||
| 14 | I8-98104 910-2 | CARRIER ASM; FINAL DRIVE,FRT AXLE | 1 | 2110- | B | |||
| 4 | I8-97798 061-0 | COUPLING; FINAL DRIVE PINION | 1 | 2110- | B | |||
| 6 | I8-94318 520-2 | SEAL; OIL,FINAL PINION | 1 | 2110- | B | |||
| 8 | I9-41519 157-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.26 | ||
| 8 | I9-41519 159-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.30 | ||
| 35 | I5-41562 007-1 | WASHER; THRUST,SIDE GEAR | 2 | 2110- | B | T=1.10 | ||
| 1 | I8-97481 629-0 | DRIVE ASM; FINAL.FRT | 1 | 2110- | B | FINAL GEAR RATIO 41 /10(GT5) 41/10 | ||
| 8 | I9-41519 156-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.24 | ||
| 35 | I5-41562 005-1 | WASHER; THRUST,SIDE GEAR | 2 | 2110- | B | T=1.00 | ||
| 8 | I9-41519 111-0 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=0.15 | ||
| 2 | I8-94376 262-0 | NUT; FINAL DRIVE PINION | 1 | 2110- | B | M18 LOCK NUT | ||
| 37 | I6-97079 518-0 | GEAR; PINION DIFF | 2 | 2110- | B | (IADG) Z=10 | ||
| 8 | I9-41519 165-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.42 | ||
| 8 | I8-97130 387-0 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=0.50 | ||
| 8 | I9-41519 161-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.34 | ||
| 69 | I9-00093 074-A | BEARING; DIFF SIDE | 2 | 2110- | B | ( IADG ) NSK | ||
| 8 | I9-41519 155-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | 7=2.22 | ||
| 7 | I8-94472 099-A | BEARING; PINION,OUTER | 1 | 2110- | B | ( IADG ) NSK | ||
| 8 | I9-41519 153-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.18 | ||
| 8 | I9-41519 163-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.38 | ||
| 8 | I9-41519 162-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=2.36 | ||
| 37 | I8-97079 518-0 | GEAR; PINION DIFF | 2 | 2110- | B | Z=10 | ||
| 8 | I8-97130 386-0 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=0.10 | ||
| 30 | I8-94376 322-0 | BOLT; DIFF CAGE SETTING | 4 | 2110- | B | M12X62 | ||
| 35 | I5-41562 006-1 | WASHER; THRUST,SIDE GEAR | 2 | 2110- | B | T=1.05 | ||
| 21 | I8-98104 945-1 | GEAR SET; FINAL DRIVE,FRT | 1 | 2110- | B | FINAL GEAR RATIO 41 /10(GT5) 41/10 | ||
| 69 | I9-00093 074-1 | BEARING; DIFF SIDE | 2 | 2110- | B | NSK | ||
| 7 | I8-94472 100-1 | BEARING; PINION,OUTER | 1 | 2110- | B | JTEKT | ||
| 8 | I9-41519 154-1 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | 1=2.20 | ||
| 8 | I9-41519 109-0 | SHIM; PINION.FINAL DRIVE | AR | 2110- | B | T=0.24 |
