PORTAL SPAREPART

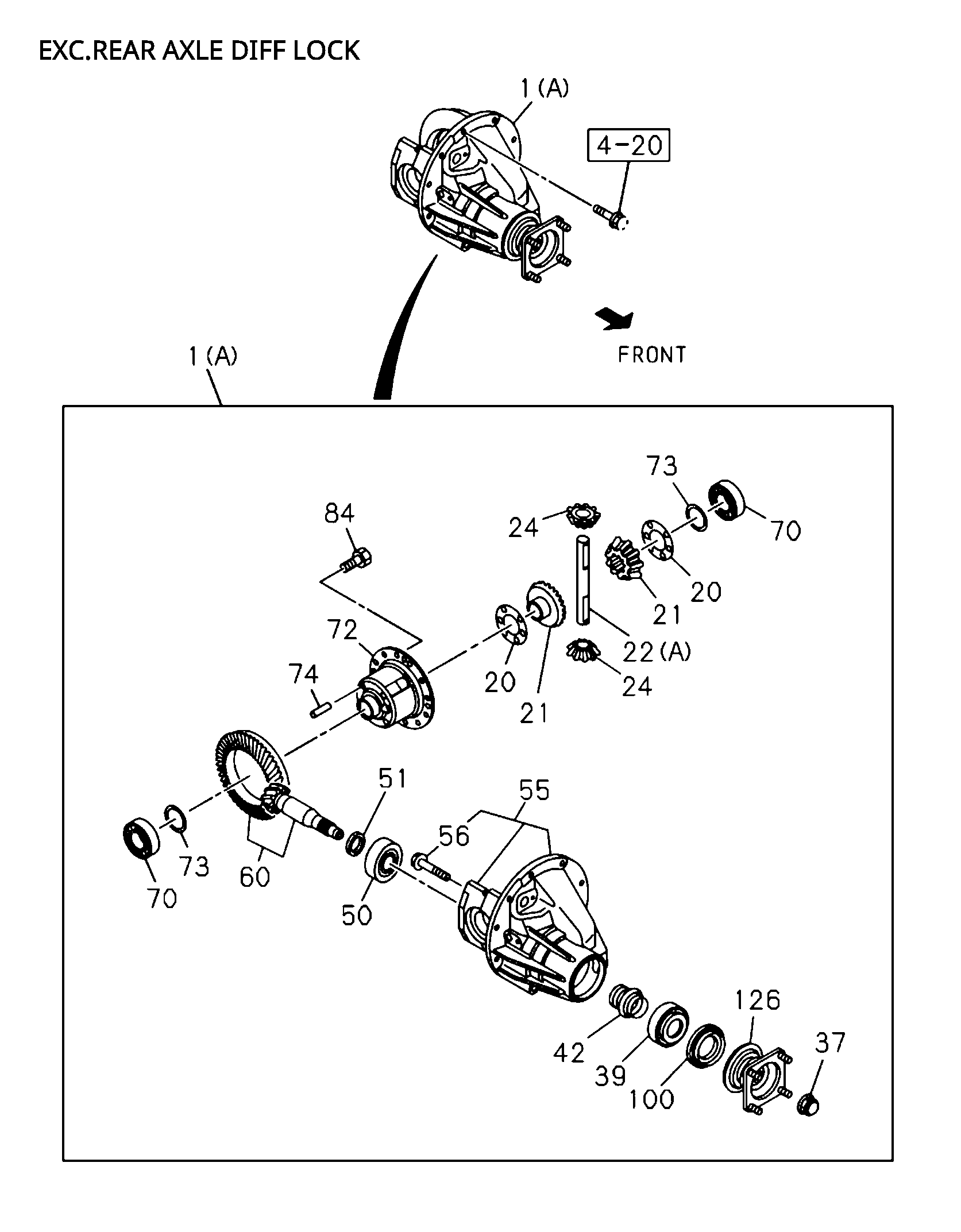

4-25 | 4-25 - REAR FINAL DRIVE

Partial Engine Partial Engine

MUX

MU-X 2022

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
51 I8-97503 516-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=2.36
21 I8-98186 829-0 GEAR; SIDE,DIFF 2 2110- AB FINAL GEAR RATIO 41/10(GT5) EXC. REAR AXLE DIFF LOCK<8CL> Z=10
73 I8-94435 349-0 SHIM; DIFF SIDE BRG AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.15
37 I8-94376 261-1 NUT; DRIVING PINION 1 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> M24 FLANGE
56 I8-97503 454-0 BOLT; BRG CAP 4 2110- AB M12X75 FLANGE
20 I5-41562 007-1 WASHER; THRUST.SIDE GEAR 2 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.20
51 I8-97503 512-0 SHIM; PINION.FINAL DRIVE AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=2.28
20 I8-94435 343-0 WASHER; THRUST.SIDE GEAR 2 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.80
51 I8-97503 498-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=2.00
51 I8-97503 500-0 SHIM; PINION.FINAL DRIVE AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=2.04
42 I8-98398 083-0 COLLAR; DIST.COLLAPSIBLE 1 2110- AB
74 I9-09878 096-0 PIN; LK.CROSS PIN 1 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> OD=5 L=35
50 I8-97503 277-0 BEARING; FINAL PINION 1 2110- AB EXC. REAR AXLE DIFF LOCK<8CL>
73 I8-94435 350-0 SHIM; DIFF SIDE BRG AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.18
20 I5-41562 007-1 WASHER; THRUST.SIDE GEAR 2 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.30
39 I8-97503 276-0 BEARING; FINAL PINION 1 2110- A B EXC. REAR AXLE DIFF LOCK<8CL>
60 I8-98398 105-0 GEAR SET; FINAL DRIVE,RR 1 2110- A B FINAL GEAR RATIO 41/10(GT5) EXC. REAR AXLE DIFF LOCK<8CL> 41/10
51 I8-97503 515-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=2.34
1 I8-98395 214-0 DRIVE ASM; FINAL,RR 1 2110- AB FINAL GEAR RATIO 41 /10(GT5) EXC. REAR AXLE DIFF LOCK<8CL> (A) 41/10
20 I9-41562 602-0 WASHER; THRUST.SIDE GEAR 2 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.90
51 I8-97503 514-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=2.32
51 I8-97503 497-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.98
51 I8-97503 513-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=2.30
20 I9-41562 602-0 WASHER; THRUST.SIDE GEAR 2 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=1.00
73 I8-94435 352-0 SHIM; DIFF SIDE BRG AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=0.30
51 I8-97503 496-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.96
73 I8-94435 348-0 SHIM; DIFF SIDE BRG AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.12
55 I8-97499 726-0 CARRIER; DIFF 1 2110- A B EXC. REAR AXLE DIFF LOCK<8CL>
51 I8-97503 495-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.94
51 I8-97503 499-0 SHIM; PINION.FINAL DRIVE AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=2.02
73 I8-94435 353-0 SHIM; DIFF SIDE BRG AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=0.50
51 I8-97503 509-0 SHIM; PINION.FINAL DRIVE AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> 1=2.21
46 I0-28050 612-0 BOLT 2 2110- AB REAR AXLE DIFF LOCK<8CL> (A) M6X12 FLANGE
51 I8-97503 510-0 SHIM; PINION.FINAL DRIVE AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=2.24
73 I8-94435 351-0 SHIM; DIFF SIDE BRG AR 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=0.25
20 I5-41562 007-1 WASHER; THRUST.SIDE GEAR 2 2110- AB EXC. REAR AXLE DIFF LOCK<8CL> T=1.10
51 I8-97503 511-0 SHIM; PINION.FINAL DRIVE AR 2110- A B EXC. REAR AXLE DIFF LOCK<8CL> T=2.26
84 I8-97503 355-0 BOLT; FINAL DRIVE GEAR 12 2110- AB EXC. REAR AXLE DIFF LOCK<8CL>
