4-31 | 4-31 - STEERING COLUMN AND SHAFT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 134 | I8-98394 881-1 | SHAFT; STRG.2ND | 1 | 2110- | AB | (C) | ||

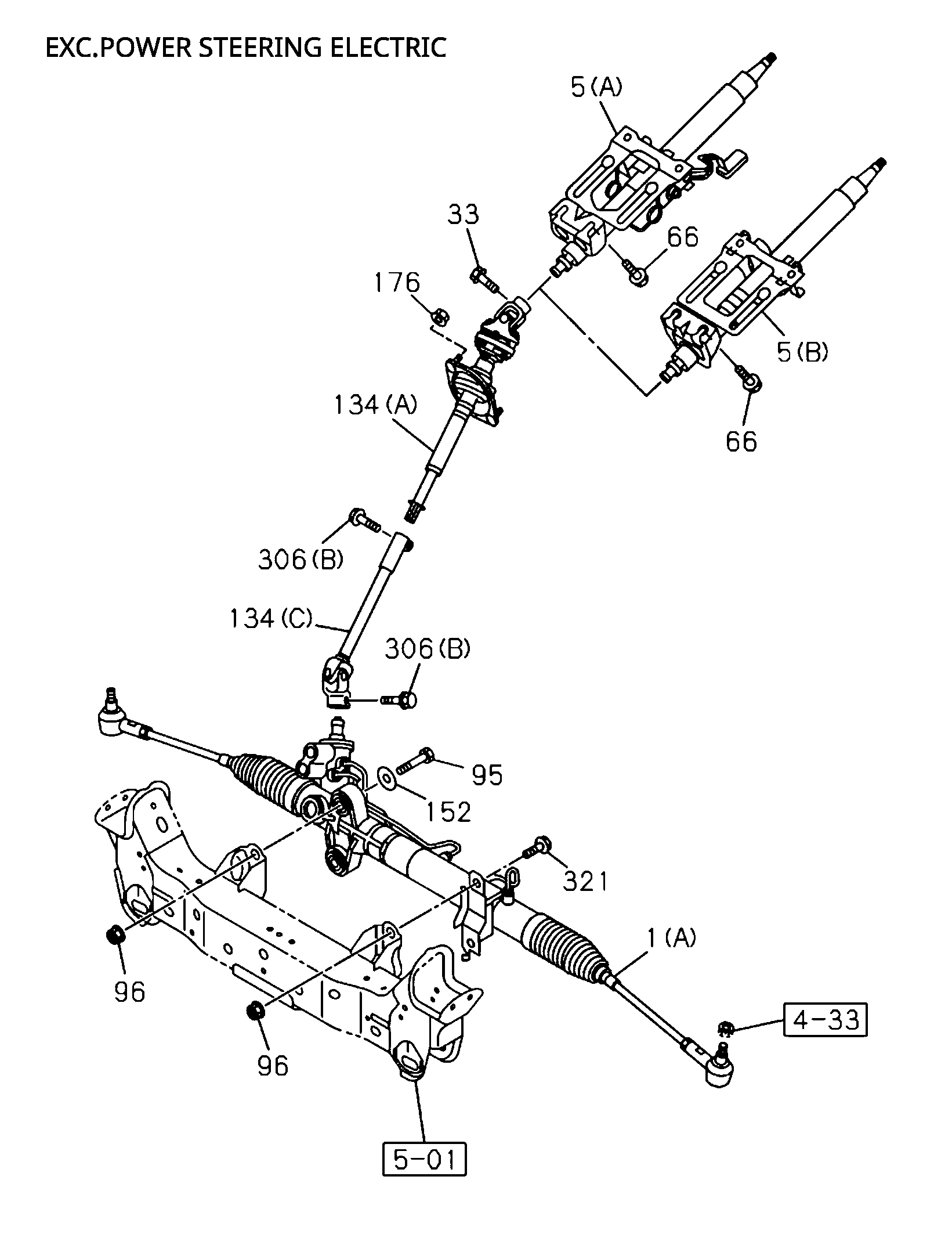

| 1 | I8-97658 012-1 | STEERING UNIT | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> (A) | ||

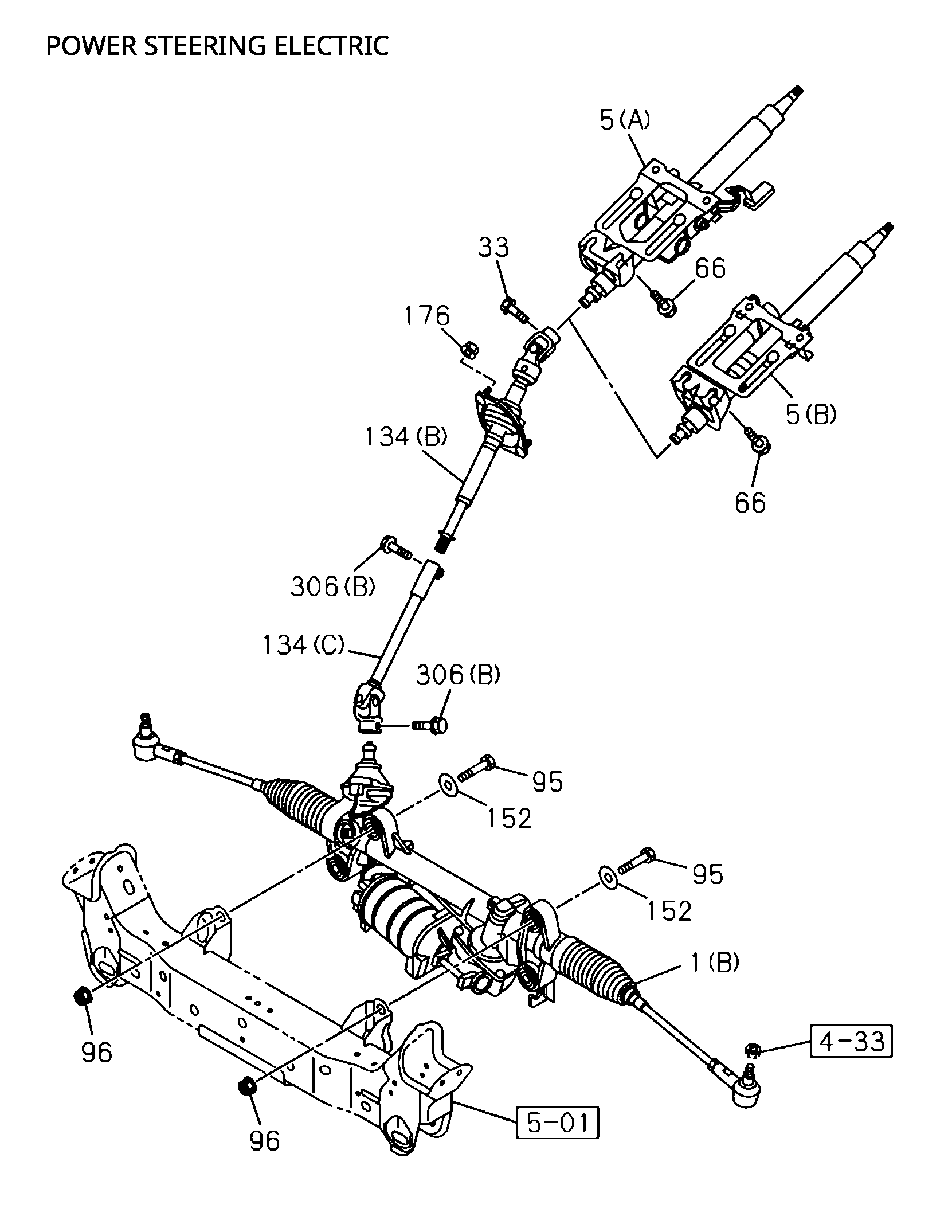

| 95 | I8-97542 132-0 | BOLT; STRG UNIT | 4 | 2110- | AB | POWER STEERING ELECTRIC<NV9> M16X75 | ||
| 33 | I8-98396 032-0 | BOLT; STRG SHAFT TO UNIT | 1 | 2110- | AB | M8X30 FLANGE | ||
| 96 | I0-91180 216-0 | NUT; STRG UNIT | 2 | 2110- | AB | M16 FLANGE | ||
| 95 | I8-97542 132-0 | BOLT; STRG UNIT | 2 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> M16X75 | ||
| 176 | I0-91180 106-0 | NUT; STRG | 2 | 2110- | A B | M6 FLANGE | ||

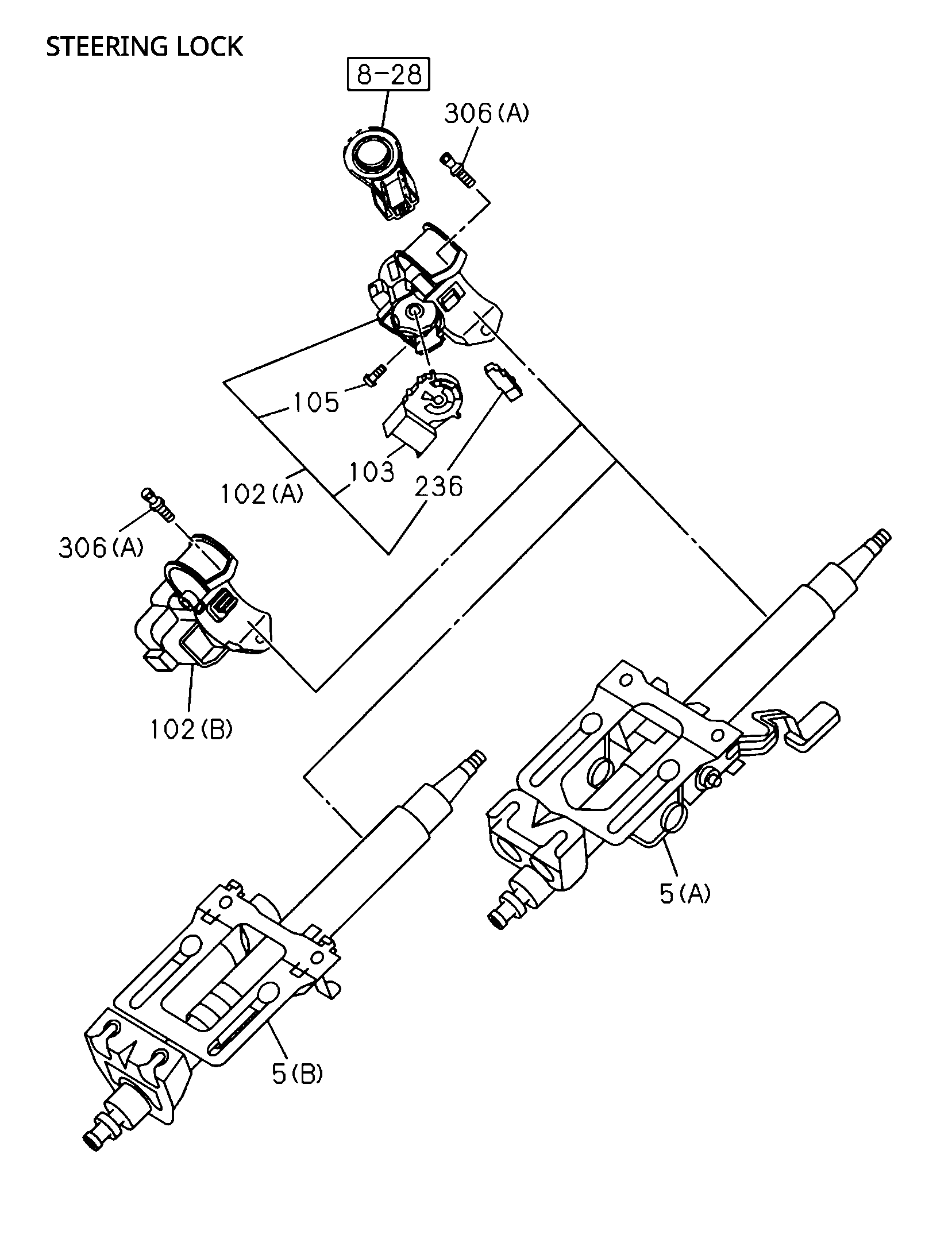

| 5 | I8-97677 303-0 | COLUMN; STRG | 1 | 2110- | AB | REMOTE CONT DOOR LOCK<AP5> STEERING COLUMN TILT TELESCOPING<N37> (A) | ||
| 236 | I8-97504 364-0 | SWITCH; DOOR WARNING,STRG | 1 | 2110- | A B | REMOTE CONT DOOR LOCK<AP5> | ||
| 66 | I0-28650 825-0 | BOLT; STRG COLUMN | 4 | 2110- | AB | M8X25 FLANGE | ||
| 306 | I8-98396 032-0 | BOLT; STRG SHAFT | 2 | 2110- | AB | (B) M8X30 FLANGE | ||
| 152 | I8-98296 670-0 | WASHER; LK,STRG UNIT | 4 | 2110- | A B | POWER STEERING ELECTRIC<NV9> ID=17 | ||
| 321 | I0-28851 625-0 | BOLT; BRKT,STRG | 2 | 2110- | AB | EXC. POWER STEERING ELECTRIC<NV9> M16X25 FLANGE | ||
| 134 | I8-97677 610-2 | SHAFT; STRG.2ND | 1 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 152 | I8-98296 670-0 | WASHER; LK,STRG UNIT | 2 | 2110- | A B | EXC. POWER STEERING ELECTRIC<NV9> ID=17 | ||
| 5 | I8-97677 302-0 | COLUMN; STRG | 1 | 2110- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR>,PASSIVE ENTRY W/PUSH START<8WY> EXC. PROVISIONAL PACKAGE PREVIOUS PARTS<C1H> (A) |
