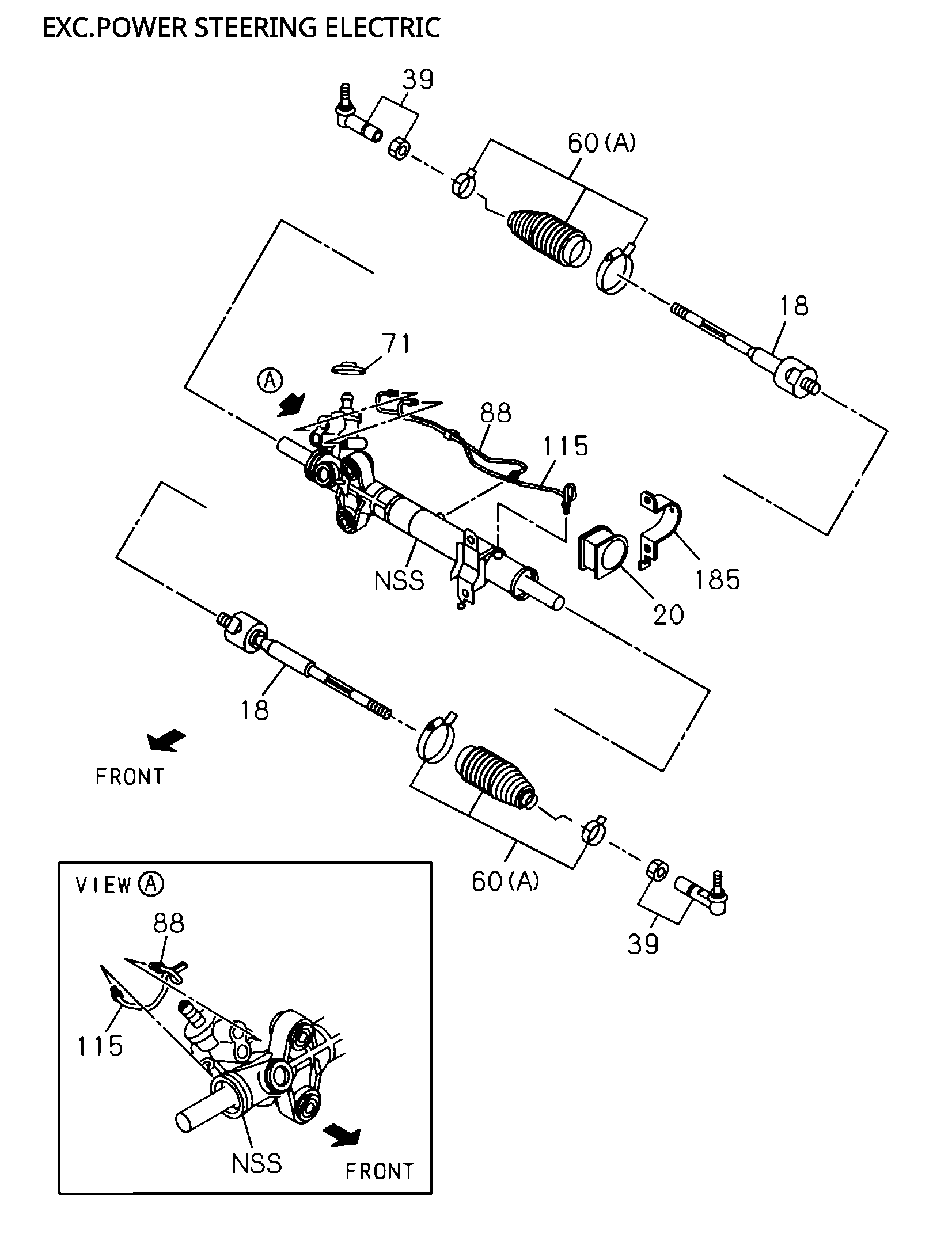

4-40 | 4-40 - STEERING UNIT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 39 | I8-98056 551-0 | ROD END ASM; OUTER | 2 | A | ||||
| 60 | I8-97945 423-1 | A | ROD END ASM; OUTER | 2 | A | (A) | ||
| 88 | I8-97503 138-0 | PIPE; HSG TOIPE; HSG TO VLV | 1 | A | ||||
| 185 | I8-97503 134-0 | BRACKET; P/S | 1 | A | ||||
| 71 | I8-98164 972-0 | COVER; DUST.STRG UNIT | 1 | A | ||||
| 18 | I8-97503 139-0 | ROD ASM; INNER | 2 | A | ||||
| 20 | I8-97503 135-0 | RUBBER; MTC | 1 | A | ||||
| 115 | I8-97503 137-0 | PIPE; HSG TO VLV | 1 | A |
