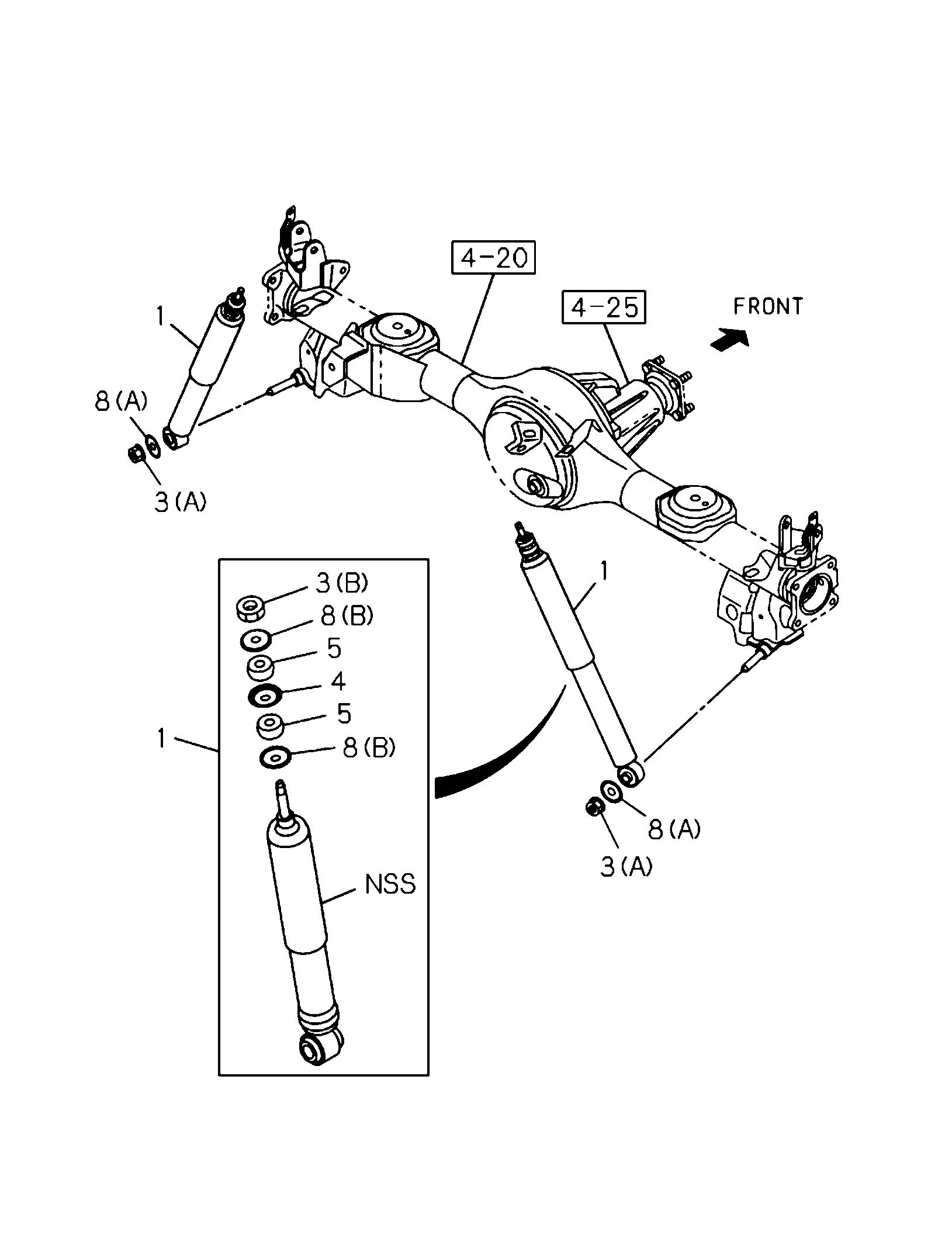

4-61 | 4-61 - SHOCK ABSORBER; REAR SUSPENSION
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97506 926-0 | ABSORBER ASM; SHOCK,RR | 2 | 2110- | AB | |||
| 5 | I8-97947 835-0 | BUSHING; RUBBER,S/ABS,UPR | 4 | 2110- | AB | |||
| 3 | I8-98217 474-0 | NUT; S/ABS | 2 | 2110- | AB | (A) m14 | ||
| 8 | I8-97947 826-0 | WASHER; S/ABS | 2 | 2110- | AB | (A) | ||
| 3 | I8-97947 961-0 | NUT; S/ABS | 2 | 2110- | AB | (B) m10 | ||
| 8 | I8-97947 836-0 | WASHER; S/ABS | 4 | 2110- | AB | (B) | ||
| 4 | I8-97947 837-0 | WASHER; CENTER.S/ABS | 2 | 2110- | AB |
