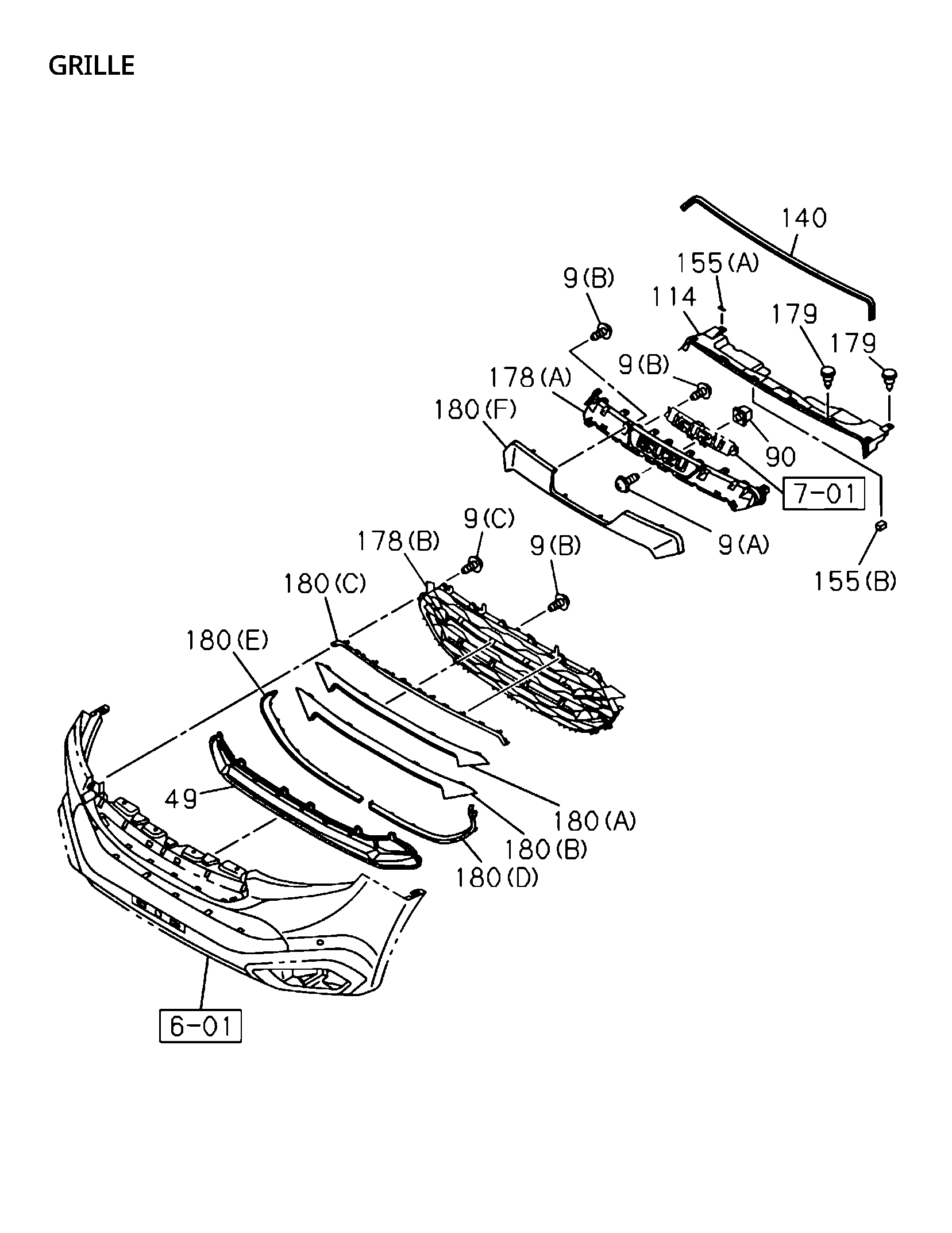

6-03 | 6-03 - RADIATOR GRILLE
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 158 | I8-98178 267-0 | CLIP; PROTECTOR | 1 | 2110- | AB | (A) | ||

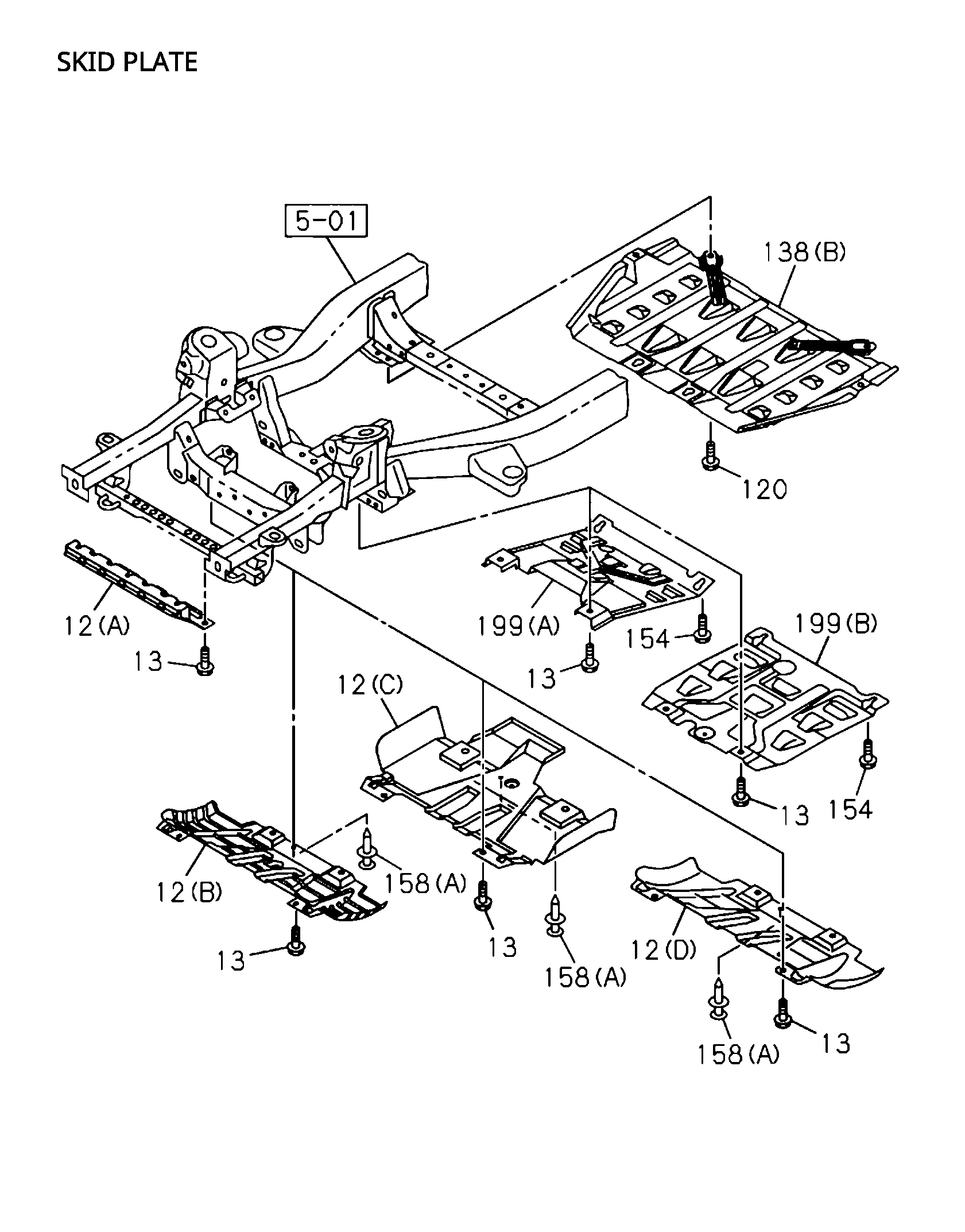

| 12 | I8-97654 780-1 | PLATE; SKID.RAD | 1 | 2110- | AB | (A) | ||
| 180 | I8-97907 642-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (F) BLACK | ||
| 180 | I8-97906 340-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) DARKGRAY | ||
| 180 | I8-97670 460-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (d) | ||
| 155 | I8-97554 360-1 | RUBBER; RAD GRILLE | 4 | 2110- | AB | (B) | ||
| 12 | I8-98394 161-0 | PLATE; SKID.RAD | 1 | 2110- | B | UNDER FRT GUARD<6RJ> EXC. POWER STEERING ELECTRIC<NV9> (B) | ||
| 9 | I0-74160 514-0 | SCREW; RAD GRILLE | 5 | 2110- | AB | (C) M5X14 TAPPING W/PL WASHER | ||
| 90 | I8-94291 927-0 | NUT; RAD GRILLE | 1 | 2110- | AB | D=7X7 L=7.5 | ||

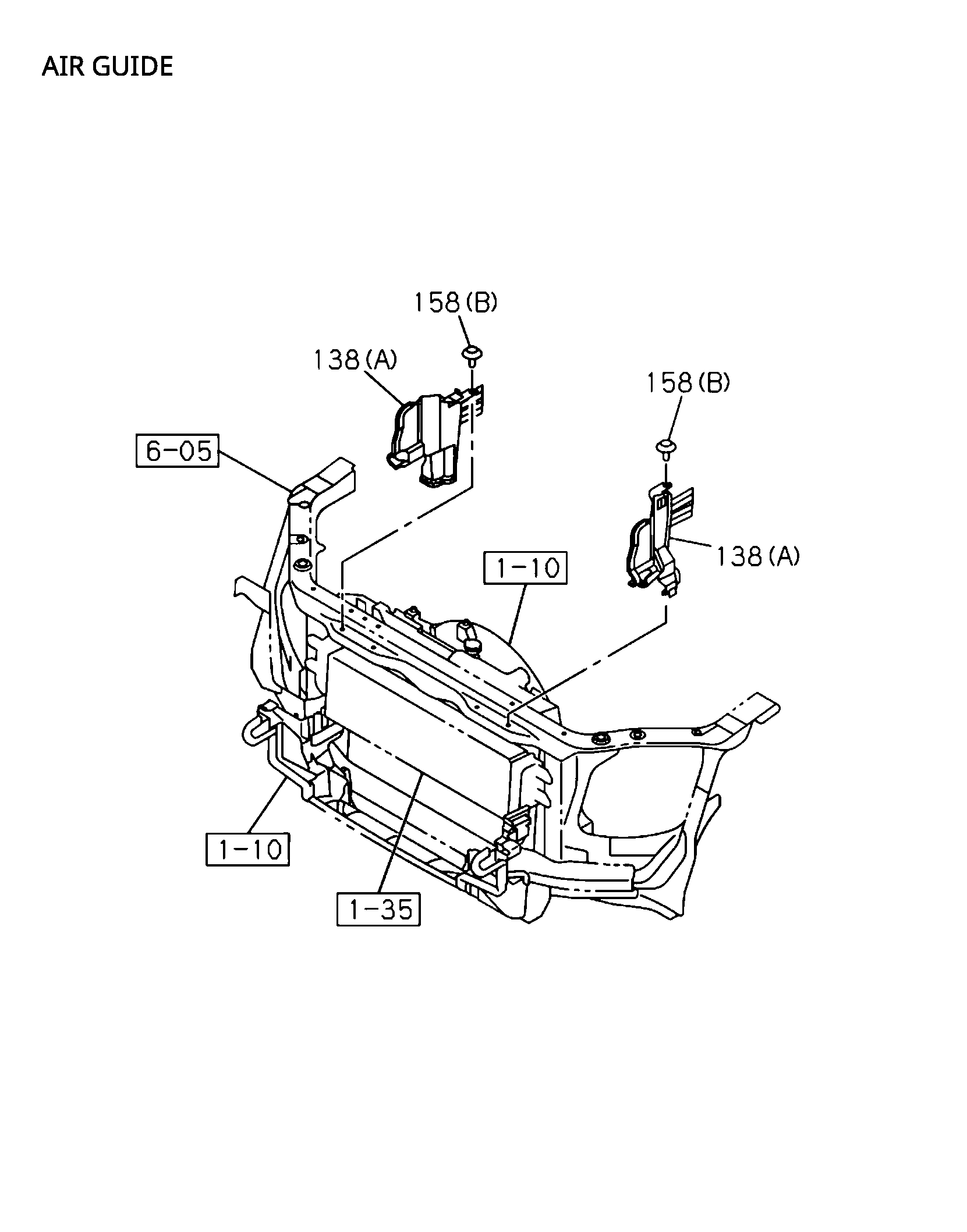

| 138 | I8-97508 284-0 | GUIDE; AIR | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) (A) | ||
| 13 | I8-97945 706-0 | BOLT; RAD SKID PLATE | 7 | 2110- | AB | M10X28 W/LK&PL WASHER | ||
| 178 | I8-97906 338-3 | GRILLE; INNER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) WARNING - DISTANCE, PARKING ASSIST.FRT & RR<8SU> (B) BLACK | ||
| 178 | I8-97906 336-1 | GRILLE; INNER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) BLACK | ||
| 199 | I8-98394 159-0 | PLATE; OIL PAN | 1 | 2110- | AB | UNDER FRT GUARD<6RJ> EXC. POWER STEERING ELECTRIC<NV9> (A) | ||
| 158 | I8-97301 188-0 | CLIP; PROTECTOR | 4 | 2110- | AB | (B) | ||
| 180 | I8-97670 463-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (e) | ||
| 180 | I8-97670 451-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (A) | ||
| 180 | I8-97906 341-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (C) DARKGRAY | ||
| 179 | I8-97301 188-0 | RETAINER; GRILLE.RAD | 13 | 2110- | AB | |||
| 12 | I8-98394 161-0 | PLATE; SKID.RAD | 1 | 2110- | A | EXC. POWER STEERING ELECTRIC<NV9> (B) | ||
| 9 | I8-98193 872-0 | SCREW; RAD GRILLE | 35 | 2110- | AB | (B) M4X12 TAPPING | ||
| 138 | I8-97508 285-0 | GUIDE; AIR | 1 | 2110- | AB | (A) | ||
| 180 | I8-97906 343-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (E) DARK GRAY | ||
| 155 | I8-97551 300-1 | RUBBER; RAD GRILLE | 1 | 2110- | AB | (A) | ||
| 178 | I8-97906 337-3 | GRILLE; INNER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) EXC. WARNING - DISTANCE, PARKING ASSIST.FRT & RR<8SU> (B) BLACK | ||
| 180 | I8-97670 454-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (B) | ||
| 180 | I8-97906 339-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) DARKGRAY | ||
| 180 | I8-97906 342-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (D) DARKGRAY | ||
| 140 | I8-97551 299-0 | SEAL; RAD GRILLE | 1 | 2110- | AB | (A) | ||
| 180 | I8-97907 641-0 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (F) GRAY | ||
| 49 | I8-97506 915-3 | GRILLE; FRT LWR | 1 | 2110- | AB | |||
| 154 | I8-97945 706-0 | BOLT; COVER | 2 | 2110- | AB | UNDER FRT GUARD<6RJ> M10X28 W/LK&PL WASHER | ||
| 180 | I8-97670 457-1 | GRILLE; OUTER,RAD | 1 | 2110- | AB | GRADE CUSTOM(RBD) (C) | ||
| 138 | I8-97508 284-0 | GUIDE; AIR | 1 | 2110- | AB | 4JJ3 ENG(LNG) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) | ||
| 178 | I8-97669 867-1 | GRILLE; INNER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (A) | ||
| 114 | I8-98399 850-3 | GRILLE; FRT.UPR | 1 | 2110- | AB | |||
| 178 | I8-97670 450-3 | GRILLE; INNER,RAD | 1 | 2110- | AB | GRADE LUXURY(RBC) (B) | ||
| 9 | I8-98167 444-0 | SCREW; RAD GRILLE | 1 | 2110- | AB | (A) M5X16 |
