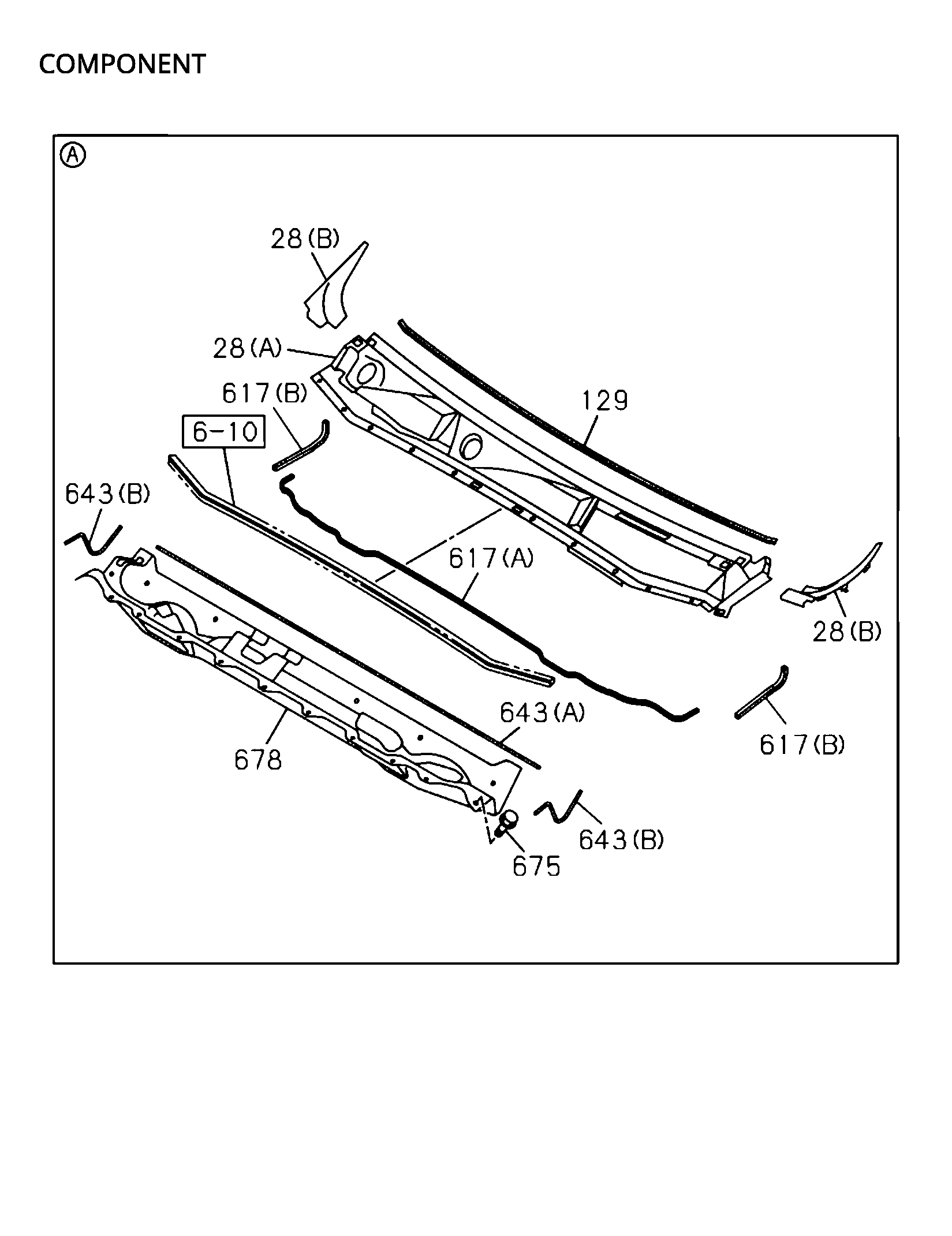

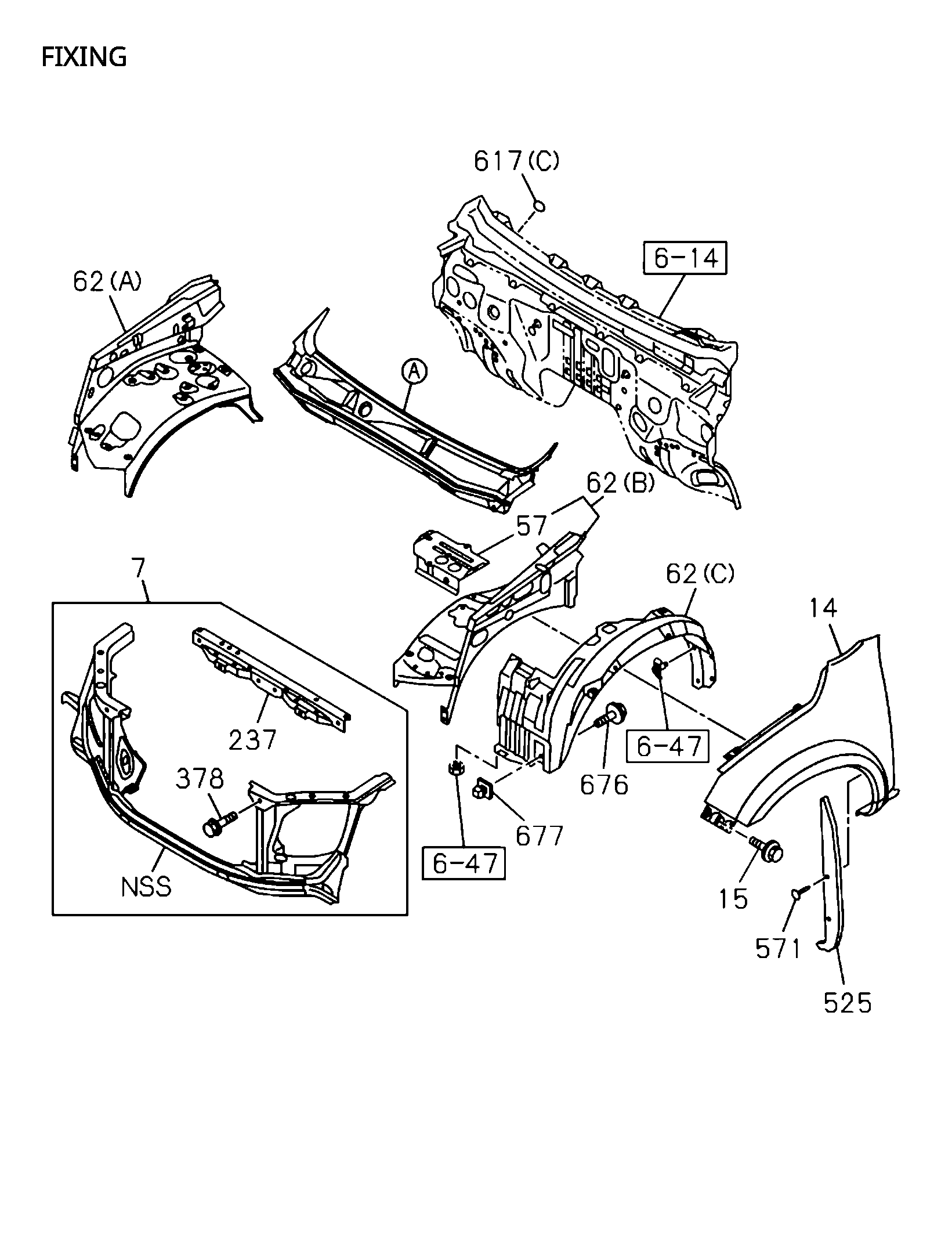

6-05 | 6-05 - FRONT PANEL
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 617 | I8-97556 547-0 | SEAL; DASH | 2 | 2110- | AB | (B) | ||
| 14 | I8-97549 741-2 | FENDER; FRT | 1 | 2110- | AB | DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>,DOOR MIRROR HEATED COLOR TURN SIGNAL<DL2>,DOOR MIRROR POWER FOLDING COLOR TURN SIGNAL<8ME> | ||
| 525 | I8-98360 960-0 | SEAL; FENDER | 2 | 2110-2110 | AB | |||
| 677 | I8-94222 314-0 | NUT; WHEEL HOUSE | 2 | 2110- | AB | D=9.7X9.7 L=8 | ||
| 617 | I8-97556 546-0 | SEAL; DASH | 1 | 2110- | AB | (A) | ||
| 62 | I8-98385 434-4 | PANEL; WHEEL HOUSE | 1 | 2110- | AB | (B) | ||
| 62 | I8-97821 869-1 | PANEL; WHEEL HOUSE | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) | ||
| 62 | I8-98385 917-4 | PANEL; WHEEL HOUSE | 1 | 2110- | AB | INDONESIA EQUIPMENT BOO), CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) | ||
| 62 | I8-98356 210-1 | PANEL; WHEEL HOUSE | 1 | 2110- | AB | (C) | ||
| 643 | I8-98394 022-0 | SEAL; COWL | 1 | 2110- | AB | (A) | ||
| 571 | I8-97403 411-0 | CLIP; SEAL | 4 | 2110-2110 | AB | BLACK | ||
| 378 | I0-28050 816-0 | BOLT; SUPPORT | 2 | 2110- | AB | M8X16 FLANGE | ||
| 28 | I8-97558 634-1 | COVER; DASH COWL | 1 | 2110- | AB | INDONESIA EQUIPMENT(BOO),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) GRADE LUXURY(RBC) (A) | ||
| 28 | I8-98356 793-2 | COVER; DASH COWL | 1 | 2110- | AB | (B) | ||
| 57 | I8-98385 585-1 | TRAY; BATTERY | 1 | 2110- | AB | |||
| 237 | I8-98385 266-2 | SUPPORT; DEFLECTOR | 1 | 2110- | AB | |||
| 675 | I8-98180 459-2 | BOLT; PANEL | 8 | 2110- | AB | M6X12 W/PL WASHER | ||
| 15 | I8-98167 615-0 | BOLT; FENDER | 14 | 2110- | AB | M6X15 W/LK&PL WASHER | ||
| 14 | I8-97549 746-2 | FENDER; FRT | 1 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 643 | I8-98394 023-0 | SEAL; COWL | 2 | 2110- | AB | (B) | ||
| 14 | I8-97549 745-2 | FENDER; FRT | 1 | 2110- | AB | DOOR MIRROR HEATED MATERIAL BLACK<DL8>,DOOR MIRROR POWER ADJUST MATERIAL BLACK<D22>,DOOR MIRROR MATERIAL BLACK<RT9> | ||
| 525 | I8-98360 960-1 | SEAL; FENDER | 2 | 2110- | AB | GRADE CUSTOM(RBD) | ||
| 676 | I8-98167 444-0 | BOLT; WHEEL HOUSE | 2 | 2110- | AB | SCREW M6X20 TAPPING W/PL WASHER | ||
| 678 | I8-98394 016-3 | PANEL; COWL | 1 | 2110- | AB | GRADE CUSTOM(RBD) | ||
| 28 | I8-97558 630-1 | COVER; DASH COWL | 1 | 2110- | AB | GRADE CUSTOM(RBD) INDONESIA EQUIPMENT BOO), CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) (A) | ||
| 617 | I8-98233 595-1 | SEAL; DASH | 1 | 2110- | AB | (C) OD=29 | ||
| 62 | I8-98356 212-1 | PANEL; WHEEL HOUSE | 1 | 2110- | AB | (C) | ||
| 14 | I8-97549 742-2 | FENDER; FRT | 1 | 2110- | AB | DOOR MIRROR POWER ADJUST COLOR TURN SIGNAL<DF9>,DOOR MIRROR HEATED COLOR TURN SIGNAL<DL2>,DOOR MIRROR POWER FOLDING COLOR TURN SIGNAL<8ME> | ||
| 678 | I8-98394 018-2 | PANEL; COWL | 1 | 2110- | AB | GRADE LUXURY(RBC) | ||
| 28 | I8-98356 792-2 | COVER; DASH COWL | 1 | 2110- | AB | (B) | ||
| 571 | I8-97403 411-0 | CLIP; SEAL | 4 | 2110- | AB | GRADE CUSTOM(RBD) BLACK | ||
| 7 | I8-98385 225-6 | PANEL; DEFLECTOR | 1 | 2110- | AB | |||
| 129 | I8-97556 552-1 | FINISHER; COWL COVER | 1 | 2110- | AB |
