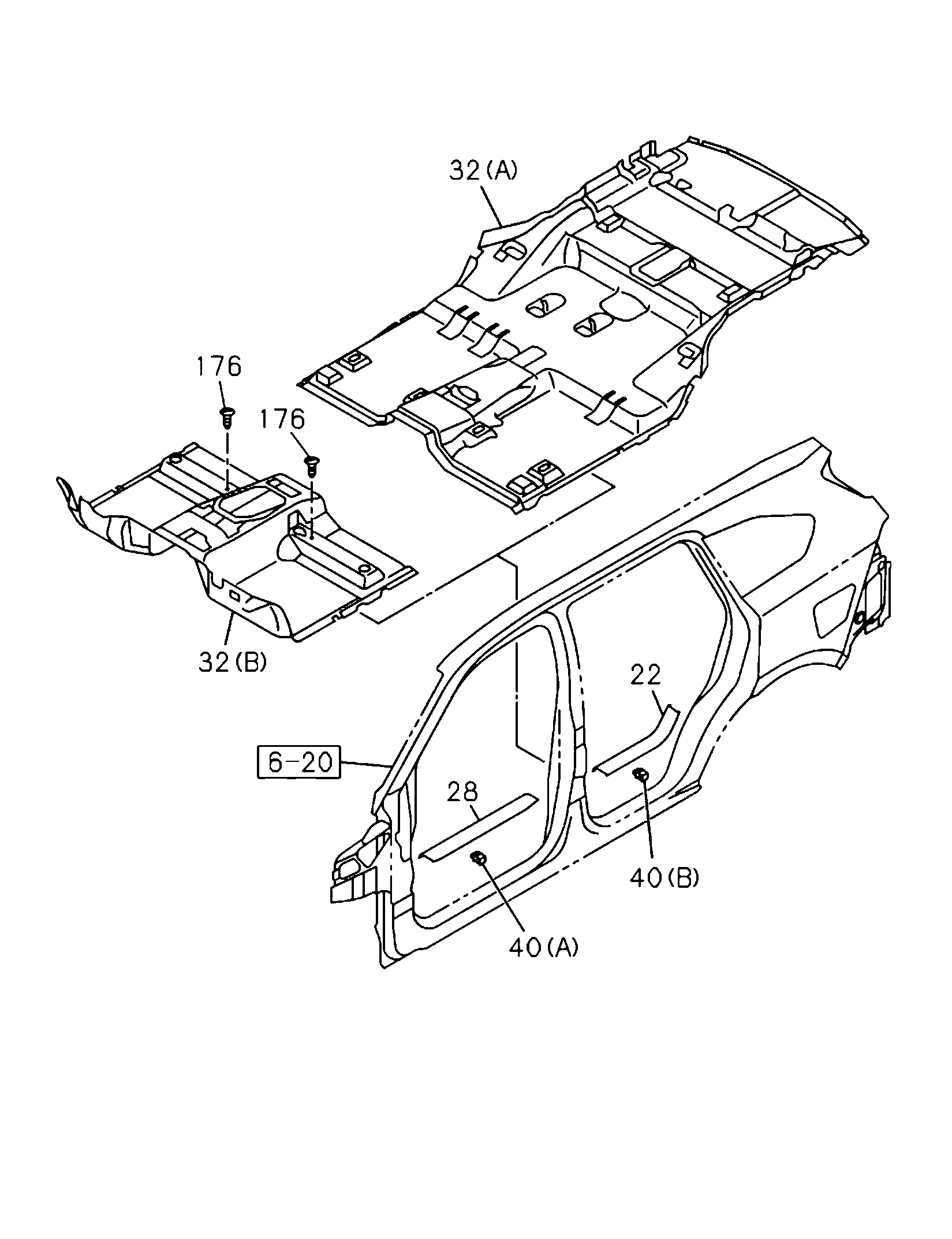

6-75 | 6-75 - MAT AND CARPET
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-97908 577-1 | CARPET; FLOOR | 1 | 2110- | AB | (A) BLACK | ||
| 22 | I8-97474 567-0 | PLATE; SILL,RR | 1 | 2110- | AB | BLACK | ||
| 176 | I8-97198 646-0 | RETAINER; CARPET | 2 | 2110- | AB | BLACK | ||
| 28 | I8-97471 775-2 | PLATE; SILL.FRT | 1 | 2110- | AB | BLACK | ||
| 40 | I8-98364 814-1 | CLIP; SILL PLATE | 6 | 2110- | AB | (A) | ||
| 22 | I8-97474 566-0 | PLATE; SILL,RR | 1 | 2110- | AB | BLACK | ||
| 32 | I8-97474 560-2 | CARPET; FLOOR | 1 | 2110- | AB | (B) BLACK | ||
| 40 | I8-97536 737-1 | CLIP; SILL PLATE | 4 | 2110- | AB | (B) | ||
| 28 | I8-97471 776-2 | PLATE; SILL.FRT | 1 | 2110- | AB | BLACK |
