6-76 | 6-76 - FLOOR EQUIPMENT AND SEALING
MUX
MU-X 2022

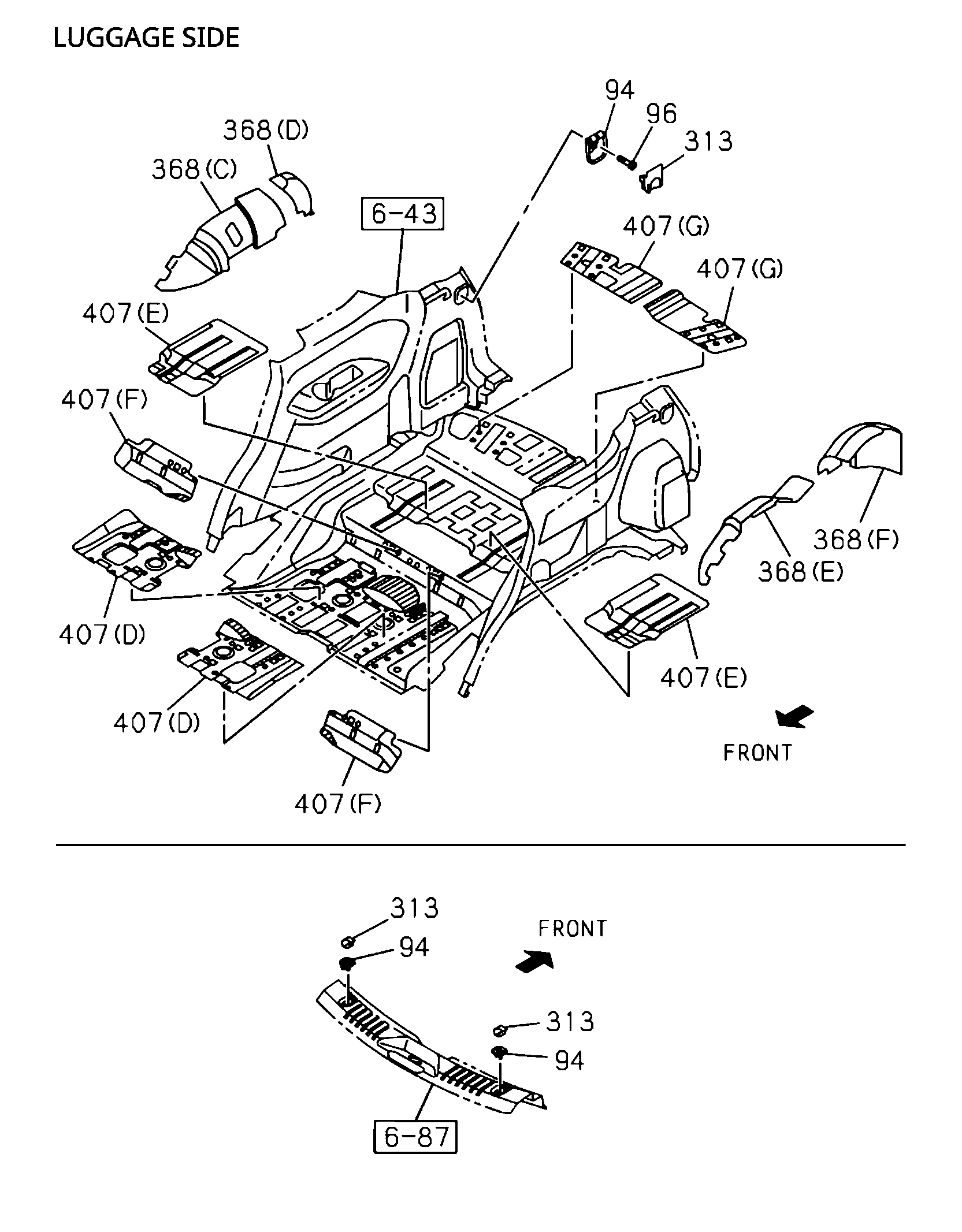

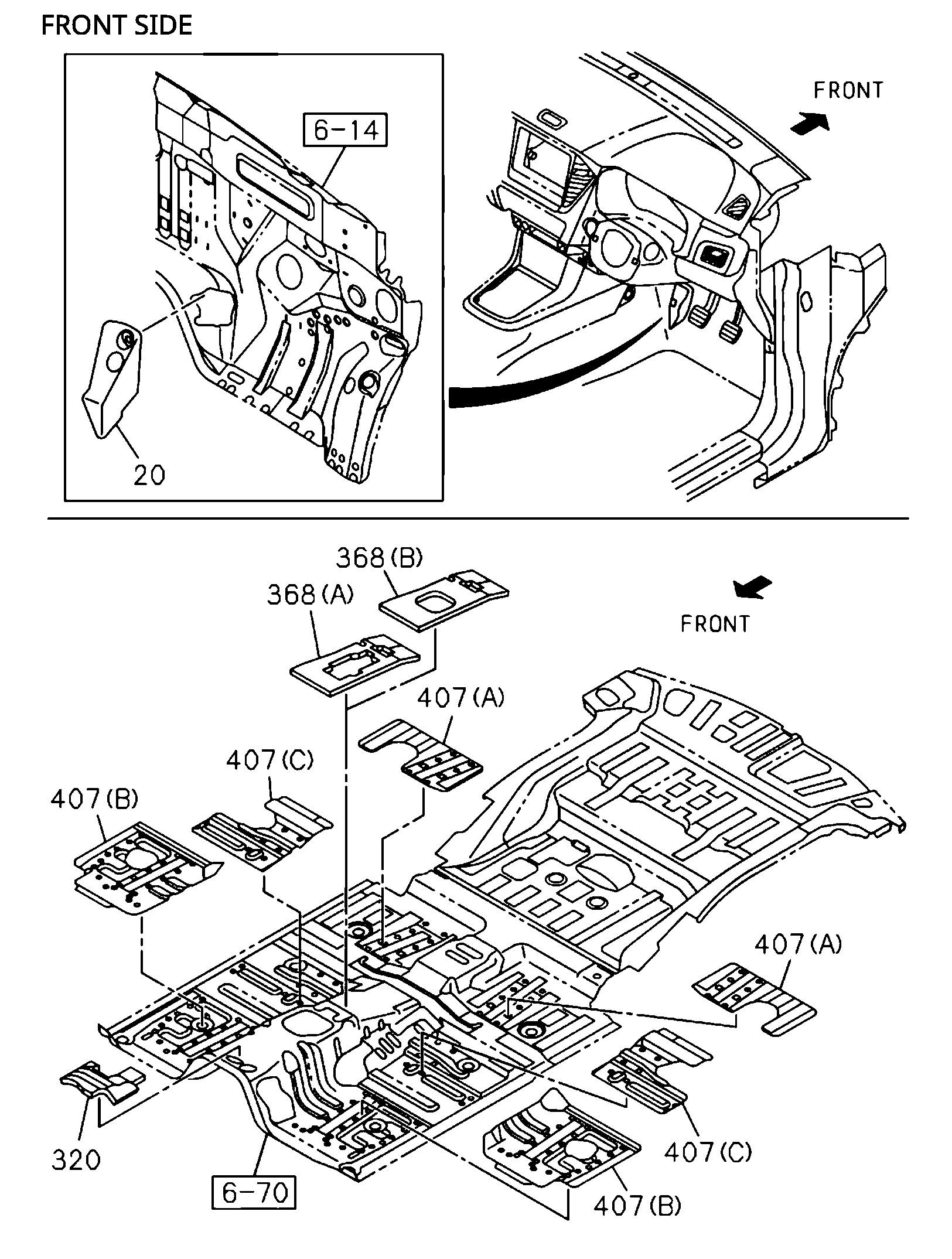

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 94 | I8-98240 171-0 | HOOK ASM; ROPE | 4 | 2110- | AB | |||
| 407 | I8-97658 075-0 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (G) | ||
| 96 | I8-98228 484-0 | BOLT; ROPE HOOK FIX | 4 | 2110- | AB | M8X30 HEXALOBULAR SOCKET | ||
| 320 | I8-97543 552-1 | INSULATOR; FLOOR,FRT | 1 | 2110- | AB | |||
| 407 | I8-97506 404-0 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (F) | ||
| 368 | I8-98360 685-0 | INSULATOR; | 1 | 2110- | AB | (C) | ||
| 407 | I8-98391 192-2 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (B) | ||
| 407 | I8-97506 403-1 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (E) | ||
| 368 | I8-98360 686-0 | INSULATOR; | 1 | 2110- | AB | (D) | ||
| 368 | I8-98360 687-0 | INSULATOR; | 1 | 2110- | AB | (E) | ||
| 313 | I8-97474 952-1 | COVER; ROPE HOOK | 4 | 2110- | AB | BLACK | ||
| 368 | I8-98360 688-0 | INSULATOR; | 1 | 2110- | AB | (F) | ||
| 20 | I8-98392 739-0 | REST; FOOT | 1 | 2110- | AB | |||
| 368 | I8-97543 555-1 | INSULATOR; | 1 | 2110- | AB | A/T 6 SPEED-AISIN(Y6A) (A) | ||
| 407 | I8-98391 193-0 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (C) | ||
| 407 | I8-97506 402-0 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (D) | ||
| 407 | I8-97506 401-0 | DEADENER; FLOOR PANEL | 2 | 2110- | AB | (A) |
