8-05 | 8-05 - INTERIOR LAMP
MUX
MU-X 2022

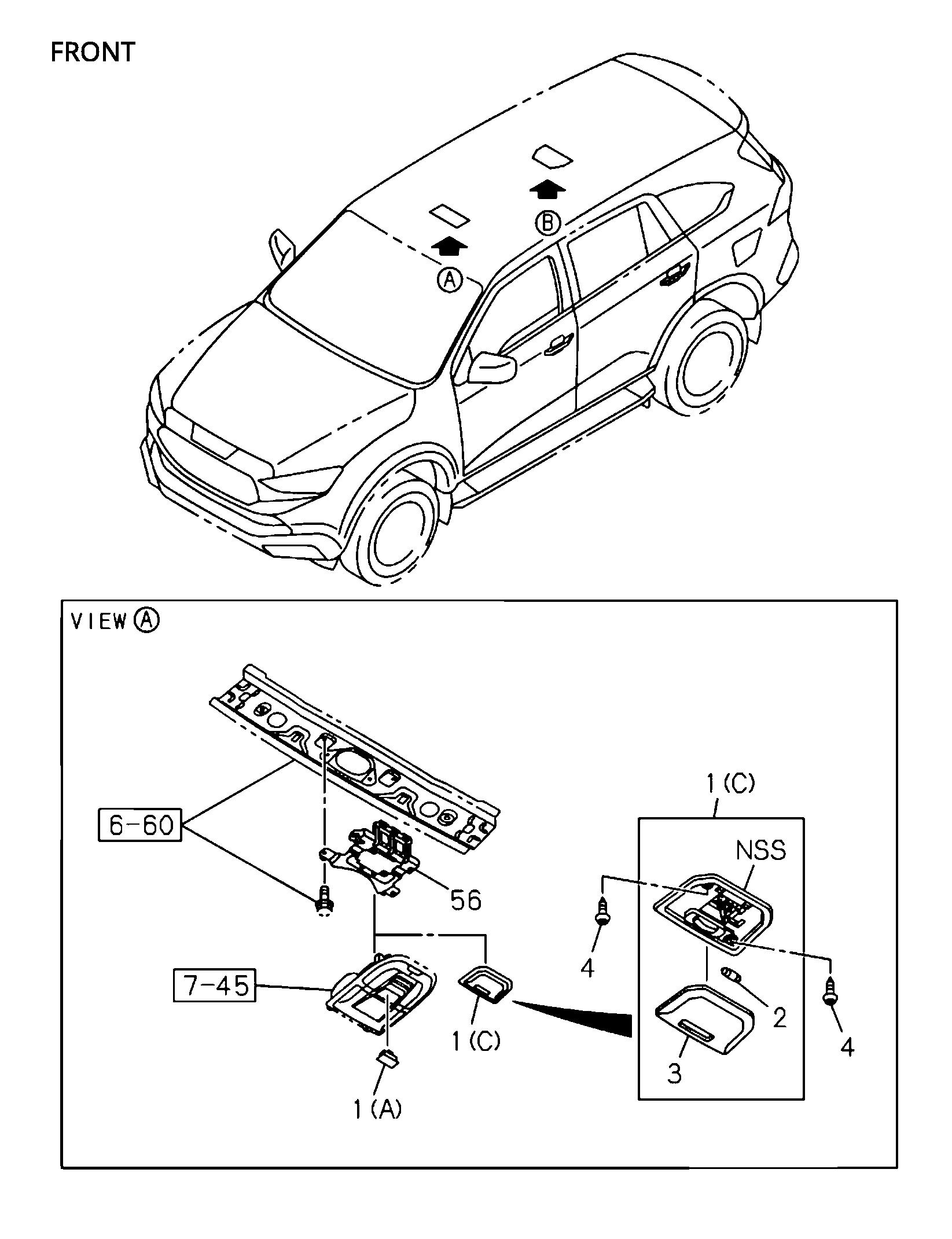

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 56 | I8-97538 250-1 | BRACKET; LAMP | 1 | 2110- | AB | EXC. HEADER CONSOLE<DK6> | ||
| 2 | I8-97128 771-0 | BULB; ROOM LAMP | 1 | 2110- | AB | EXC. HEADER CONSOLE<DK6> 12V 10W | ||
| 3 | I8-97510 314-0 | LENS; ROOM LAMP | 1 | 2110- | AB | EXC. HEADER CONSOLE<DK6> | ||
| 4 | I0-71040 512-0 | SCREW; ROOM LAMP | 2 | 2110- | AB | EXC. HEADER CONSOLE<DK6> M5X12 TAPPING | ||

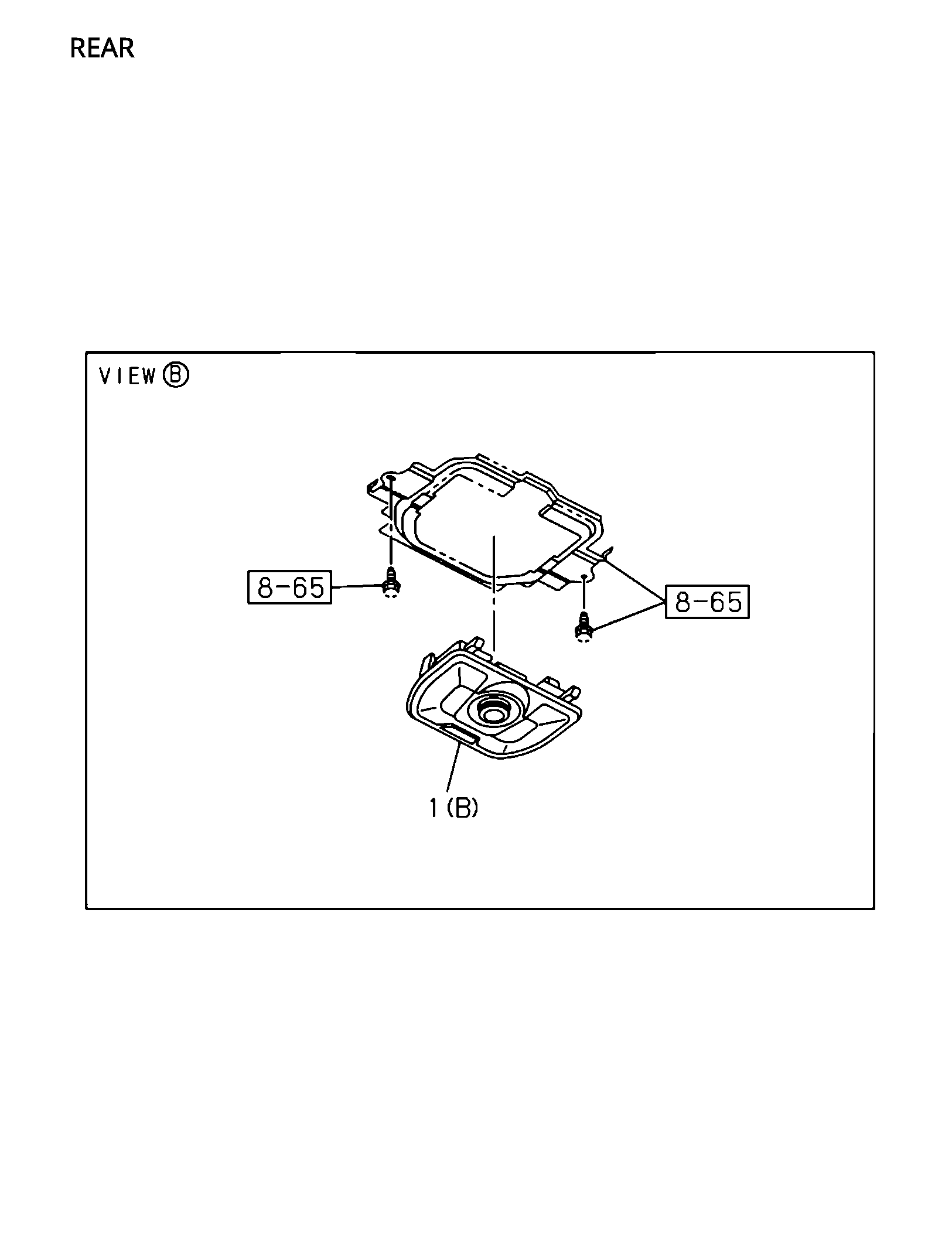

| 1 | I8-97474 896-1 | LAMP ASM; ROOM | 1 | 2110- | AB | (B) LIGHT GRAY | ||
| 1 | I8-97472 028-2 | LAMP ASM; ROOM | 1 | 2110- | AB | EXC. HEADER CONSOLE<DK6> (C) LIGHT GRAY | ||
| 1 | I8-97474 897-2 | LAMP ASM; ROOM | 1 | 2110- | AB | HEADER CONSOLE<DK6> LAMP DOOR TRIM ILLUMINATED&ROOF CONSOLE DOWN<8UZ> (A) LIGHT GRAY |
