8-15 | 8-15 - FIXING PARTS; WIRING HARNESS
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I0-28050 612-0 | BOLT; CLIP, HARN ESS | 2 | 2110- | AB | 4JJ3 ENG(LNG) (D) M6X12 FLANGE | ||

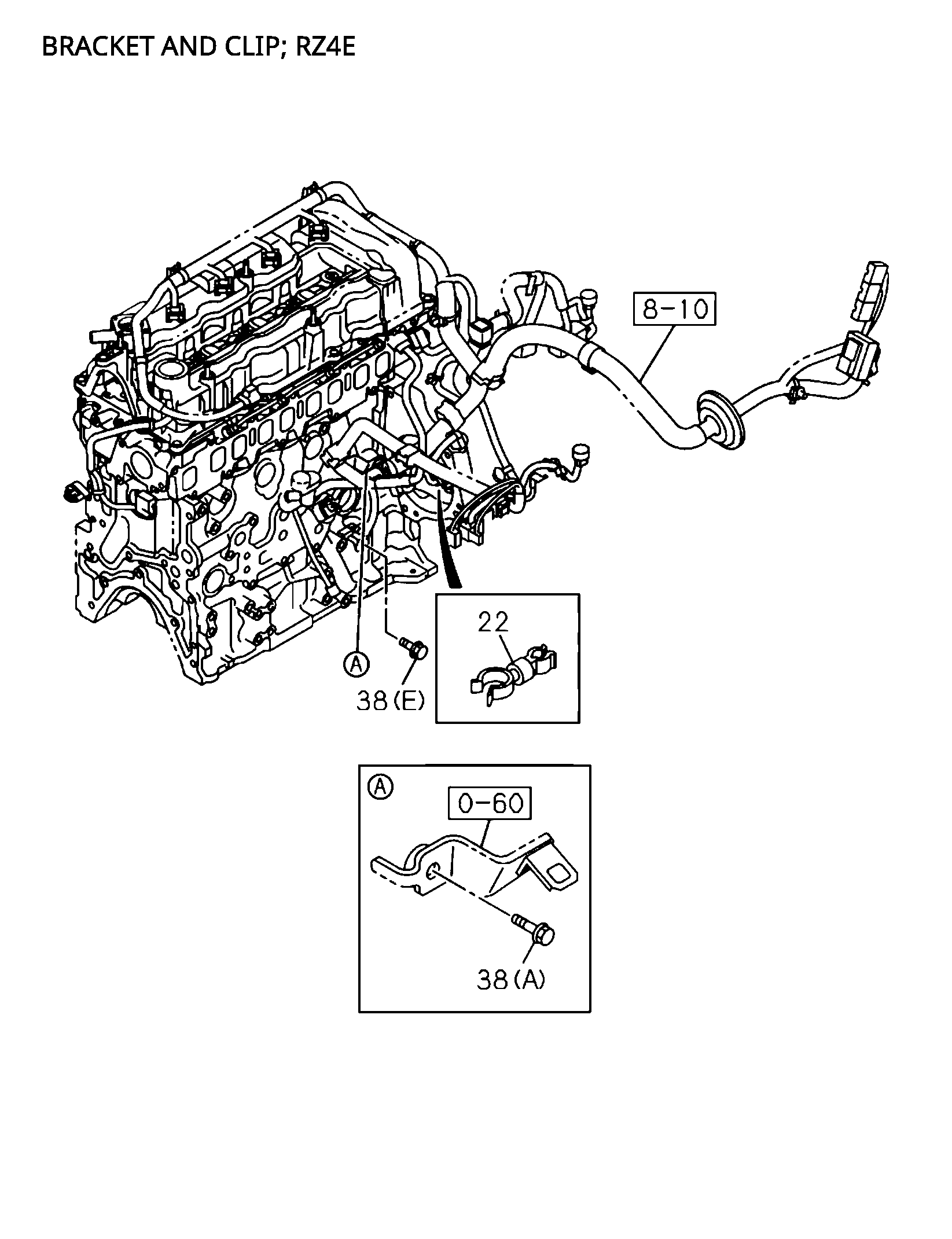

| 22 | I8-94145 893-0 | CLIP; ENG HARNESS | 1 | 2110- | A | RZ4E-TC ENG(RDZ) EUROO SPECIFICATIONS) ID=12 & 6 | ||

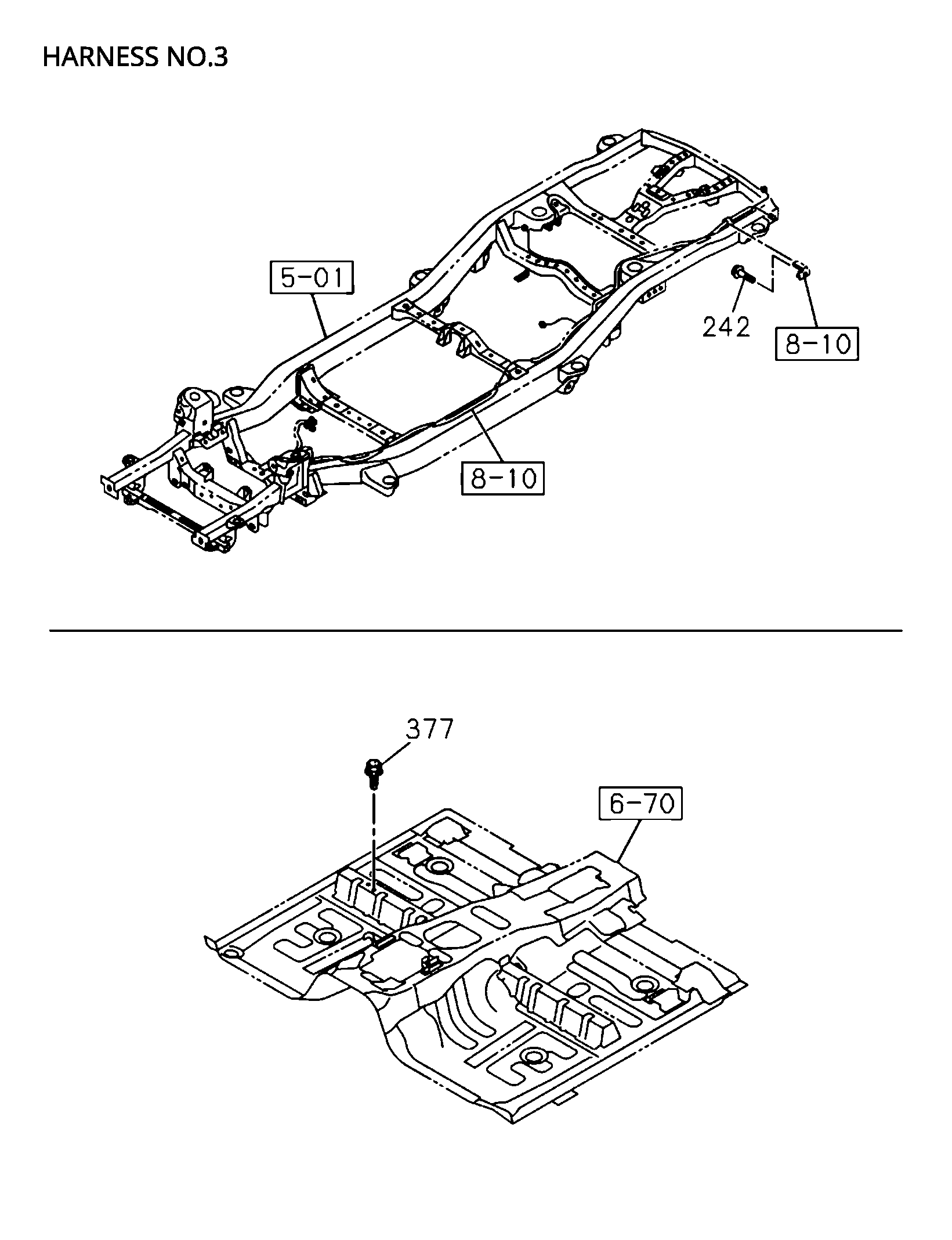

| 242 | I0-28650 616-0 | BOLT; BRKT.HARNESS | 1 | 2110- | AB | M6X16 FLANGE | ||
| 38 | I0-28050 820-0 | BOLT; CLIP, HARN ESS | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) M8X20 FLANGE | ||

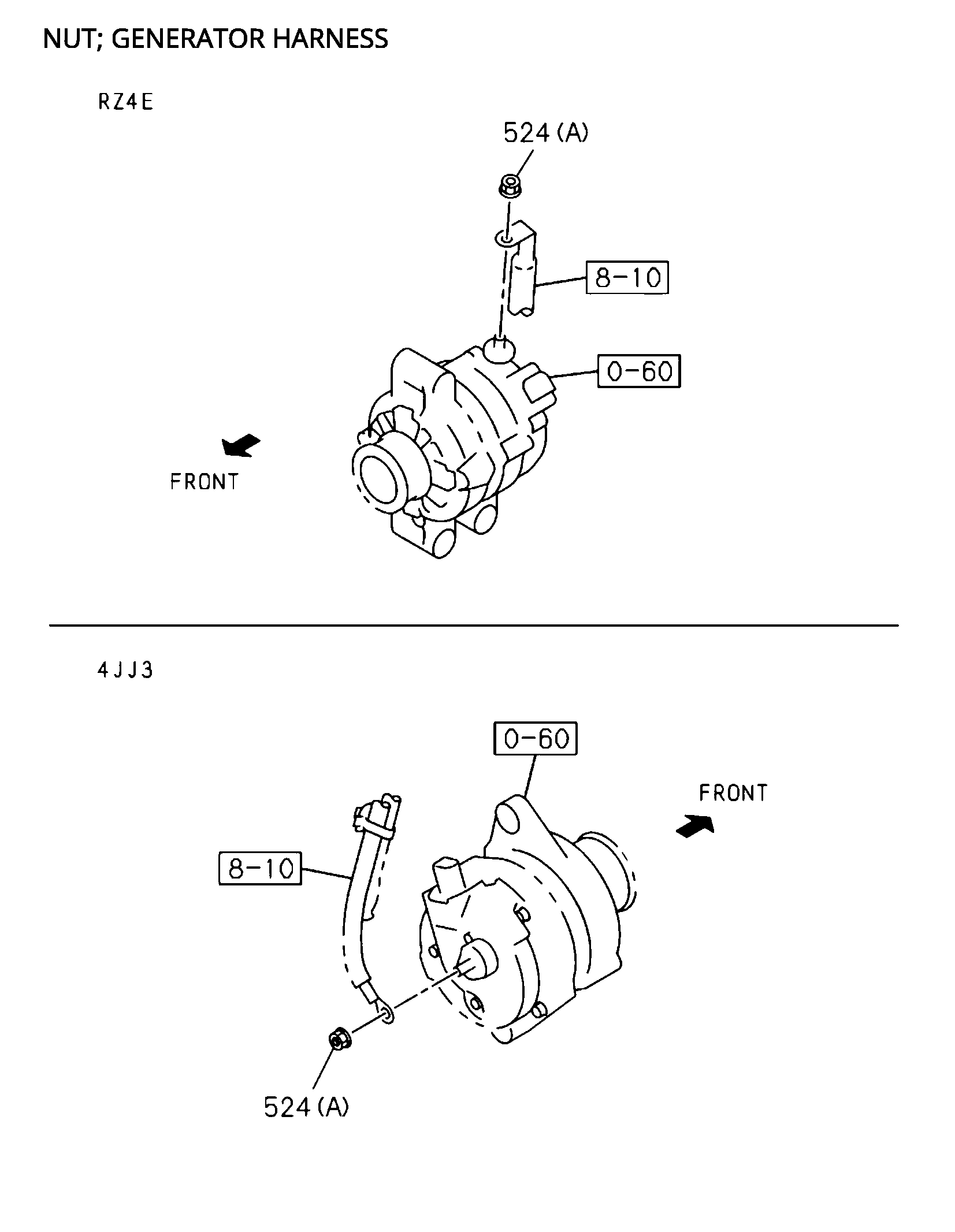

| 524 | I0-91180 108-0 | NUT; HARNESS | 1 | 2110- | AB | (A) M8 FLANGE | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 3 | 2110- | AB | L=140 | ||
| 38 | I0-28050 812-A | BOLT; CLIP, HARN ESS | 1 | 2110- | AB | (E) M8X12 FLANGE | ||
| 38 | I0-28050 816-0 | BOLT; CLIP, HARN ESS | 1 | 2110- | AB | 4JJ3 ENG(LNG) (B) M8X16 FLANGE | ||
| 38 | I0-28650 616-0 | BOLT; CLIP, HARN ESS | 2 | 2110- | AB | (F) M6X16 FLANGE | ||
| 547 | I8-98164 836-0 | BOLT | 1 | 2110- | AB | M6X14W/PL WASHER | ||
| 38 | I0-28050 616-0 | BOLT; CLIP, HARN ESS | 2 | 2110- | AB | 4JJ3 ENG(LNG) (C) M6X16 FLANGE | ||
| 239 | I8-98164 836-0 | BOLT; GRAND | 1 | 2110- | AB | POWER STEERING ELECTRIC<NV9> (B) M6X14 W/PL WASHER | ||
| 38 | I0-28050 816-0 | BOLT; CLIP, HARN ESS | 2 | 2110- | AB | 4JJ3 ENG(LNG) EUR05 SPECIFICATION(NT5) (B) M8X16 FLANGE | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 2 | 2110- | AB | L=155 | ||
| 524 | I8-98073 372-0 | NUT; HARNESS | 2 | 2110- | AB | (B) M6W/DISHED WASHER | ||

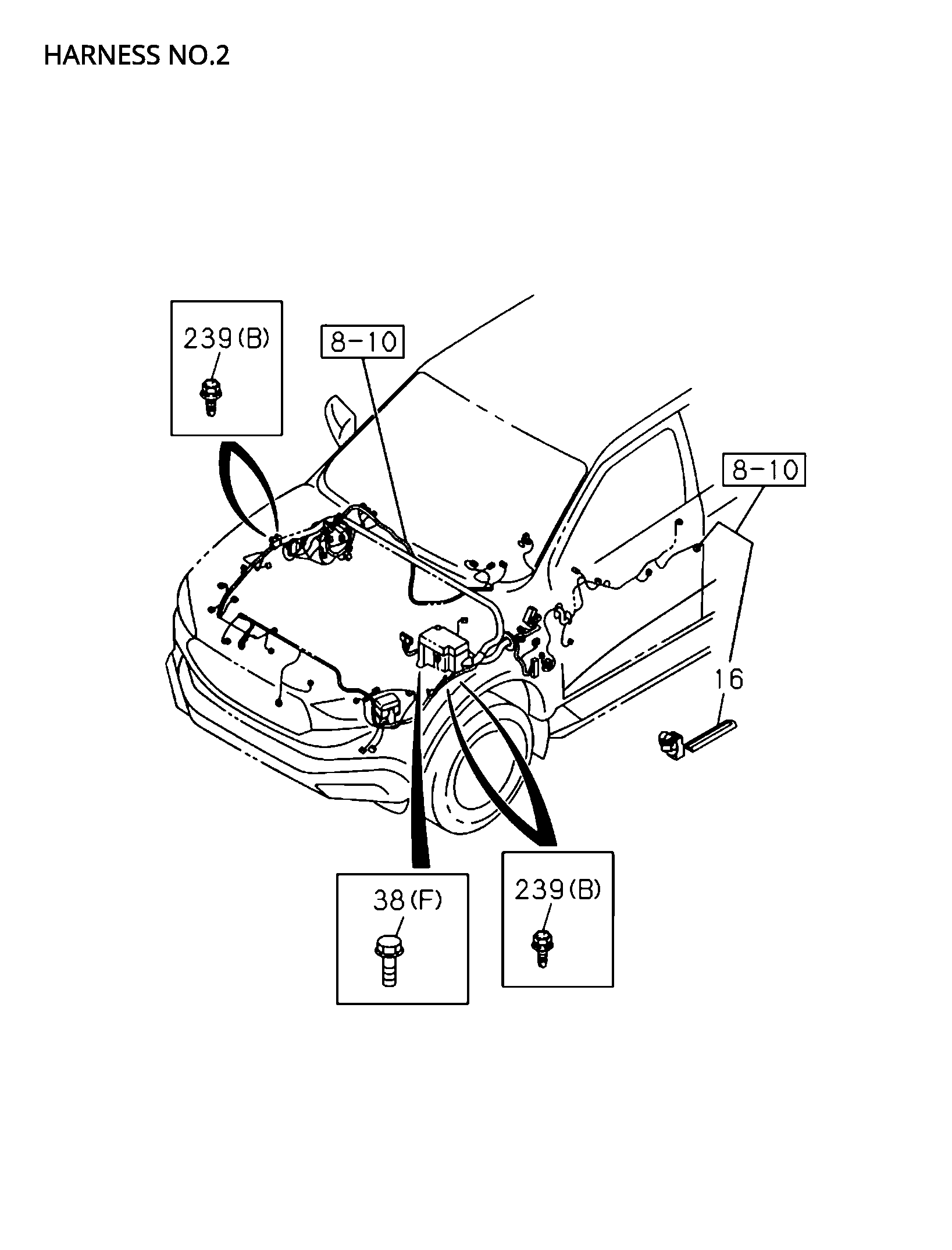

| 239 | I8-98164 836-0 | BOLT; GRAND | 4 | 2110- | AB | (B) M6X14 W/PL WASHER | ||
| 377 | I8-98164 836-0 | BOLT; CAB EARTH | 2 | 2110- | AB | M6X14 W/PL WASHER | ||

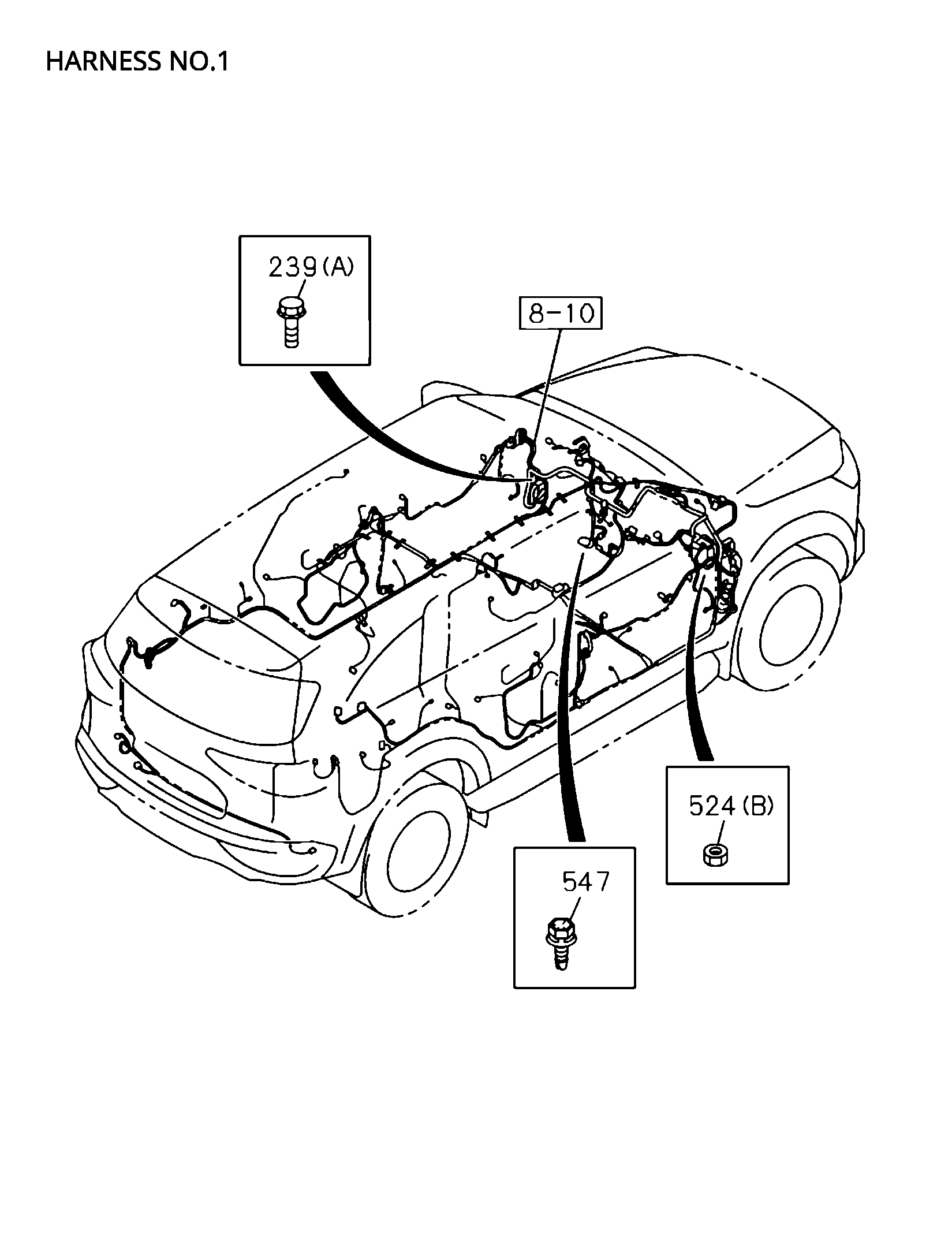

| 239 | I0-28650 616-0 | BOLT; GRAND | 1 | 2110- | AB | (A) M6X16 FLANGE | ||
| 38 | I0-28050 820-0 | BOLT; CLIP, HARN ESS | 3 | 2110- | AB | 4JJ3 ENG(LNG) EUR05 S P ECI FICATIO N (NT5) (A) M8X20 FLANGE | ||
| 22 | I8-94145 893-0 | CLIP; ENG HARNESS | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) ID=12 & 6 |
