8-27 | 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
MUX
MU-X 2022

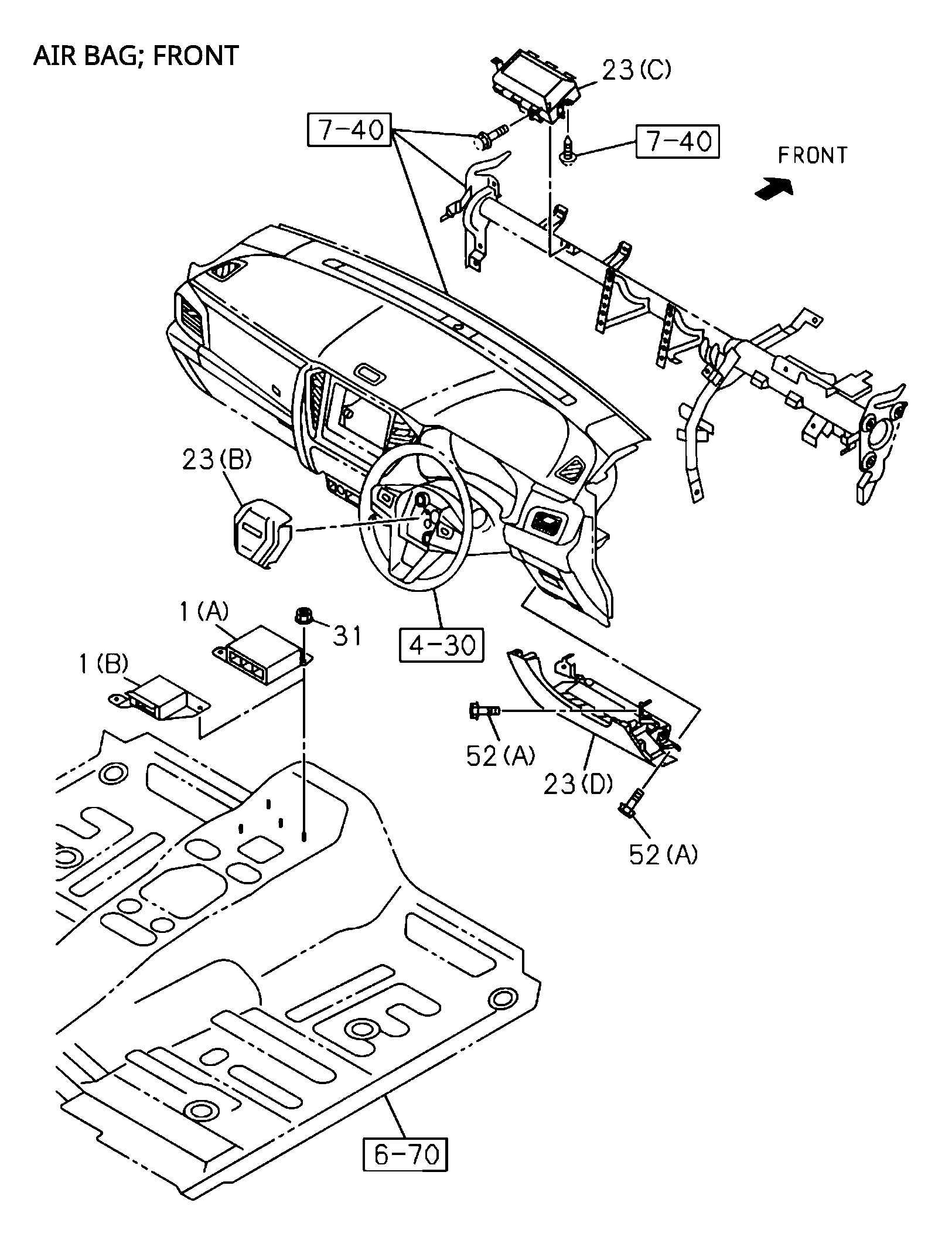

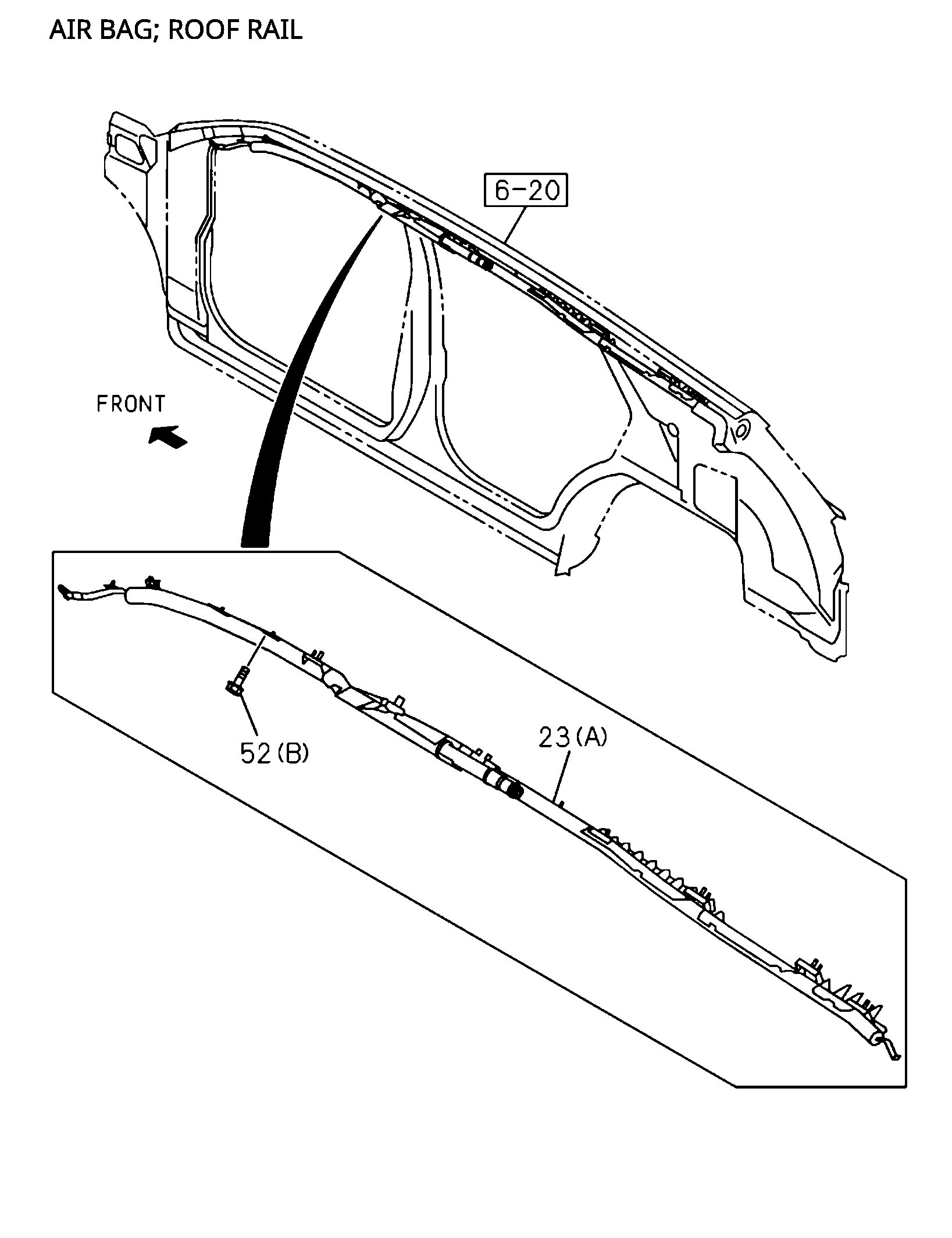

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98347 452-4 | CONTROL UISI | 1 | 2110- | B | AIR BAG DRIVER & PASSENGER(AK5) INDONESIA EQUIPMENT BOO), SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (B) | ||
| 23 | I8-97496 563-2 | AIR BAG UNIT | 1 | 2110- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) | ||
| 23 | I8-97903 048-0 | AIR BAG UNIT | 1 | 2110- | AB | (B) BLACK | ||
| 1 | I8-97687 719-0 | CONTROL UISI | 1 | 2110- | B | |||
| 23 | I8-98331 964-3 | AIR BAG UNIT | 1 | 2110- | AB | (C) | ||
| 52 | I0-28650 620-0 | BOLT; AIR BAG | 16 | 2110- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (B) M6X20 FLANGE | ||
| 1 | I8-98347 452-4 | CONTROL UISI | 1 | 2110- | A | AIR BAG DRIVER & PASSENGER(AK5) INDONESIA EQUIPMENT(BOO),SOUTH AFRICA EQUIPMENT(B02),AUSTRALIA EQUIPMENT(B13),GENERAL EXPORT EQUIPMENT(TAA) EXC. ELR WITH PRE-TENSIONER<A71>,PASSENGER AIRBAG CUT-OFF SW<C99> (B) | ||
| 23 | I8-97496 562-2 | AIR BAG UNIT | 1 | 2110- | AB | AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AYO),AIR BAG DRIVER&DRIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) | ||
| 1 | I8-97687 719-0 | CONTROL UISI | 1 | 2110- | A | |||
| 52 | I8-98018 440-0 | BOLT; AIR BAG | 4 | 2110- | AB | AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX),A/BAG DR&DR KNEE&PASS&SIDE/FAR SIDE/ROOF(8TY) (A) M6X25 W/LK&PL WASHER | ||
| 31 | I0-91180 206-0 | NUT | 3 | 2110- | AB | M6 FLANGE | ||
| 23 | I8-97471 593-1 | AIR BAG UNIT | 1 | 2110- | B | INDONESIA EQUIPMENT(BOO),CONGO EQUIPMENT(CDF),CENTRAL AMERICA EQUIPMENT(E03),GENERAL EXPORT EQUIPMENT(TAA) AIR BAG DRIVE R&D RIVER KNEE&PASS&SIDE&ROOF(8TX) (D) BLACK |
