8-50 | 8-50 - AIR CONDITIONING SYSTEM; FRONT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

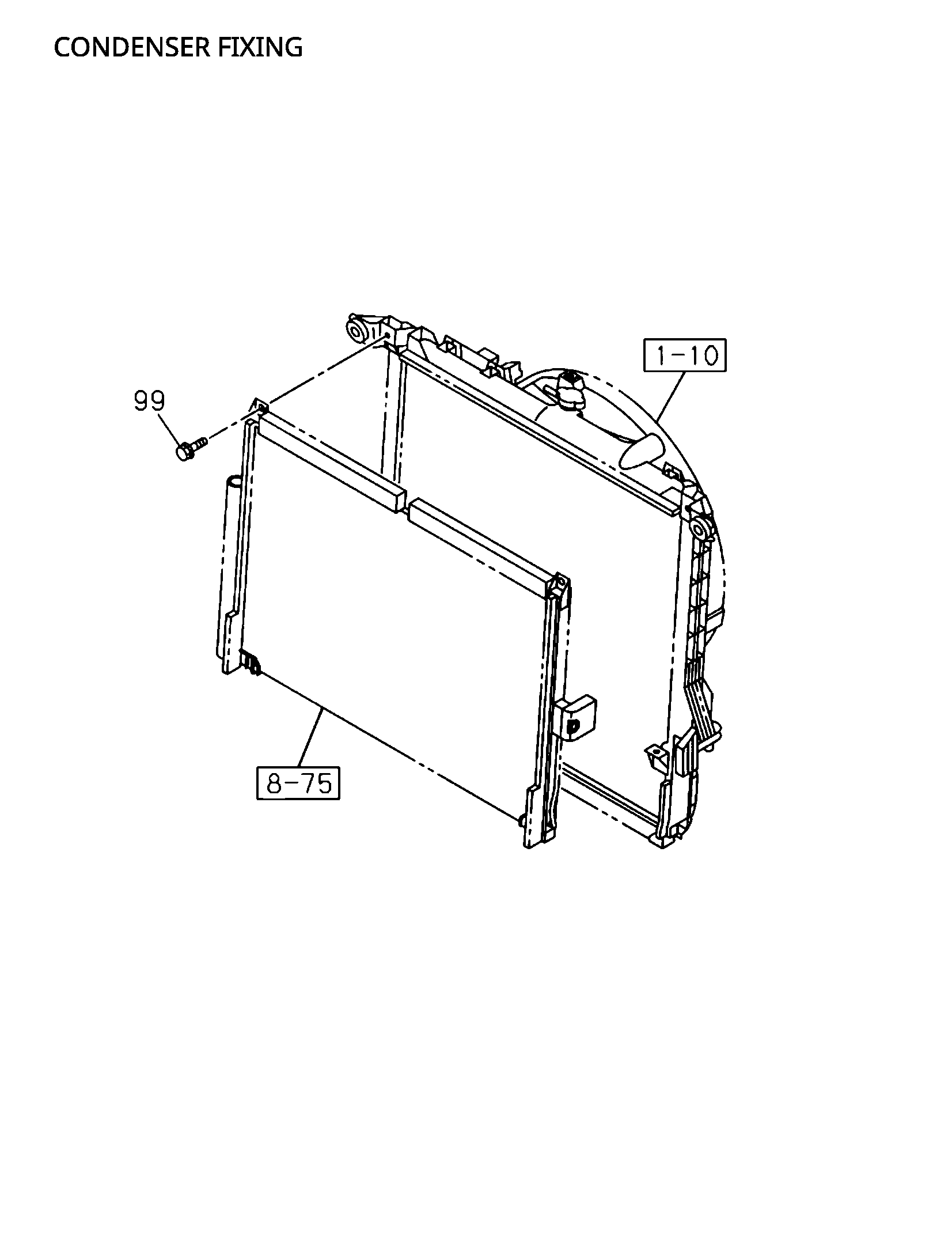

| 99 | I8-98056 282-0 | BOLT; BRKT | 2 | 2110- | AB | M6X20 W/WASHER | ||

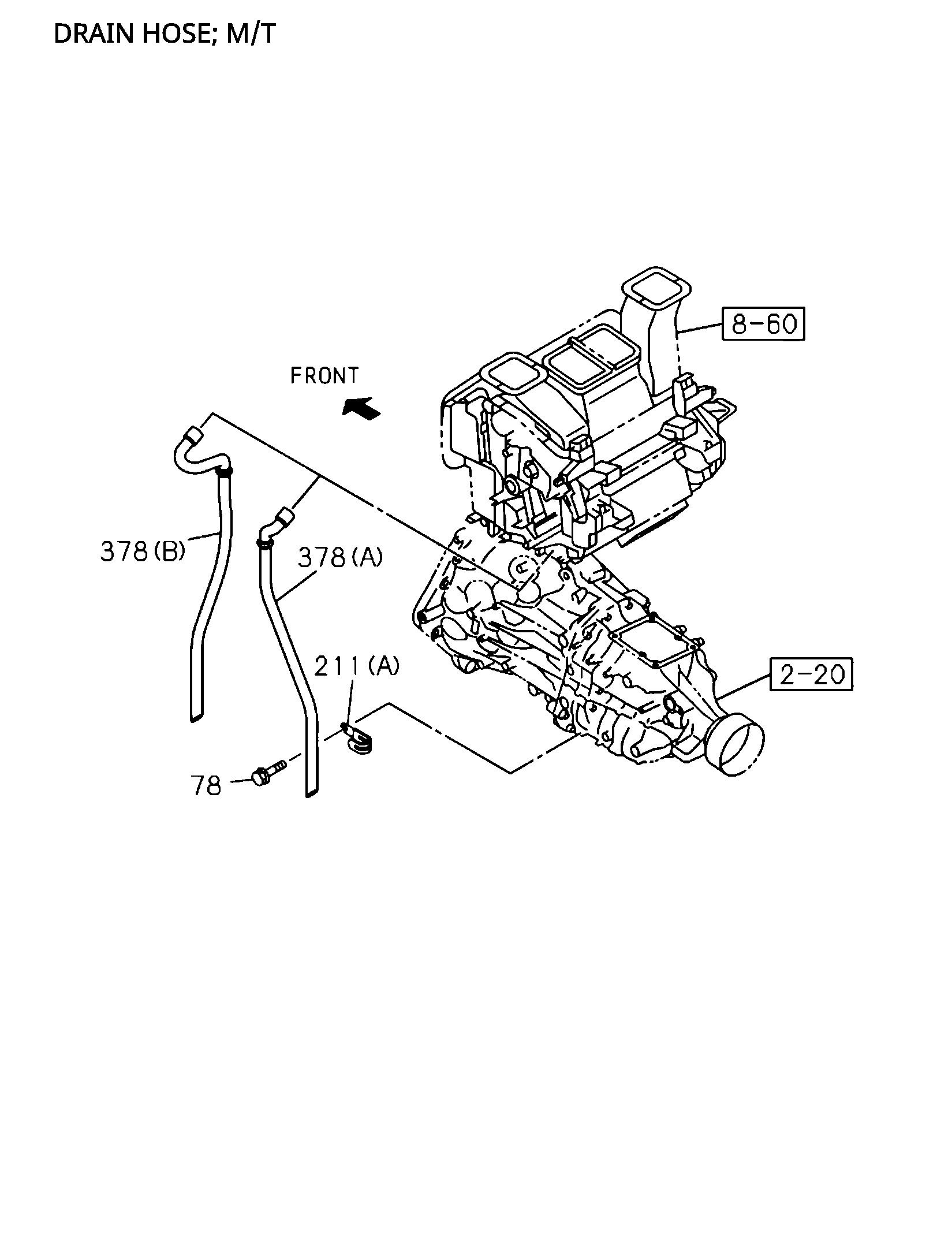

| 378 | I8-97491 678-2 | HOSE; DRAIN.EVAPORATOR | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) (B) | ||
| 47 | I0-28650 825-0 | BOLT; BRKT TO BODY | 4 | 2110- | AB | 4JJ3 ENG(LNG) M8X25 FLANGE | ||
| 211 | I8-97518 862-0 | CLIP; HOSE | 1 | 2110- | AB | A/T 6 SPEED-AISIN(Y6A) (B) | ||

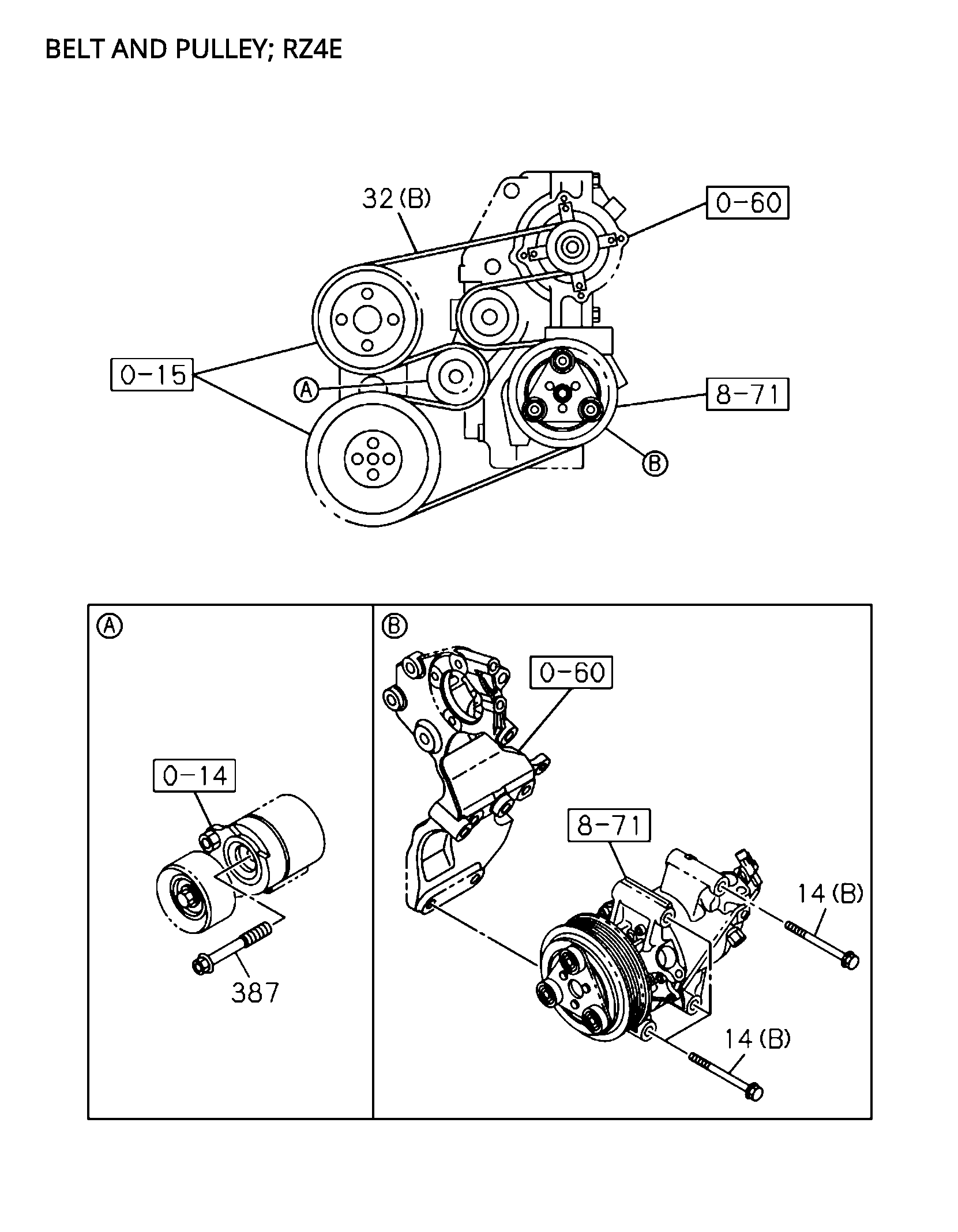

| 32 | I8-98383 501-A | BELT; A/C CMPR | 1 | 2110- | AB | ( IADG ) RZ4E-TC ENG(RDZ) (A) L=1990 MITSUBOSHI | ||
| 37 | I0-28050 816-0 | BOLT; PULLEY BRKT | 2 | 2110- | AB | 4JJ3 ENG(LNG) M8X16 FLANGE | ||
| 14 | I0-28151 000-0 | BOLT; CM PR | 4 | 2110- | AB | RZ4E-TC ENG(RDZ) (B) M10X100 FLANGE | ||
| 78 | I0-28050 612-0 | BOLT; EVAP.A/C | 1 | 2110- | A | M/T MVL 6 SPEED 6Y(Y6P) M6X12 FLANGE | ||
| 387 | I8-98481 251-0 | BOLT; TENSIONER FIX | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) EUROO SPECIFICATI0N(K75),EUR02 SPECIFICATI0N{NT2),EUR04 SPECIFICATION(NT4) M12X84 FLANGE | ||

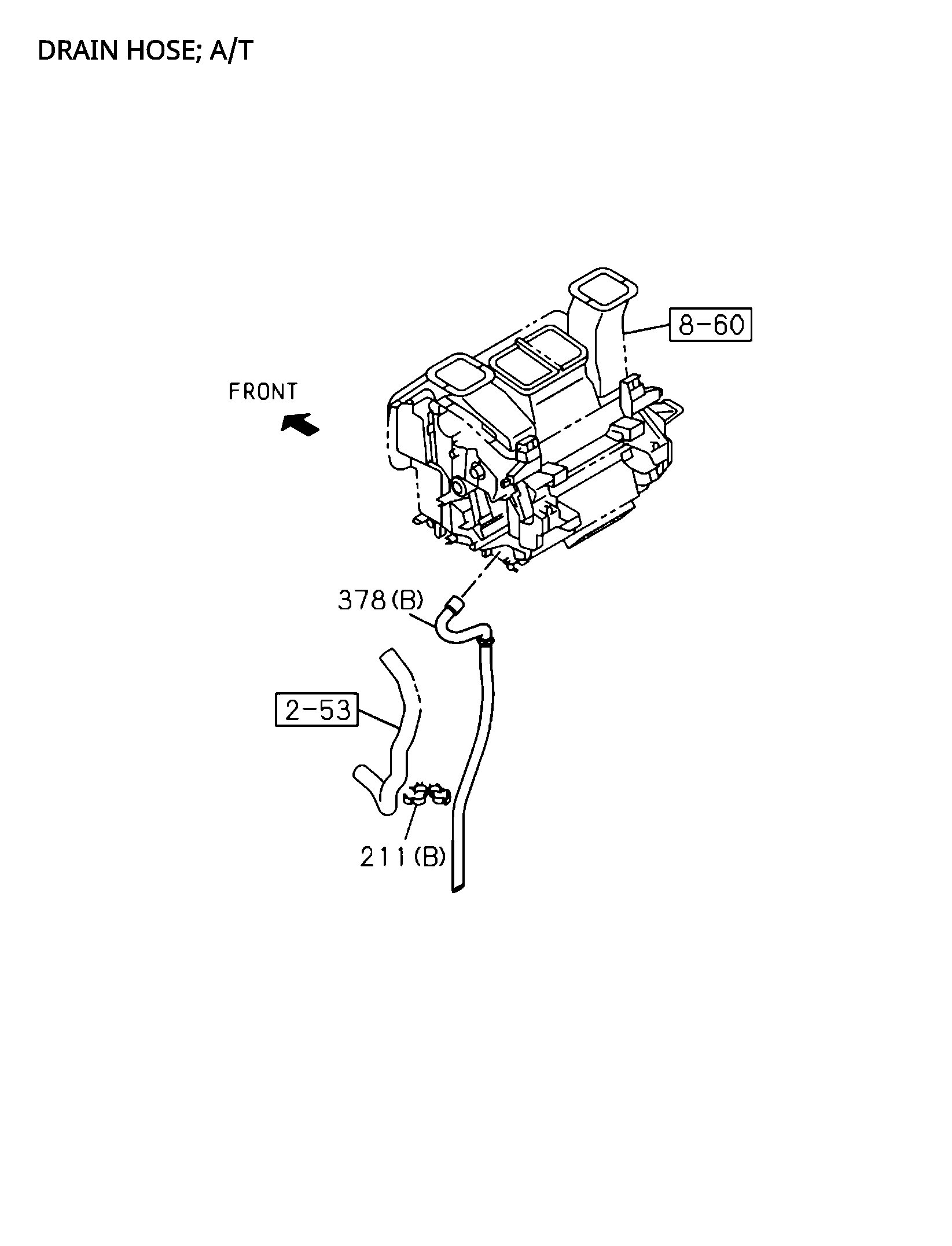

| 378 | I8-97491 677-0 | HOSE; DRAIN.EVAPORATOR | 1 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (A) | ||
| 32 | I8-98383 501-0 | BELT; A/C CMPR | 1 | 2110- | AB | RZ4E-TC ENG(RDZ) (A) L=1990 MITSUBOSHI |
