8-65 | 8-65 - CONTROL LEVER; HEATER AND AIR CON
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

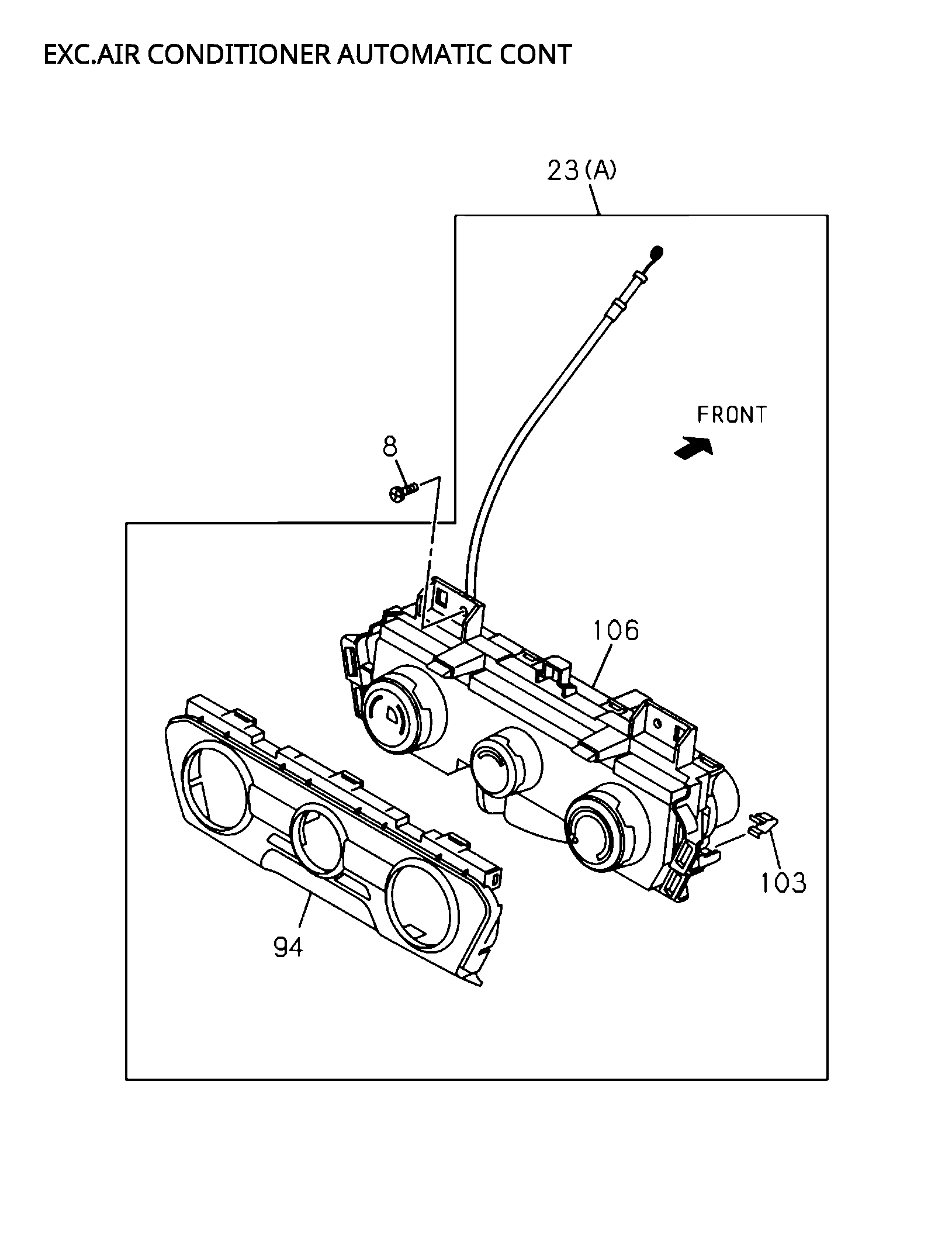

| 106 | I8-97685 757-0 | CONTROL SUB ASM; HTR & A/C | 1 | 2110- | AB | COOLER W/FRESH AIR(C65) GRADE LUXURY(RBC) | ||
| 23 | I8-97507 021-0 | BEZEL; CONT LEVER | 1 | 2110- | AB | COOLER W/FRESH AIR(C65) GRADE LUXURY(RBC) (A) | ||

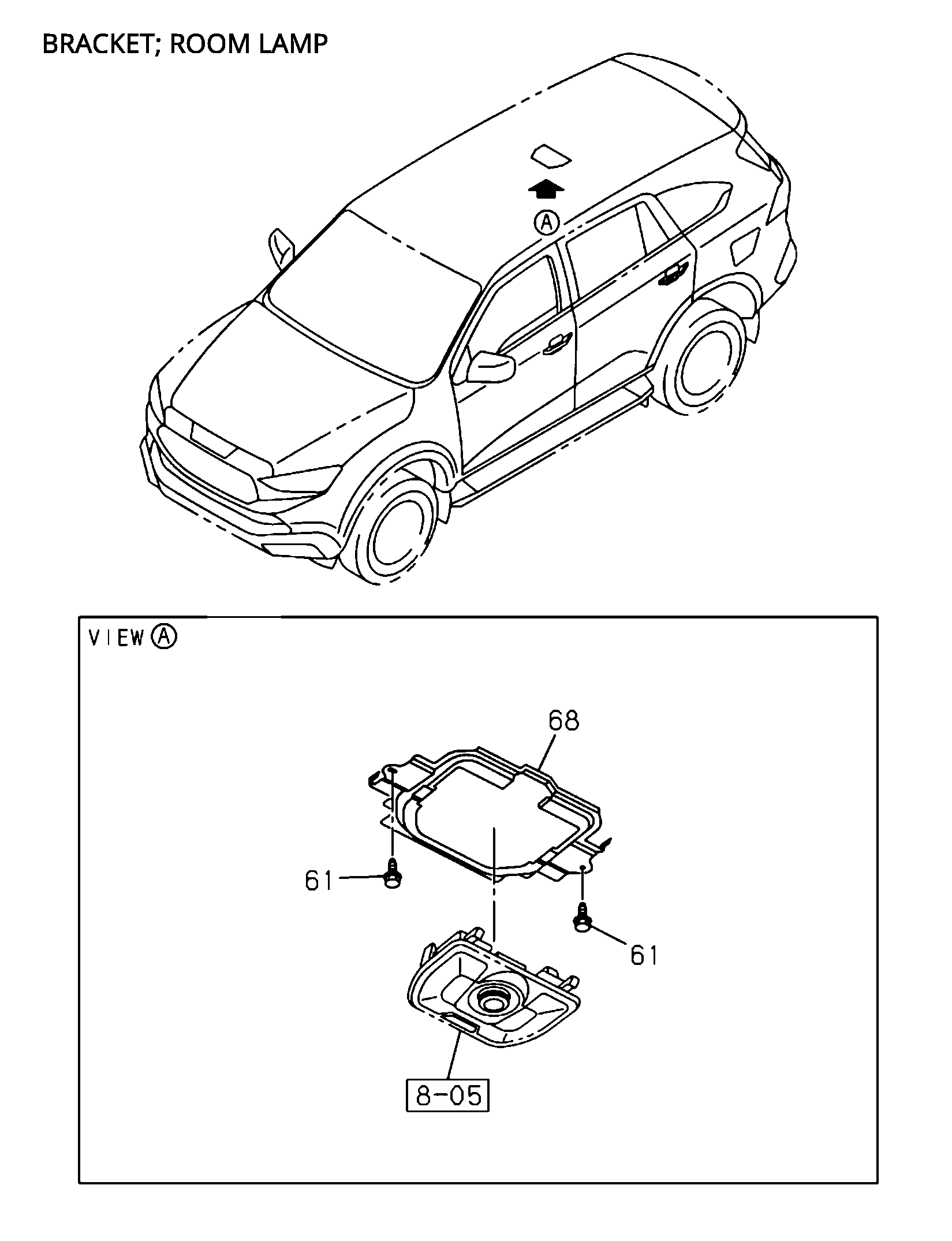

| 68 | I8-97507 675-0 | BRACKET; BEZEL | 1 | 2110- | AB | |||

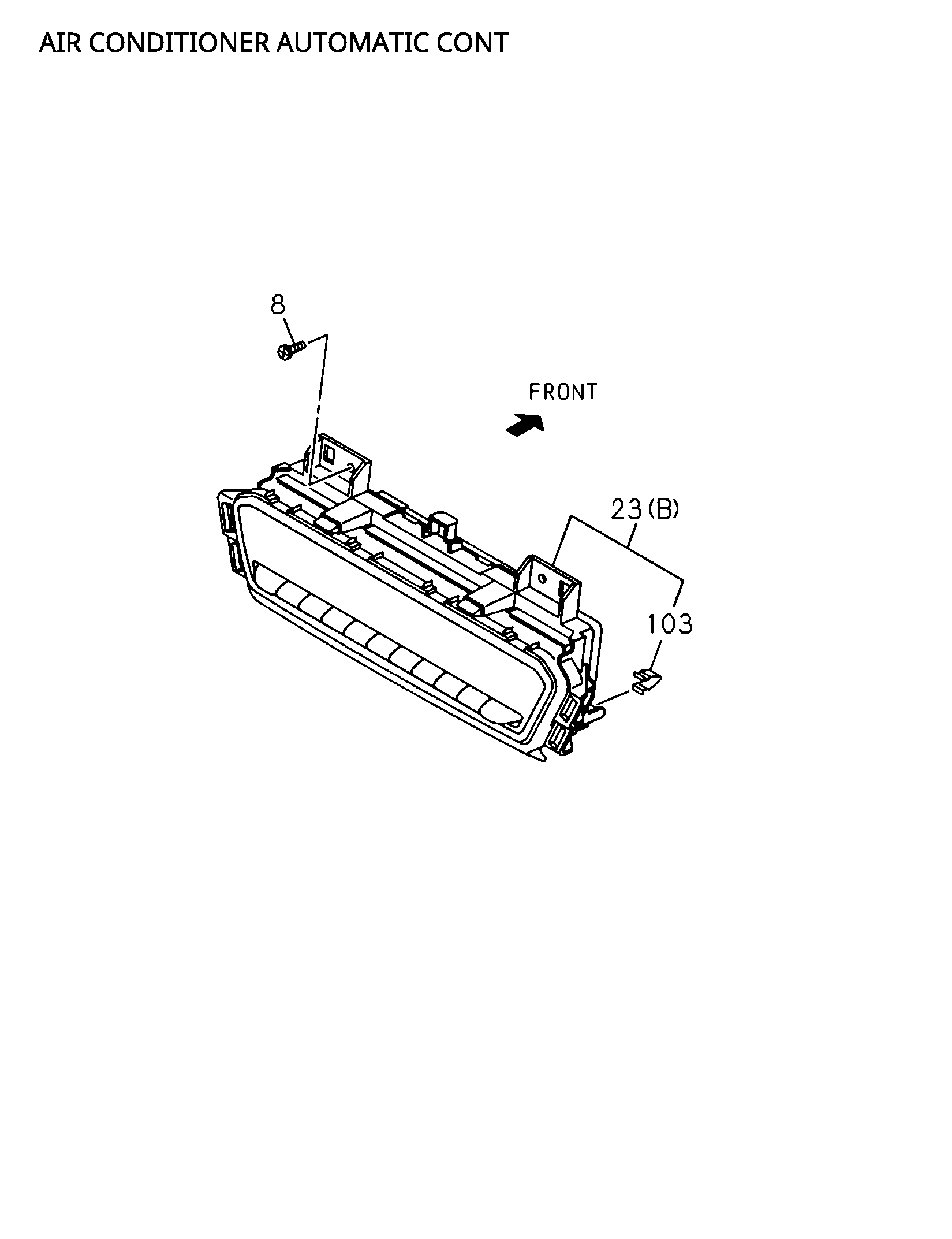

| 23 | I8-97507 040-1 | BEZEL; CONT LEVER | 1 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) (B) | ||
| 103 | I8-97554 439-0 | CLIP | 2 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) | ||
| 61 | I8-97108 669-0 | BOLT; CONT LEVER | 2 | 2110- | AB | M6X12 FLANGE | ||
| 103 | I8-97508 564-0 | CLIP | 2 | 2110- | AB | AIR CONDITIONER AUTOMATIC CONT(C61) | ||
| 8 | I8-98167 449-0 | SCREW; CONT LVR TO INST PNL | 2 | 2110- | AB | M5X16 TAPPING | ||
| 94 | I8-97554 437-0 | PANEL; BEZEL | 1 | 2110- | AB | AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) |
