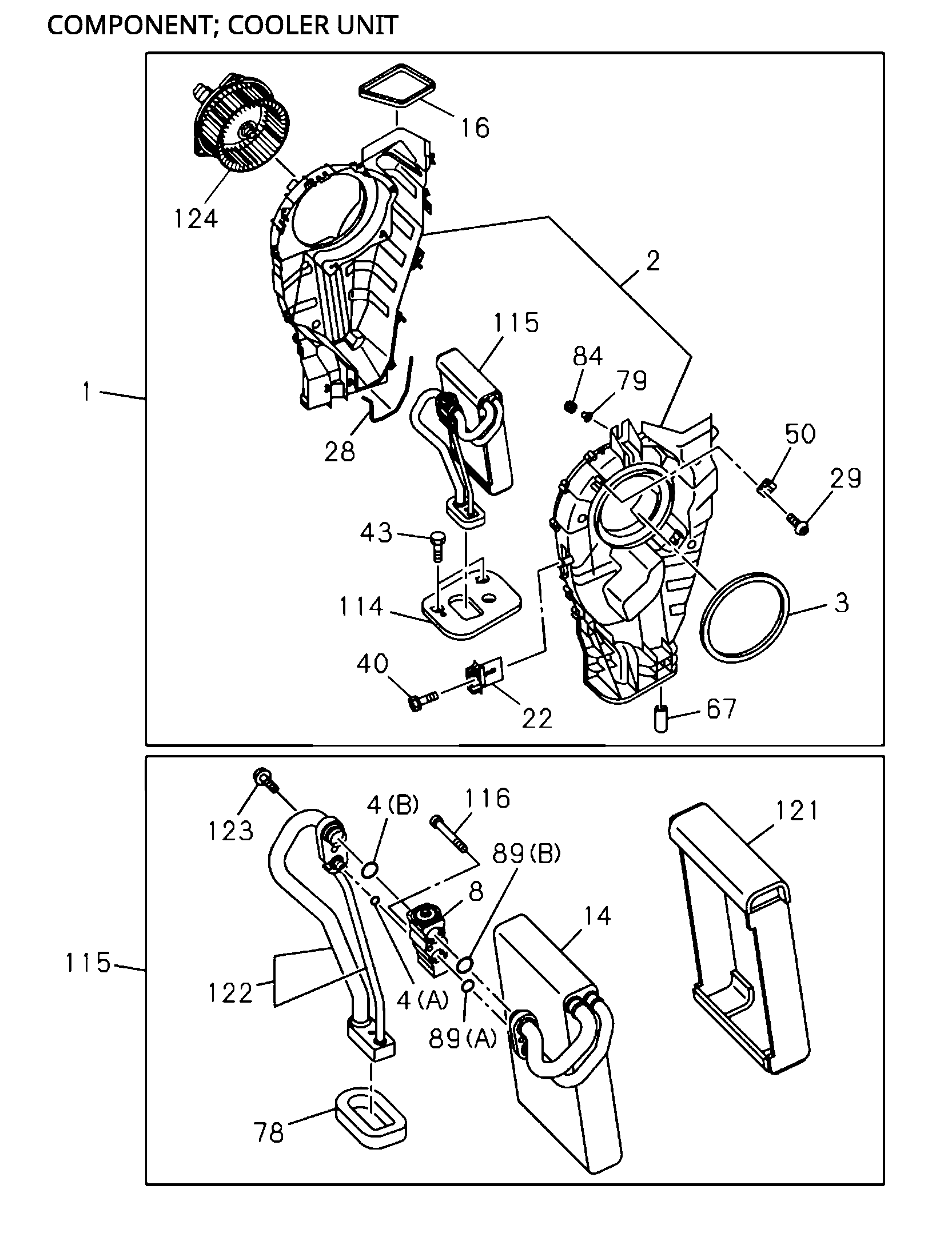

8-72 | 8-72 - COOLER UNIT
MUX
MU-X 2022
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-97685 803-0 | GASKET; VLVTO PIPE | 1 | 2110- | AB | (B) | ||
| 89 | I8-97685 802-0 | GASKET; EVAP TO VLV | 1 | 2110- | AB | (B) | ||
| 29 | I8-98233 593-0 | SCREW; CASE | 14 | 2110- | AB | |||
| 85 | I8-97327 315-0 | CLIP; DUCT | 3 | 2110- | AB | |||
| 14 | I8-97685 797-0 | EVAPORATOR; RR COOLER | 1 | 2110- | AB | |||
| 16 | I8-97685 792-0 | LINING; CASE | 1 | 2110- | AB | |||
| 84 | I8-98249 812-0 | RUBBER | 1 | 2110- | AB | |||
| 79 | I8-98249 813-0 | COLLAR; COOLER UNIT | 1 | 2110- | AB | |||
| 78 | I8-98249 827-0 | GROMMET; COOLER UNIT | 1 | 2110- | AB | |||
| 50 | I8-97685 808-0 | BRACKET; COOLING UNIT | 2 | 2110- | AB | |||
| 89 | I8-97685 801-0 | GASKET; EVAP TO VLV | 1 | 2110- | AB | (A) | ||
| 124 | I8-97685 809-0 | BLOWER ASM | 1 | 2110- | AB | |||
| 2 | I8-97685 784-0 | CASE; RR COOLER | 1 | 2110- | AB | |||
| 22 | I8-97553 738-0 | RESISTOR; RR COOLER | 1 | 2110- | AB | |||
| 121 | I8-98251 842-0 | INSULATOR; | 1 | 2110- | AB | |||
| 67 | I8-98249 814-0 | HOSE; DRAIN | 1 | 2110- | AB | |||
| 28 | I8-98249 815-0 | LINING; CASE | 1 | 2110- | AB | |||
| 3 | I8-97685 791-0 | LINING; CASE | 1 | 2110- | AB | |||
| 81 | I8-97844 802-0 | DUCT; RR COOLER | 1 | 2111- | AB | |||
| 8 | I8-97685 798-0 | VALVE; EXPANSION | 1 | 2110- | AB | |||
| 115 | I8-97685 795-0 | EVAPORATOR ASM; COOLING UNIT | 1 | 2110- | AB | |||
| 123 | I8-98249 828-0 | SCREW | 1 | 2110- | AB | |||
| 122 | I8-97685 799-0 | PIPE ASM; EVAP | 1 | 2110- | AB | |||
| 1 | I8-97506 762-1 | COOLING UNIT; RR | 1 | 2110- | AB | |||
| 43 | I8-98249 830-0 | BOLT; COOLER UNIT | 2 | 2110- | AB | |||
| 40 | I8-98139 395-0 | SCREW; RESISTOR FIX.COOLER UNIT | 2 | 2110- | AB | |||
| 116 | I8-98249 822-0 | BOLT; EXPANSION VALVE | 2 | 2110- | AB | |||
| 58 | I8-98055 704-0 | NUT; CASE | 3 | 2110- | AB | M6 FLANGE | ||
| 114 | I8-97685 790-0 | SEAL; CASE | 1 | 2110- | AB | |||
| 4 | I8-97550 281-0 | GASKET; VLVTO PIPE | 1 | 2110- | AB | (A) |
