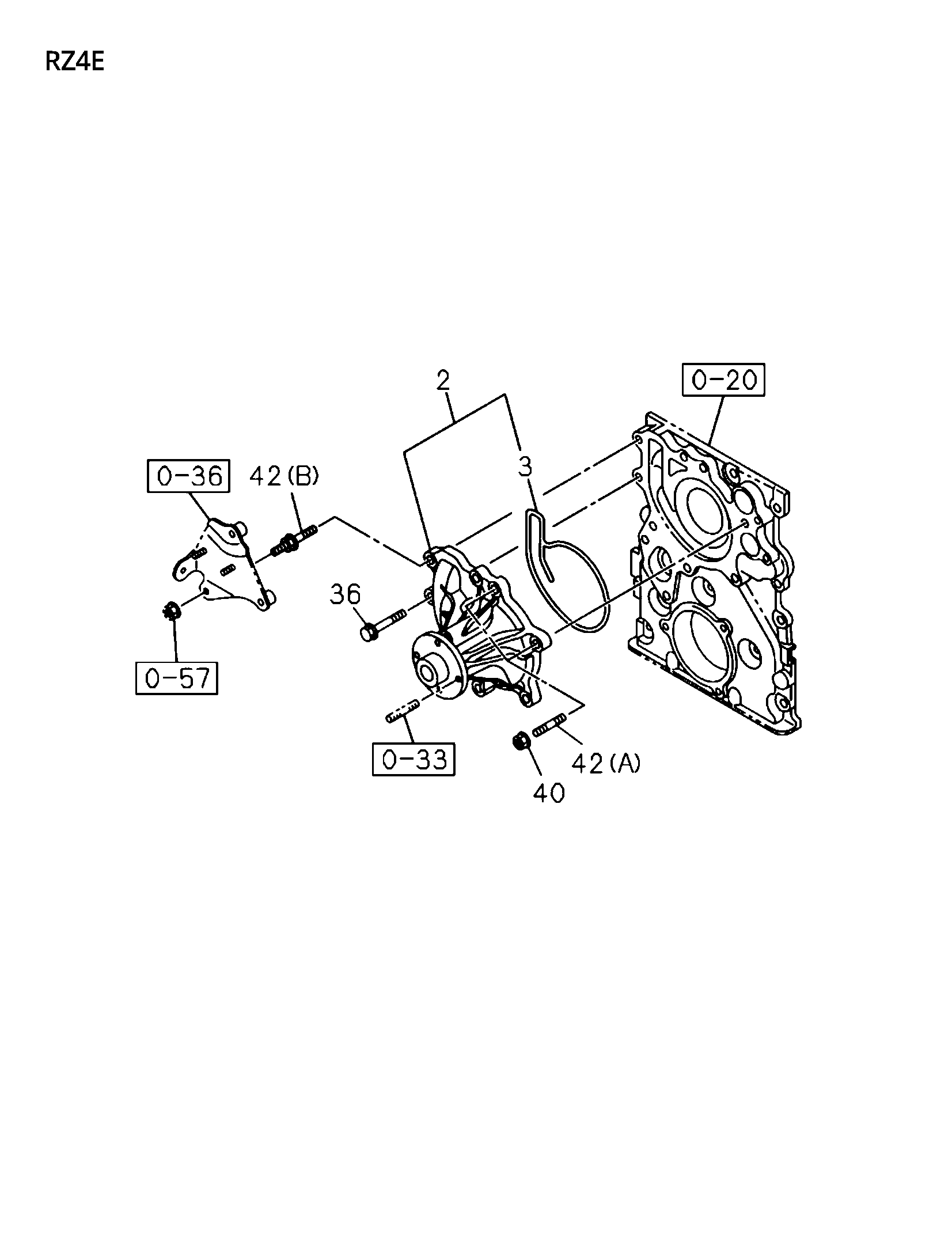

0-30 | 0-30 - WATER PUMP AND CORROSION RESISTOR
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | I0-91180 208-0 | NUT, WATER PUMP | 2 | 2110- | B | M8FLANGE | ||
| 36 | I0-28050 850-0 | BOLT, WATER PUMP TO C/BL | 5 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X50 FLANGE | ||
| 40 | I0-91180 208-0 | NUT, WATER PUMP | 2 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8 FLANGE | ||
| 36 | I0-28050 850-0 | BOLT, WATER PUMP TO C/BL | 4 | 2110- | B | M8X50 FLANGE | ||
| 2 | I8-97876 944-0 | PUMP ASM, WATER | 1 | 2311- | ||||
| 3 | I8-97876 947-0 | GASKET, PUMP TO C/BL | 1 | 2311- | ||||
| 42 | I0-41010 825-0 | STUD, WATER PUMP | 2 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) M8X25 L=37 | ||
| 155 | I0-91180 208-0 | NUT, PIPE | 2 | 2110- | B | M8 FLANGE |
