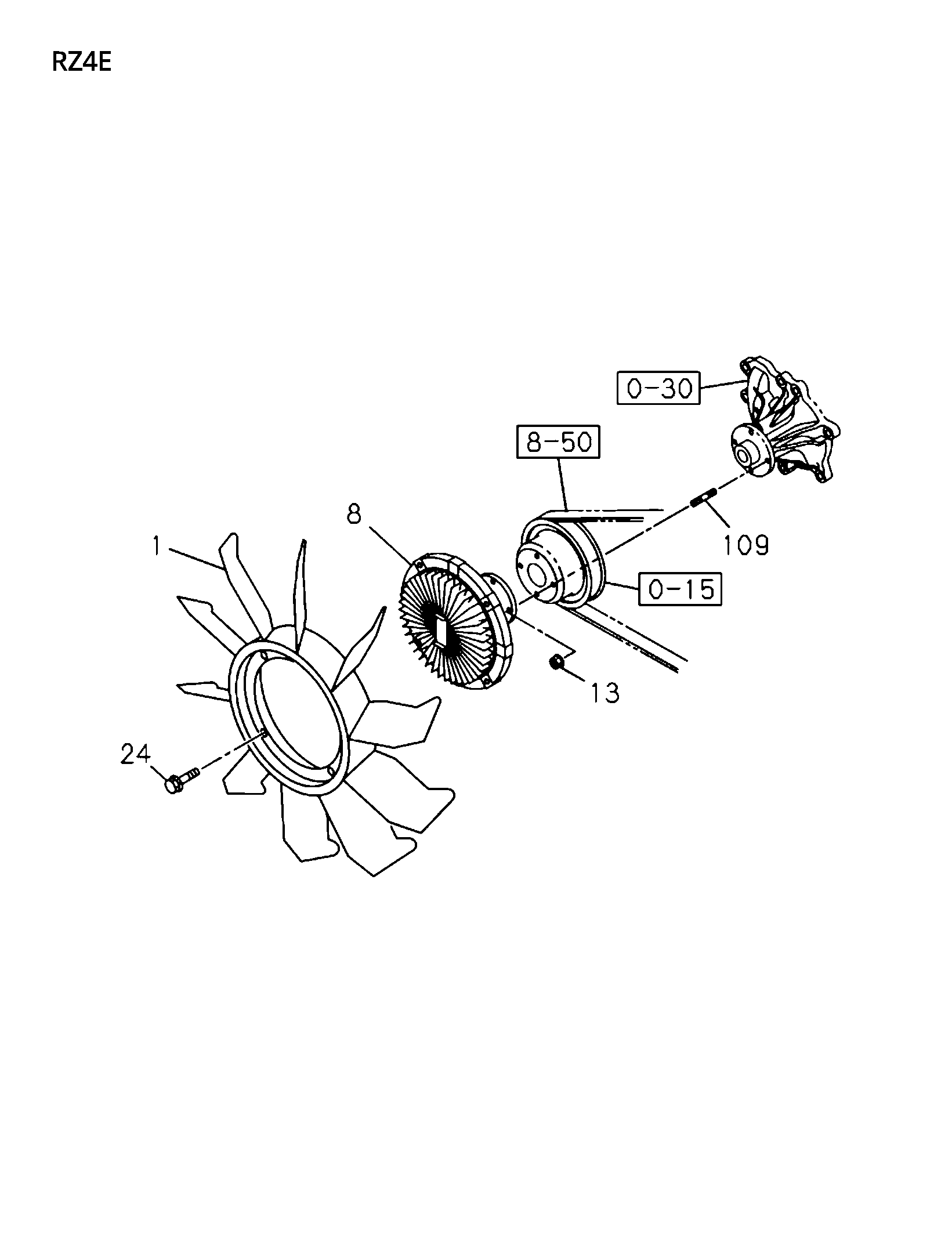

0-33 | 0-33 - FAN AND FAN BELT
MUX
MU-X 2024
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 147 | I0-28651 020-0 | BOLT, BELT TENSIONER | 3 | 2110- | B | M10X20 FLANGE | ||
| 13 | I8-98049 362-0 | NUT, COOLING FAN | 4 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M6 FLANGE | ||
| 24 | I0-28650 625-0 | BOLT, FAN | 4 | 2110- | AB | M6X25 FLANGE | ||
| 109 | I8-98318 479-0 | STUD, FAN CLU | 4 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M 6X19 L=27 | ||
| 1 | I8-98162 703-0 | FAN, COOLING | 1 | 2110- | AB | |||
| 13 | I8-98049 362-0 | NUT, COOLING FAN | 4 | 2110- | B | M6 FLANGE | ||
| 8 | I8-98119 213-1 | CLUTCH, COOLING FAN | 1 | 2110- | A B |
