0-40 | 0-40 - FUEL INJECTION SYSTEM
MUX
MU-X 2024

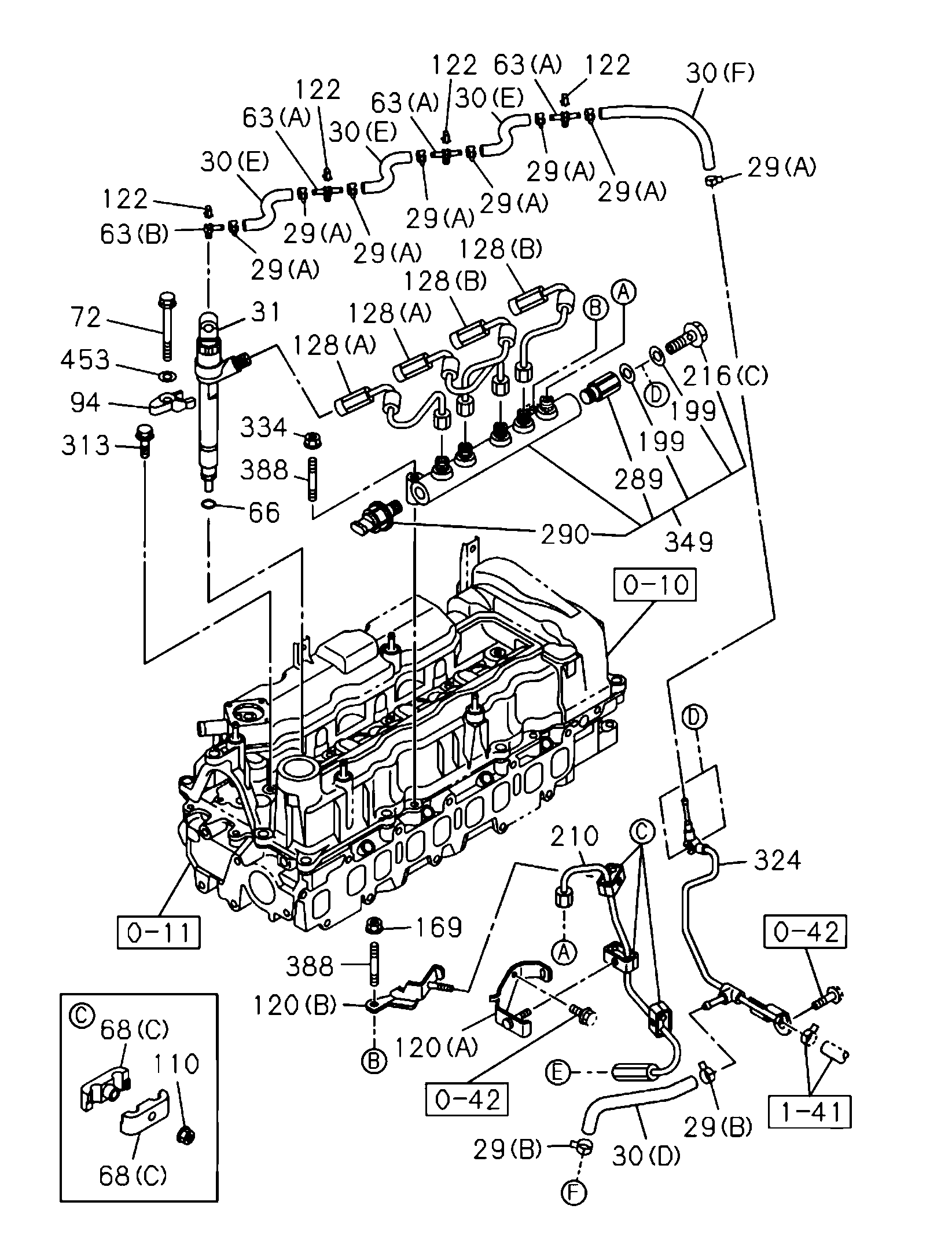

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 30 | I8-97679 782-0 | HOSE, RUBBER,FUEL LEAK | 2311- | |||||
| 29 | I8-97944 126-0 | CLIP, HOSE | 8 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (A) ID=10.5 | ||
| 334 | I0-91180 208-0 | NUT, FLANGE | 2 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8 FLANGE | ||
| 30 | I8-97679 770-0 | HOSE, RUBBER,FUEL LEAK | 2311- | |||||
| 31 | I8-97664 857-0 | NOZZLE ASM, INJ | 4 | 2311- | ||||
| 453 | I8-98302 470-0 | WASHER, INJ NOZZLE | 4 | 2110- | A | EURO4 SPECIFICATIONS),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 313 | I8-98247 614-1 | BOLT, BRKT,INJ NOZZLE | 4 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M6X25 FLANGE | ||
| 169 | I0-91180 108-0 | NUT, BRKT | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8 FLANGE | ||
| 110 | I0-91180 106-0 | NUT, CLIP | 3 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 rnrrTnrATTnki/kiTii^ | ||
| 94 | I8-98248 087-1 | BRACKET, INJ | 4 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) | ||
| 122 | I8-97315 286-0 | CLIP, LEAK OFF PIPE | 2311- | |||||
| 175 | I8-98271 921-0 | GASKET, EYE BOLT,OIL INLET | 2311- | |||||
| 128 | I8-97679 756-0 | PIPE ASM, INJ | 2311- | |||||
| 29 | I8-97944 126-0 | CLIP, HOSE | 10 | 2110- | B | (A) ID=10.5 | ||
| 148 | I1-09623 541-0 | RING | 1 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) ID=49.7 | ||
| 388 | I8-98356 094-0 | STUD, RAIL | 2 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATI0N(NT4) M8X72.5 L=100 | ||
| 63 | I8-98211 776-0 | PIPE ASM, LEAK OFF | 2311- | |||||
| 128 | I8-97679 757-0 | PIPE ASM, INJ | 2311- | |||||
| 452 | I0-91180 208-0 | NUT, SUPPLY PUMP | 2 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8 FLANGE | ||
| 68 | I8-98148 996-2 | CLIP, INJ PIPE | 6 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) (C) ID=11 &11 L=19 | ||
| 210 | I8-97821 035-0 | PIPE, INJ,C/R | 2311- | |||||

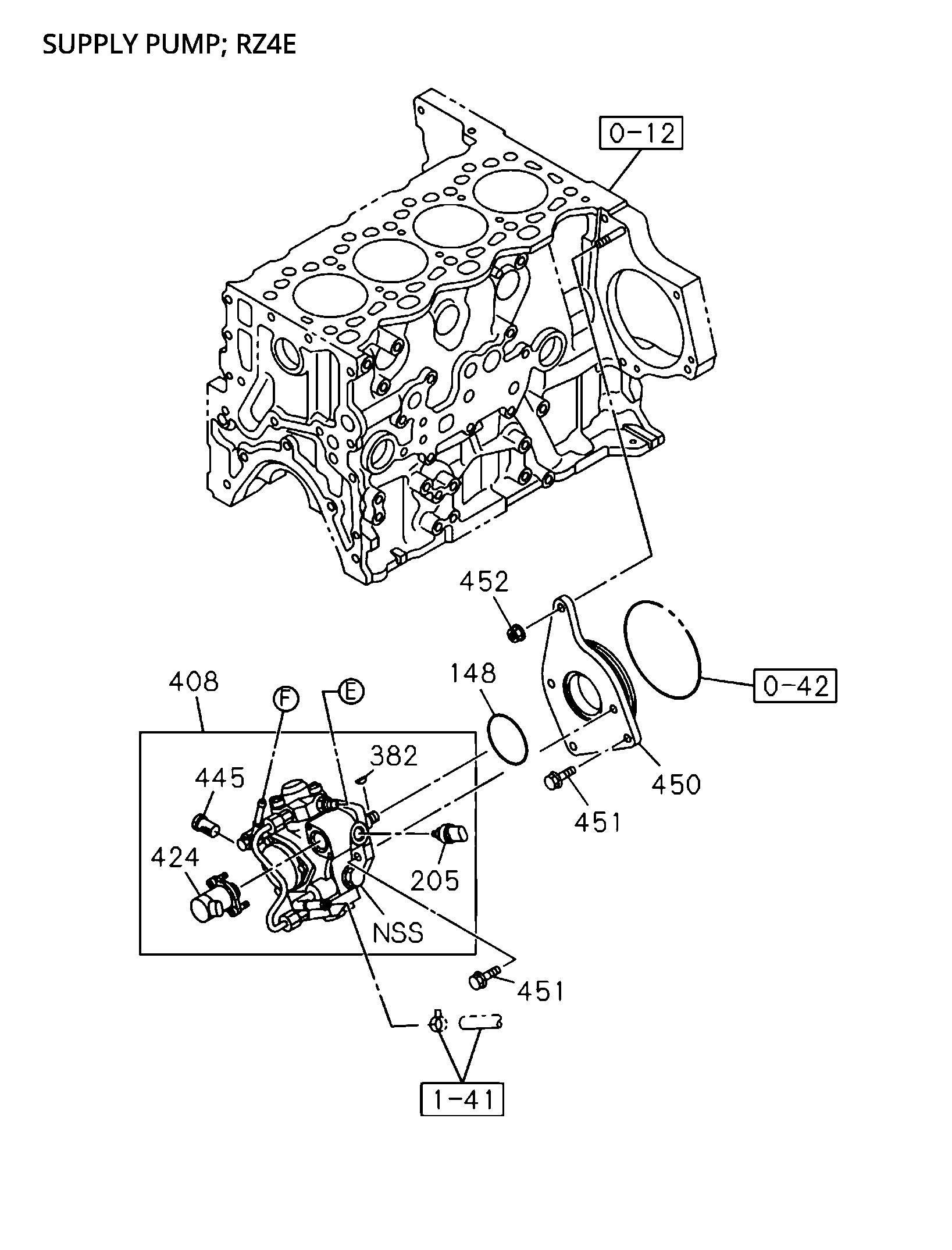

| 408 | I8-97664 859-0 | PUMP ASM, FUEL,SUPPLY | 1 | 2311- | ||||
| 30 | I8-97679 771-0 | HOSE, RUBBER,FUEL LEAK | 2311- | |||||
| 66 | I8-97679 867-0 | GASKET, INJ NOZZLE | 4 | 2311- | ||||
| 450 | I8-97679 752-0 | ADAPTER, SUPPLY PUMP | 1 | 2311- | ||||
| 324 | I8-97821 033-0 | PIPE, FUEL RETURN | 1 | 2311- | ||||
| 216 | I8-97499 107-0 | BOLT, EYE | 2311- | |||||
| 63 | I8-98211 775-0 | PIPE ASM, LEAK OFF | 2311- | |||||
| 349 | I8-97664 860-1 | RAIL, COMMON | 1 | 2311- | ||||
| 120 | I8-97821 034-0 | BRACKET, INJ PIPE | 2311- | |||||
| 324 | I8-97679 763-0 | PIPE, FUEL RETURN | 1 | 2311- | ||||
| 451 | I0-28050 825-0 | BOLT, SUPPLY PUMP | 3 | 2110- | A | EURO4 SPECIFICATI0N(K75),EUR02 SPECIFICATI0N(NT2),EUR04 SPECIFICATION(NT4) M8X25 FLANGE |
